Zyxel Multy Plus - Model WSQ60
AC3000 Tri-Band WiFi System

Sorry, this product is no longer available, Please contact us for a replacement.



The best fit WiFi system for your business

Retails? Restaurants? Offices? The Zyxel Multy Plus is designed as a businessfriendly mesh network solution, so that owner can setup their network easily. It creates a fast, reliable and secured wireless network for your business. Whether your business environment is large or small, the Multy Plus keeps you always connected.

Fully security and flexibility. So much easier!

Equipped with web-based advanced settings, stress-free app management, also with an enterprise-grade security protection, the Zyxel Multy Plus gives you peace of mind to simple deploy. The Mutly Plus’ concise and clever spacesaving installation provides a simple setup with 5-in-1 placement options.

  • Tri-Band mesh WiFi system bring strong WiFi signals throughout your commercial location

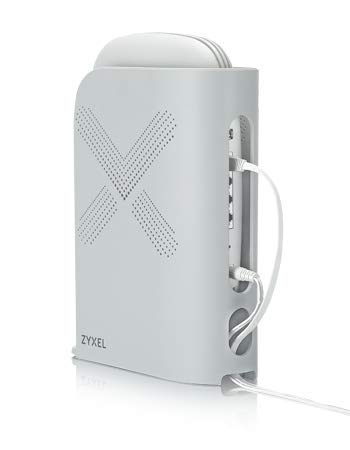

  • Flexible placement options: desktop, stand holder, wall/ ceiling, T-bar mount
  • Experience hassle-free installation with web browser or Multy app
  • Visitor WiFi hotspot with fully customizable captive portal
  • Three WiFi networks with secured traffic separation
  • Enterprise-grade security services for complete network protection


Extend your WiFi coverage further with Daisy-chaining

Daisy-chaining enables the Zyxel Multy Plus to create a continuous wireless connection to reach the entire workplace. No matter where you are in the workplace, you can deploy multiple Multy Plus nodes throughout your environment providing even greater wireless coverage.

Powerful Tri-Band design delivers the ultimate WiFi experience

Experience no degradation in speed and reliability with its dedicated wireless backbone for creating a large wireless network coverage in your business environment.

Mesh technology is the best solution to the WiFi congestion

A mesh-based WiFi network helps organize an evenly spread signal. It can automatically connects your devices to the fastest path for stronger signal strength without effort.

Advanced WiFi settings to customize your network

The web-based interface enables the Zyxel Multy Plus users to manage their network on a computer and access advanced features.

Easy installation and management with user-friendly Multy app

The Multy app makes it easy to get your business network well underway, make sure your network is healthy all through your smartphone.

Visitor WiFi hotspot with fully customizable captive portal

Provide your visitors with fast and reliable WiFi network without interfering your own business network. Enable a web captive portal to provide your terms and condition for your visitors’ WiFi connection.

Superior threat prevention with AiShield

Zyxel Multy Plus’s enhanced network security services protects your online usage. Its enterprise-class protection, intuitive and easy-to-use service gives you a peace of mind that your devices are protected.

Visitor WiFi network ensures business privacy

Create up to three WiFi networks with secured traffic separation through our web browser management tool without exposing your data privacy. Keep your network secure by offering a complete segregated visitor WiFi.

Remote access your Multy Plus system from your mobile phone anywhere

Keep your business network up and running, even if you’re not on-site. Maintain multiple Multy Plus systems in different remote locations through your phone wherever/wherever you are.

Roam seamlessly on WiFi throughout your business area

Create one unified WiFi network for all your business devices, the Zyxel Multy Plus automatically connects to the stronger signal that provide the fastest speeds as you move through the Multy Plus node without the need to reconnect.


System Specifications
Speed Rating (per unit) AC3000 (1733+867+400 Mbps)
Coverage Up to 5000 sq. ft./464 m2*
Wireless Standard IEEE 802.11 b/g/n 2.4 GHz - 256QAM support
IEEE 802.11 a/n/ac 5 GHz Wave 2, 5GHz - 256QAM support
Wireless Speed Transmit & Receive
  • 1733 Mbps** for 5 GHz (dedicated backhaul)
  • 867 Mbps** for 5 GHz
  • 400 Mbps** for 2.4 GHz
Web Browser
Advanced wired & wireless setup and management
Diagnose & speed tests
Access control
Visitor network & captive portal setup
Easy installation & management - Multy app
Easy to setup
  • Support myZyxelCloud SSO (Single-Sign-On) system
  • Quick Bluetooth setup
  • Support wireless site survey to identify optimum installation locations between node to node
  • Support combining/separating 2.4GHz and 5GHz WiFi network from each other in WiFi system
Support Internet access control
  • Block or allow specific group based on time schedule
  • Flexible override Internet access for specific device group
Support visitor WiFi setting
  • Share network name and password via QR code for your visitors
  • Monitor of active concurrent visitor devices connected
Diagnose network via speed test
Push notification
  • New firmware available
  • Speed test result
  • New device connected
Remote management
Automatic updates for new features
Support iOS 9/Android 5.0 or later
Support language: EN/ZH/DE/ES/FR/IT/PT
Cyber security management - AiShield app
(Multy Plus comes with a 1-year security license)
Malware & Ransomware Blocker
Anti-virus, Anti-spam, Anti-phishing, Anti-botnet
Safe Browsing
Content Filtering
Application Patrol
IoT Security
Access Control
Hardware Specifications
Memory 4 GB eMMC and 512 MB RAM

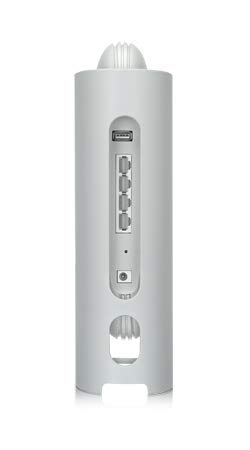

WAN One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/ MDIX support
LAN Three 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/ MDIX support
Antenna 9 Internal Antennas
USB One USB2.0 port
LED indicator Status indication/ Auto dimming
Buttons Reset
Power 12 V DC, 3 A
Power consumption 25 watt max
Physical Specs (per unit)
Item dimensions
(W x D x H)
236 x 178 x 51.5 mm
(9.3" x 7.0" x 2.0")
Item weight 740 g (1.63 lb.)
Packing dimensions
(W x D x H)
250 x 128 X 339 mm
(9.8" x 5.0" x 13.3")
Packing weight 1884 g (4.15 lb.)
Environmental Specifications
Operating Environment Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage Environment Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% to 95% (Non-condensing)
Package Contents
Multy Plus
Power adapter
Ethernet cable
Quick start guide
Mounting kits
Voice control with Amazon Alexa
Live-chat in forum
App feedback included

* Cover up to 7,500 sq. ft. with three nodes of Multy Plus.

** The maximum wireless data transfer rates of up to 400 Mbps at 2.4 GHz and 867 Mbps at 5 GHz in simultaneous transmission are derived from the IEEE Standard 802.11 specifications. Actual data transfer rates may vary from network conditions including: distance, network traffics, building site material/construction, interference from other wireless devices and other adverse factors.


Download the Zyxel Multy Plus (Model WSQ60) Datasheet (PDF).
