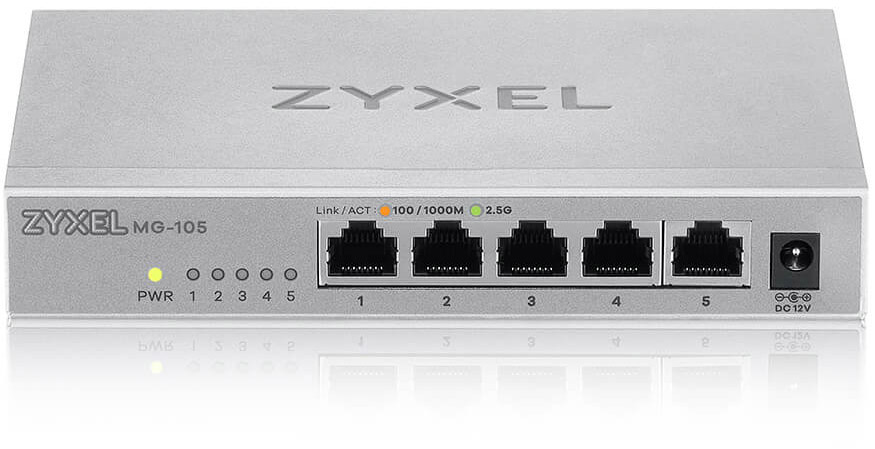

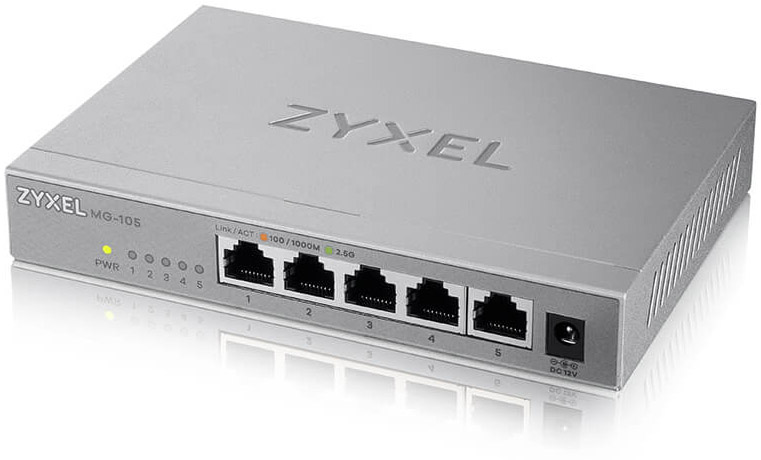

Zyxel MG-105 Discontinued
5-Port 2.5GbE Unmanaged Switch

Sorry, this product is no longer available

Please contact us to explore replacement options or consider visiting our Legacy Products Licensing page, where you can purchase licenses for our discontinued products.

Overview:

Move to 2.5G High-Speed Network Instantly

The Zyxel 2.5 Gigabit Switch MG-105/MG-108 are the perfect candidates to upgrade your network speed and performance, bringing you up to 2.5 times faster experience than today’s Gigabit network. Unlike traditional gigabit switches, our MG-105/MG-108 supports 2.5G for all its Ethernet ports which can boost the entire network performance up to 2.5 Gbps at once without compromising to limited high-speed port availability. Out-of-the-box network speed upgrade turns MG-105/MG-108 into an optimal solution for home or small office users who needs more bandwidth for their network with demands coming from online gaming activities, multimedia streaming services or faster wireless network connectivity without the complex configuration.

Support 2.5GbE on all ports
Instantly upgrade speed up to 2.5 times
Increase home networking speed without extra cabling cost
Access Internet just plug-and-play
Silent and stable operation

Benefits:

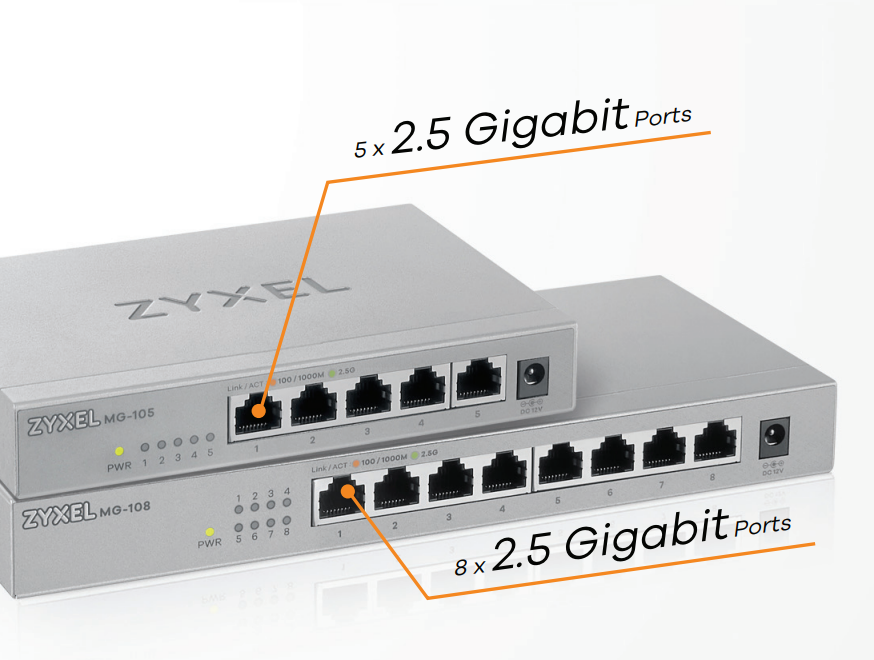

Upgrade Network to Multi-Gig

MG-105 and MG-108 come with five/eight 2.5 Gigabit ports to optimize performance of your Multi-Gig bandwidth and devices, and provide 25/40 Gbps of switching capacity. They are an ideal choice for LAN parties, home entertainment, SoHo and offices.

Plug-n-Play, Enjoy High Speed Network

Easily connect MG-105 or MG-108 to the latest 2.5G-capable network devices such as 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, WiFi 6 AP, 4K video, desktop, and more and more to instantly enjoy high performance networking and smoother home entertainment experience with its simplified plug-and-play technology.

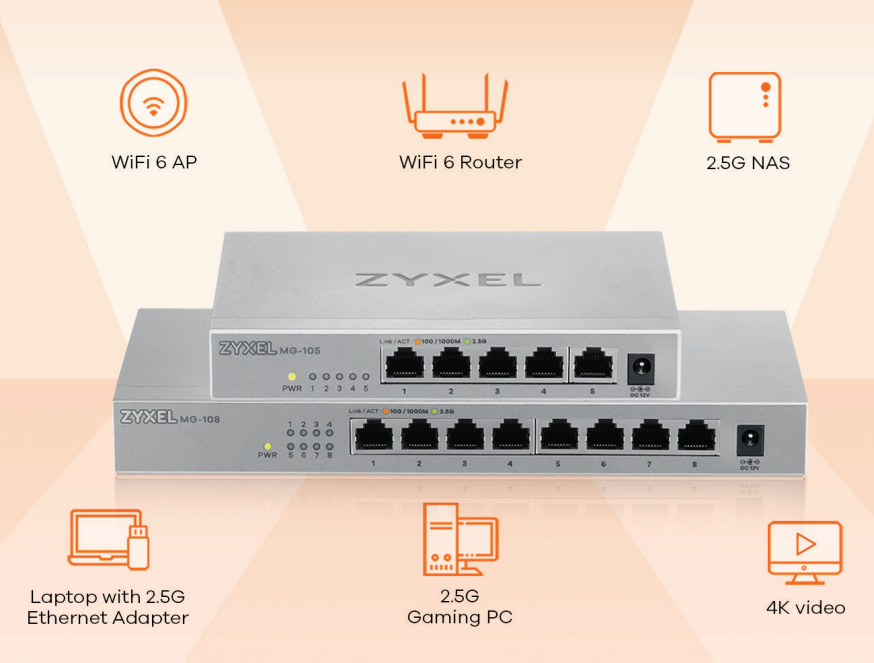

Use your existing cables

The Multi-Gigabit RJ-45 ports not only provide more speed options for your network, but it can increase your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee!

Fanless Design For True Silent Operation

MG-105 and MG-108 are built with fanless and sturdy hardware design to ensure all-time silent and stable operation. They are perfect for every home or business environment.

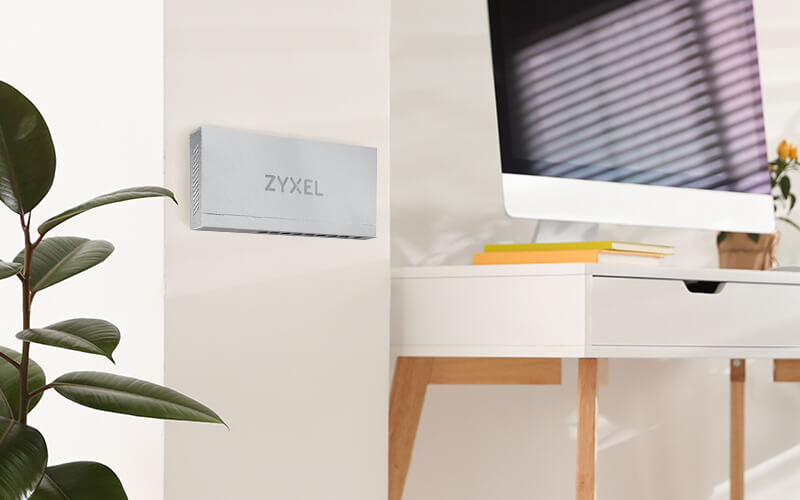

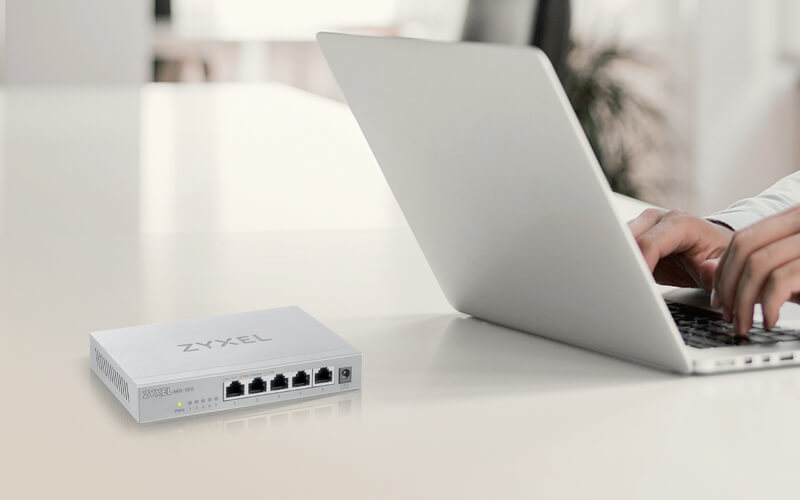

Flexible Deployment In Your Room

The mounting option gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.

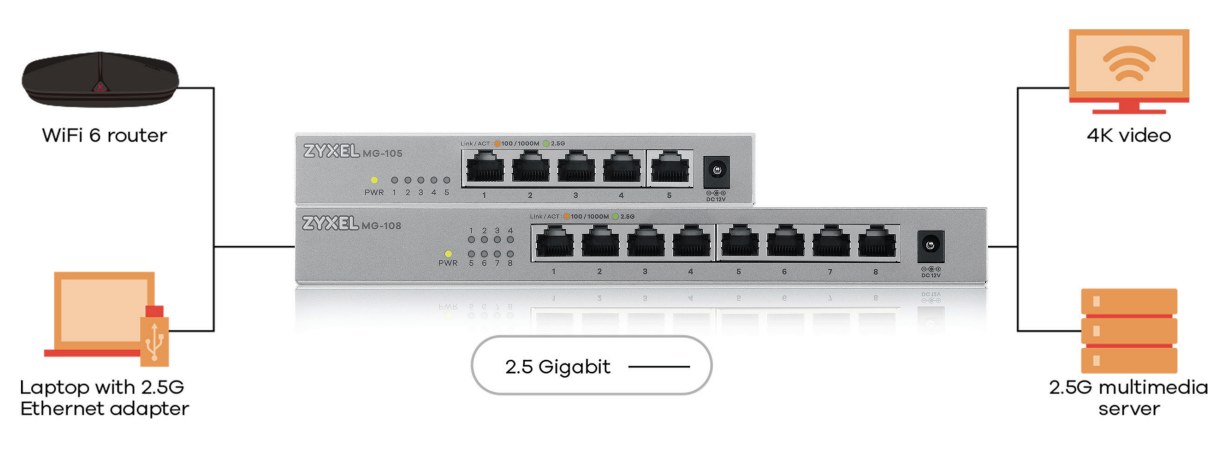

Application Diagram:

Standalone Management

Specifications:

	MG-105	MG-108
Models
Product name	5-Port 2.5GbE Unmanaged Switch	8-Port 2.5GbE Unmanaged Switch
Port Density
Total port count	5	8
2.5GBASE-T	5	8
Performance
Switching capacity	25 Gbps	40 Gbps
Forwarding rate	18.6 Mpps	29.8 Mpps
Packet buffer	12 MB	12 MB
MAC address table	16 K	16 K
Jumbo frame	12 KB	12 KB
LED
Power	Yes	Yes
Per port	Yes	Yes
Power
Input	100 to 240 V AC, 50/60 Hz	100 to 240 V AC, 50/60 Hz
Power supply	External	External
Max. power consumption (watt)	9.34	12.24
Min. power consumption (watts)	3.83	4.48
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.) 160 x 110 x 26/6.3 x 4.33 x 1.02 Weight (kg/lb.) 460/1.01	Dimensions (WxDxH)(mm/in.) 240 x 106 x 26/9.45 x 4.13 x 1.02 Weight (kg/lb.) 640/1.41
Packing	Dimensions (WxDxH)(mm/in.) 215 x 133 x 79/8.46 x 5.24 x 3.11 Weight (kg/lb.) 919.6/2.03	Dimensions (WxDxH)(mm/in.) 256 x 132 x 78/10.08 x 5.20 x 3.07 Weight (kg/lb.) 1,122/2.47
Environmental Specifications
Operating	Temperature 0°C to 40°C/32°F to 104°F Humidity 10% to 90% (non-condensing)
Storage	Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing)
Others
Standard	IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBASE-T IEEE 802.3x full duplex operation and flow control IEEE 802.1p QoS IEEE 802.3 Nway auto-negotiation
Features	100M, 1G and 2.5G ports for multi speed Fanless and quiet Plug and Play, Easy use and Quick Install Desktop and Wall mount Auto-MDI/MDIX in all ports

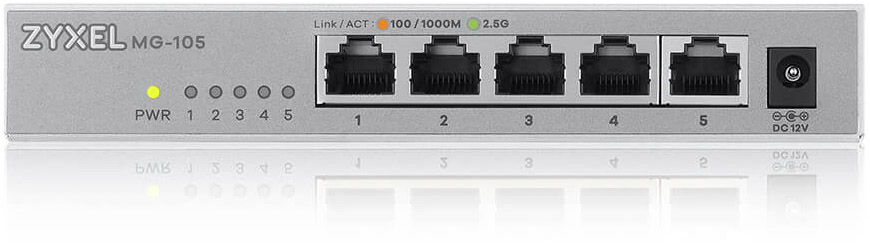

LED Indicator	PWR: Power Per port: Link/Activity Amber: 100/1000 Mbps Green: 2.5 Gbps
Certification	CE, EAC, FCC, BSMI Class B
Package Contents	Switch Power adapter Quick Start Guide Safety warning and doc.

Documentation:

Download the Zyxel MG100 Series Datasheet (PDF).
