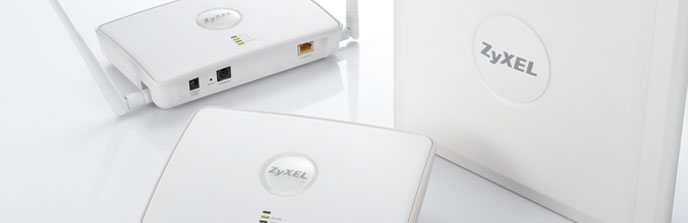

ZyXEL Wireless LAN APs and Controllers
A stable solution for SMBs to deploy mobile connectivity.

ZyXEL WAC5302D-S

• Clever wired and wireless network solution for individual hotel guest rooms
• The world’s first wall-plate AP design that can be mounted on wall plates or directly in anywhere
• Equipped with smart antenna which is proven able to mitigate interference from neighboring APs
• Enterprise-class 2x2 802.11ac AP supporting combined data rates of up to 1.2 Gbps
• Three downlink Gigabit Ethernet ports, including one with PoE to power for VoIP phones or other devices

ZyXEL NWA5301-NJ

• Unique back panel design that fits the majority of outlet boxes in the world
• Punch-down Ethernet interface for significantly reduced installation efforts
• 2.4 GHz 802.11n technology providing data rates of up to 300 Mbps
• High-gain antenna that optimizes Wi-Fi services for mobile devices
• LED suppress mode for comfortable room services
• Layer-2 isolation to secure personal data from leaking
• ZyXEL One Network is supported

ZyXEL NWA5121-NI

• Ceiling and wall mountable
• Plenum rated housing
• 2-in-1 standalone/managed AP design
• CAPWAP management supported
• 2.4 GHz and 5 GHz concurrent dual-band (NWA5123-NI)
• High-performance RF technology: Tx Beamforming and Rx Maximum Likelihood Demodulation (MLD)

ZyXEL NWA5123-AC

• Ceiling and wall mountable
• Plenum rated housing
• 2-in-1 standalone/managed AP design
• CAPWAP management supported
• Enterprise class 2x2 802.11ac AP supports combined data rates of up to 1200 Mbps (NWA5123-AC)
• APFlexTM and ZyXEL One Network utilities make deployment simple and fast

ZyXEL NWA5123-ACHD

• Excellent wireless coverage and performance with the latest 3x3 Wave 2 802.11ac technology
• Next generation beamforming technology delivers maximum coverage
• Innovative MU-MIMO technology increases downstream throughput by simultaneously talking to multiple devices at the same time
• Simple installation with APFlexTM or Zyxel Utility makes installation and setup a breeze whether for just single or multiple units at once
• Solid state capacitors and advanced heat dissipation ensure high reliability and long life—even in the toughest environments
• Advanced Cellular Coexistence minimizes interference from 3G/4G cellular networks

ZyXEL WAC6103D-I

• Enterprise class 3x3 802.11ac AP supports combined data rates of up to 1.75 Gbps
• “Dual-optimized antenna” allows pattern optimization adapting to wall- or ceilingmount installations
• Dynamic Channel Selection, Load Balancing and Smart Client Steering ensure optimal wireless experience
• Stylish, ultra-slim ID design as the 32 mm height blends perfectly into modern interior decorations
• APFlex and ZyXEL One Network utilities make deployment simple and fast

ZyXEL WAC6303D-S

• Excellent wireless coverage and performance with the latest 3x3 Wave 2 802.11ac technology
• Smart antenna technology and next generation beamforming deliver maximum coverage
• Innovative MU-MIMO technology increases downstream throughput by simultaneously talking to multiple devices at the same time
• Simple installation with APFlexTM or Zyxel Utility makes installation and setup a breeze whether for just single or multiple units at once
• Solid state capacitors and advanced heat dissipation ensure high reliability and long life—even in the toughest environments
• Advanced Cellular Coexistence minimizes interference from 3G/4G cellular networks

ZyXEL WAC6502D-E

• ZyXEL smart antenna provides enhanced performance anywhere
• Advanced IEEE 802.11ac delivers up to 1.75 Gbps combined data rates
• Industry-leading receive sensitivity as low as -102 dBm
• APFlexTM, DCS and tool-less bracket design streamline deployment
• ZyXEL One Network is supported

ZyXEL WAC6502D-S

• ZyXEL smart antenna provides enhanced performance anywhere
• Advanced IEEE 802.11ac delivers up to 1.75 Gbps combined data rates
• Industry-leading receive sensitivity as low as -102 dBm
• APFlexTM, DCS and tool-less bracket design streamline deployment
• ZyXEL One Network is supported

ZyXEL WAC6503D-S

• ZyXEL smart antenna provides enhanced performance anywhere
• Advanced IEEE 802.11ac delivers up to 1.75 Gbps combined data rates
• Industry-leading receive sensitivity as low as -102 dBm
• APFlexTM, DCS and tool-less bracket design streamline deployment
• ZyXEL One Network is supported

ZyXEL WAC6553D-E

• ZyXEL smart antenna provides enhanced performance anywhere
• Advanced IEEE 802.11ac delivers up to 1.75 Gbps combined data rates
• Industry-leading receive sensitivity as low as -102 dBm
• APFlexTM, DCS and tool-less bracket design streamline deployment
• ZyXEL One Network is supported

NWA1100-NH

• High output power of up to 28 dBm delivers extended coverage
• 2 external antennas with high 5 dBi gain optimized for mobile devices
• Fast 802.11n Wi-Fi with speed up to 300 Mbps improves transmission of large files or videos
• Easy deployment via client mode or repeater AP and IEEE 802.3af PoE support
• ZON Utility and ZAC minimize repetitive configuration processes and efforts
• Certified WPA2 Enterprise, access control management and user traffic control for strict network protection

NWA1121-NI

• Compact ceiling-mount design with optimized RF performance
• High performance for better Wi-Fi experiences (IEEE 802.11n/IEEE 802.11ac)
• Easy RF planning with the same 2.4 GHz and 5 GHz signal coverage (NWA1123-NI, NWA1123-AC)
• Flexible operating modes (standalone, client mode, root-AP/ repeater mode)

NWA1123-NI

• Compact ceiling-mount design with optimized RF performance
• High performance for better Wi-Fi experiences (IEEE 802.11n/IEEE 802.11ac)
• Easy RF planning with the same 2.4 GHz and 5 GHz signal coverage (NWA1123-NI, NWA1123-AC)
• Flexible operating modes (standalone, client mode, root-AP/ repeater mode)

NWA1123-AC

• Compact ceiling-mount design with optimized RF performance
• High performance for better Wi-Fi experiences (IEEE 802.11n/IEEE 802.11ac)
• Easy RF planning with the same 2.4 GHz and 5 GHz signal coverage (NWA1123-NI, NWA1123-AC)
• Flexible operating modes (standalone, client mode, root-AP/ repeater mode)

NWA1123-ACv2

• Compact ceiling-mount design with optimized RF performance
• Enterprise class 2x2 802.11ac AP supports combined data rates of up to 1200 Mbps
• Better coverage with optimized antenna and RF design
• Flexible operating modes (stand-alone, root-AP/ repeater mode)
• Set up and forget offers better-than-ever WLAN experience

NWA1123-ACPro

• Dual-optimized antenna for wall/ceiling-mount installations
• Enterprise class 2x2 802.11ac AP supports combined data rates of up to 1200 Mbps
• Better coverage with optimized antenna and RF design
• Flexible operating modes (stand-alone, root-AP/ repeater mode)
• Reliable software and robust hardware design
• Set up and forget offers better-than-ever WLAN experience

NWA1123-ACHD

• NebulaFlex gives you the flexibility to switch between standalone and our License Free Nebula cloud management
• Nebula cloud management allows easy deployment, real-time configurations and access to all your access points anytime with
• Achieve reliable connectivity, support for more connected clients and better wireless coverage with the latest Wave 2 WiFi standard
• Up to 300% more performance from MU-MIMO technology
• Robust build quality including solid-state capacitors and advanced heat dissipation design to ensure long life and operational reliability
• Protect against 3G/4G cellular network interference with our advanced cellular mitigation design

UAG2100

• IEEE 802.11 a/b/g/n dual-radio (2.4 GHz and 5 GHz) design
• Supports 100 concurrent logins by default and up to 200 via license upgrade
• Integrated account generator,Web-based authentication portal and billing system
• Supports external RADIUS servers
• Per account bandwidth management
• SP350E Service Gateway Printer enables one-click account and billing generation
• Built-in WLAN controller
• Facilitates compliance with data retention regulations

UAG4100

• IEEE 802.11 a/b/g/n dual-radio (2.4 GHz and 5 GHz) design
• Supports 200 concurrent logins by default and up to 300 via license upgrade
• Integrated account generator, Web-based authentication portal and billing system
• Supports external RADIUS servers
• Per account bandwidth management
• SP350E Service Gateway Printer enables one-click account and billing generation
• SMS ticketing with ViaNett protocol support
• Built-in WLAN controller (supports 8 APs by default and up to 16 APs via license upgrade)
• Facilitates compliance with data retention regulations

UAG5100

• Supports 500 concurrent logins by default and up to 800 via license upgrade
• Integrated account generator, Web-based authentication portal and billing system
• Supports up to ten (10) SP350E Service Gateway Printers and SMS ticketing with ViaNett protocol
• Per account bandwidth management
• Dual-WAN load-balancing, failover and fall back support
• Built-in WLAN controller (supports 16 APs by default and up to 32 APs via license upgrade)
• Facilitates compliance with data retention regulations
• Provides ten (10) IPSec VPN tunnels for remote management by MSPs

SBG3300-N

• Robust firewall and VPN to secure business communications
• Multi-WAN connectivity with load balancing and failover
• Comprehensive authentication for safe, efficient management
• Combo WAN-in-a-box to optimize the CAPEX of FTTH/VDSL2 deployments
• G. vectoring to maximize effective range for service providers
• Extreme routing performance to take advantage of FTTx applications
• Five Gigabit ports and 802.11n for superior LAN networking

UAG50

• Built-in thermal printer
• Supports 100 concurrent logins
• Integrated account generator, Web-based authentication portal and billing system
• Facilitates compliance with data retention regulations
• Supports 10 billing profiles
• Supports external RADIUS servers
• Equal bandwidth management

NXC-2500

• Robust firewall and VPN to secure business communications
• Multi-WAN connectivity with load balancing and failover
• Comprehensive authentication for safe, efficient management
• Combo WAN-in-a-box to optimize the CAPEX of FTTH/VDSL2 deployments
• G. vectoring to maximize effective range for service providers
• Extreme routing performance to take advantage of FTTx applications
• Five Gigabit ports and 802.11n for superior LAN networking

NXC-5500

• Centralized WLAN management and auto provisioning
• Manages up to 512 APs with granular access control
• ZyMESH simplifies complex,inconvenient cabling Wi-Fi deployments
• Client Steering enhances efficiency of wireless spectrum utilization
• Auto Healing maximizes Wi-Fi service availability
• Comprehensive guest network management features

NAP102

• Cloud-managed, dual-radio 2x2 MIMO 802.11ac access point
• Supports combined data rates of up to 1200 Mbps
• Self-configuration and zerotouch deployment
• Enterprise-class security and RF optimization
• Dynamic Channel Selection, Load Balancing and Smart Client Steering

NAP203

• Cloud-managed, dual-radio 3x3 MIMO 802.11ac access point
• Supports combined data rates of up to 1.75 Gbps
• Dual-optimized antenna allows pattern optimization adapting to wall- or ceilingmount installations
• Self-configuration and zerotouch deployment
• Enterprise-class security and RF optimization
• Dynamic Channel Selection, Load Balancing and Smart Client Steering
• Ultra-slim ID design at 32 mm height blends into modern interior decorations

NAP303

• Cloud-managed, dual-radio 3x3 MIMO 802.11ac AP
• Supports combined data rates of up to 1.75 Gbps
• Smart antenna provides breakthrough performance
• Self-configuration and zerotouch deployment
• Enterprise-class security and RF optimization
• Dynamic Channel Selection, Load Balancing and Smart Client Steering
• Industry-leading receive sensitivity at as low as -102 dBm
• Tool-less bracket design simplifies installation

NAP353

• Cloud-managed, dual-radio 3x3 MIMO 802.11ac access point
• Supports combined data rates of up to 1.75 Gbps
• IP66-rated weather protection for harsh outdoor environments
• Self-configuration and zerotouch deployment
• Enterprise-class security and RF optimization
• Dynamic Channel Selection, Load Balancing and Smart Client Steering
• Industry-leading receive sensitivity at as low as -102 dBm

WAC6500-PS

12v DC Power Supply (Optional) for WAC6500 Series (WAC6502D-E / WAC6502D-S / WAC6503D-S)
