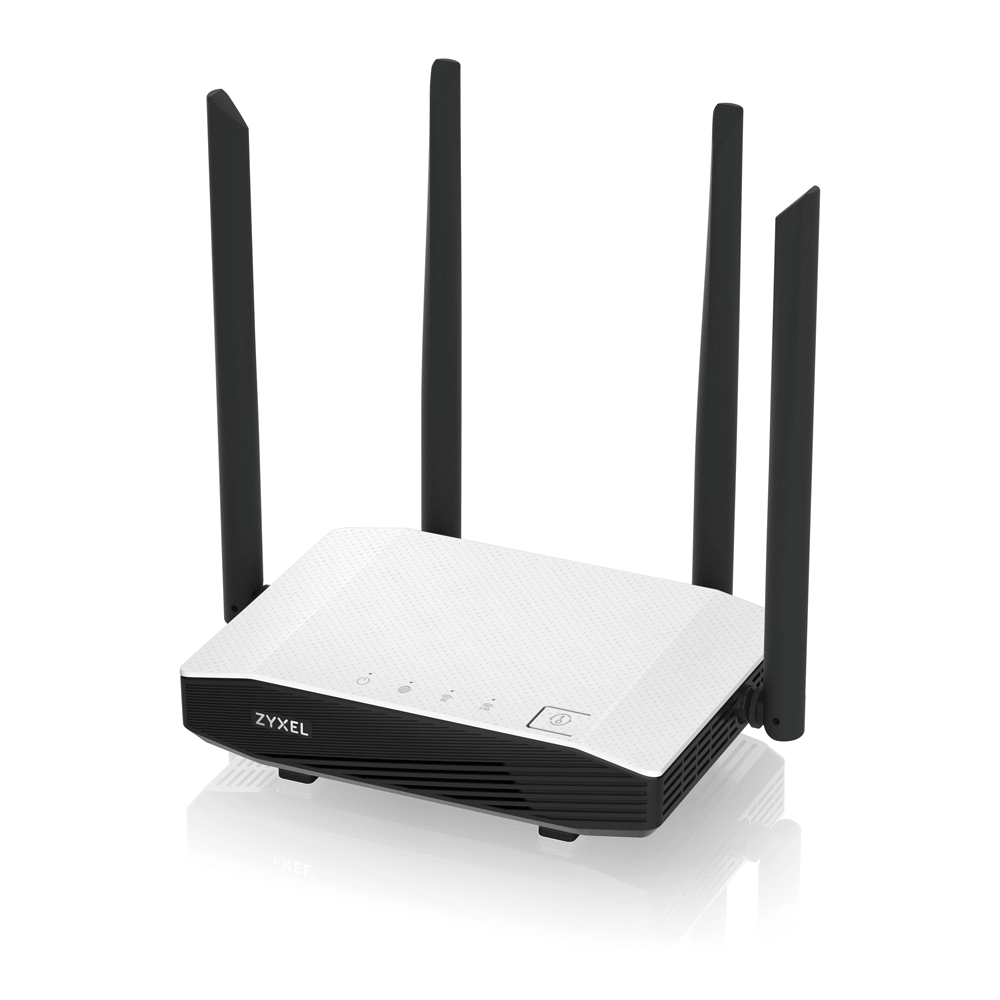

Zyxel NBG6615TW
AC1200 MU-MIMO Dual-Band Wireless Gigabit Router



Zyxel NBG6615TW


Zyxel Products
Zyxel NBG6615TW
NBG6615 - AC1200 Dual Band Wave 2 Home Gigabit Router
#NBG6615TW
List Price: $74.99
Our Price: $54.99

More pricing below, click here!

Overview:

Creates a wireless network for your home or apartment to connect more devices wirelessly with faster 11ac wave 2 technology. The Zyxel NBG6615 AC1200 MU-MIMO Dual-Band Wireless Gigabit Router features four robust external antennas for dedicated 2.4 GHz and 5 GHz wireless bands to provide wider coverage.


NBG6615 for improved home network experience

Upgrade your home network with the Zyxel NBG6615 AC1200 MU-MIMO Dual-Band Wireless Router. The NBG6615 boots lightning fast, allowing you to enjoy more online connectivity sooner. With the latest 802.11ac wave 2 technology, the NBG6615 boosts wireless speeds of up to 4 times faster than traditional 11n single-band routers.

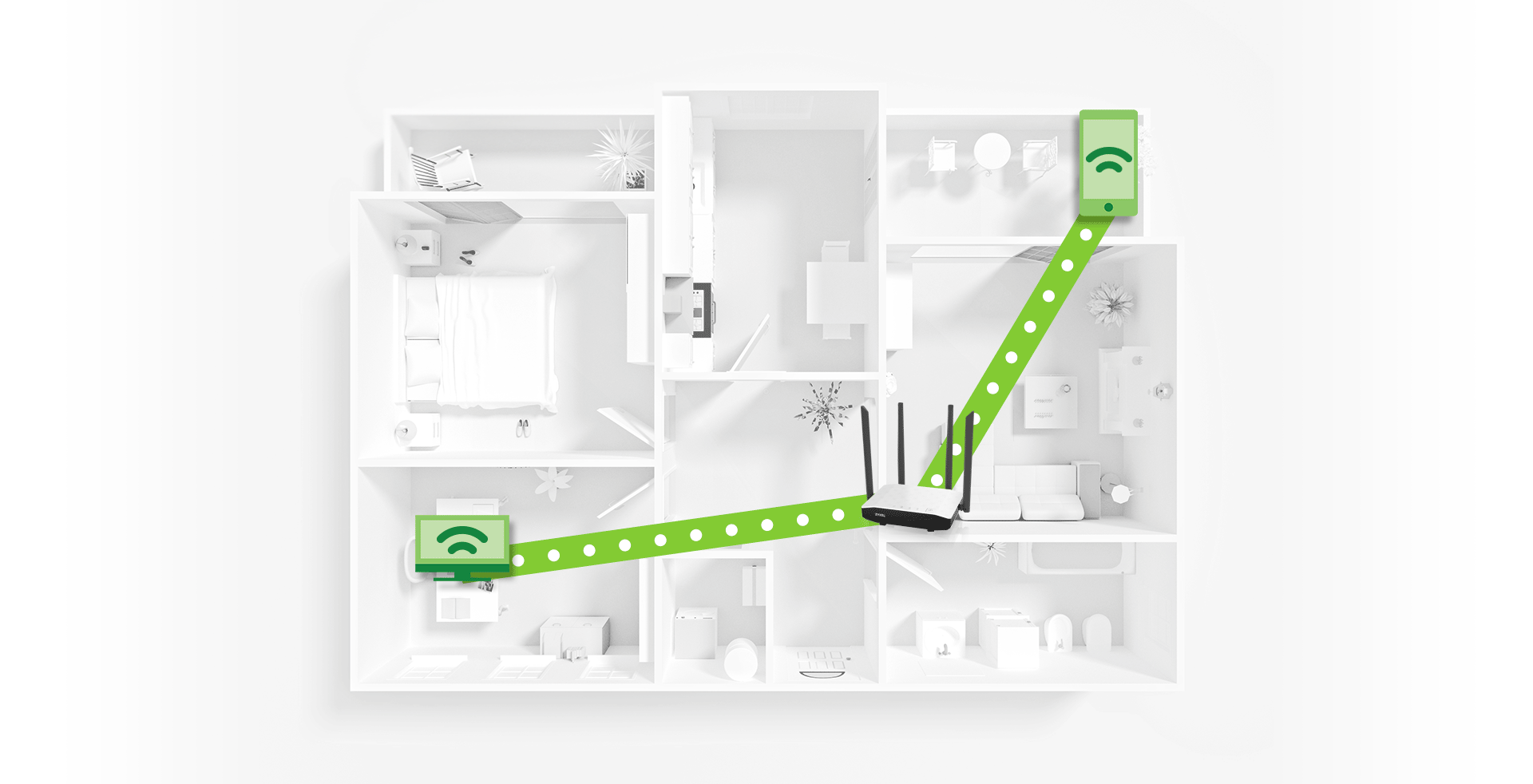

Improved wireless performance with MU-MIMO

MU-MIMO support provides accelerated and simultaneous WiFi speed when there are multiple MU-MIMO ready devices connected to the NBG6615.


Zyxel

Features:

4-port Gigabit Ethernet for blazing data transmission speed

The Zyxel NBG6615 provides 4-port gigabit Ethernet, enabling you to expand your network effortlessly with your wired devices. It features top of line Ethernet connection speed for all your wired devices.


High power wireless router for stable long-range connection

The NBG6615 comes with four high-performance external antennas with two dedicated antennas per WiFi radio. It provides a long-range connection for you to enjoy services throughout the home network.


Wall mount option for more flexibility

The Zyxel NBG6615 comes with wall-mount placement option to provide users with flexibility to place it in any house corner. Mount our router on an elevated area on your wall to provide maximum WiFi performance and coverage.

Specifications:

System Specifications


Wireless Standard

IEEE 802.11 b/g/n 2.4 GHz

IEEE 802.11 a/n/ac 5 GHz

Wireless Speed

Transmit: 300 Mbps* for 2.4 GHz and 867 Mbps* for 5 GHz

Receive: 300 Mbps* for 2.4 GHz and 867 Mbps* for 5 GHz

Transmission Power

CE:

<=20dBm (2.4G frequency band: 2.400 – 2.4835 GHz)

<=23dBm (5G frequency band: 5.150 – 5.350 GHz)

<=28dBm (5G frequency band: 5.470 – 5.725 GHz)**

Wireless Security

WPA-PSK/WPA2-PSK

WLAN Features

Guest WiFi

WiFi Protected Setup (WPS)

WiFi Multimedia (WMM)

Auto channel selection

Wireless output power management

Wireless scheduling

MAC address filtering

Routing

Network Address Translation (NAT)

WAN Type: Static IP, DHCP, PPPoE, PPTP

DHCP server/client

IGMP v1/v2

Auto-IP change

Dynamic DNS

Firewall

Stateful Packet Inspection (SPI)

Deny of Service (DoS)

System Management

Firmware upgrade

Remote management

UPnP

Hardware Specifications


WAN

One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support

LAN

Four 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support

LED indicators

Power/SYS

WAN

WLAN_2.4G

WLAN_5G

Buttons

Reset

WPS

Power

12VDC, 1.5A

Power consumption

13W

Physical Specifications


Item dimensions
(W x D x H)

160 x 111.8 x 29.2 mm (6.3" x 4.4" x 1.1")

Item weight

254 g / 0.56lb

Packing dimensions
(W x D x H)

335 x 240 x 48.9mm (13.18" x 9.44" x 1.93")

Packing weight

685 g / 1.51 lb

Environmental Specifications


Operating Environment

Temperature: 0°C to 40°C (32°F to 104°F)

Humidity: 10% to 90% (Non-condensing)

Storage Environment

Temperature: -30°C to 70°C (-22°F to 158°F)

Humidity: 10% to 95% (Non-condensing)

Certification


Safety

CE-LVD

EMC

CE, FCC, BSMI, NCC

Package Contents


Wireless Router

Power adapter

Ethernet cable

Quick start guide (warranty card included)

Documentation:

Download the Zyxel NBG6615TW Data Sheet (PDF).
