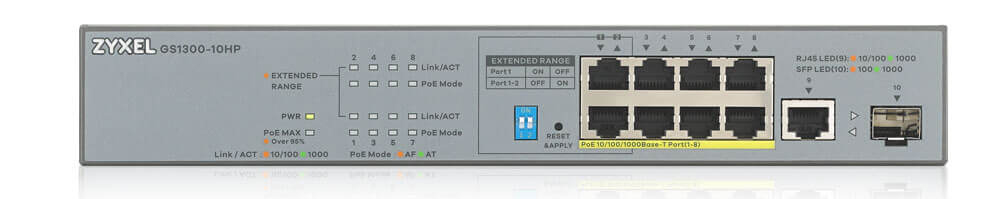

Zyxel GS1300-10HP
8-port GbE Unmanaged PoE Switch with GbE Uplink

Zyxel GS1300-10HP

Zyxel Products
Zyxel GS1300-10HP
GS1300-10HP - 8-Port Gigabit PoE+ L2 Unmanaged Switch (130W) w/RJ45+SFP Uplinks
#GS1300-10HP
List Price: $249.99
Our Price: $179.99

Click here to jump to more pricing!

Overview:

8-port GbE Unmanaged PoE Switch with GbE Uplink

Zyxel introduces the GS1300 Series switches specialized in surveillance deployments. With a brand-new titanium grey exterior purpose-built for surveillance, the Series includes 3 models with a range of large power budgets from 130 W to 250 W. The GS1300 Series comes with specialized hardware features such as an extended range mode for long rangeapplications along with PoE LEDs for real-time status inspection.

  • Large power budget for surveillance installations
  • Extended range for distant deployments
  • Check power status intuitively through PoE status LED
  • Easy installation with internal power supply
  • Robust network operations with surge and ESD protection on each port

Benefits:

Easy for long-distance deployment

Equipped with a DIP switch on the front panel, it’s easy to transform Zyxel GS1300 Series from a standard 802.3at/af PoE switch to an extended-range unit that supports data and power delivery of up to 250 m on one single cable. Under the extended mode, the link speed runs on standard-based 10 Mbps and 802.3at/af PoE that provides 15-watt power delivery to IP cameras or powered devices in distant locations.

Oversee switch status intuitively

The LED indicators are helpful for inspecting the real-time status. The PoE MAX indicator alerts when the switch runs out of power budget, and you can also check that which port is on extended range mode instantly.

Tough protection on every port

Reliability and stability of the Switch are critical to surveillance networks. All PoE ports on the GS1300 Series feature up to 8 KV ESD (electrostatic discharge) and up to 4 KV surge protection to prevent network instability due to static electricity or power (lightning) surges.

Specifications:

GS1300-10HP GS1300-18HP GS1300-26HP
Product name 8-port GbE Unmanaged PoE Switch with GbE Uplink 16-port GbE Unmanaged PoE Switch with GbE Uplink 24-port GbE Unmanaged PoE Switch with GbE Uplink
Switch class Unmanaged Unmanaged Unmanaged
Port Density
Total port count 10 18 26
100/1000 Mbps 9 17 24
Gigabit SFP 1 1 2
Configurable extended range ports 2 4 4
PoE
PoE ports 8 16 24
Total PoE budget (watt) 130 170 250
PoE 802.3at Yes Yes Yes
Performance
Switching capacity (Gbps) 20 36 50
Forwarding rate (Mpps) 14.8 26.7 38.7
Packet buffer (byte) 525 K 525 K 525 K
MAC address table 8 K 8 K 8 K
Power
Input 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 155.8 205.7 301.9
Physical Specifications
Dimensions (WxDxH)(mm/in.) 267 x 162 x 44 /
10.51 x 6.38 x 1.73
330 x 230 x 44 /
12.99 x 9.06 x 1.73
441 x 270 x 44 /
17.36 x 10.63 x 1.73
Weight (kg/lb.) 1.65/3.64 2.31/5.09 3.57/7.87
Included accessories
  • Power cord
  • Wall-mount kit
  • Rack mounting kit
  • Power cord
  • Rack mounting kit
  • Power cord
  • Rack mounting kit
Environmental Specifications
Operating Temperature: -20°C to 50°C/-4°F to 122°F
Humidity: 5% to 95% (non-condensing)
Temperature: -20°C to 50°C/-4°F to 122°F
Humidity: 5% to 95% (non-condensing)
Temperature: -20°C to 50°C/-4°F to 122°F
Humidity: 5% to 95% (non-condensing)
Storage Temperature: -40°C to 70°C/-40°F to 158°F
Humidity: 5% to 95% (non-condensing)
Temperature: -40°C to 70°C/-40°F to 158°F
Humidity: 5% to 95% (non-condensing)
Temperature: -40°C to 70°C/-40°F to 158°F
Humidity: 5% to 95% (non-condensing)
MTBF (hr) 394,567 378,972 347,760
Heat dissipation (BTU/hr) 531.278 701.437 1,029.479
Acoustic noise @ 25°C (dBA) 44 48 48
Features
Standard Compliance
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-Tx Ethernet
  • IEEE 802.3ab 1000Base-T Ethernet
  • IEEE 802.3z 1000Base-X
  • IEEE 802.3x flow control
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE plus
  • IEEE 802.3az EEE
  • IEEE 802.1p Class of Service (CoS) prioritization
Certifications
  • EMC:
    • CE, FCC, C-Tick, Class A
    • BSMI CNS13438
  • Safety:
    • LVD EN62368-1
    • BSMI CNS14336-1
  • RoHS compliant
Installation Features
  • Supports lightning surge protection:
    • Ethernet port: 2 KV
    • Power input: 4 KV
  • Supports ESD protection (Air/Contact): 8 KV/4 KV
  • Extended range of up to 250 meters*
    • Fixed link speed at 10Mbps
    • Limited to 802.3af PDs and cameras
* Extended range excels long range installation but the actual performance may be effected by cabling quality or IP camera’s electrical design. We recommend users to test for IOP before physical deployment. Contact Zyxel for IP camera’s interoperability report.
Limited life-time warranty Warranty terms, service availability, and service response times may vary from country or region to country or region.

Documentation:

Download the Zyxel GS1300 Series Datasheet (PDF).
