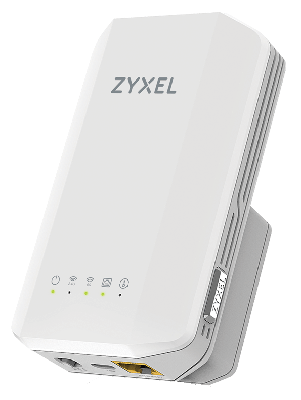

Zyxel WRE6606
AC1300 MU-MIMO Dual-Band Wireless Range Extender

Overview:

Where There’s Wi-Fi, There’s Home

The Zyxel WRE6606 is the first enhanced proprietary-design 2x2 MU-MIMO dual-band wireless range extender that expands existing concurrent dualband wireless networks. Eliminate dead zones and improve your home’s wireless signal coverage through an existing wireless router or access point. The WRE6606 features a micro USB power port for an external power bank, enabling flexible placement for optimal signal extension. The external power supply option also offers more options for temporary deployment of the Wi-Fi extender where no power outlet is available. The Zyxel WRE6606 can act as an access point, enabling you to create a powerful wireless 2x2 AC MU-MIMO network capable of speeds of up to 400 Mbps at 2.4 GHz and 867 Mbps at 5 GHz, delivering the best possible Wi-Fi performance.

• The smallest AC1300 MUMIMO wall-plug repeater
• Easy installation with ability to detect the best location
• Clear LED signal strength indicator to show ideal placement
• All-in-one operational modes: AP, repeater, and client mode supported
• Easy boost modes for repeater: normal, range boost, and speed boost
• One-touch WPS button for simple wireless security setup
• Zyxel ONE Connect support provides auto configuration. SSID cloning for easy roaming under one wireless network (one SSID) at home with Zyxel ONE Connect supported router.

Benefits:

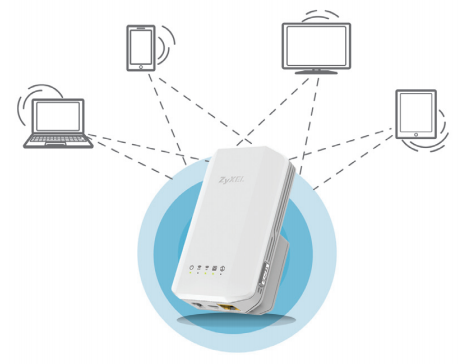

The first MU-MIMO ready wireless extender

Get better performance from your MU-MIMO-ready wireless devices. Unlike traditional MIMO wireless, the Zyxel WRE6606 MU-MIMO technology provides fast wireless connections, even when you simultaneously connect multiple wireless devices to the repeater.

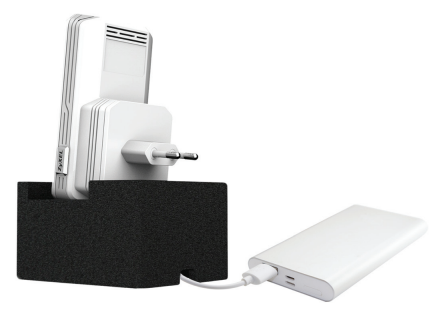

Optimal placement even when no outlet is available

The Zyxel WRE6606 includes a micro USB port for connecting portable power banks, enabling you to locate a signal sweet spot to extend your existing wireless network. Forget about constantly searching for wall outlets to power up your device.

The Zyxel WRE6606’s USB power port provides you with the ability to temporarily extend network coverage beyond the walls of your home. Take advantage of extended WiFi coverage when relaxing in your backyard or provide wireless network service for outdoor events.

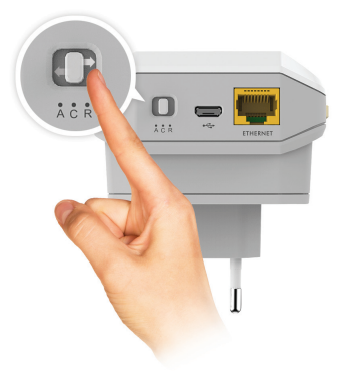

Simple push-button mode switching

Enjoy the flexibility of choosing how you want to use your Zyxel WRE6606. Simply switch from access point, extender, or client mode with the push of a button. Do you just want to create a modern MU-MIMO wireless network? Use the access point mode. Want to extend your existing wireless network? Select the extender mode. Or do you prefer to connect your wired devices with MU-MIMO capability? Choose the client mode. It’s that easy.

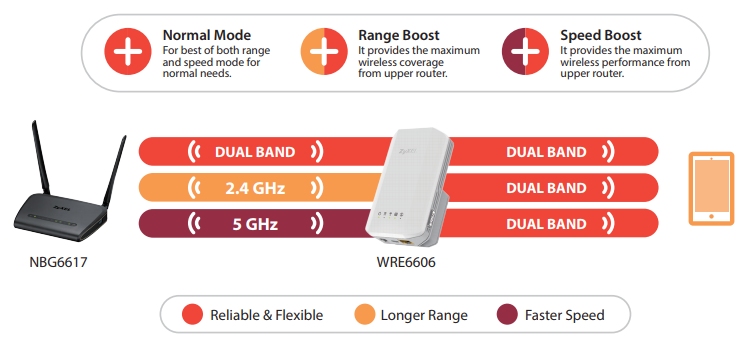

Choose your boost mode

The Zyxel WRE6606 includes three different boost modes to enhance your wireless experience. Range boost provides maximum wireless coverage from the upper router. Speed boost kicks the upper router into overdrive for extreme wireless performance for online games and media streaming. Normal mode offers the best of both worlds with optimal range and speed for normal use.

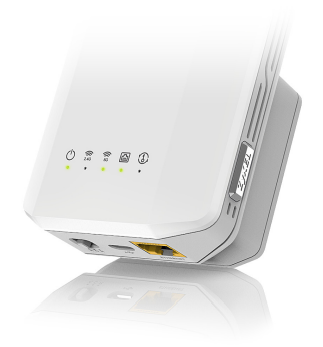

High-visibility colored LED wireless signal indicator

Get an easy read on your wireless signal strength to make sure the Zyxel WRE6606 range extender is providing the best possible performance. The red LED indicates the device is out of range to connect with your existing Wi-Fi network. Orange indicates connected connection with the existing wireless network, but the extender may not be at its ideal signal range. Green LED indicates an excellent with your wireless network.

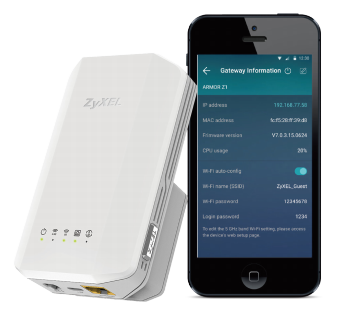

Sync Wi-Fi settings with Zyxel ONE Connect mobile app

Quickly extend your wireless network if you purchase your WRE6606 range extender with a Zyxel ONE Connect-ready router. Simply download the Zyxel ONE Connect app and run it to copy the Zyxel ONE Connect-ready router’s wireless settings to the Zyxel WRE6606 extender, enabling one wireless network for seamless roaming connections!

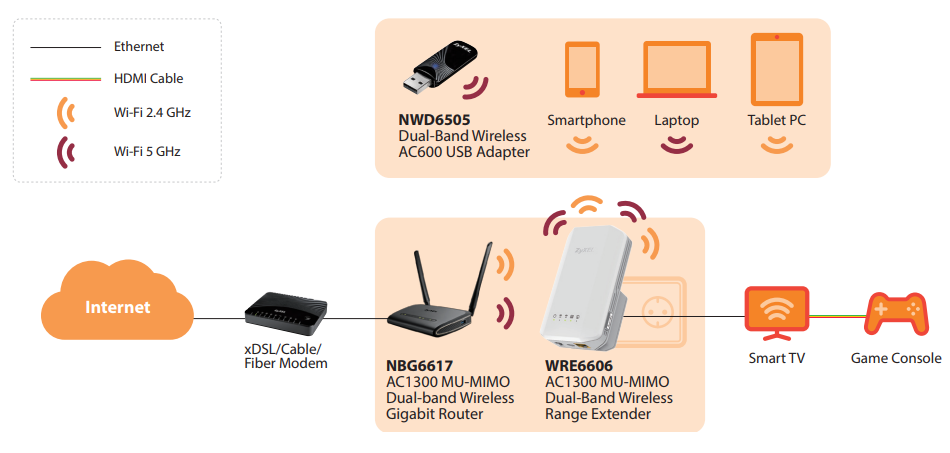

Application Diagram:

Specifications:

WRE6606 Specifications
System Specifications
Wireless Standard		802.11 b/g/n/ac
Wireless Transfer Rate		Transmit: 400 Mbps* for 2.4 GHz and 867 Mbps* for 5 GHz Receive: 400 Mbps* for 2.4 GHz and 867 Mbps* for 5GHz
Wireless Security		64/128 bit WEP, WPA-PSK/WPA2-PSK
WLAN Features		Access point mode/Universal repeater mode/ Client mode Wi-Fi Protected Setup (WPS) Wi-Fi Multimedia (WMM) Wireless scheduling Wireless output power management Auto channel selection
Hardware Specifications
LAN		Five 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support

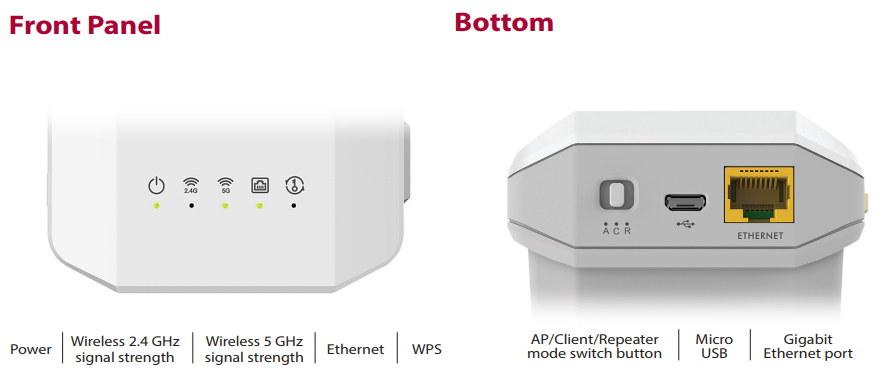

LED indicators		Power Wireless 2.4 GHz signal strength Wireless 5 GHz signal strength Ethernet WPS
Button		AP/Client/Repeater mode switch button WPS/Reset button
Power Consumption		12 V/1 A DC 5 V/2.1 A micro USB DC
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.)	123.2 x 75 x 66.1 mm (4.85" x 2.95" x 2.60")
	Weight (kg/lb.)	212.6 g (0.47 lb.)
Packing	Dimensions (WxDxH)(mm/in.)	182 x 126 x 111 mm (7.17" x 4.96" x 4.37")
	Weight (kg/lb.)	449.2 g (0.99 lb.)
Package Contents		Wireless range extender Ethernet cable Quick start guide
Environmental Specifications
Operating	Temperature	0°C to 40°C (32°F to 104°F)
	Humidity	10% to 90% (Non-condensing)
Storage	Temperature	-30°C to 70°C (-22°F to 158°F)
	Humidity	10% to 95% (non-condensing)
Certification
Safety		CE-LVD
EMC		CE, FCC

* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Documentation:

Download the Zyxel WRE6606 Datasheet (PDF).
