Zyxel WAP3205v3
WAP3205v3 - 802.11n Wireless Access Point/Ethernet Bridge

Sorry, this product is no longer available, Please contact us for a replacement.



Create a powerful wireless N network with corner-to-corner signal coverage and get your favorite Wi-Fi devices connected with network speeds of up to 300 Mbps.

Extend your existing wireless N network with the Zyxel WAP3205 v3 Wireless N300 Access Point featuring detachable high-gain antennas that provide stronger wireless coverage throughout your home.

  • High-gain antenna for enhanced Wi-Fi coverage
  • Compliant with 802.11n with data transfer rate of up to 300 Mbps image
  • AP, repeater and client modes supported image
  • Wall-mount design for flexible placement image
  • Detachable antenna design a wireless N network


Multifunction wireless access point

Create, connect or extend a wireless N network all with the Zyxel WAP3205 v3 Wireless N300 Access Point

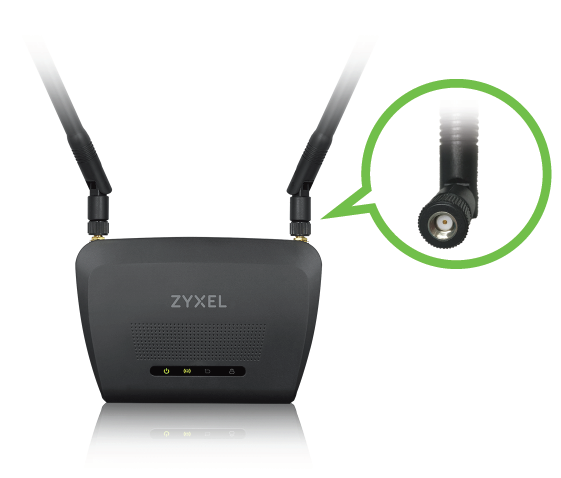

Detachable high-gain antennas for enhanced Wi-Fi coverage

Extend your Wi-Fi coverage further with Zyxel WAP3205 v3’s high-gain antennas as they provide stronger signals for all your Wi-Fi devices to enable reliable connections and better coverage.


Compact wall-mount design for flexible placements

The compact design enables you to place the Zyxel WAP3205 v3 Wireless N300 Access Point anywhere in any indoor environment without taking up too much space. If you wish to install the access point on a wall, screw holes are provided as well.

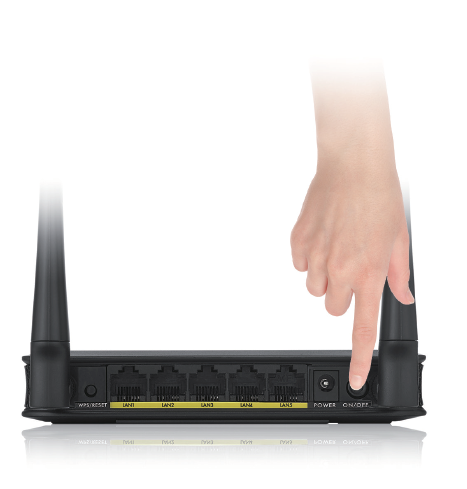

Green design for power saving

Zyxel’s WAP3205 v3 Wireless N300 Access Point can be scheduled to turn its wireless off during unused hours to save additional power. Adjustable wireless output power enables you set how much power your Wi-Fi draws, and this can potentially save you even more power.


System Specifications

Wireless Standard
  • 802.11 b/g/n
Wireless Transfer Rate
  • Transmit: 300 Mbps*
  • Receive: 300 Mbps*
Wireless Security
  • 64/128 bit WEP, WPA-PSK/WPA2-PSK
WLAN Features
  • Access point mode
  • Universal repeater mode
  • Client mode
  • Wi-Fi Protected Setup (WPS)
  • Wi-Fi Multimedia (WMM)
  • Wireless scheduling
  • Wireless output power management
  • Auto channel selection

Hardware Specifications

  • LAN: Five 10/100 Mbps Ethernet RJ-45 ports
  • LED indicators:
    • Power
    • Wireless
    • Ethernet
    • WPS
  • Two external antennas (5 dBi for EU region, 7 dBi for other regions)
  • Button:
    • Power on/off button
    • WPS/Reset button
  • Power: 5V DC, 1A

Physical Specifications

  • Item dimensions (WxDxH): 142 x 95 x 23 mm (5.59" x 3.74" x 0.91")
  • Item weight: 180 g (0.40 lb.)
  • Packing dimensions (WxDxH): 288 x 61 x 205 mm (11.34" x 2.40" x 8.07")
  • Packing weight: 441 g (0.97 lb.)

Environmental Specifications

Operating Environment
  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10% to 90% (Non-condensing)
Storage Environment
  • Temperature: -30°C to 70°C (-22°F to 158°F)
  • Humidity: 10% to 95% (Non-condensing)


  • Safety: CE LVD, BSMI
  • RF: CE, FCC, NCC

Package Contents

  • Wireless AP
  • Power adapter
  • Ethernet cable
  • Quick start guide

* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

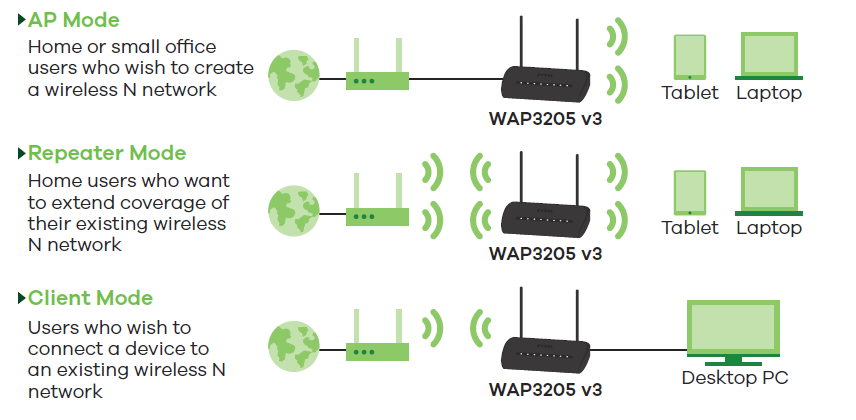

Application Diagram:

Zyxel WAP-3205 v2 Application Diagram


Download the Zyxel WAP-3205 v3 Datasheet (PDF).
