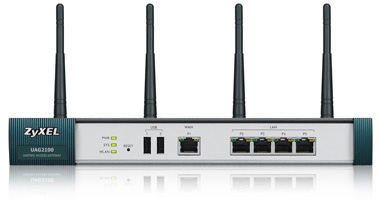

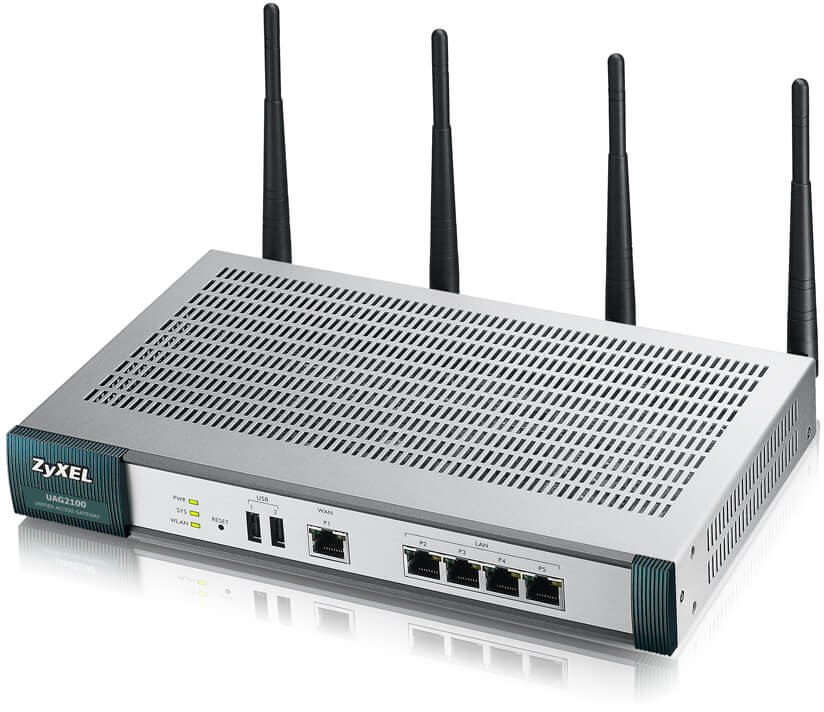

Zyxel UAG2100
Unified Access Gateway

Benefits:

Increasing customer loyalty

Virtually everyone today has at least one wireless mobile device, like smartphones, tablets, and laptops computers. Yet, yesterday’s hotspot gateways can no longer handle the exploding amount of wireless mobile devices that need Wi-Fi access. To satisfy this fast-growing demand, hospitality businesses need a solution that can provide greater Wi-Fi bandwidth, capacity and performance.

The Zyxel UAG2100 is a next-generation wireless hotspot/access gateway that provides better performance, capacity, and service quality than other similar solutions. Its 802.11 a/b/g/n dual-radio(2.4 GHz and 5 GHz) design provides 2x the spectrum and 2x the bandwidth to accommodate a much larger amount of wireless devices. Its high performance hardware architecture can support 100 concurrent logins by default, and up to 200 concurrent logins via license upgrade. It also offers granular bandwidth management capabilities to enforce equal bandwidth sharing, avoid bandwidth abuse, and provide the service quality necessary to increase customer loyalty and attract new customers.

Generating revenue

The Zyxel Unified Access Gateway is designed with advanced billing, user authentication, and access control features that help hospitality businesses manage guest accounts, block unauthorized access, and generate revenue with their Internet services. It gives hospitality businesses the flexibility to offer Wi-Fi access as a free service, a tiered service (premium when a purchase is made), or a paid service, depending on the preferred business model.

• Guest account management: Featuring a built-in account generator and a Web-based authentication portal, the UAG2100 helps hotspots provide controlled network access to guests with ease. Simply by entering the provided account information in the captive portal, guests can get secure wired or wireless access to the Internet in a matter of seconds. Additionally, the UAG2100 supports external RADIUS servers and external portal page redirection for added deployment flexibility.
• Billing system: Hotspots can create up to 10 pre-paid billing plans with the UAG2100. Billing plans can be customized with varying bandwidth speeds, service duration, and level of payment.
• SP350E Service Gateway Printer: The SP350E and UAG2100 combination is the perfect solution for Wi-Fi hotspot applications. The SP350E enables one-click billing and account generation, which offers easy operation for staff members and smooth services flows in hotel lobbies, conference rooms, waiting areas and busy restaurants and cafés.
• SMS ticketing: The UAG2100 supports SMS ticketing with ViaNett* to provide improved convenience for both the business owner and the customer. With support for SMS ticketing, the UAG2100 allows business owners to send Internet account and billing information directly to the customer’s mobile phone, without needing to spend loads of money building an independent SMS ticketing system. This feature offers a cheaper and more environment-friendly ticketing solution compared to paper ticketing, and reduces the inconvenience related to customers loosing or forgetting paper tickets.
  *UAG2100 SMS ticketing support is by license

Meeting the challenges of future audit

To address information security concerns, hospitality businesses are sometimes required to retain Internet usage records for a certain amount time; and this can become a significant burden for the businesses without the right equipment. Designed with the hospitality industry in mind, the Zyxel UAG2100 helps the businesses resolving the challenges. With a syslog server built-in, the UAG2100 can automatically record user account information, MAC addresses, source and destination IPs, data volume and protocol types for future auditing requirements.

Application Diagram:

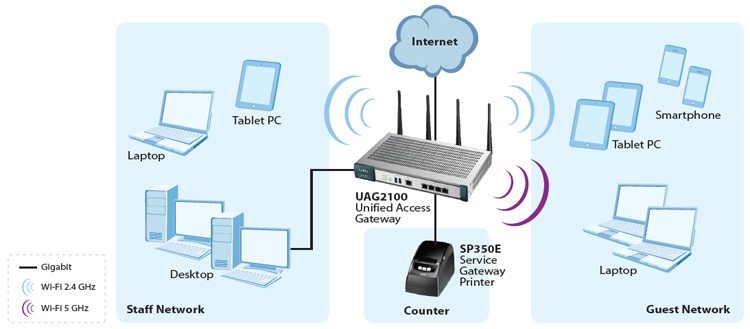

Wi-Fi Hotspot Application

Specifications:

UAG2100 Specifications

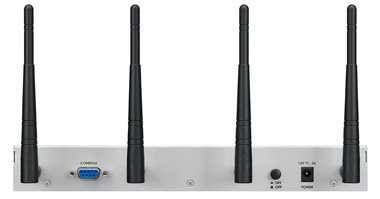

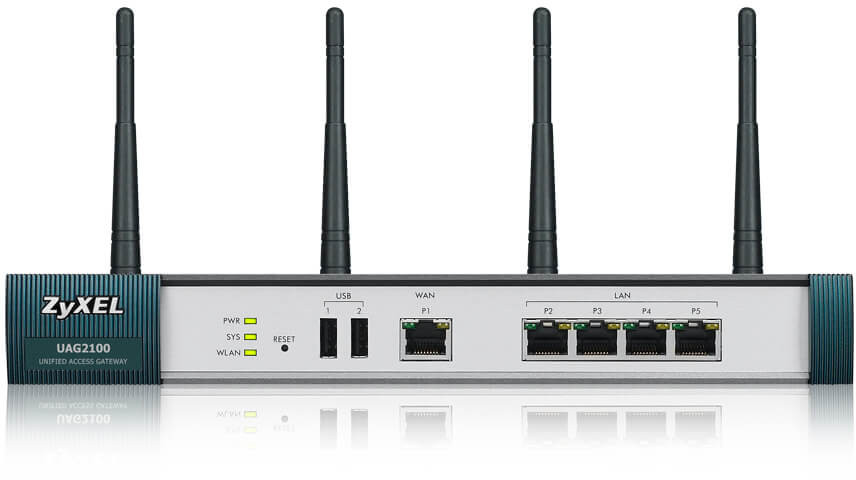

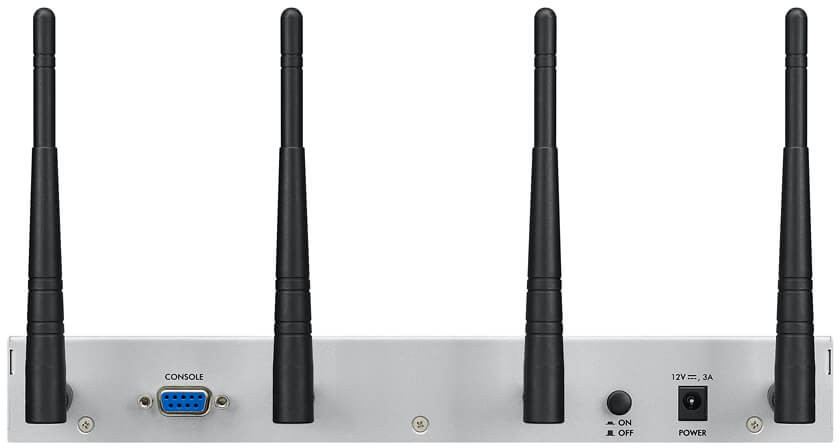

Hardware Specifications
10/100/1000 Mbps RJ-45 ports		4 x LAN, 1 x WAN
USB ports		2
Ticket printer support		Yes (up to 10 printers)
System Capacity & Performance*1
Routing throughput (Mbps)*2		150
Concurrent logins (default/max.)		100/200
Max. concurrent sessions*3		20,000
DHCP pool size		4,096
WLAN Management
Built-in WLAN controller		Yes
Managed AP number (default/max.)		0/8
SSID		8
Wireless Specifications
Standard compliance		802.11 a/b/g/n
Radio		2
Antennas		2.4 GHz: 2T2R MIMO 5 GHz: 2T2R MIMO (Detachable, SMA-R)
Wireless throughput (Mbps)*4		187 (2.4 GHz); 190 (5 GHz)
Max. output power (2.4 GHz)		802.11b: 12.5 dBm @ 11 Mbps 802.11g: 12 dBm @ 54 Mbps 802.11n: 12 dBm @ 20 MHz 802.11n: 13 dBm @ 40 MHz
Max. output power (5 GHz)		802.11a: 22.5 dBm @ 54 Mbps 802.11n: 23 dBm @ 20 MHz 802.11n: 23 dBm @ 40 MHz
Radio sensitivity (2.4 GHz)		802.11b: ≤ -90 dBm @ 11 Mbps 802.11g: ≤ -79 dBm @ 54 Mbps 802.11n: ≤ -72 dBm @ 20 MHz 802.11n: ≤ -70 dBm @ 40 MHz
Radio sensitivity (5 GHz)		802.11a: ≤ -79 dBm @ 54 Mbps 802.11n: ≤ -72 dBm @ 20 MHz 802.11n: ≤ -68 dBm @ 40 MHz
Power Requirements
Power input		12 V DC, 3 A max.
Max. power consumption (watt)		28
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.)	272 x 171 x 36 / 10.71 x 6.73 x 1.42
	Weight (kg/lb.)	1.46 / 3.22
Packing	Dimensions (WxDxH)(mm/in.)	416 x 247 x 71 / 16.38 x 9.72 x 2.80
	Weight (kg/lb.)	2.3 / 5.07
Included accessories		Power adapter Rack mounting kit Antenna
Environmental Specifications
Operating	Temperature	0°C to 40°C (32°F to 104°F)
	Humidity	10% to 90% (non-condensing)
Storage	Temperature	-30°C to 70°C (-22°F to 158°F)
	Humidity	10% to 90% (non-condensing)
MTBF (hr)		497,644
Certifications
EMC		FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI
Safety		LVD (EN60950-1), BSMI

Note:
*1: Actual performance may vary depending on network conditions and activated applications.
*2: Routing throughput measured using the industry standard IXIA IxLoad testing tool (1,460-byte TCP packets).
*3: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.
*4: Wireless throughput measured using the industry standard IXIA IxLoad testing tool (20/40 MHz, WPA2-PSK).

Features:

Networking Universal Plug and Play (UPnP) IP Plug and Play (iPnP) NAT/PAT Static routing and policy routing DHCP client/server/relay HTTP proxy support SMTP redirection VPN 1-to-1 mapping VPN pass-through WAN client: static, DHCP, PPPoE, PPTP Tagged VLAN (802.1Q) DDNS Security 64/128-bit WEP data encryption WPA-PSK TKIP data encryption (Wi-Fi Certified) WPA2-PSK AES data encryption (Wi-Fi Certified) WPA/WPA2-Enterprise Stateful packet inspection firewall L2 isolation User-aware security policy SSL login page Session limit IP pass-through (white list) AAA & Billing Web-based authentication User agreement login External RADIUS support Secondary RADIUS server support Built-in billing system Time-to-finish accounting mode Accumulation accounting mode 10 customizable billing profiles Built-in account generator 50 static accounts 2,000 dynamic accounts Multiple logins with pre-configured accounts Bandwidth management (per account) Credit card billing via PayPal Thermal Printer supper (up to 10) SMS ticketing support with ViaNett* *UAG2100 SMS ticketing support is by license

Marketing Advertisement link Walled garden Login page redirection Portal page Customizable login page Customizable information window Customizable user agreement page System Management Administrator access: WAN and LAN Web Management (HTTP/HTTPS) Secure administrator IP address SNMP v2c (MIB-II) Configuration backup and restoration Role-based administration (Admin, guest operator) Command line interface (console/web console/SSH) Monitoring and Reporting Email log Syslog: account, IP, MAC, traffic & protocol (data retention) Session list Account list Billing report DHCP client list WLAN Management Zyxel AP Controller (APC) 1.0 compliant Client RSSI threshold to prevent sticky clients IEEE 802.1x authentication Wireless Layer 2 isolation Captive portal Web authentication Customizable captive portal page Dynamic guest accounts RADIUS authentication Wi-Fi Multimedia (WMM) wireless QoS CAPWAP discovery protocol

Accessories
Model
	SP350E Service Gateway Printer Buttons: 3 Paper roll width: 58 (+0/-1) mm Interface: 10/100 Mbps RJ-45 port Power input: 12 V DC, 5 A max. Item dimensions (WxDxH): 176 x 111 x 114 mm (6.93” x 4.37” x 4.49”) Item weight: 0.8 kg (1.76 lb.)

Documentation:

Download the Zyxel UAG2100/UAG4100 Series Datasheet (PDF).
