Zyxel PLA4101
200 Mbps Mini Powerline Ethernet Adapter


Sorry, this product is no longer available, replace by the PLA5456KIT


Mini Powerline Adapter Enriches Your Digital Home Lifestyle

The Zyxel PLA4101 200 Mbps Mini Powerline Ethernet Adapter provides the easiest way to create a powerline network. Just plug a pair of PLA4101 into electrical outlets and connect your network devices to them and you can immediately enjoy HD media streaming, multiplayer gaming and other network applications simultaneously in every room.

  • Compact plug-and-play design
  • QoS enhances media streaming quality
  • Power-saving mode reduces energy waste
  • Encrypt button for easy security setup
  • 128-bit AES encryption for network security
  • Multi-color LED indicates Powerline network quality


Plug-and-play, compact design for easy setup

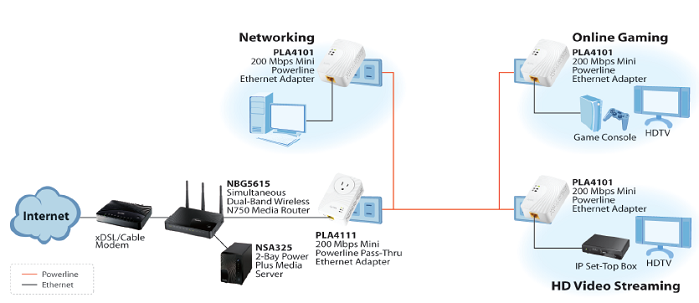

The mini-size Zyxel PLA4101 gives you the installation flexibility to turn power lines into a home network without blocking power outlets nearby. Install a pair of plug-and-play PLA4101, and then you can easily extend your home network through any electrical outlet for Internet access by HDTVs, Bluray ™ players, DVRs, PCs and game consoles.

Enjoy stable HD videos and gaming

Powered by HomePlug AV technology*, the Zyxel PLA4101 can provide a stable, high-performance network for everyone to enjoy HD streaming, gaming and Web surfing simultaneously.

QoS-enhanced media streaming quality

The advanced Quality of Service (QoS) features improve the quality of media streaming applications such as triple-play services by traffic prioritizing, HD video streaming, high-speed Internet access and VoIP.

Green product saves energy consumption

When there is no Ethernet connection or active network usage in 60 seconds, the PLA4101 will enter a power-saving mode that consumes only 0.5 watt to save energy by over 80% comparing to adapters without this function. In addition, the PLA4101 meets 2013 EUP low-power consumption standard to save your energy expense effortlessly.

Easy security setup

Data transmission is protected by the 128-bit Advanced Encryption Security (AES) mechanism to provide a secure connection to the Internet. Encryption can be configured with a simple button press on both of the PLA4101 units—no complicated setup or additional software required.


System Specifications


  • Data transfer rate of up to 200 Mbps data rate*
  • Compatible with HomePlug AV standard

Access Methods

  • CSMA/CA channel-access schemes


  • Max. range up to 300 meters over power line

Power Saving Mode

  • Without Ethernet link or out of network usage in 60 seconds


  • 128-bit AES encryption

Quality of Service (QoS)

  • ToS
  • Supports up to 4-level type QoS
  • Supports up to 8-level VLAN priority field

Frequency Band

  • 2 MHz to 28.5 MHz

Dynamic Neighbor Network Support


  • IGMP v1/v2/v3

System Requirements

  • Operating system independent:
    • Ethernet: RJ-45
  • Utility Software OS support:
    • Microsoft Windows XP/Vista/7
Hardware Specifications
  • Ethernet interface: One 10/100 Mbps RJ-45 connector with auto MDI/MDIX support
  • LED indicators:
    • Power on/off
    • Powerline network quality:
      • Green: Best; Amber: Better; Red: Good
    • Ethernet link/activity
  • Button: Encrypt/Reset button
  • Power rating: 100 to 240 V AC, 50/60 Hz
  • Power consumption:
    • Full operation: 2 watt max.
    • Power-saving mode: 0.5 watt max.
  • Plug type:
    • EU type: Two pins for EU 220 V
    • US type: Two pins for US 120 V
    • UK type: Three pins for UK 240 V

Physical Specifications

  • Item dimensions (WxDxH): 50 x 25 x 70 mm (1.97” x 0.98” x 2.75”)
  • Item weight: 77 g (0.17 lb.)
  • Packing dimensions (WxDxH): 148 x 118 x 81 mm (5.83” x 4.65” x 3.19”)
  • Packing weight: 267 g (0.59 lb.)

Environmental Specifications

Operating Environment

  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10% to 90% (Non-condensing)

Storage Environment

  • Temperature: -30°C to 70°C (-22°F to 158°F)
  • Humidity: 10% to 95% (Non-condensing)


  • Safety: CE-LVD, BSMI

Packing Contents

  • Powerline Ethernet Adapter
  • Ethernet cable
  • Quick start guide
  • Support CD
  • Warranty card

* The theoretical maximum channel data transfer rate is derived from HomePlug AV specifications; however the maximum throughputs may be limited by the Fast Ethernet ports. Actual data transfer rate will vary with network environment conditions including: distance, network traffic, and noise on electrical wires, quality of electrical installation and other adverse limits.




Download the Zyxel PLA4101 Datasheet (PDF).
