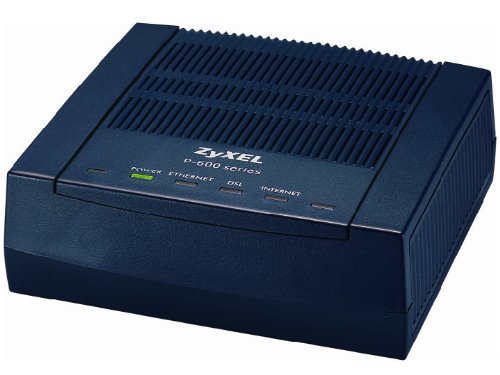

Zyxel P660R-F1
ADSL2+ Ethernet Router Compact Series Router

Zyxel P660R-F1

Sorry, this product is no longer available, please contact us for a replacement.


Overview:


Advanced Wireless Router for Upgrading Home Networks

With speeds of up to 24Mbps (ADSL 2+) and auto-selection between ATM and PTM modes, the P660R offers the fastest throughput rates available in an ADSL2+ enabled router. Users can enjoy not only high-speed ADSL services, but also broadband multimedia applications such as interactive gaming, video streaming, and real-time audio much easier than before.

  • Higher-speed Internet Access
  • UPnP Support
  • Zero Configuration Support
  • Compact Size

Benefits:


Higher-speed Internet Access

Zyxel’s P-660R Compact Series router complies with ADSL worldwide standards. With speeds of up to 24Mbps (ADSL 2+), the P-660R Compact Series offers the fastest throughput rates available in an ADSL2+ enabled router. Users can enjoy not only high-speed ADSL services, but also broadband multimedia applications such as interactive gaming, video streaming, and real-time audio much easier than before.

UPnP Support

The P-660R Compact Series supports UPnP discovery and UPnP NAT traversal. Using the standard TCP/IP protocol, the P-660R Compact Series can join a network, obtain an IP address, convey its capabilities, and learn about other devices on the network.

Zero Configuration Support

Thanks to Zyxel’s exclusive Zero Configuration technology, the quick and easy installation aid allows users to hook up a DSL connection in minutes.

Compact Size

The P-660R Compact Series benefits from its smaller size. It’s compact, flexible, easy to install. It’s cooler in both operation and appearance.

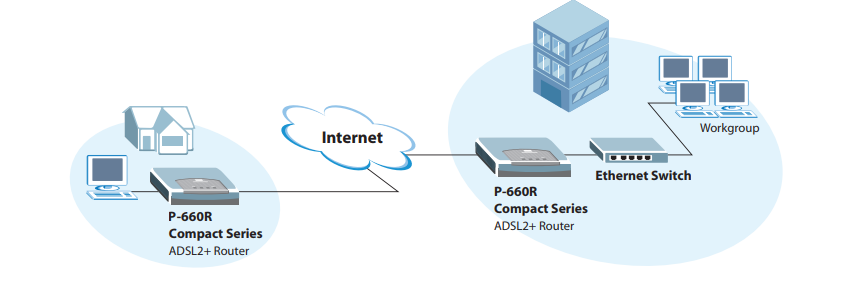

Application Diagram:

Application Diagram

Specifications:

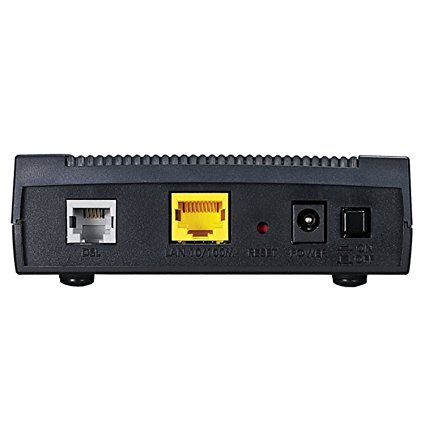

Rear View

P660R-F1 Specifications
System Specifications
ADSL Compliance
  • RADSL (ANSI T1.413 Issue 2)
  • G.dmt ADSL over POTS (G.992.1 Annex A)
  • G.dmt ADSL over ISDN (G.992.1 Annex B and U-R2)
  • G.hs (G.994.1)
  • Auto-negotiating rate adaptation
  • ADSL2 G.dmt.bis(G.992.3)
  • ADSL2+ (G.992.5)
  • Reach Extended ADSL(RE ADSL)
  • Annex M
ATM Support
  • Support for up to 8 PVCs
  • RFC 1483/2684 Multiple Protocol over AAL5
  • VC and LLC Multiplexing
  • Traffic Shaping UBR,CBR,VBR-nrt
  • ATM Forum UNI 3.1/4.0 PVC
  • ITU-T 1.610 F4/F5 OAM
PPP Support
  • PPP (RFC 1661)
  • PPP over AAL5 (RFC 2364)
  • PPP over Ethernet (RFC 2516)
  • PAP Authentication (RFC 1334)
  • CHAP Authentication (RFC 1994)
Routing/Bridge Support
  • IEEE 802.1d Transparent Bridging
  • 802.1q Pass-through Bridge
  • Up to 256 MAC Learning Address
  • IP Routing: TCP, UDP, ICMP, ARP
  • RIPv1 and RIPv2
  • Static Route
  • IP Multicast IGMP v1/v2
IP Management
  • SUA (Single User Account)
  • Multi-NAT (Network Address Translation)
  • Multimedia Support
  • VoIP SIP Pass-through
  • VPN (IPSec,PPTP,L2TP Pass-through)
  • DHCP Server/Relay/Client
  • IP Alias
Network Management
  • TR-069
  • Web-based Configuration
  • Command-line Interpreter (CLI)
  • Telnet Remote Management
Security
  • Password-protected System Management Terminal
  • PAP (Password Authentication Protocol)
  • CHAP (Challenge Handshake Authentication Protocol)
  • IP Packet Filtering for Access Control
Others
  • Traffic Redirect
  • Zero Configuration
Hardware Specifications
Hardware
  • ADSL: One RJ-11 or RJ-45
  • LAN: One Ethernet port, 10/100M Auto MDI/MDIX
  • Reset Button
  • Status LEDs Indicator: POWER, ETHERNET, DSL, INTERNET
  • Power: 9V
Physical Specifications
Item Dimensions 4.3 (W) x 4.2 (D) x 1.4 (H) inches
Weight 5.7 oz
Environmental Specifications
Operating Temperature 32°F to 104°F
Humidity 20% to 85% (non-condensing)
Storage Temperature -4ºF to 140ºF
Humidity 20% to 90% (non-condensing)

Documentation:

Download the Zyxel P660R-F1 Datasheet (PDF).
