Zyxel P-660HNU-F1
300 Mbps Ultra High-speed 802.11n ADSL2+ Wireless Security Gateway

Zyxel P-660HNU-F1

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

The 802.11n technology provides the ultimate solution for high-speed wireless connection with data rates of up to 300 Mbps. The 2x2 technology makes use of your home environment by bouncing wireless signals off of walls and ceilings to work around obstructions. The P-660HNU-F1 exceeds high-speed wireless access requirements for impressive performance, extended range, co-existence with other 802.11 b/g clients and access points as well as the ability to eliminate Wi-Fi dead spots.

  • Powerful throughput and better range with Wi-Fi 802.11n performance
  • Lag-free on-line gaming experience
  • Eco-friendly wireless power on/off button with wireless scheduling feature
  • Embedded QoS prioritizes traffics for time-sensitive applications
  • File sharing and exchange via USB 2.0
  • Stylish, user-friendly GUI

Benefits:

Lag-free on-line gaming experience

The P-660HNU-F1 has friendly QoS settings for gamers to enable a group of users to experience the benefits from smooth network connections. A simple click turns on the setting and allows users to enjoy high ADSL transmission speed for online gaming over the Internet without concerning about traffic congestion.

Stylish, user-friendly GUI

The fashionable Web-based user interface makes it extremely easy for users to install and manage the P-660HNU-F1. The intuitive Web interface and user-friendly configuration steps will bring a fresh feeling to users.

Applications with Firewall

The P-660HNU-F1 provides the stateful inspection filtering capability and Firewall network protections. With the default firewall setting, outgoing and incoming traffics from the protected LAN are blocked. The firewall supports TCP/UDP inspection, Denial of Services (DoS) detection and prevention, real time alert, reports and logs.

Specifications:

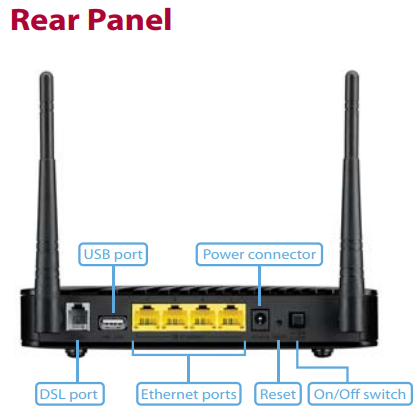

Rear Panel

P-660HNU-F1 Specifications:
System Specifications
ADSL Compliance
  • Support Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (G.992.1); G.lite (G992.2)). EOC specified in ITU-T G.992.1
  • ADSL2 G.dmt.bis (G.992.3)
  • ADSL2 G.lite.bis (G.992.4)
  • ADSL2+ (G.992.5)
  • Seamless Rate Adaptation (SRA)
  • Support PPP over ATM AAL5 (RFC2364)
  • PPP over Ethernet support for DSL connection (RFC 2516)
  • Support up to 7 PVCs
  • I.610 F4/F5 OAM
  • G.998.4 G.INP
WLAN
  • IEEE 802.11 b, g, n compliance
  • 2.4 GHz frequency band
  • Data rate up to 300 Mbps
  • OFDM Multiplexing
  • WEP, TKIP, AES data encryption
  • 32 MAC address filter
  • WPA-PSK, WPA2-PSK support
  • Multiple SSID (4 SSID support)
  • Wireless Scheduling
  • WPS support
Router
  • NAT (enhance to 6144 NAT sessions)
  • SIP ALG pass-through
  • Protocol and generic packet filter
  • DNS proxy
  • DHCP client/server/relay
  • RIP I/RIP II supported
  • IGMP v1 and v2
  • UPnP support
  • Parental Control
  • Game list for QoS upstream
  • Game list for NAT port forwarding
QoS
  • Support flexible packet classification
  • Queue management
  • Forward policy
Security/Firewall
  • Firewall with Stateful Packet Inspection, DoS support
  • URL blocking
  • 50 ACL filter rule
Management
  • SNMP v1 & v2c with MIB II
  • Embedded FTP/TFTP server for firmware upgrade and romfile backup and restore
  • User GUI friendly design for gaming and media enable/disable
  • Multi language support
Hardware Specifications
ADSL connection One RJ-11 over POTS
LAN Four Ethernet RJ-45 ports
Wireless LAN Two 3 dBi detachable external antennas
USB Two USB 2.0 hosts
WLAN/WPS button One real button for WLAN on-off and WPS configuration
Reset Restore factory defaults/reboot button
Power switch One push power switch button
Status LEDs indicator POWER, ETHERNET, INTERNET, USB, DSL, WLAN/WPS
Physical Specifications
Item dimensions (WxDxH)(mm/in.) 186 x 121 x 33 mm (7.32” x 4.76” x 1.3”)
Item weight (kg/lb.) 350 g (0.771 lb.)
Packing dimensions (WxDxH)(mm/in.) 238 x 170 x 90 mm (9.37” x 6.69” x 3.54”)
Packing weight (kg/lb.) 660 g (1.33 lb.)
Environmental Specifications
Operating temperature 0°C to 40°C (32°F to 104°F)
Operating humidity 20% to 90% (Non-condensing)
Storage temperature -25°C to 65°C (-13°F to 149°F)
Storage humidity 20% to 90% (Non-condensing)
Certification
Safety
  • IEC 60950-1: 2005 (2nd Edition)
  • EN 60950-1: 2006 + A11: 2009
EMC CE, FCC

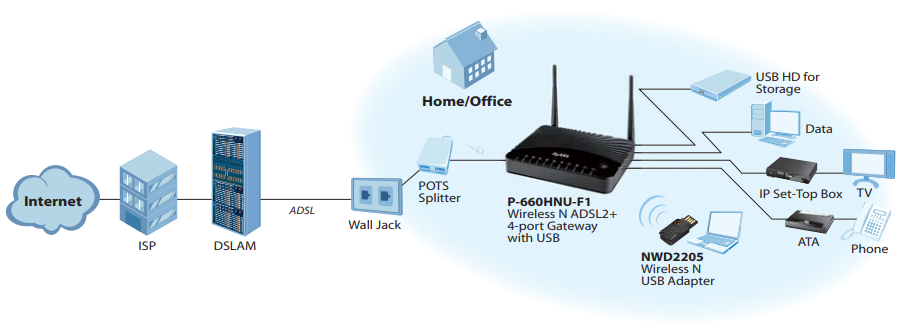

Application Diagram:

Application Diagram

Documentation:

Download the Zyxel P-660HNU-F1 Datasheet (PDF).
