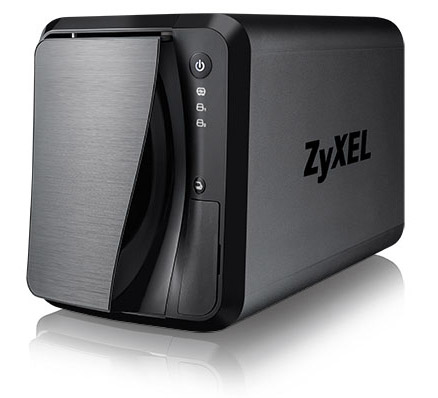

Zyxel NAS520
2-Bay Personal Cloud Storage

Overview:

Reliable, Secure, and User Friendly Personal Cloud Storage

It is essential in the modern connected world to access your data anytime, anywhere with your latest mobile gadgets. The Zyxel NAS520 2-Bay Personal Cloud Storage is an one stop for all your private documents, photos, music, and videos to provide the most convenient access to all your digital contents.

Powered with a 1.2 GHz dual-core processor and link aggregation capability, backup files, download files, and/or stream HD videos are faster. With USB 3.0 and SDXC memory card slot, the NAS520 store copies onto the network in a snap to experience seamless networking storage performance.

Zyxel offers a myZyxelCloud website to easily access and change settings to the NAS520 from all your connected mobile devices with web browsers wherever you go. Use the free mobile app zCloud on your Android/iOS devices to access and playback your favorite media while you’re on the go. In addition, Zyxel integrates with Memopal, and ownCloud for users’ convenience for all data on the NAS520. Find out more about Zyxel, NAS520!

• 1.2 GHz dual-core processor with link aggregation for excellent performance
• Hot-swappable hard drives installation
• Bolt free design for quick and easy setup
• 90 mm fan for cool and quiet operation environment
• Personalized subdomain to simplify remote linking
• User friendly content access via zCloud mobile app handhelds

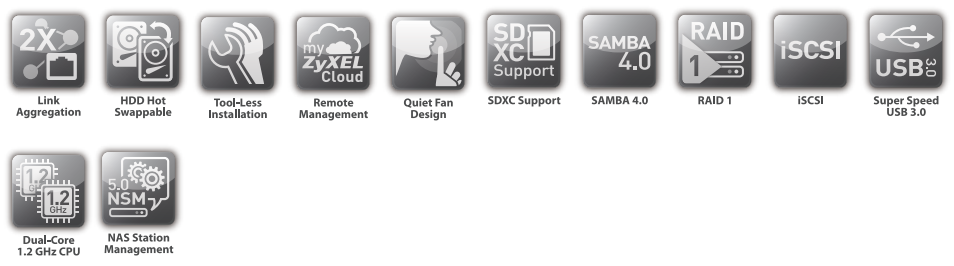

More Features

Benefits:

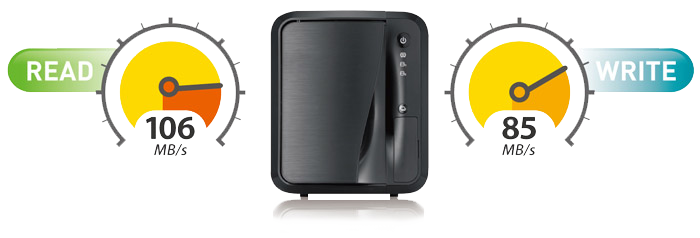

Fast and reliable performance for productivity

The Zyxel NAS520 is equipped with a 1.2 GHz dual-core processor and link aggregation. A high performance engine utilizes both Ethernet ports to provide up to 106 MB/sec read and above 85 MB/sec in write. Instantly retrieve data from your mobile devices, backup files, and stream UHD 4K video contents without performance stutter.

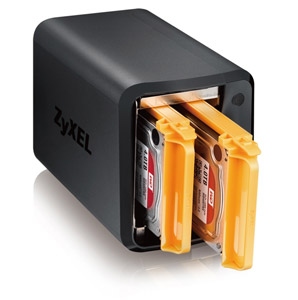

Replace hard drives easily with hot-swap

The Zyxel NAS520 hot-swapping enables quick hard drive replacement without shutting down or interruption while the system is in operation.

Bolt free design for quick and easy setup

The bolt free design makes it convenient to install your hard disks into the Zyxel NAS520 without any screwdrivers or other hardware tools.

Access your data from anywhere

Incorporate with myZyxelCloud, Zyxel free Dynamic Domain Name System, to create a personal cloud and access all your digital contents away from your home on your favorite mobile device(s).

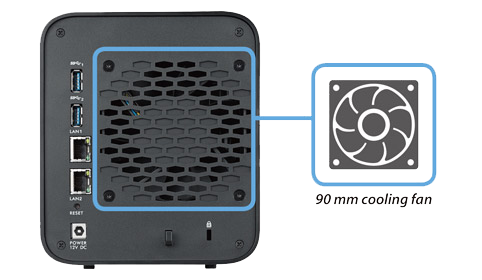

Cool, quiet operation

Compared to a typical desktop server system, the Zyxel NAS520 intelligently saves power during low activity to significantly reduce cost on electricity usage. The quiet 90 mm fan cools down the drives inside for better protection from heat damage.

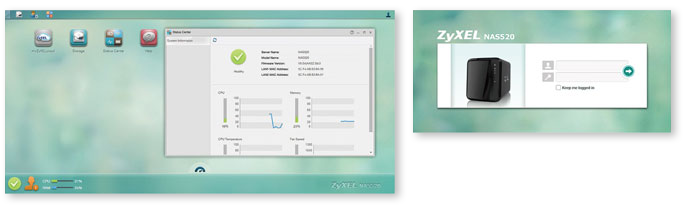

Simple setup and customized interface

Customize it even further with the easy App center to install and update apps of your preference.

Share, view, or stream your favorite contents with zCloud mobile app

Specifications:

NAS520 Specifications
System Specifications
Networking	Network protocol: CIFS/SMB for Windows NFS for Linux/Unix AFP for Mac DHCP client PPPoE Network Time Protocol (NTP) Network applications: Media server: DLNA 1.5 media server UPnP AV server iTunes server Logitech media server Photo album server Web server: WebDAV FTP server phpMyAdmin/MySQL/PHP RSS client & server Print server (CIFS) Remote Access Support (DyDNS) Smartphone applications: zCloud, ownCloud Network application management: User & group management Package Management for setting up applications Network security: Support HTTPS and FTPES (FTP over explicit TLS/SSL) Encrypted NAS to NAS remote replication Encrypted NAS to external disk archive backup
Data Management	Backup support: One-touch copy/sync button for external USB/SD-capable devices backup Backup planner: Instant/Scheduled backup NAS to NAS synchronization/archive backup Rsync NAS to external USB hard disk backup Dropbox, Memopal, ownCloud and NetDrive support Apple Time Machine support Download/Upload support: Auto-download from FTP/HTTP/P2P download service Scheduled download Auto-upload photos and videos to YouTube/Flickr/FTP server File system support: Internal HDD: EXT4 External HDD: NTFS, EXT2, EXT3, EXT4, FAT32, HFS+
System Management	JBOD, RAID 0/1 Online firmware upgrade Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.) iSCSI (release in Q4 2015)
Power and Thermal Management	Power control: Internal disk hibernation support Scheduled power on/off/reboot Wake-on-LAN support System automatically resume after power outage APC USB UPS monitoring and auto shutdown Thermal management: Smart fan speed control High temperature alert/buzzer Auto shutdown while high temperature
Minimum System Requirements	OS for utility: Windows XP onward Mac OS X 10.5 onward Browsers: IE 11+, Firefox 20+, Google Chrome 37, Safari 5+
Application Package Center	Cloud application ownCloud Dropbox Memopal Download management NZBGet Transmission pyLoad Backup planner Gallery WordPress Tftp NFS Logitech media server PHP-MySQL

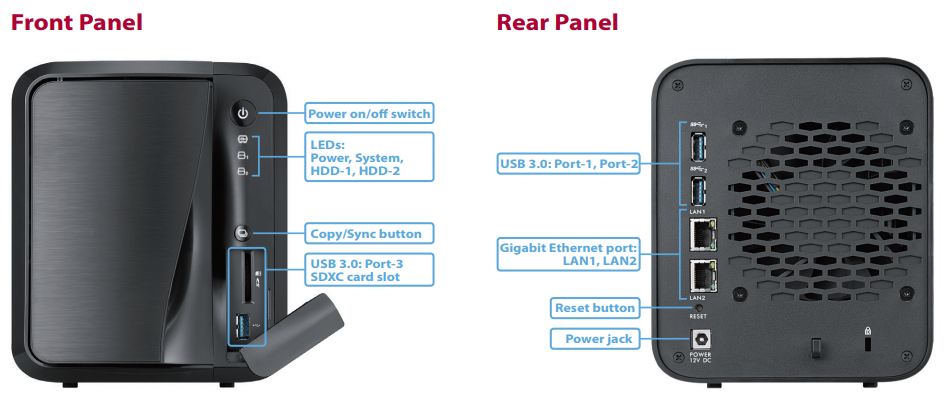

Hardware Specifications
Hardware	CPU: FreeScale FS1024 Dual Core 1.2 GHz Memory: DDR3 1 G Two 2.5" or 3.5" SATA II hard disk interface supported up to 24 TB (12 TB x 2) Two Gigabit Ethernet RJ-45 connector Three USB 3.0 ports One SDXC card read (Up to 128 GB) Smart fan design
Buttons	Power button Copy/Sync button Reset button
Power	Input: 100 - 240 V AC, 50/60 Hz Output: 12 V DC, 5 A
Power consumption	Access mode: 28.5 watt (full loading: Internal HDD x 2, External HDD x 3, SD x 1) Hard disk spin-down mode: 8.8 watt
Physical Specification
Item dimensions (WxDxH)(mm/in.)	140 x 220 x 160 mm (5.51" x 8.66" x 6.3")
Item weight (kg/lb)	1,530 g (3.37 lb.)
Packing dimensions (WxDxH)(mm/in.)	206 x 308 x 281.5 mm (8.11" x 12.13" x 11.08")
Packing weight (kg/lb)	2,640 g (5.82 lb.)
Environmental Specification
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 95% (Non-condensing)
Storage Temperature	-30°C to 70°C (-22°F to 158°F)
Storage Humidity	10% to 95% (Non-condensing)
Certification
Safety	CE-LVD, BSMI
EMC	CE, FCC class B, C-Tick, BSMI
Others	DLNA 1.5, UPnP

Documentation:

Download the Zyxel NAS520 Datasheet (PDF).
