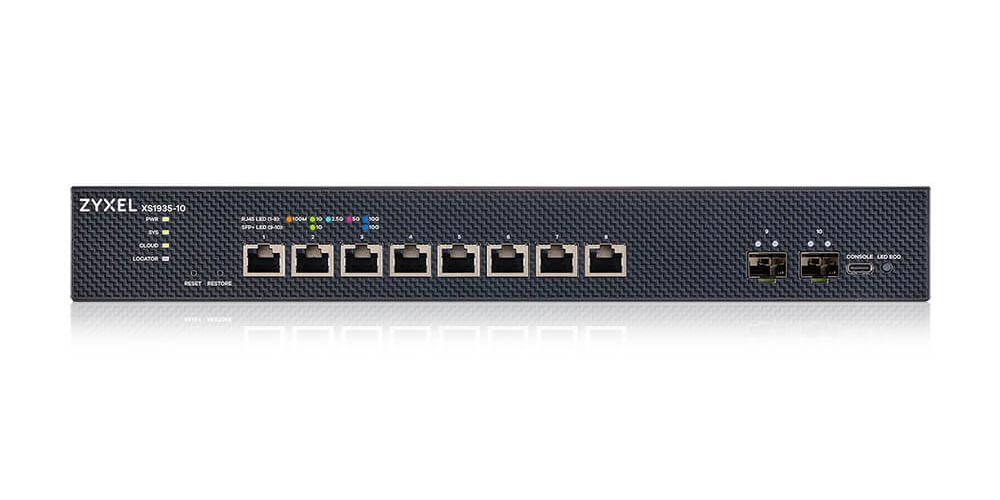

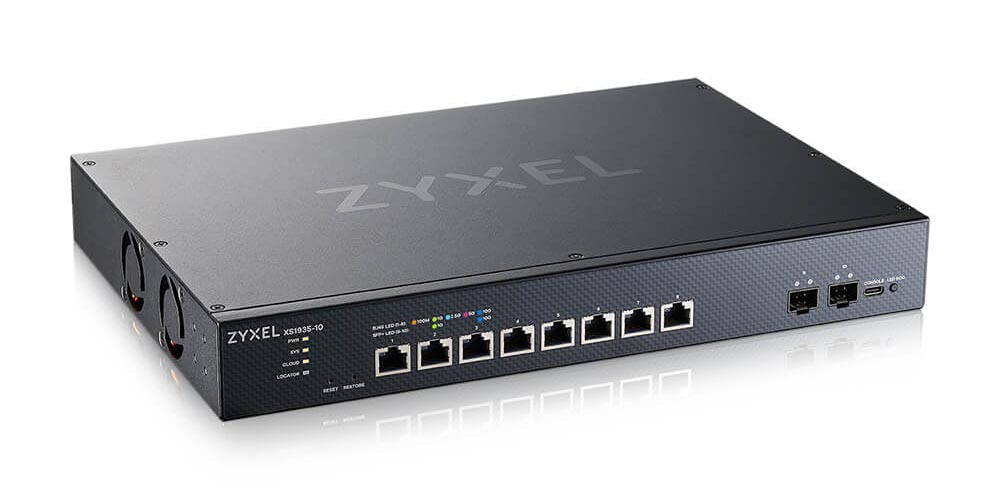

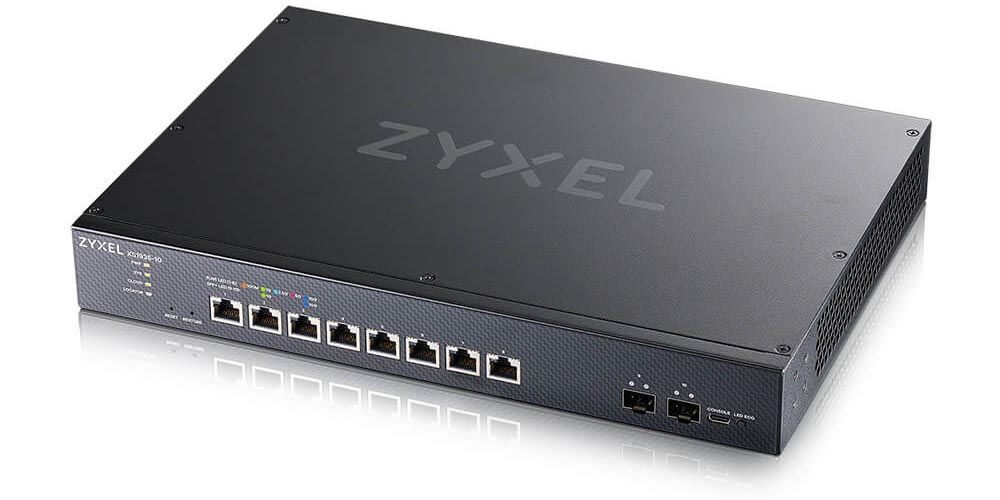

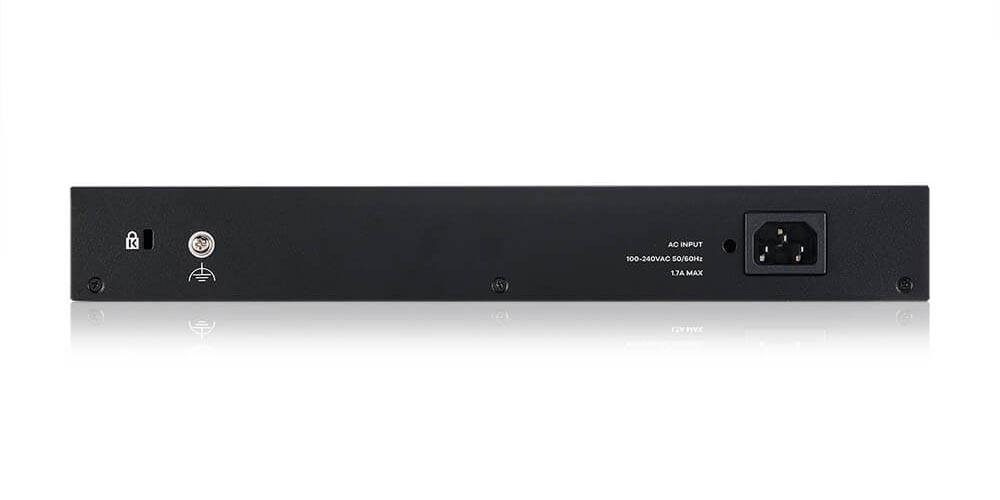

Zyxel XS1935-10
8-port 10G Multi-Gig Lite-L3 Smart Managed Switch with 2 10G Uplink
Our Price: $499.99
Our Price: $609.98
Click here to jump to more pricing!
Overview:
As businesses adopt cloud applications, AI-driven workloads, and highdefinition collaboration tools, network performance is critical. With WiFi 7 delivering speeds beyond 10 Gbps, the demand for faster, more efficient wired infrastructure is growing. Zyxel’s XS1935 Series Switch is built for modern networks with future-ready technology. It includes three models— non-PoE, PoE, and fiber—each featuring ultra-high-speed downlink and uplink up to 10 Gigabit. Also, the smart fan design delivers near silent and stable Multi-Gig 10G operation.
Supports Multi-Gig speeds up to 10G/5G/2.5G/1G/100M
PoE model supports 802.3bt (90W/port), with high PoE availability up to 400W
NebulaFlex allows you to switch between standalone and license-free Nebula cloud management flexibly
Features with rich L2 functions and L3 static routing capability
Colored speed indicators and LED ECO switch are designs with usability in mind
Benefits:
Next-Gen networking starts with 10G multi-gig.
The XS1935 Series 10G multi-gig switches deliver flexible connectivity with speeds up to 10G (100M/1G/2.5G/5G/10G) on all ports, enabling seamless network upgrades without replacing existing infrastructure. PoE models provide powerful PoE capabilities to power demanding devices such as WiFi 7 access points, IP cameras and other edge devices, while ensuring servers, NAS and workstations perform without bottlenecks.
The series also includes a fibre variant with 10G SFP+ ports, designed for edge deployments and smaller aggregation environments, delivering high-speed fibre connectivity where it matters most.
10x faster networking. Up to 90W per port.
The XS1935-12HP is built for the next generation of connectivity, delivering up to 10x the bandwidth of traditional 1G networks. This ensures the latest and next-generation WiFi access points, including WiFi 7, can operate at their full potential without being limited by wired infrastructure.
With the speed and capacity modern businesses demand, the XS1935-12HP enables organizations to build networks ready for today and prepared for the future.
With PoE++ delivering up to 90W per port (8x total), nearly 6x more power than traditional PoE (15.4W), the XS1935-12HP easily powers demanding devices including WiFi access points, IP cameras, video conferencing systems and smart IoT devices. A generous 400W PoE budget provides the capacity to support multiple high-performance devices, empowering next-generation networks from a single switch.
Lite-L3 intelligence, compact by design.
The XS1935 Series combines intuitive design with powerful Lite-L3 networking capabilities, giving growing businesses greater control over performance, traffic management and network segmentation. Features such as VLANs, enhanced QoS, link aggregation and Layer 3 static routing help optimize traffic flow and keep critical applications running smoothly.
Everything can be easily managed through the intuitive web interface or centrally through Nebula Cloud, providing flexible deployment and simplified network management without the complexity of traditional command-line configuration. The result is smarter, more scalable networking designed for modern business environments.
Click. Tap. Done.
Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required.
Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere.
Search: Zyxel Nebula Mobile
Powerful, effortless and scalable connectivity.
With Nebula, you can manage your entire network – wireless, switching, security and FWA – through a single centralized cloud platform. Deploy and configure devices quickly and remotely, without the need for extra hardware controllers or software.
Whether you're managing one site or many, Nebula delivers real-time monitoring, instant alerts and complete network visibility – anytime, anywhere.
Scale confidently, simplify operations and stay secure – all through one intuitive platform.
Application Diagram:

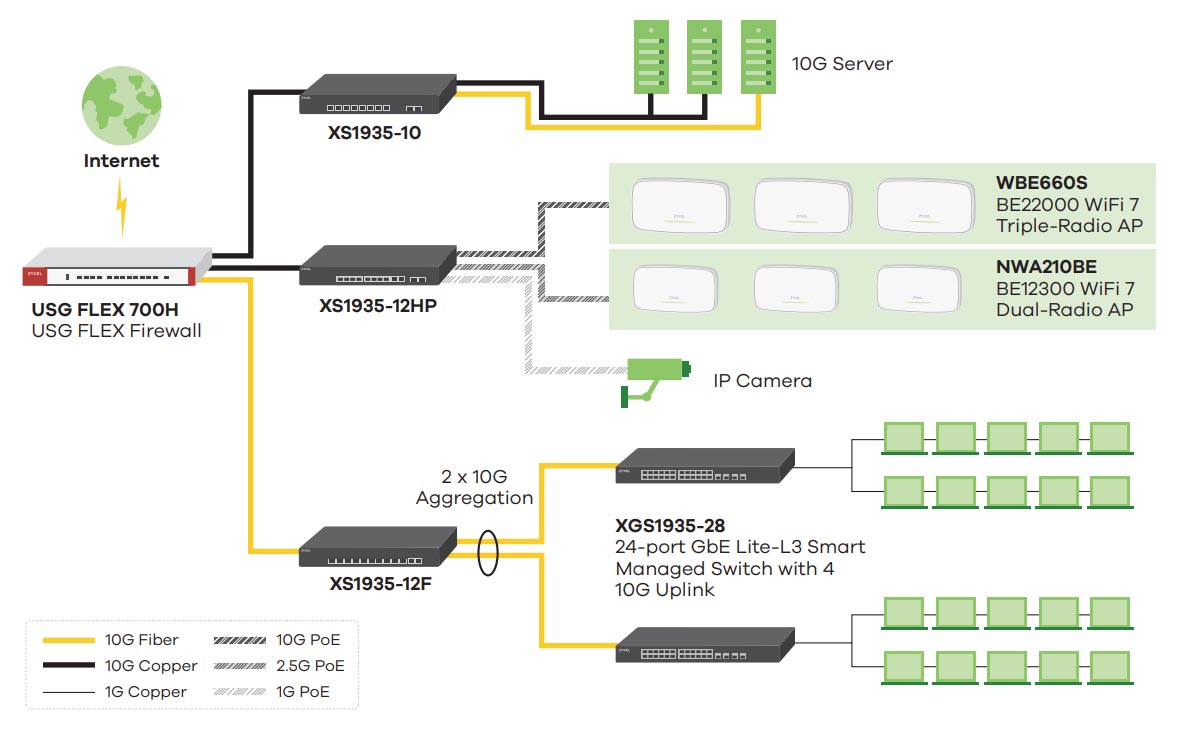

Standalone Mode

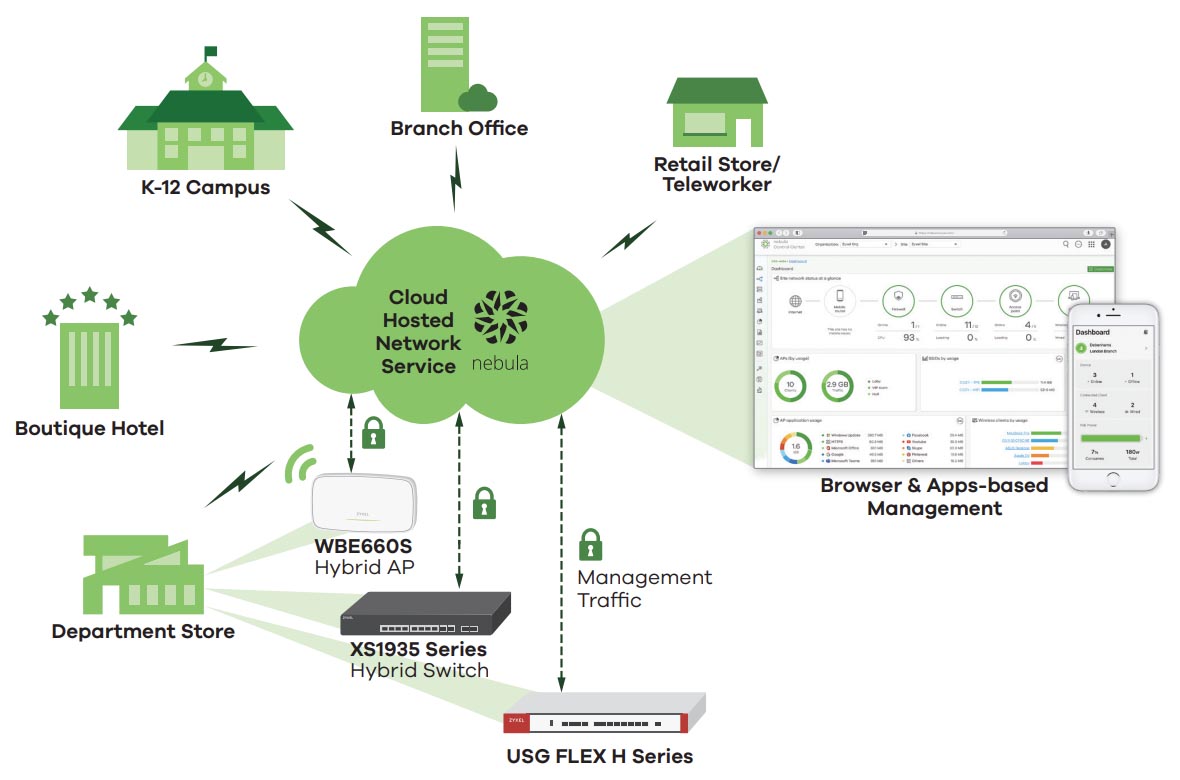

Nebula Cloud Management
Specifications:
| Model | XS1935-10 | XS1935-12HP | XS1935-12F | ||
|---|---|---|---|---|---|
| Description | |||||
| Product name | 8-port 10G Lite-L3 Smart Managed Switch with 2 10G Uplink | 8-port 10G Multi-Gig PoE Lite-L3 Smart Managed Switch with 4 10G Uplink | 10-port 10G Multi-Gig Lite-L3 Smart Managed Fiber Switch with 2 10G Uplink | ||
| Port Density | |||||
| Total port count | 10 | 12 | 12 | ||
| 100M/1G/2.5G/5G/10G Ethernet (RJ-45) | 8 | 10 | 2 | ||
| 10-Gigabit SFP+ | 2 | 2 | 10 | ||
| PoE | |||||
| PoE ports | - | 8 | - | ||
| Total PoE budget (watts) | - | 400 | - | ||
| IEEE 802.3bt PoE++ (90W) | - | Yes | - | ||
| Performance | |||||
| Switching capacity (Gbps) | 200 | 240 | 240 | ||
| Forwarding rate (Mpps) | 148.8 | 178.5 | 178.5 | ||
| Packet buffer (byte) | 2 MB | 2 MB | 2 MB | ||
| MAC address table* | 16K | 16K | 16K | ||
| Jumbo frame (byte) | 12 KB | 12 KB | 12 KB | ||
| L3 forwarding table*(IPv4/IPv6) | Max.512 IPv4 entries; Max. 512 IPv6 entries |
Max.512 IPv4 entries; Max. 512 IPv6 entries |
Max.512 IPv4 entries; Max. 512 IPv6 entries |
||
| Routing table* | 32 | 32 | 32 | ||
| VLAN routing | Yes | Yes | Yes | ||
| IP interface (IPv4/IPv6) | 32/32 | 32/32 | 32/32 | ||
| Flash/RAM | 32 MB/256 MB | 32 MB/256 MB | 32 MB/256 MB | ||
| Power | |||||
| Input | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | ||
| Min. power consumption (watts) Without any port connection | 19.94 | 26.4 | 15.21 | ||
| Max. power consumption (watts) All ports full load without PoE | 56.78 | 64.5 | 36.65 | ||
| Max. power consumption (watts) All ports full load with PoE | - | 511.6 | - | ||
| Physical Specifications | |||||
| Dimensions (WxDxH)(mm/in.) | 330 x 230 x 44 / 12.99 x 9.06 x 1.73 | 330 x 230 x 44 / 12.99 x 9.06 x 1.73 | 330 x 230 x 44 / 12.99 x 9.06 x 1.73 | ||
| Weight (kg/lb.) | 2.4 / 5.29 | 2.8 / 6.17 | 2.2 / 4.85 | ||
| Included accessories | Power cord Rack mounting |
Power cord Rack mounting |
Power cord Rack mounting |
||
| ESD/Surge Protections | |||||
| Ethernet port surge protection | 2KV | 2KV | 2KV | ||
| Power supply surge protection | 2KV Line-GND 1KV Line-Line |
2KV Line-GND 1KV Line-Line |
4KV Line-GND 2KV Line-Line |
||
| ESD protection (air/contact) | 8KV/6KV | 8KV/6KV | 15KV/8KV | ||
| Environmental Specifications | |||||
| Operating Temperature | -20°C to 50°C / -4°F to 122°F | -20°C to 50°C / -4°F to 122°F | -20°C to 50°C / -4°F to 122°F | ||
| Operating Humidity | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) | ||
| Storage Temperature | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F | ||
| Storage Humidity | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) | ||
| MTBF (hr @ 25°C) | 471,896 | 261,963 | 443,496 | ||
| Heat dissipation (BTU/hr) | 159.01 | 1654.88 | 126.93 | ||
| Acoustic noise (min/max, dBA) | 27.45/47.15 | 26.367/49.7 | 28.025/48.325 | ||
* Access Layer 3 license comes with larger table size to expand network capacity for broader access network deployment.
Software Features
Standard Compliance
- IEEE 802.3z 1000BASE-X*
- IEEE 802.3ab 1000BASE-T Ethernet*
- IEEE 802.3an 10G BASE-T Ethernet*
- IEEE 802.3ae 10 Gbit/s Ethernet over fiber*
- IEEE 802.3af PoE*
- IEEE 802.3at PoE plus*
- IEEE 802.3bt (90W) PoE over 4 pair*
- IEEE 802.3x flow control
- IEEE 802.3ad LACP aggregation*
- IEEE 802.1D Spanning Tree Protocol (STP)*
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.1p Class of Service (CoS) prioritization*
- IEEE 802.1X port authentication*
Resilience and Availability
- IEEE 802.1D Spanning Tree Protocol (STP)*
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.3ad LACP* (Max # Trunks/ Links per Trunk):
- XS1935-10: 5/8
- XS1935-12HP: 6/8
- XS1935-12F: 6/8
- Loop guard*
- Dual configuration files
- Dual images*
Traffic Control
- 802.1Q Static VLANs*/Dynamic VLANs: 1K/4K
- Support up to 4K VLAN ID*
- Independent VLAN Learning (IVL)*
- L2PT
- Port-based VLAN*
- Voice VLAN*
- VLAN trunking
- GVRP
Security
- 802.1X*
- Port security*
- MAC authentication*
- Static MAC forwarding
- Static ARP
- Policy-based security filtering
- Port isolation*
- MAC search
- Guest VLAN*
- PPPoE relay agent
- PPPoE option 82
- PPPoE IA
- Interface related trap enable/disable (by port)
- CPU protection
- Import HTTPS certification *
- Login authentication by RADIUS*
- RADIUS accounting
- Authorization on RADIUS*
- Multiple RADIUS servers (IPv4*/IPv6)
- VLAN and bandwidth assignment via RADIUS with 802.1x authentication*
- ACL packet filtering (IPv4*/IPv6)
Quality of Service (QoS)
- No. of hardware queues per port: 8*
- 802.1p queuing methods: SPQ, WRR, WFQ*
- Storm control: broadcast, unknown L2MC, unknown unicast (DLF)*
- Rate limiting per port
- Policy-based rate limiting
- Policy-based prioritization
Layer 2 Multicast
- L2 multicast group: 1K
- IGMP snooping (v1, v2, v3)*
- Configurable IGMP snooping timer and priority
- IGMP snooping statistics
- IGMP throttling
- IGMP filtering
- Static multicast
- Multicast load sharing over trunking port*
Routing
- Static route*
Manageability
- SNMP* v1, v2c, v3
- SNMP trap group
- RMON (1, 2, 3, 9)
- Syslog (IPv4/v6)*
- IEEE 802.1AB LLDP*
- IEEE 802.1AB LLDP-MED*
- Custom default
- Display port utilization*
- Support NebulaFlex™ for hybrid mode
IPv6 Management
- IPv6 over Ethernet (RFC 2464)
- IPv6 addressing architecture (RFC 4291)
- Dual stack (RFC 4213)
- ICMPv6 (RFC 4884)
- Path MTU (RFC 1981)
- Minimum path MTU size of 1280 (RFC 5095)
- Encapsulation for maximum MTU of 1500
- Neighbor discovery (RFC 4861)
- DHCPv6 relay
- Duplicated Address Detection (DAD)
Device Management
- Standalone management by Web interface
- Cloud management by Nebula Control Center*
- Auto configuration recovery (only for cloud mode)
- Zyxel iStacking
- Management through Web, SNMP
- Firmware upgrade by FTP/Web
- Configuration saving and retrieving
- Multiple login supported
- DHCP relay*
- DHCP relay per VLAN
- DHCP client IPv4 (IPv4*/IPv6)
- DHCP option 82*
- Daylight saving*
- NTP Server (IPv4*/IPv6)
- Port mirroring*
- Scheduled PoE*
- PoE default consumption mode*
- PoE power management extended configuration*
- Restore to last custom default
MIB
- Zyxel Common MIB
- RFC 1066 TCP/IP-based MIB
- RFC 1213, 1157 SNMPv2c/v3 MIB
- RFC 1493 bridge MIB
- RFC 1643 Ethernet MIB
- RFC 1757 RMON Group 1, 2, 3, 9
- RFC 2011, 2012, 2013 SNMPv2 MIB
- RFC 2233 SMIv2 MIB
- RFC 2358 Ethernet-like MIB
- RFC 2674 bridge MIB extension
- RFC 2819, 2925 remote management MIB
- RFC 3621 power Ethernet MIB
- RFC 4022 management information base for transmission control protocol
- RFC 4113 management information base for user datagram protocol
- RFC 4292 IP forwarding table MIB
- RFC 4293 Management Information
- Base (MIB) for IP
Access L3 License*
- Multilevel CLI
- CLI (Cisco-like)
- Expanding Network Capacity
- IEEE 802.1Q Static VLAN: up to 4,094
- IPv4 Address table: up to 1,024
- MAC table: up to 32K
- IPv4/IPv6 Static route: up to 64/64
- ACL: up to 256
- Networked AV Mode
- Protocol-Based VLAN
- IP subnet-based VLAN
- MAC-based VLAN
- VLAN isolation
- IEEE 802.1AD VLAN stacking (QinQ)
- VLAN mapping
- MRSTP (Zyxel Proprietary)
- BPDU transparency
- Flex link
- IEEE 802.3ah OAM (Link Discovery, Loopback)
- BPDU Guard
- Root Guard
- IP source guard (IPv4/IPv6)
- DHCPv6 Snooping
- IPv6 DHCP trust
- ARP Inspection
- ARP Freeze
- Anti-ARP Scan
- MAC Freeze
- DHCP Server Guard
- MVR support
- IGMP Snooping Immediate Leave
- MLD Snooping (MLD v1)
- sFlow
- IEEE 802.3x Flow Control
- Diffserv (DSCP)
- Auto PD recovery
- ZUID
- MAC-based authentication per VLAN
- Compound Authentication
- DHCP Client Option60
- Multiple TACACs+ server
- Login authentication by TACACS+
- TACACS+ Accounting
- Authorization on TACACS+
- Zyxel Private MIB
Certifications
- Safety
- LVD
- BSMI Safety
- EMC
- FCC Part 15 (Class A)
- CE (Class A)
- BSMI EMC
- RoHS compliant
Zyxel One Network
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
- One-click quick association with
- Zyxel AP Configurator (ZAC)
- Automatic detection of the latest firmware
- Displays device serial number and hardware version
- Cloud mode on/off option for Hybrid series devices
- Intuitive Cloud connection status
Smart Connect
- Discover neighboring devices
- One-click remote management access to the neighboring Zyxel devices
- Reset neighboring devices remotely to factory defaults
Warranty
- Limited life-time warranty**
* Nebula Cloud and Standalone modes supported features. Some Nebula features may need an extra license to work.
** Warranty terms, service availability, and service response times may vary from country or region to country or region.
Documentation:
Download the Zyxel XS1935 Series Datasheet (PDF).
