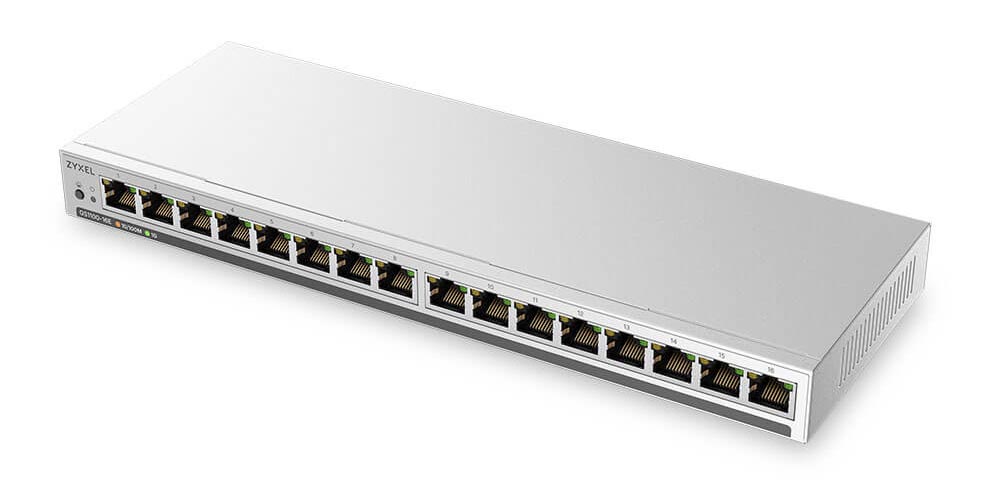

Zyxel GS1100-16E
16-port GbE Unmanaged Slim Switch
Our Price: $59.99
Click here to jump to more pricing!
Overview:

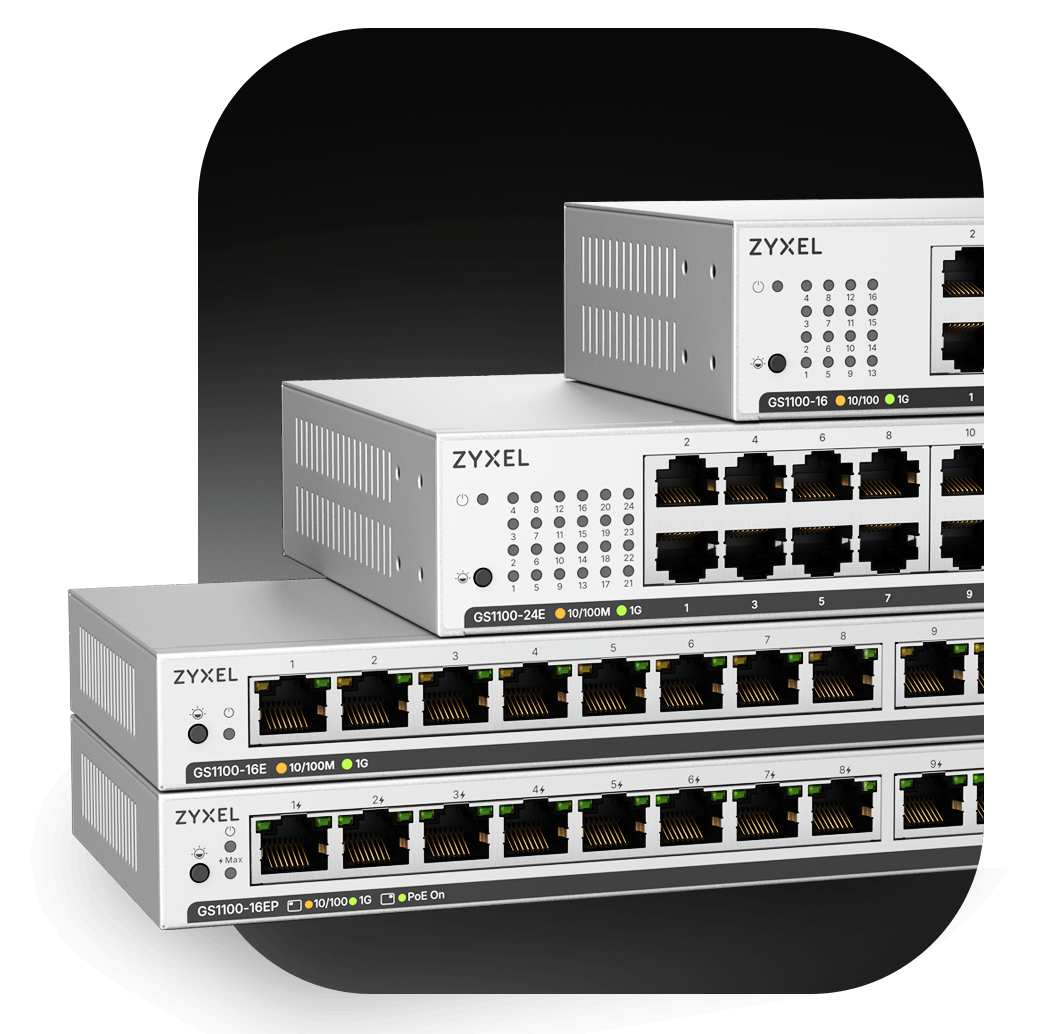

The Zyxel GS1100 Unmanaged Plus Series is designed for small business and SMB environments, delivering instant Gigabit connectivity with more than simple plug-and-play operation. A straightforward web-based interface enables easy management of essential functions. With flexible 16- or 24-port options, a slim form factor, and PoE models, the series fits seamlessly into high-density office environments.
Gigabit speeds
Instant gigabit speeds with easy plug-and-play
Web Based
Simplified web-managed functions, including VLAN, loop prevention, port isolation, EEE, and PoE
Slimline
Slim, space-saving design for desks, walls, and tight server cabinets
Energy-efficient
Energy-efficient and fanless for silent, eco-friendly networking
Benefits:
Plug in. Power up. Take control.
The Zyxel GS1100 Unmanaged Plus Series brings instant Gigabit connectivity to small business and SMB environments - with a little more built in. A simple web-based interface puts the essentials right at your fingertips, no complex configuration required.
Choose 16 or 24 ports. Add 135W PoE where you need it with the GS1100-16EP. Slip it into tight spaces with a slim form factor versions built for small offices or homes.
A simpler way to take control.
The Zyxel GS1100 Unmanaged Plus Series puts the essentials of network control and security right in your browser. No steep learning curve. No unnecessary complexity. Just the settings that matter, ready when you need them.
- VLAN: Keep traffic where it belongs.
- Loop: Prevention - stop network loops before they start.
- Port isolation: Tighten security between connected devices.
- EEE: Save energy on idle ports.
- PoE: Power your devices straight over Ethernet.
Silent switching technology.
The GS1100 Unmanaged Plus Series features an advanced fanless design that delivers powerful networking without the noise. Enjoy completely silent operation - ideal for noise-sensitive work environments.
For up to 135W PoE deployments, the GS1100-16EP takes it a step further. Its external power adapter removes the need for internal cooling fans altogether, ensuring reliable performance while keeping your workspace calm, focused and distraction-free. Powerful networking has never been this quiet.
Freedom of installation via PoE

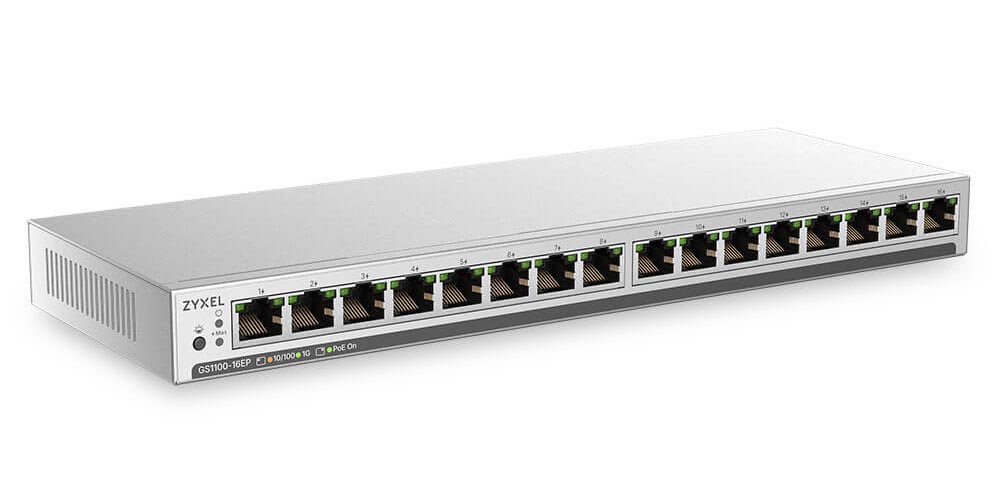

The GS1100-16EP supports the IEEE 802.3at PoE+ standard and easily connects with PoE ready devices to your network with plug-and-play design. PoE+ allows 30 watts per port to power WiFi 6/7 APs, VoIP phones and IP surveillance cameras only through Ethernet cables reducing the need of power adapters saving installation time and cost. The GS1100-16EP has been designed with 16 full PoE+ ports with total PoE power budget of up to 135 Watts, which makes it an ideal PoE connectivity solution for home, shop and small office environments.
Specifications:
| Model | GS1100-16 | GS1100-16E | GS1100-16EP | GS1100-24E |
|---|---|---|---|---|
| Description | ||||
| Product name | 16-port GbE Unmanaged Switch | 16-port GbE Unmanaged Slim Switch | 16-port GbE PoE Unmanaged Slim Switch | 24-port GbE Unmanaged Switch |
| Port Density | ||||
| Total port count | 16 | 16 | 16 | 24 |
| 100M/1G Ethernet (RJ-45) | 16 | 16 | 16 | 24 |
| PoE | ||||
| PoE ports | - | - | 16 | - |
| Total PoE budget (watts) | - | - | 135 | - |
| IEEE 802.3at PoE+ | - | - | Port 1~Port 16 | - |
| Performance | ||||
| Switching capacity (Gbps) | 32 | 32 | 32 | 48 |
| Forwarding rate (Mpps) | 23.8 | 23.8 | 23.8 | 35.7 |
| Packet buffer (byte) | 1 MB | 1 MB | 1 MB | 1 MB |
| MAC address table | 16 K | 16 K | 16 K | 16 K |
| Jumbo frame (byte) | 12 KB | 12 KB | 12 KB | 12 KB |
| Flash/RAM | 4MB/256KB | 4MB/256KB | 4MB/256KB | 4MB/256KB |
| Power | ||||
| Input | 100 - 240V AC, 50/60Hz | 100 - 240V AC, 50/60Hz | 100 - 240V AC, 50/60Hz | 100 - 240V AC, 50/60Hz |
| Min. power consumption (watts) Without any port connection | 2.1 | 2.04 | 3.26 | 3.35 |
| Max. power consumption (watts) All ports full load without PoE | 8.43 | 8.42 | 9.59 | 13.75 |
| Max. power consumption (watts) All ports full load with PoE | - | - | 157.83 | - |
| Physical Specifications | ||||
| Dimensions (WxDxH)(mm/in.) | 165 x 118 x 39 / 6.5 x 4.65 x 1.54 | 278 x 100 x 26 / 10.94 x 3.94 x 1.02 | 278 x 100 x 26 / 10.94 x 3.94 x 1.02 | 225 x 143.5 x 39 / 8.86 x 5.65 x 1.54 |
| Weight (kg/lb.) | 0.601 / 1.32 | 0.614 / 1.35 | 0.68 / 1.5 | 0.897 / 1.98 |
| Included accessories | Power cord Wall mount kit Rack mounting kit |
Power adapter Wall mount kit |
Power cord Power adapter Wall mount kit |
Power cord Wall mount kit Rack mounting kit |
| ESD/Surge Protections | ||||
| Ethernet port surge protection | 2KV | 2KV | 2KV | 2KV |
| Power supply surge protection | 2KV Line-GND 1KV Line-Line |
4KV Line-GND 4KV Line-Line |
4KV Line-GND 2KV Line-Line |
2KV Line-GND 1KV Line-Line |
| ESD protection (air/contact) | 8KV/4KV | 8KV/4KV | 8KV/4KV | 8KV/4KV |
| Environmental Specifications | ||||
| Operating Temperature | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F |
| Operating Humidity | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) |
| Storage Temperature | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F |
| Storage Humidity | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) |
| MTBF (hr @ 25°C) | 712,274 | 828,024 | 301,552 | 581,968 |
| Heat dissipation (BTU/hr) | 27.911 | 27.535 | 77.899 | 42.413 |
| Acoustic noise@25°C (min/max, dBA) | Fanless, 0 | Fanless, 0 | Fanless, 0 | Fanless, 0 |
Standard Compliance
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Ethernet
- IEEE 802.3ab 1000BASE-T Ethernet
- IEEE 802.3z 1000BASE-X (GS1100-10HP only)
- IEEE 802.3az EEE support
- IEEE 802.3x flow control
- IEEE 802.1p CoS
- IEEE 802.3af PoE (for PoE model)
- IEEE 802.3at PoE Plus (for PoE model)
Software Features
- Web-based management
- System password
- Port LED On/Off
- VLAN Trunking
- 802.1Q VLAN
- Loop prevention
- DHCP client
- Port isolation
- IEEE 802.3az
- Firmware upgrade
- Configuration: Backup and Restore
- Reboot/Reset factory default
- PoE configuration (for PoE model)
Certifications Safety
- Safety:
- LVD
- BSMI
- EMC (Class A)
- CE
- FCC
- RCM
- ICES-003
- BSMI
- RoHS
- REACH
Warranty
- Limited life-time warranty*
* Warranty terms, service availability, and service response times may vary from country or region to country or region
Documentation:
Download the Zyxel GS1100 Unmanaged Plus Series Datasheet (PDF).
