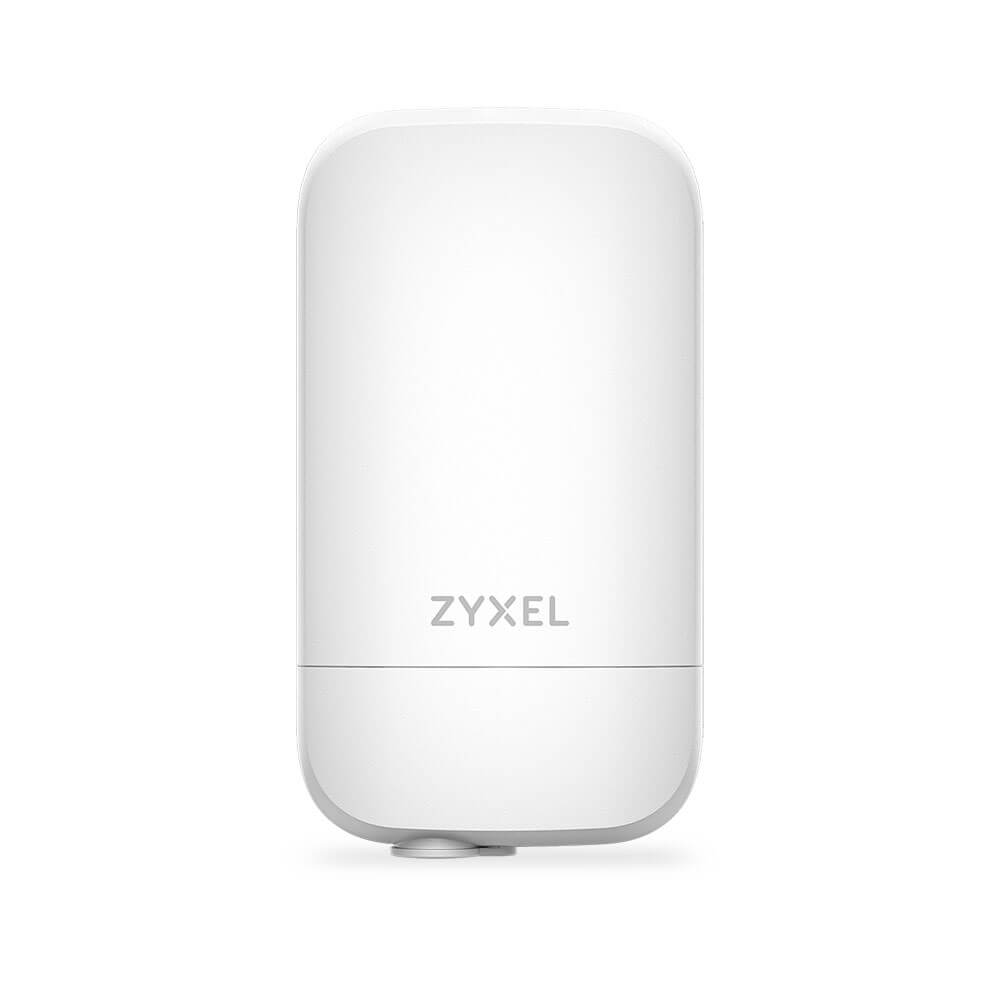

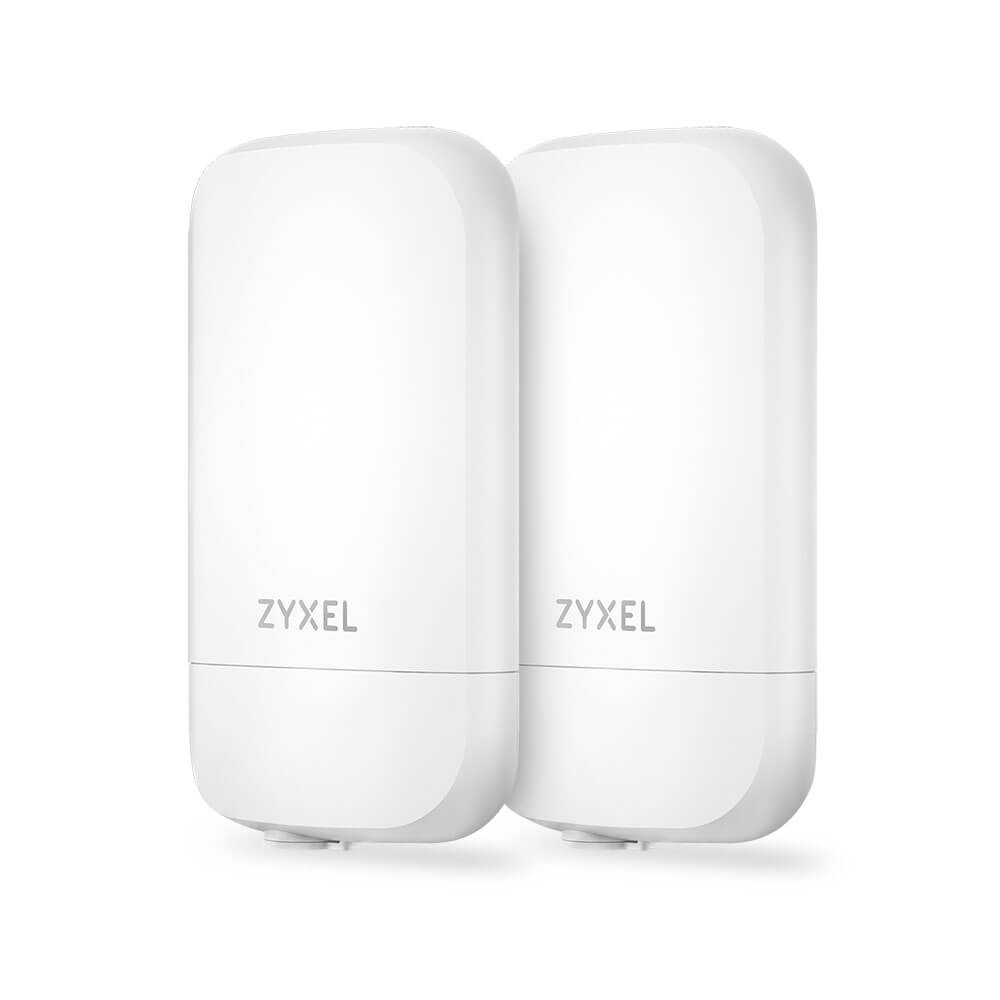

Zyxel NWA55AX PTP
AX2400 2-Stream WiFi 6 (5GHz, 10km) NebulaFlex Outdoor Wireless Bridge

Zyxel Products

Zyxel Wireless Access Points

Zyxel PTP Outdoor Bridge Kit AX2400 Access Points with PoE Injectors

#NWA55AXPTP
Our Price: $169.99

Click here to jump to more pricing!

Overview:

The NWA55AX PTP is an AX2400 2-stream WiFi 6 outdoor wireless bridge designed to deliver reliable, high-speed connectivity over long distances. Operating on 5GHz (2x2:2) 802.11ax technology, it supports data rates of up to 2.4Gbps, making it ideal for point-to-point wireless backhaul applications.

Engineered for extended range, the NWA55AX PTP enables stable wireless links of up to 10km (6 miles), providing a powerful and cost-effective solution for connecting campuses, farms, warehouses, or remote outbuildings without the need for cabling. Its 160MHz channel width further enhances performance by creating a wider wireless backhaul, increasing throughput and ensuring faster, more stable connectivity even in demanding environments.

Deployment is simple and efficient with the pre-configured 2-piece kit, which comes factory-paired to enable true out-of-the-box operation. With auto-pairing functionality and a clear LED indicator on the repeater, users can quickly establish and verify the connection, significantly reducing installation time and complexity.

A dedicated 2.4GHz radio is reserved for management access, allowing users to connect to the device for configuration and monitoring without impacting the 5GHz wireless backhaul link. This ensures stable bridge performance while still providing convenient local access for maintenance and setup when needed.

Built for outdoor durability, the NWA55AX PTP features an IP55-rated weatherproof enclosure and an operating temperature range of -30°C to 50°C, ensuring reliable performance in harsh environmental conditions. Its sleek, compact design with integrated internal antennas not only enhances visual appeal but also protects critical antenna components from damage, ensuring long-lasting performance in outdoor deployments. The wireless bridge can be powered by a PoE switch or by the PoE injector included in the package, ensuring flexible and simplified installation.

5GHz (2x2:2) 802.11ax outdoor wireless bridge provides maximum speeds up to 2.4Gbps

Easy setup with a pre-configured 2-piece kit that delivers fast deployment with auto-pairing and a seamless out-of-the-box experience

Long-range 5GHz transmission designed for wireless links up to 10km (6 miles)

160MHz channel width support provides a wider wireless backhaul, increasing throughput for faster and more stable connectivity

Designed for challenging outdoor environments with an IP55 rating and operating temperature range of -30°C to 50°C

Sleek, compact design with internal antennas enhances aesthetic appeal while protecting the antennas from damage

Benefits:

Power on. Mount up. Connected.

The Zyxel NWA55AX PTP is an IP55-rated, dedicated 'Point-to-Point' WiFi 6 outdoor bridge, capable of linking sites up to 10km (6 miles) apart at speeds up to 2.4Gbps through its built-in optimized 5GHz antenna design.

It's the fast, cable-free way to connect campuses, warehouses, farms, and remote buildings - with minimal effort and maximum performance. Factory‑paired as a 2-piece kit, the NWA55AX PTP arrives ready to deploy.

Engineered to perform. Built to reach.

Outdoor wireless shouldn't be a compromise. The NWA55AX PTP changes the equation - high-performance connectivity that's as easy to deploy as it is to rely on.

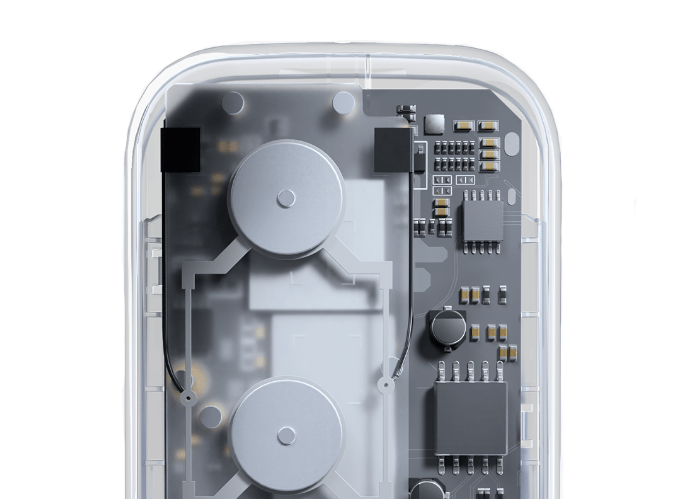

Sealed and compact, with integrated directional antennas engineered to reach up to 10km - no alignment headaches, no exposed hardware, just a clean install and a strong, stable signal. IP55-rated for dust and rain, designed to operate across temperatures ranging from -30°C to 50°C.

A dedicated management radio keeps configuration separate from your backhaul, and flexible PoE gets you online without the cabling complexity.

Connected from the moment you power on.

The NWA55AX PTP comes as a matched pair, factory-paired and ready to work straight out of the box (standalone mode).

No configuration, no guesswork - power them on and they find each other automatically. A clear LED indicator confirms the link the moment it's established, so you know you're connected before you leave the site.

Fast to deploy. Easy to verify. Built for the real world.

Click. Tap. Done.

Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required.

Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere.

Search: Zyxel Nebula Mobile

Powerful, effortless and scalable connectivity.

With Nebula, you can manage your entire network – wireless, switching, security and FWA – through a single centralized cloud platform. Deploy and configure devices quickly and remotely, without the need for extra hardware controllers or software.

Whether you're managing one site or many, Nebula delivers real-time monitoring, instant alerts and complete network visibility – anytime, anywhere.

Scale confidently, simplify operations and stay secure – all through one intuitive platform.

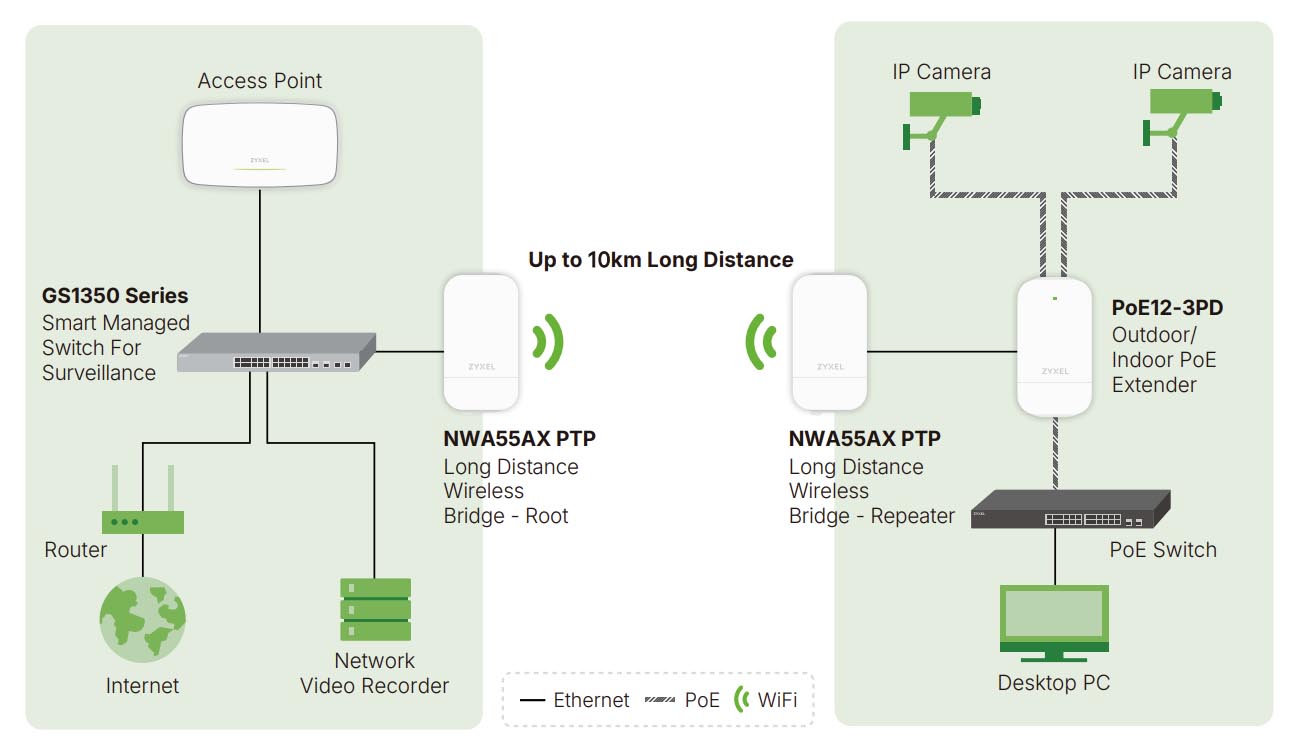

Application Diagram:

Network Application

Specifications:

Wireless

Standard: IEEE802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
- 2.4 GHz: 287 Mbps (Management Access)
- 5 GHz: 2400 Mbps
Frequency band:
- 2.4 GHz:
  - USA (FCC): 2.412 to 2.462 GHz
  - Europe (ETSI): 2.412 to 2.472 GHz
- 5 GHz:
  - USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
  - European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth: 20-, 40- ,80- and 160-MHz
Conducted typical transmit output power^*1:
- US (2.4GHz/5GHz): 22/28 dBm
- EU (2.4GHz/5GHz): 20/24 dBm

RF Design

Antenna type: Internal antenna
Antenna gain:
- 2.4 GHz: 3dBi, 1x1:1SS
- 5 GHz: 9dBi, 2x2:2SS
Minimum receive sensitivity: Min. Rx sensitivity up to -99 dBm
HPBW/Horizontal: 70°
HPBW/Vertical: 22°

WLAN Feature

Band steering
WDS/Mesh^*2
Wireless Bridge
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS
Advanced cellular coexistence

Security

Encryption: WEP/WPA/WPA2/WPA3
Authentication: IEEE 802.1X/RADIUS authentication
Access management: L2-isolation/MAC filtering/Rogue AP detection

Networking

IPv6
VLANs
WMM
U-APSD

Management

Operating mode: Nebula Cloud managed standalone
Web UI/CLI

Physical Specifications

Item dimensions (LxWxH): 180 x 99 x 35.9mm / 7.09 x 3.90 x 1.41 inch (without Antenna)
Item weight: 300 g (0.66 lb.)
Packing dimensions (LxWxH): 345 x 197 x 58mm / 13.58 x 7.56 x 2.28 inch
Packing weight: 1278 g (2.82 lb.)
Included accessories:
- PoE injecto
- Mounting screws
MTBF: 695,292 hours

Physical Interfaces

Ethernet port: 1 x 1GbE LAN
Power: PoE (802.3af): power draw 12W

PoE modes:

IEEE 802.3af: Unrestricted
IEEE 802.3at: Unrestricted
IEEE 802.3bt: Unrestricted

Environmental Specifications

Weather Protection: IP55
Operating Environment:
- Temperature: -30°C to 50°C (-22°F to 122°F)
- Humidity: 10% to 90% (Non-condensing)
Storage Environment:
- Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 10% to 90% (Non-condensing)

Certifications

Radio: FCC Part 15C, FCC Part 15E; ETSI EN 300 328, EN 301 893; LP0002
EMC: FCC Part 15B, EN 301 489-1; EN 301 489-17, EN55032, EN55035, EN61000-3-2/-3, BSMI CNS15936
Safety: EN 62368-1, IEC 62368-1; BSMI CNS15598-1

*1: Maximum transmit power is limited by local regulatory settings.
*2: WDS, Smart Mesh, and Industry’s Open Mesh, Easy Mesh are different mesh systems that do not work with one another.

Documentation:

Download the Zyxel NWA55AX PTP Datasheet (PDF).
