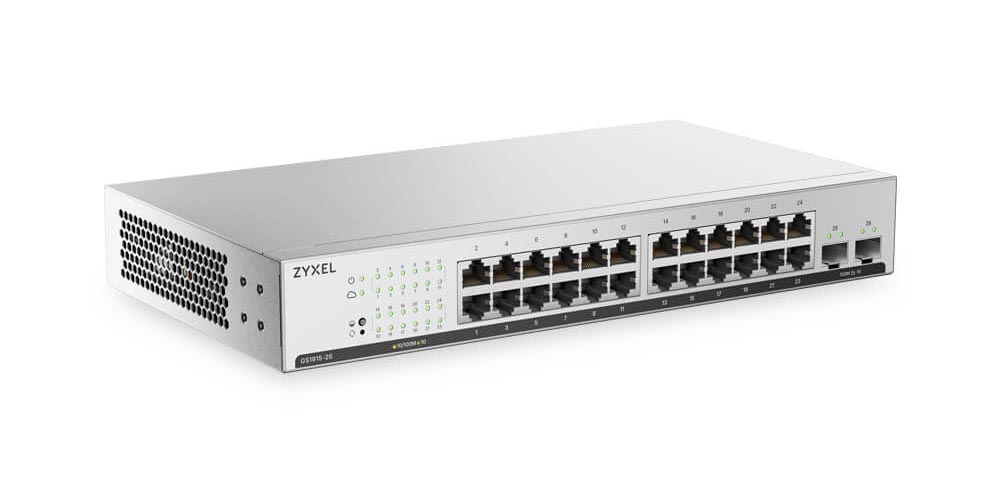

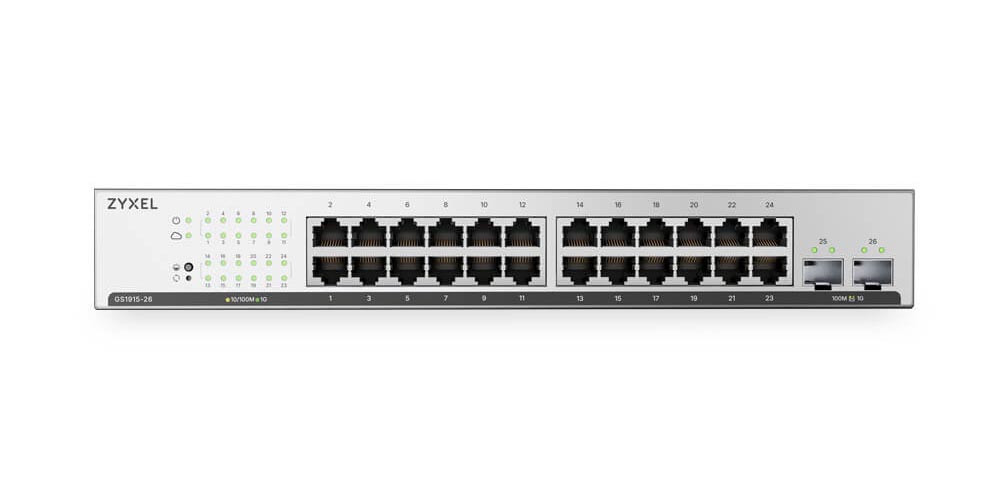

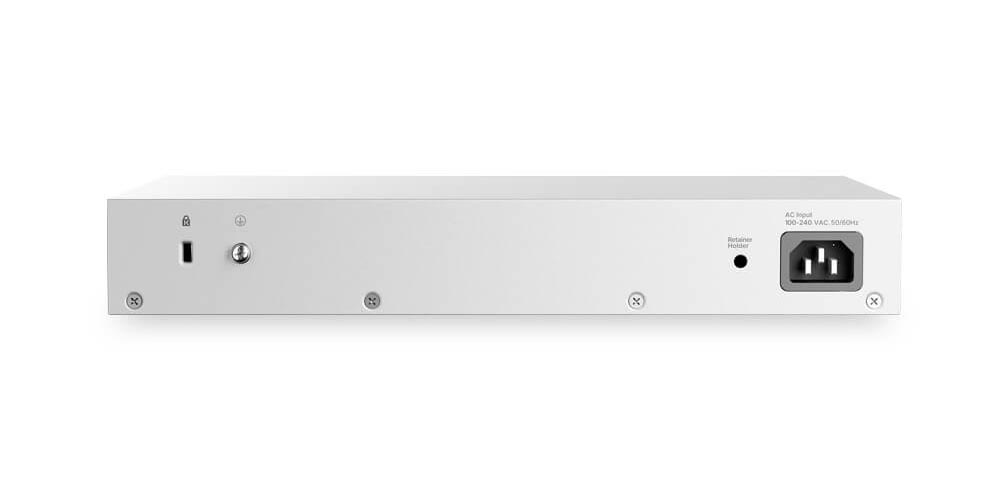

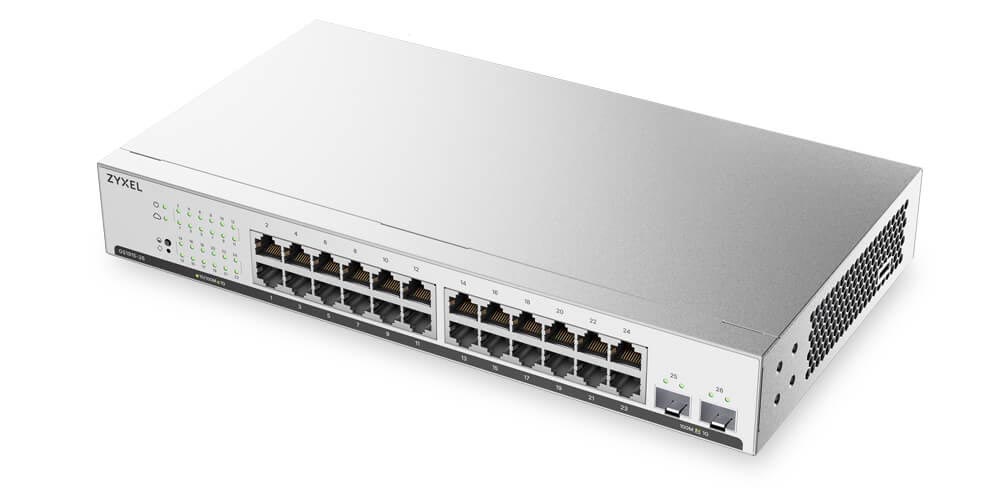

Zyxel GS1915-26v2
24-port GbE Smart Managed Switch with 2 GbE Uplink
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
The Zyxel GS1915v2 Series features nine Gigabit Smart Managed Switches ranging from 8 to 26 ports, designed for SMBs, retail, hospitality, and lightindustrial environments. Featuring NebulaFlex, the series allows you to choose between Nebula cloud management and intuitive standalone web management. Built for diverse deployment scenarios, the portfolio includes fanless desktop and wall-mount models, smart-fan rack-mount switches, and a rugged DIN-rail switch with dual AC/DC power redundancy. PoE+ models offer power budgets from 60W to 180W, delivering reliable power and connectivity for a wide range of business applications.
Affordable cloud switch with plug and play simplicity
Multiple choices and comes with SFP ports support fit in various applications for SB/SMB
Flexible PoE options with 60W to 180W power budgets across 8-, 10-,18- and 26-port models
Selectable cloud or standalone management with a user-friendly setup wizard
Compact and near-silent design is ideal for any working environment
Benefits:
Connect everything. Manage anywhere.
Reliable Gigabit connectivity, effortless management and room to grow – the GS1915v2 Series delivers everything a small business network needs. From 8 to 26 ports, there's a Cloud/Smart Managed Switch for every deployment - shop floor, hotel lobby or industrial site.
Silent fanless desktop and wall-mount models suit front-of-house spaces, smart-fan rack-mounts keep cool in the cabinet, and a rugged DIN-rail model with dual AC/DC power redundancy handles harsher environments.
Setup takes minutes – plug in, connect, done. And with Gigabit SFP fibre uplinks on every model, the network is ready to grow with your business.
Everything connected, nothing complicated.
9x Gigabit Cloud/Smart Managed Switches, one simple choice. From 8 to 26 ports, with flexible PoE and Nebula cloud or standalone management, the GS1915v2 Series connects your whole business – no complexity, no compromise.
Designed to disappear into any workspace.
Not every business has a server room – and the GS1915v2 Series doesn't need one. Compact and space-saving, these switches are made to work where your business works: tucked under a counter, mounted behind a till or sitting quietly on a shelf.
Fanless models run in complete silence, while smart-fan cooling (GS1915-18EPv2/26EPv2/26HPv2) keeps larger units whisper-quiet – so there's no background hum in small offices, coffee shops or retail stores where every bit of atmosphere counts.
And with desktop, wall-mount, rack-mount and DIN-rail options across the range, there's a GS1915v2 to fit whatever space you have – even when that space is barely there at all.
More power. More devices. Zero drama.
Six PoE models deliver budgets from 60W to 180W, with up to 30W PoE+ per port for access points, IP cameras and VoIP phones – one cable for data and power.
Continuous PoE keeps critical devices running through switch reboots, while time-based scheduling switches devices off out of hours to save energy.
Need power where there's no socket? The GS1915-8PDv2 draws its power from an upstream PoE switch.
Click. Tap. Done.
Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required.
Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere.
Search: Zyxel Nebula Mobile
Powerful, effortless and scalable connectivity.
With Nebula, you can manage your entire network – wireless, switching, security and FWA – through a single centralized cloud platform. Deploy and configure devices quickly and remotely, without the need for extra hardware controllers or software.
Whether you're managing one site or many, Nebula delivers real-time monitoring, instant alerts and complete network visibility – anytime, anywhere.
Scale confidently, simplify operations and stay secure – all through one intuitive platform.
Application Diagram:
Standalone Management
Nebula Cloud Management
Specifications:
| Model | GS1915-18v2 | GS1915-18EPv2 | GS1915-26v2 | GS1915-26EPv2 | GS1915-26HPv2 |
|---|---|---|---|---|---|
| Description | |||||
| Product name | 16-port GbE Smart Managed Switch with 2 GbE Uplink | 16-port GbE PoE Smart Managed Switch with 2 GbE Uplink | 24-port GbE Smart Managed Switch with 2 GbE Uplink | 24-port GbE PoE Smart Managed Switch with 2 GbE Uplink | 24-port GbE PoE Smart Managed Switch with 2 GbE Uplink |
| Port Density | |||||
| Total port count | 18 | 18 | 26 | 26 | 26 |
| 100M/1G Ethernet (RJ-45) | 16 | 16 | 24 | 24 | 24 |
| Gigabit SFP | 2 | 2 | 2 | 2 | 2 |
| PoE | |||||
| PoE ports | - | 8 | - | 12 | 24 |
| Total PoE budget (watts) | - | 130 | - | 130 | 180 |
| IEEE 802.3at PoE+ | - | Port 1-8 | - | Port 1-12 | Port 1-24 |
| Performance | |||||
| Switching capacity (Gbps) | 36 | 36 | 52 | 52 | 52 |
| Forwarding rate (Mpps) | 26.7 | 26.7 | 38.6 | 38.6 | 38.6 |
| Packet buffer (byte) | 1MB | 1MB | 1MB | 1MB | 1MB |
| MAC address table | 16K | 16K | 16K | 16K | 16K |
| Jumbo frame (byte) | 9KB | 9KB | 9KB | 9KB | 9KB |
| Flash/RAM | 64MB/512MB | 64MB/512MB | 64MB/512MB | 64MB/512MB | 64MB/512MB |
| Power | |||||
| Input | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz |
| Min. power consumption (watts) Without any port connection | 5.2 | 11 | 6.4 | 12.3 | 12.3 |
| Max. power consumption (watts) All ports full load without PoE | 10.7 | 13.6 | 14.2 | 18.7 | 19 |
| Max. power consumption (watts) All ports full load with PoE | - | 151 | - | 161 | 221 |
| Physical Specifications | |||||
| Dimensions (WxDxH)(mm/in.) | 280 x 126 x 44 / 11.02 x 4.96 x 1.73 | 300 x 165 x 44 / 11.81 x .65 x 1.73 | 300 x 165 x 44 / 11.81 x .65 x 1.73 | 330 x 230 x 44 / 12.99 x 9.06 x 1.73 | 330 x 230 x 44 / 12.99 x 9.06 x 1.73 |
| Weight (kg/lb.) | 1.0 / 2.2 | 1.5 / 3.31 | 1.3 / 2.87 | 2.0 / 4.41 | 2.0 / 4.41 |
| Included accessories | Power cord Wall mount kit Rack mounting |
Power cord Wall mount kit Rack mounting |
Power cord Wall mount kit Rack mounting |
Power cord Rack mounting |
Power cord Rack mounting |
| ESD/Surge Protections | |||||
| Ethernet port surge protection | 4KV | 4KV | 4KV | 4KV | 4KV |
| Power supply surge protection | 2KV Line-GND 1KV Line-Line |
4KV Line-GND 4KV Line-Line |
2KV Line-GND 1KV Line-Line |
4KV Line-GND 4KV Line-Line |
4KV Line-GND 4KV Line-Line |
| ESD protection (air/contact) | 8KV/6KV | 8KV/6KV | 8KV/6KV | 8KV/6KV | 8KV/6KV |
| Environmental Specifications | |||||
| Operating Temperature | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F |
| Operating Humidity | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) |
| Storage Temperature | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F |
| Storage Humidity | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) |
| MTBF (hr @ 25°C) | 1,506,385 | 708,090 | 1,262,790 | 651,099 | 632,105 |
| Heat dissipation (BTU/hr) | 36.5 | 46.4 | 48.5 | 64 | 65 |
| Acoustic noise@25°C (min/max, dBA) | Fanless, 0 | 20.1/49.7 | Fanless, 0 | 22.5/49.5 | 19.9/49.4 |
Software Features
L2 Features
- MAC Address Table: 16 K entries
- Static MAC Forwarding
- Static MAC Filter
- MAC Aging Time
- MAC Freeze
- IEEE 802.3x Flow Control
- Jumbo Frames up to 9 KB
- IEEE 802.3ad Link Aggregation (LACP)*
- GS1915-8PD: 4 groups / 8 links
- GS1915-10/-10HP/D-10HP: 5 groups / 8 links
- GS1915-18/-18EP/-26/-26EP/-26HP: 8 groups / 8 links
- Static Link Aggregation*
- LAG Load Balancing Algorithm
- Spanning Tree Protocols:
- IEEE 802.1D STP*
- IEEE 802.1w RSTP*
- IEEE 802.1s MSTP
- Loop Guard*
- Port Mirroring (1 session)*
- LLDP / LLDP-MED*
- ARP Learning (Reply / G-ARP / Request)
VLAN
- IEEE 802.1Q Tagged VLAN
- VLAN Groups: 1K static VLAN IDs
- Port-based VLAN
- Protocol-based VLAN (via ACL)
- MAC-based VLAN (up to 50)
- Vendor-ID VLAN (up to 8)*
- Voice VLAN (up to 10)*
- Guest VLAN*
- VLAN Trunking*
L2 Multicast
- IGMP Snooping v1 / v2 / v3*
- Per-VLAN IGMP Snooping
- IGMP Querier
- Unknown Multicast Drop
- IGMP Proxy
- IGMP Normal Leave / Immediate Leave
- IGMP Throttling
- IGMP Group Limit per Port
- Static Multicast Forwarding
- Max Multicast Groups: 1024
IP Interface
- IPv4 Interfaces: up to 16
- IPv6 Interfaces: up to 16
- DHCP Relay IPv4: up to 16 interfaces*
- DHCP Relay IPv6: up to 16 interfaces
- DHCP Option 82*
Quality of Service (QoS)
- 8 Hardware Queues per port
- IEEE 802.1p Class of Service*
- DSCP (Diffserv)
- Queue Method: SPQ / WFQ / WRR / Hybrid-SPQ
- DSCP to IEEE 802.1P Mapping
- Bandwidth Control (ingress/egress)*
- Storm Control (Broadcast / Multicast / Unknown Unicast)*
- IEEE 802.3x Flow Control
Access Control List (ACL)
- L2 / L3 / L4 ACL
- ACL Entries: 128 IPv4 / 64 IPv6
- Permit / Drop action
- Redirect / Mirror
- Bandwidth / Remark
- Time-based ACL
Security
- Port Security*
- VLAN Ingress Check*
- Port Isolation*
- DHCP Snooping (IPv4)
- Service Access Control*
- Remote Management (IPv4* / IPv6)
- Password Complexity
- Password Encryption
- User IP Lockout
- CPU Protection
- ErrDisable Detect / Recovery*
AAA
- IEEE 802.1X Port-based Authentication*
- Dynamic VLAN Assignment (IEEE 802.1X)*
- Guest VLAN*
- Privilege Level for Management Access
- Login Authentication
- Authentication / Authorization / Accounting via RADIUS
- Authentication / Authorization / Accounting via TACACS+
PoE Management (PoE Models)
- IEEE 802.3af / IEEE 802.3at (PoE+) compliant*
- Standard / Compatible Mode*
- Time-based PoE (scheduled PoE on/off)*
- Continuous PoE (no PoE interruption during system reboot)
- LLDP Power via MDI (negotiated power delivery)
- PoE Neighbor Discovery
L1 Service
- DDMI (SFP Diagnostic Monitoring) — all models except GS1915-8PDv2*
- Cable Diagnostics*
- SFP Detect
Management
- NebulaFlex*
- Web-based GUI (IPv4 / IPv6)
- Initial Wizard Configuration
- Locator LED*
- HTTPS (SSL/TLS 1.2)
- HTTPS CA Certificate Import
- SSHv2 Server / Client*
- SSH Public Key Authentication
- SSH Host Key
- SSH Remote Command Execution
- Telnet Server / Client
- FTP / SFTP
- SNMP v1 / v2c / v3*
- SNMP Trap
- Domain Name Server (DNS)
- RMON 1, 2, 3, 9
- Syslog*
- Custom Syslog UDP Port
- DHCP Client*
- NTP with Daylight Saving
- Dual Firmware Images
- Dual Configuration File
- Last-Custom-Default
- Time Range Profiles: up to 128
- Web Guest Account
- Firmware Integrity Check with SHA-256 Verification
- Privilege Levels
IPv6 Management
- IPv6 over Ethernet (RFC 2464)
- IPv6 Addressing Architecture (RFC 4291)
- Dual Stack (RFC 4213)
- ICMPv6 (RFC 4884)
- Path MTU (RFC 1981)
- Neighbor Discovery (RFC 4861)
Cloud & Ecosystem
- Nebula Cloud Management (NebulaFlex)*
- Zyxel One Network
- ZON Utility*
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations:
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Password configuration
- One-click quick association with Zyxel AP Configurator (ZAC)
- Automatic detection of the latest firmware
- Displays device serial number and hardware version
- Cloud mode on/off option for Hybrid series devices
- Intuitive Cloud connection status
- Smart Connect
- Discover neighboring devices
- One-click remote management access to the neighboring Zyxel devices
- Reset neighboring devices remotely to factory defaults
- ZON Utility*
- Cluster Management
Green Features
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
- Time-based PoE (PoE models)*
- LED Control
Standards Compliance
- IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X
- IEEE 802.3x Flow Control
- IEEE 802.3af, IEEE 802.3at PoE+ (PoE models)
- IEEE 802.3az Energy-Efficient Ethernet
- IEEE 802.1Q VLAN, IEEE 802.1p CoS, IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP
- IEEE 802.1X Port-based Network Access Control
- IEEE 802.3ad Link Aggregation (LACP)
- IEEE 802.1AB LLDP / LLDP-MED
MIB
- Zyxel Private MIB
- Zyxel Common MIB
- RFC 1066 TCP/IP-based MIB
- RFC 1213, 1157 SNMPv2c/v3 MIB
- RFC 1493 bridge MIB
- RFC 1643 Ethernet MIB
- RFC 1757 RMON group 1, 2, 3, 9
- RFC 2011, 2012, 2013 SNMPv2 MIB
- RFC 2233 SMIv2 MIB
- RFC 2358 Ethernet-like MIB
- RFC 2674 bridge MIB extension
- RFC 2819, 2925 remote management MIB
- RFC 3621 Power Ethernet MIB
- RFC 4022 management information base for transmission control protocol
- RFC 4113 management information base for user datagram protocol
- RFC 4292 IP forwarding table MIB
- RFC 4293 management information base (MIB) for IP
Certifications
- EMC: CE, FCC, RCM, BSMI (Class A)
- Safety: LVD EN 62368-1, BSMI CNS 14336-1, CB
- Environmental: RoHS
*Nebula Cloud and Standalone modes supported features. Some Nebula features may need an extra license to work.
Documentation:
Download the Zyxel GS1915v2 Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
