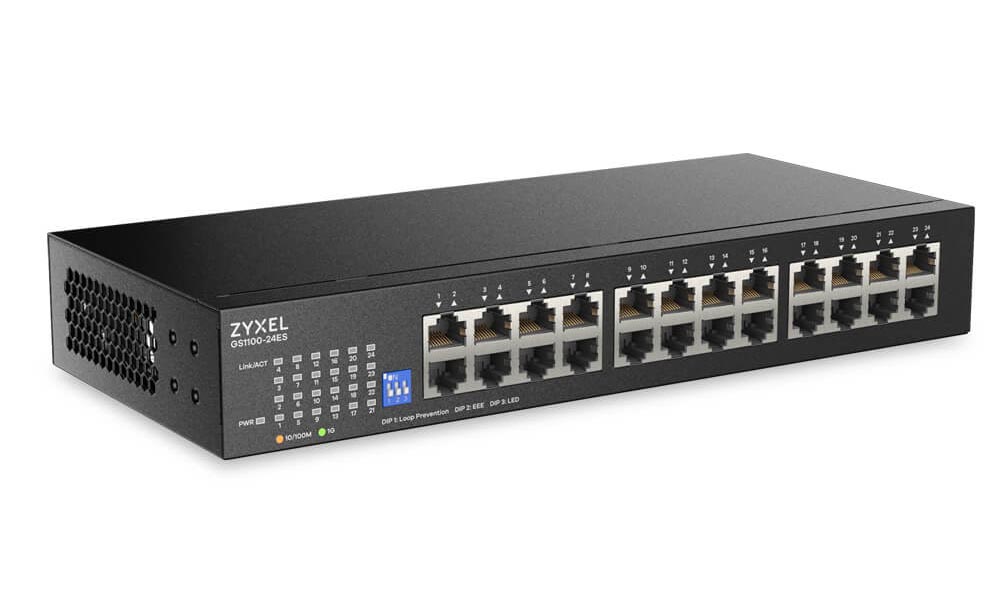

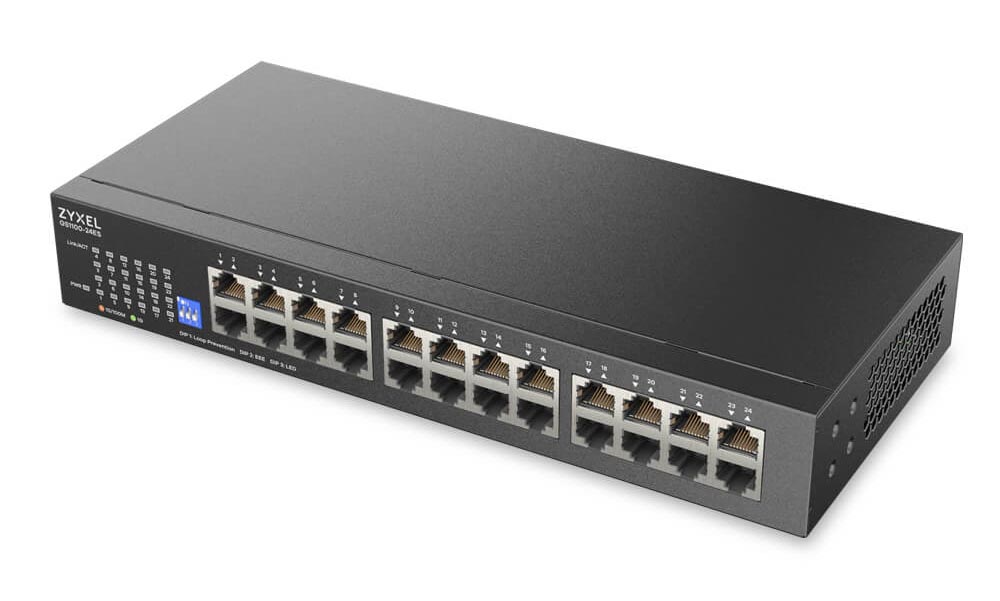

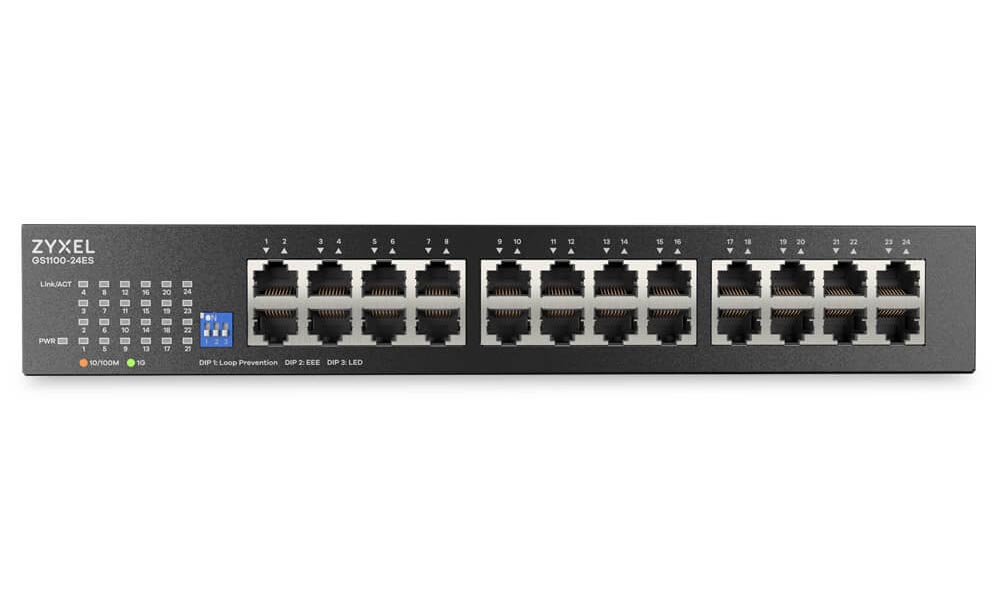

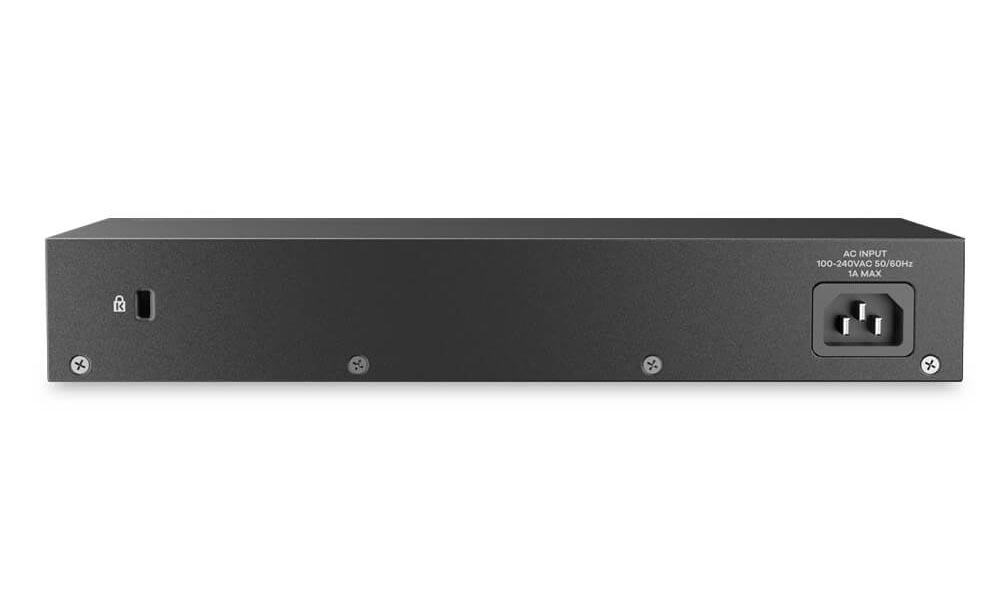

Zyxel GS1100-24ES
24-port GbE Unmanaged Switch
Our Price: $79.99
Click here to jump to more pricing!
Overview:
The Zyxel GS1100 Switchable Series is designed for SB or SMB markets, offering instant Gigabit connectivity and plug-and-play simplicity. With “Simplicity” design in mind, these switches feature intuitive DIP switches, allowing users to toggle settings for handy features with just a single touch. The series offers flexible 16/24-port options, slim form factors, and a PoE model that can fit in any environment.
Gigabit speeds
Instant gigabit speeds with easy plug-and-play
DIP switches
Intuitive DIP switches toggle convenient features in seconds
Slimline
Slim, space-saving design for desks, walls, and tight server cabinets
Energy-efficient
Energy-efficient and fanless for silent, eco-friendly networking
Benefits:
Plug in. Power up. Perform.
The Zyxel GS1100 switch series delivers instant gigabit performance with true plug-and-play simplicity - no complex setup required. Intuitive DIP switch design lets you enable smart features in seconds, while flexible 16 or 24 port options, PoE or non-PoE models and a slim, space-saving design ensure a perfect fit for desks, walls or tight cabinets. Fanless and energy-efficient, it provides silent, reliable networking built for growing small business environments.
Intuitive DIP switches toggle convenient features supporting:
- DIP 1: Loop prevention
- DIP 2: Energy Efficient Ethernet (EEE) - IEEE 802.3az
- DIP 3: LED
Fast, simplified networking for gigabit performance.
The GS1100 series delivers 16/24-port gigabit, non-blocking wire-speed performance, ensuring fast and reliable connectivity.
With superior gigabit throughput and flexible form-factor options, it is the ideal networking solution for small offices, home offices and retail environments.
Silent switching technology.
The GS1100 switch series features an advanced fanless design that delivers powerful networking without the noise. Enjoy completely silent operation - ideal for noise-sensitive work environments.

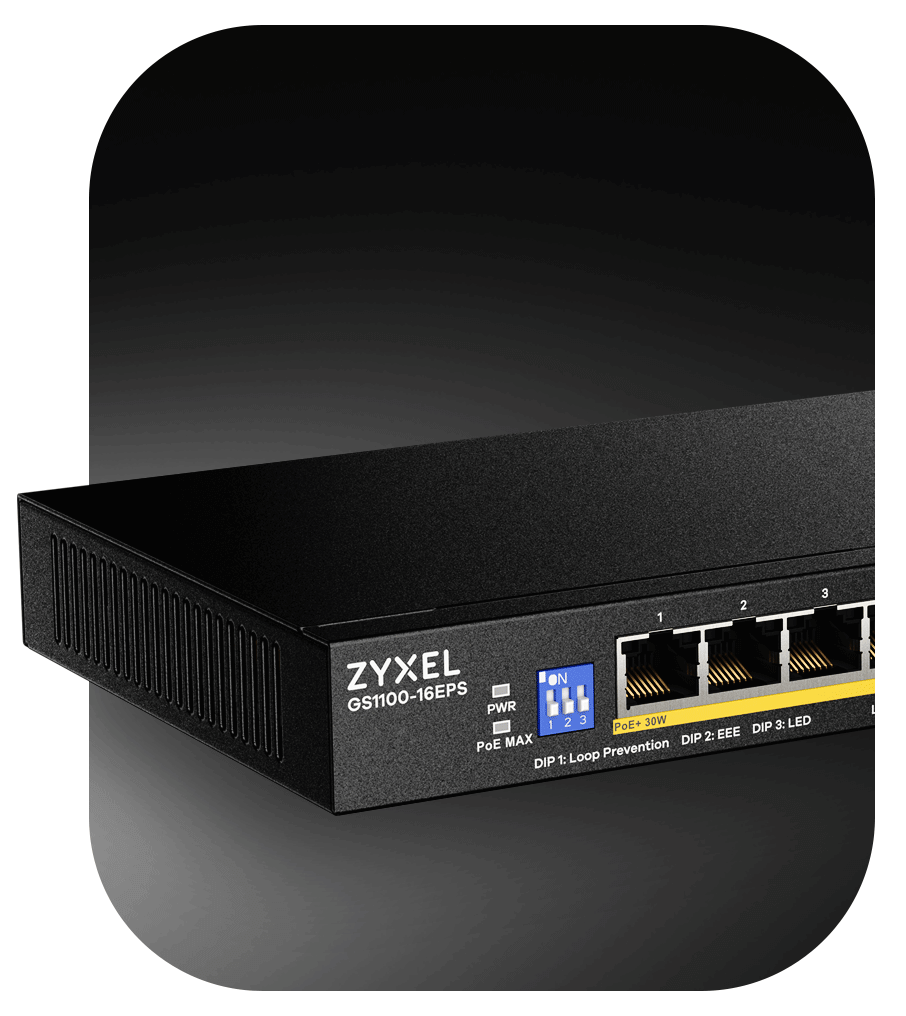

For PoE deployments, the GS1100-16EPS takes it a step further. Its external power adapter removes the need for internal cooling fans altogether, ensuring reliable performance while keeping your workspace calm, focused and distraction-free. Powerful networking has never been this quiet.
Freedom of installation via PoE

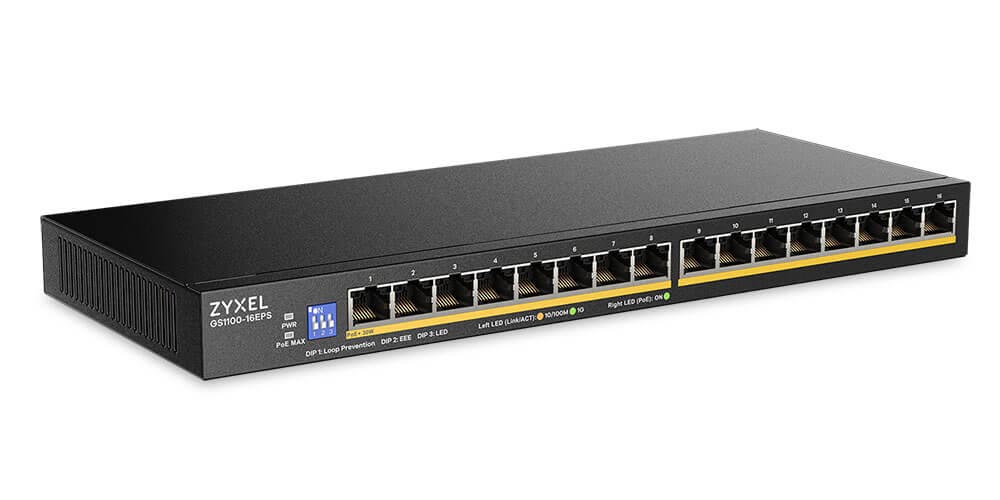

The GS1100-16EPS supports the IEEE 802.3at PoE+ standard and easily connects with PoE ready devices to your network with plug-and-play design. PoE+ allows 30 watts per port to power WiFi 6/7 APs, VoIP phones and IP surveillance cameras only through Ethernet cables reducing the need of power adapters saving installation time and cost. The GS1100-16EPS has been designed with 16 full PoE+ ports with total PoE power budget of up to 135 Watts, which makes it an ideal PoE connectivity solution for home, shop and small office environments.
Specifications:
| Model | GS1100-16S | GS1100-16ES | GS1100-16EPS | GS1100-24ES |
|---|---|---|---|---|
| Description | ||||
| Product name | 16-port GbE Unmanaged Switch | 16-port GbE Unmanaged Slim Switch | 16-port GbE PoE Unmanaged Slim Switch | 24-port GbE Unmanaged Switch |
| Port Density | ||||
| Total port count | 16 | 16 | 16 | 24 |
| 100M/1G Ethernet (RJ-45) | 16 | 16 | 16 | 24 |
| PoE | ||||
| PoE ports | - | - | 16 | - |
| Total PoE budget (watts) | - | - | 135 | - |
| IEEE 802.3at PoE+ | - | - | Port 1~Port 16 | - |
| Performance | ||||
| Switching capacity (Gbps) | 32 | 32 | 32 | 48 |
| Forwarding rate (Mpps) | 23.8 | 23.8 | 23.8 | 35.7 |
| Packet buffer (byte) | 1M | 1M | 1M | 1M |
| MAC address table | 16K | 16K | 16K | 16K |
| Jumbo frame (byte) | 12KB | 12KB | 12KB | 12KB |
| Flash/RAM | 4MB/256KB | 4MB/256KB | 4MB/256KB | 4MB/256KB |
| Power | ||||
| Input | 100 - 240V AC, 50/60Hz | 100 - 240V AC, 50/60Hz | 100 - 240V AC, 50/60Hz | 100 - 240V AC, 50/60Hz |
| Min. power consumption (watts) Without any port connection | 2.36 | 2.21 | 4.15 | 3.38 |
| Max. power consumption (watts) All ports full load without PoE | 8.33 | 8.53 | 10.34 | 12.21 |
| Max. power consumption (watts) All ports full load with PoE | - | - | 157.9 | - |
| Physical Specifications | ||||
| Dimensions (WxDxH)(mm/in.) | 215.5 x 133 x 44 / 8.48 x 5.24 x 1.73 | 286 x 118 x 26 / 11.26 x 4.65 x 1.02 | 286 x 118 x 26 / 11.26 x 4.65 x 1.02 | 280 x 126 x 44 / 11.02 x 4.96 x 1.73 |
| Weight (kg/lb.) | 0.81 / 1.79 | 0.77 / 1.7 | 0.81 / 1.79 | 1.02 / 2.25 |
| Included accessories | Power cord Wall mount kit Rack mounting kit |
Power adapter Wall mount kit |
Power cord Power adapter Wall mount kit |
Power cord Wall mount kit Rack mounting kit |
| ESD/Surge Protections | ||||
| Ethernet port surge protection | 2KV | 2KV | 2KV | 2KV |
| Power supply surge protection | 2KV Line-GND 1KV Line-Line |
4KV Line-GND 4KV Line-Line |
4KV Line-GND 2KV Line-Line |
2KV Line-GND 1KV Line-Line |
| ESD protection (air/contact) | 8KV/4KV | 8KV/4KV | 8KV/4KV | 8KV/4KV |
| Environmental Specifications | ||||
| Operating Temperature | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F |
| Operating Humidity | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) |
| Storage Temperature | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F |
| Storage Humidity | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) | 10% to 95% (non-condensing) |
| MTBF (hr @ 25°C) | 6,476,619 | 886,507 | 1,217,669 | 1,131,995 |
| Heat dissipation (BTU/hr) | 28.423 | 29.106 | 78.138 | 41.662 |
| Acoustic noise@25°C (min/max, dBA) | Fanless, 0 | Fanless, 0 | Fanless, 0 | Fanless, 0 |
Standard Compliance
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Ethernet
- IEEE 802.3ab 1000BASE-T Ethernet
- IEEE 802.3az EEE support
- IEEE 802.3x flow control
- IEEE 802.1p CoS
- IEEE 802.3af PoE (for PoE model)
- IEEE 802.3at PoE Plus (for PoE model)
DIP Switch
- Loop prevention
- IEEE 802.3az
- Port LED On/Off
Certifications Safety
- Safety:
- LVD
- BSMI
- EMC (Class A)
- CE
- FCC
- RCM
- ICES-003
- BSMI
- RoHS
- REACH
Warranty
- Limited life-time warranty*
* Warranty terms, service availability, and service response times may vary from country or region to country or region
Documentation:
Download the Zyxel GS1100 Switchable Series Datasheet (PDF).
