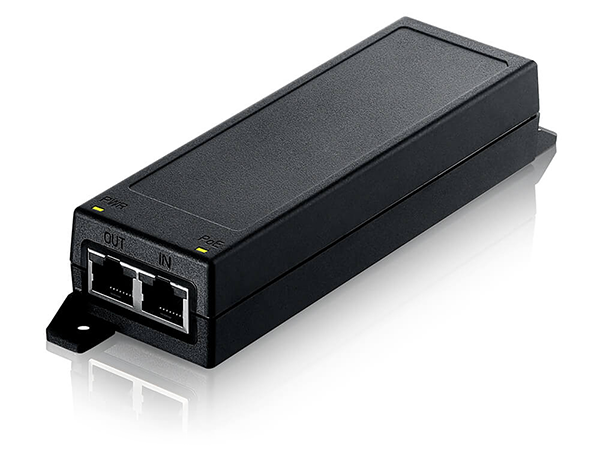

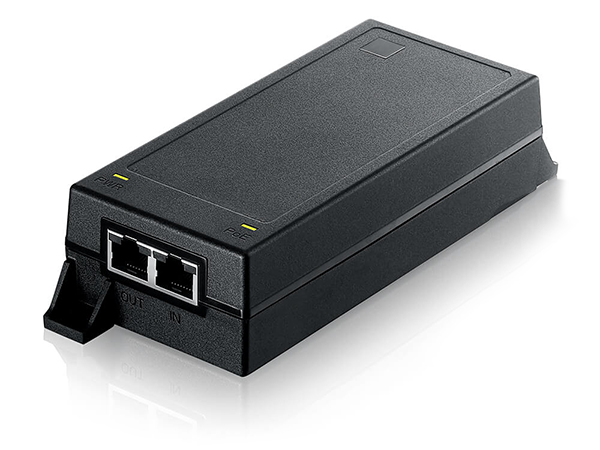

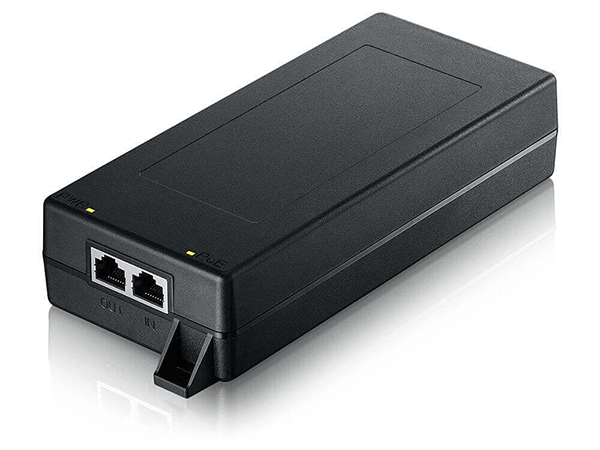

Zyxel PoE12-30W/60W/90W

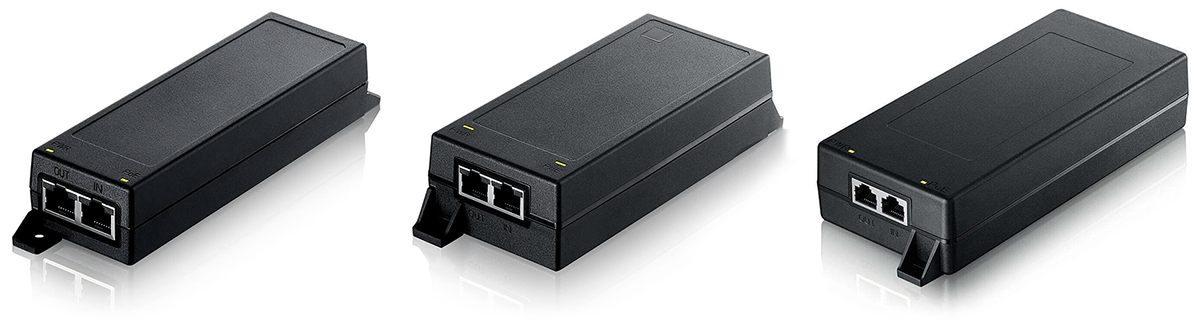

30W/60W/90W Multi-Gig PoE Injectors

Overview:

As demands for connection from networking devices such as IP phones, IP cameras and access points increase, deployment complexity and cost rise as well. For less cable usage and investment, Power over Ethernet (PoE) technology provides both data connection and electrical power to devices through just one cable without power-socket restriction. Featured with the benefits of PoE technology, Zyxel’s PoE Injectors, all provide super-fast LAN connectivity with high-power budget; easily connect to PoE devices over Cat 5e or above cable. PoE12-30W supports PoE+ standard while PoE12-60W and PoE12-90W support PoE++ standard, they ensure interoperability with other standard-based PoE-capable devices.

* Limited support for Cat 6a, with cable lengths of up to 30 meters

Benefits:

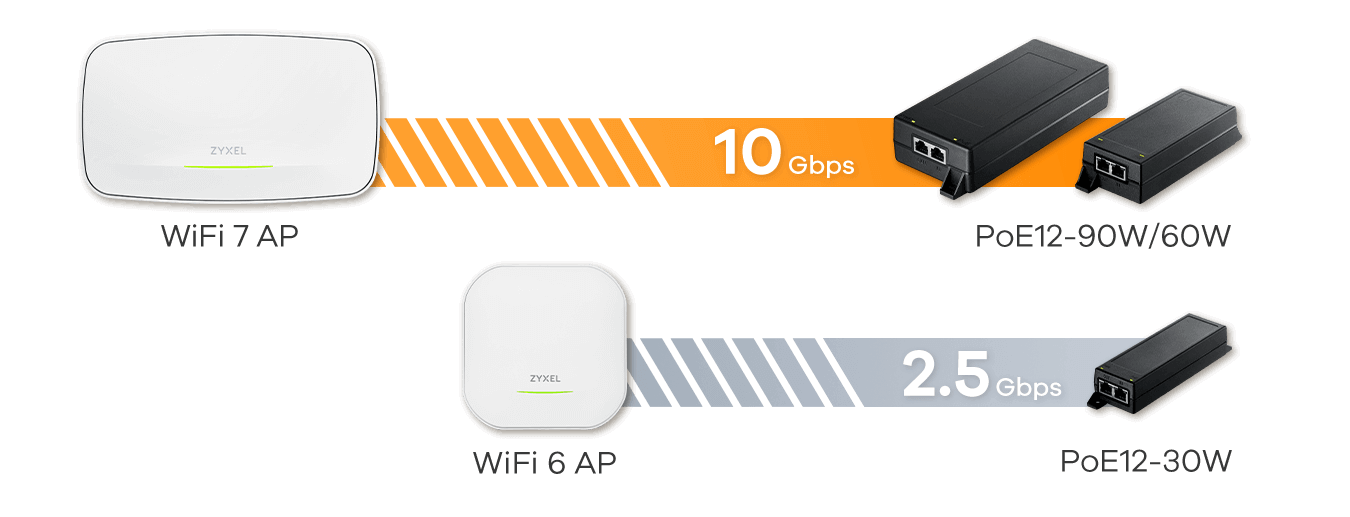

Higher Network Speed Boosts Network Performance

Zyxel PoE injectors are here to meet the increasing demand for connections to high-speed networking devices such as WiFi 7 and WiFi 6 APs, surveillance PTZ cameras, and advanced POS terminals. The PoE12-30W supports network speeds of up to 2.5Gbps, while both the PoE12-60W* and PoE12-90W support network speeds of up to 10Gbps.

Larger Power Budget Powers More PD Devices

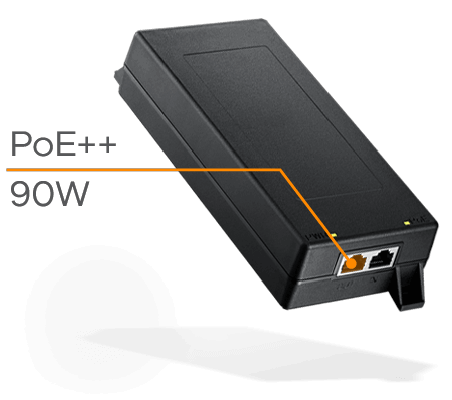

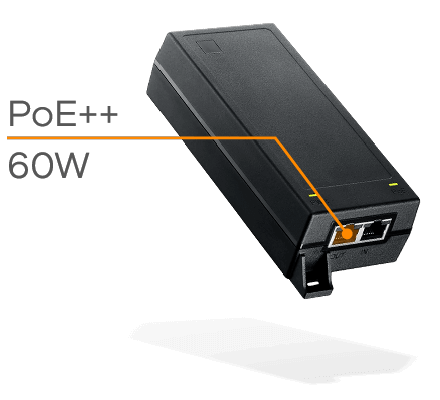

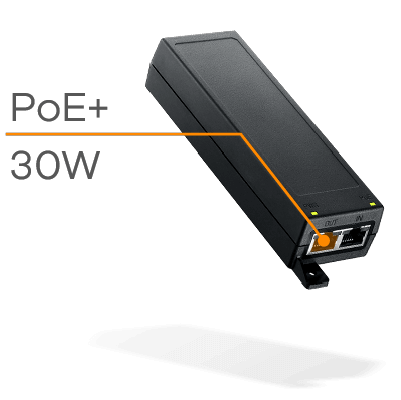

The PoE12-30W complies with the IEEE 802.3at PoE+ standard, while the PoE12-60W and PoE12-90W comply with the IEEE 802.3bt PoE++ standard to provide PoE power budgets of up to 30W, 60W, and 90W, respectively. They ensure interoperability and compatibility with other standard-based PoE-capable devices.

Easy to Use with Robust Protection

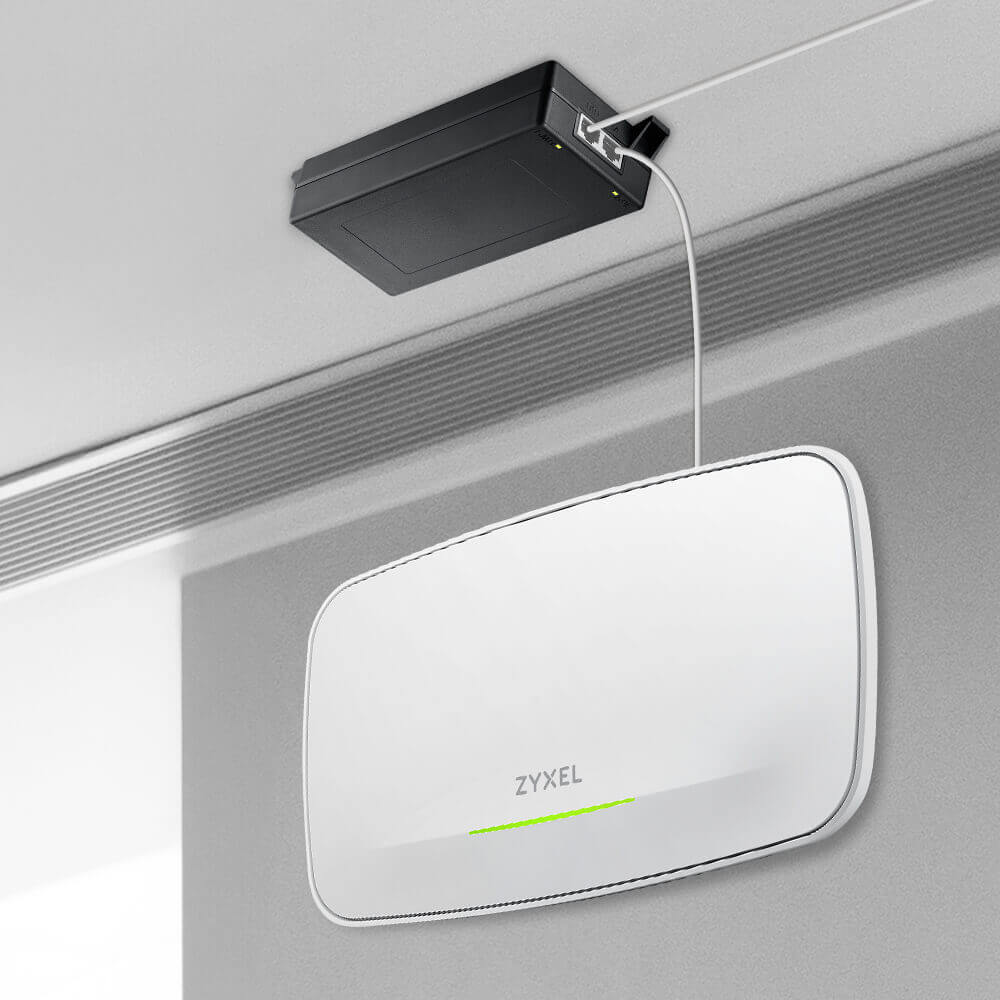

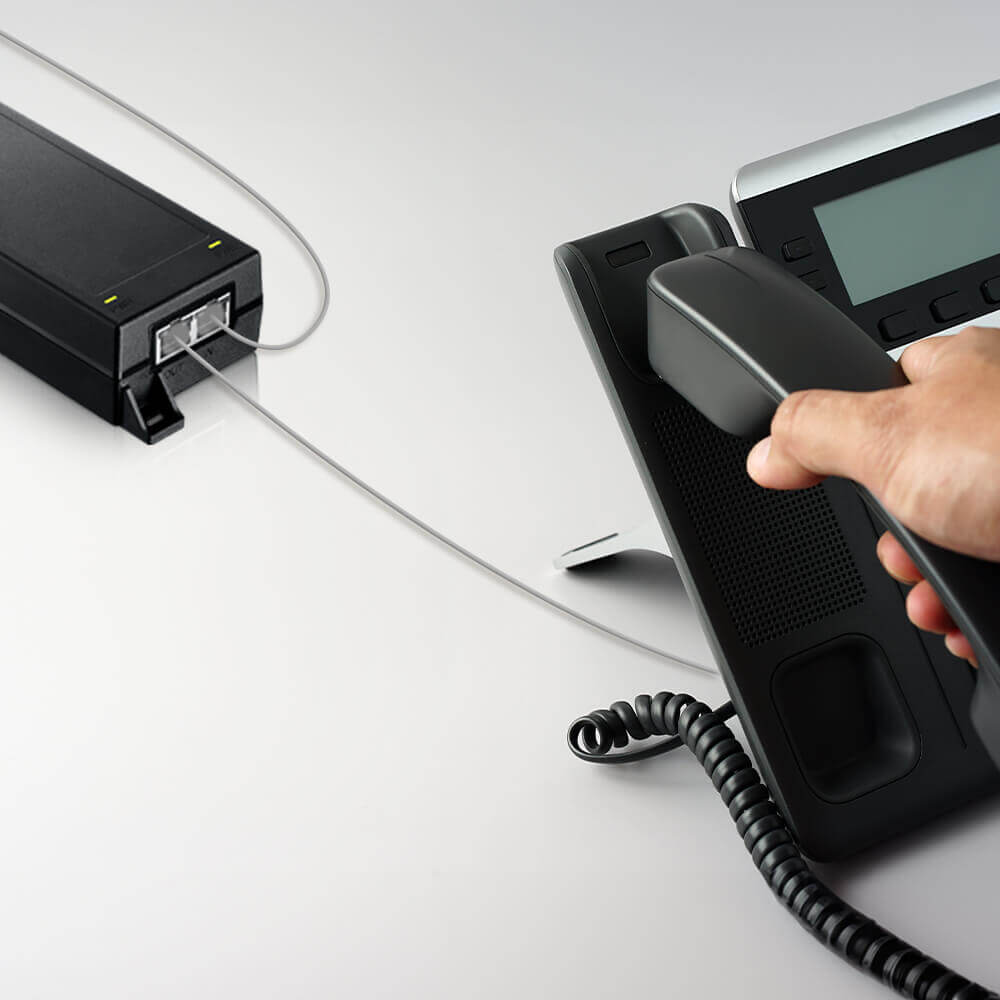

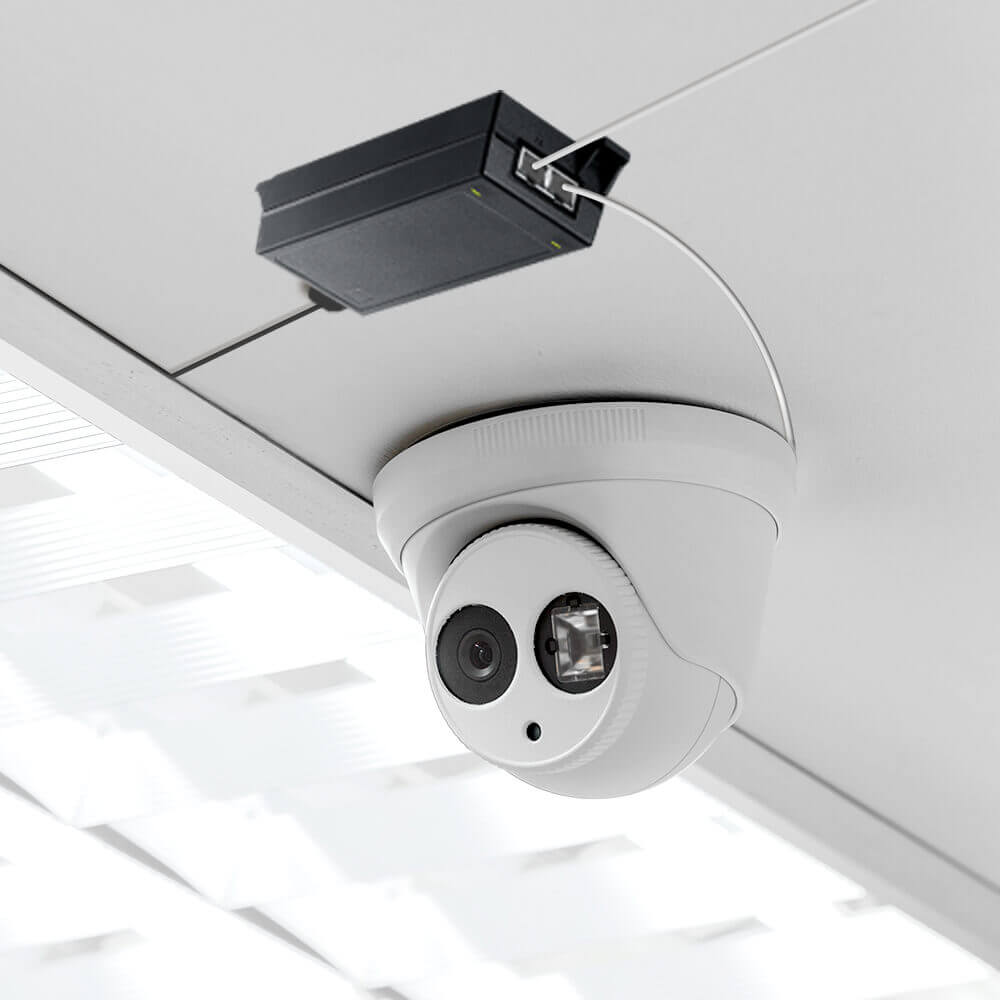

These three PoE injectors make it easy to connect network devices without any configuration. The wall-mount and desktop designs accommodate most installation scenarios. They have overload and short circuit protection, which shuts down the power immediately if those issues occur, leaving no damage to your equipment.

*Limited support for Cat 6a, with cable lengths of up to 30 meters.

Specifications:

Model	PoE12-30W	PoE12-60W	PoE12-90W
Product Name	2.5G PoE+ Injector	5G PoE++ Injector	10G PoE++ Injector
Port Density
Total port count	2	2	2
100M/1G/2.5G (Data)	1	-	-
100M/1G/2.5G (Power/Data)	1	-	-
100M/1G/2.5G/5G/10G (Data)	-	1*	1
100M/1G/2.5G/5G/10G (Power/Data)	-	1*	1
PoE
Total PoE budget (watts)	30	60	90
PoE Standard	802.3at PoE+	802.3bt PoE++	802.3bt PoE++
Ethernet Standard	• IEEE 802.3u 100BASEX • IEEE 802.3ab 1000BASE-T • IEEE 802.3bz 2.5GBASE-T	• IEEE 802.3u 100BASEX • IEEE 802.3ab 1000BASE-T • IEEE 802.3bz 2.5G/5GBASE-T • IEEE 802.3an 10G BASE-T*	• IEEE 802.3u 100BASEX • IEEE 802.3ab 1000BASE-T • IEEE 802.3bz 2.5G/5GBASE-T • IEEE 802.3an 10G BASE-T
Power
Input	100 - 240 V 1.0 A, 50/60 Hz	100 - 240 V 1.0 A, 50/60 Hz	100 - 240 V 1.0 A, 50/60 Hz
Max AC power consumption (watts)	34.90 (includes 30 W PoE output)	74.70 (includes 60 W PoE output)	101.88 (includes 90 W PoE output)
AC idle power consumption (watts)	0.070	0.126	0.138
Physical Specifications
Item dimensions (WxDxH)(mm/in.)	140 x 45.5 x 30/ 5.51 x 1.79 x 1.18	140 x 65 x 38.5/ 5.51 x 2.56 x 1.52	196.25 x 80 x 39.8/ 7.73 x 3.15 x 1.57
Item weight (g/lb.)	144/0.32	278/0.61	456/1.01
Packing dimensions (WxDxH)(mm/in.)	171 x 121 x 42/ 6.73 x 4.76 x 1.65	168 x 142 x 47/ 6.61 x 5.59 x 1.85	205 x 155 x 47/ 8.07 x 6.1 x 1.85
Packing weight (g/lb.)	918/2.02	1120/2.47	651/1.44
Included accessories	Power cord	Power cord	Power cord
Environmental Specifications
Operating temperature	5°C to 45°C/41°F to 113°F	-10°C to 40°C/14°F to 104°F	-10°C to 40°C/14°F to 104°F
Operating humidity	10% to 90% (Non-condensing)	10% to 90% (Non-condensing)	10% to 90% (Non-condensing)
Storage temperature	-25°C to 70°C/-13°F to 158°F	-25°C to 65°C/-13°F to 149°F	-25°C to 65°C/-13°F to 149°F
Storage humidity	5% to 95% (Non-condensing)	5% to 90% (Non-condensing)	5% to 90% (Non-condensing)
MTBF (hr)	17.91	36.75	45.21
Heat dissipation (BTU/hr)	119.08	254.88	41.56

* PoE12-60W supports 10G speeds with deployments using Cat 6a cable or higher, up to a maximum length of 30 meters.

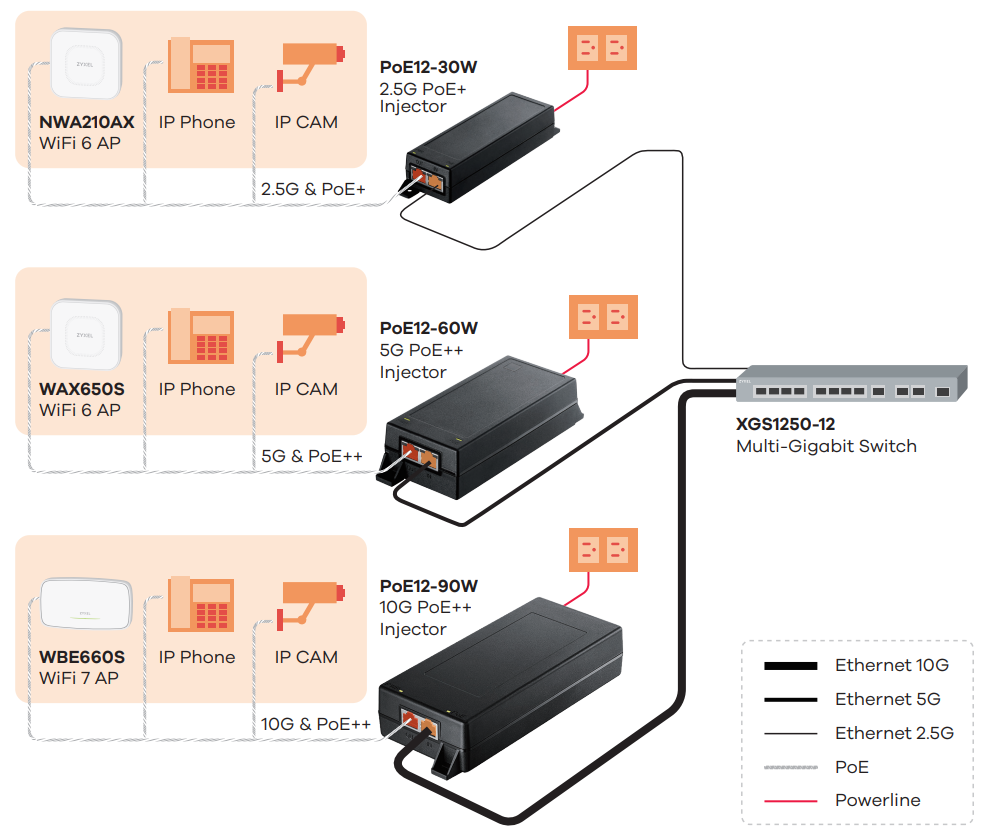

Application Diagram:

Documentation:

Download the Zyxel 30W/60W/90W PoE Injector Series Datasheet (PDF).
