Overview:
Easily Expand Connection with Reliable Signal

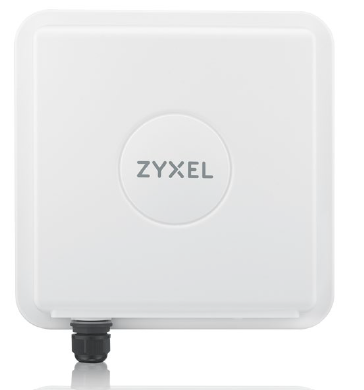

Zyxel LTE7461-M602 4G LTE-A Outdoor Router is a 3GPP Cat. 6 router with Carrier Aggregation (CA) capability. It provides economic and reliable cellular broadband connection either in bridge or router mode. The LTE7461-M602 can be the main Internet access or a backup secondary WAN option if the primary fixed-line disconnects. In suburban/rural areas or where fixed-line is difficult to deploy, the LTE7461-M602 is the perfect option for rapid Internet deployment for public spots, homes, and offices. Enjoy 4G LTE-Advanced technology with the LTE7461-M602.
Nebula cloud management for Nebula LTE7461-M602 only
Download speeds of up to 300 Mbps*, UE Cat. 6
Built-In 2x2 MIMO, high-gain antenna of up to 8 dBi per element
Standard IEEE 802.3at Power over Ethernet (PoE)
IP68 hardened enclosure with industrial-grade components
Embedded bridge/router modes
Free app for finding the best installation signal spot
Benefits:
Easily Expand Connection with Reliable Signal
The Zyxel LTE7461-M602 is excellent for locations like suburban/rural areas, public spots, homes, and offices. Enjoy 4G LTE-Advanced technology with the LTE7461-M602.
Effortlessly Manage All Devices Anytime Anywhere at Any Scale
Nebula Cloud platform provides real-time network management anytime anywhere with ease. Seamlessly provision and manage all network devices, including access points, switches and firewalls within your organization that are across distributed locations from the Nebula platform, all while keeping your network aware of constantly changing devices. Get the richest collaboration with everything you need on a simplified and unified Nebula Cloud platform.
Non-stop Connectivity
Flexible routing modes with both bridge and router functions. With or without a router, the LTE7461-M602 can easily be deployed and integrated into any existing environments. Set LTE as your main connection or use it as a backup when your main connection drops in performance.

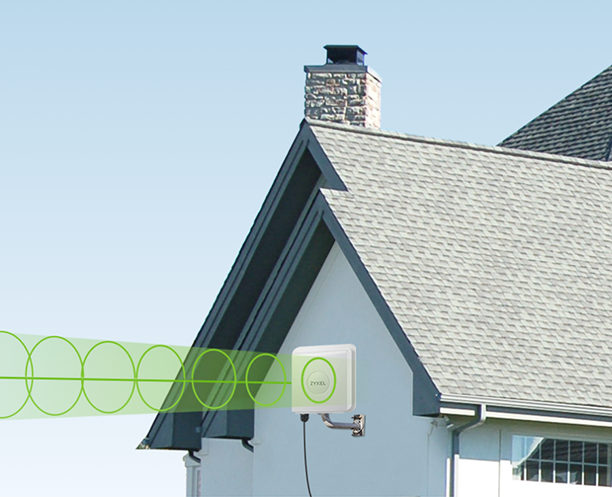

Designed for all Environments
LTE7461-M602 is designed with IP68 for strong water and dust-proof capability. Get high-quality connection with its multi-band embedded directional antennas of up to 8 dBi even in adverse weather conditions. Its outdoor-friendly design makes it possible to work in harsh environments and locations where desirable signal strength can be challenging to achieve.
- IP68 - Dust, dirt and sand resistant
- IP68 - Water resistant
- Level 12 - Withstand hurricane level wind speed (132km/hr)
- K.21 - Enhanced-mode lightning protection
- -40°C to 60°C - Adapts to wide range temperature

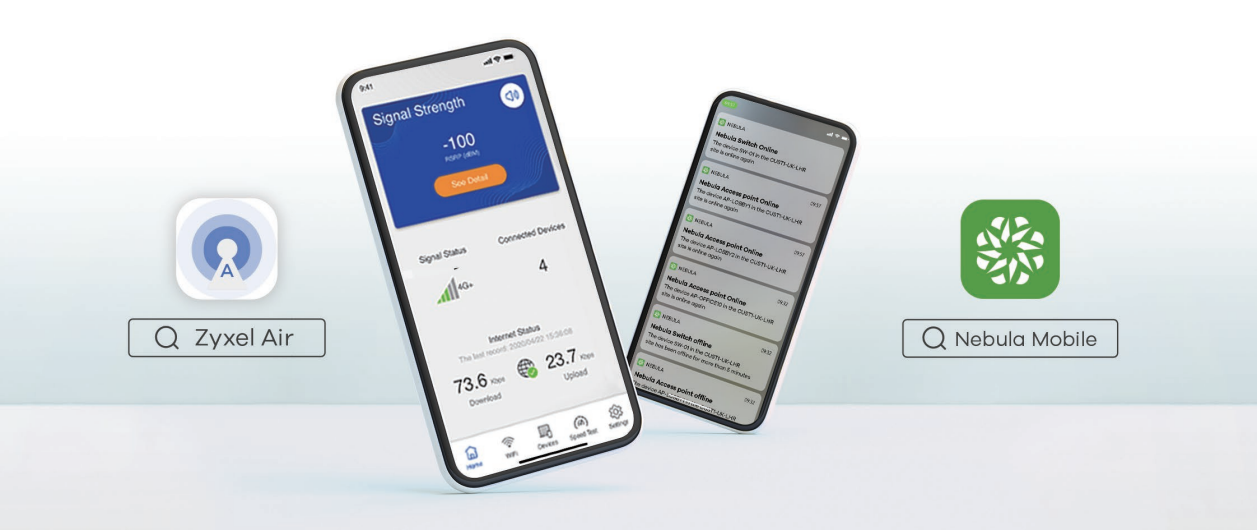

Efficient and Precise Installation
No electrician required, just a simple DIY installation app needed. Finding the best signal spot for installation is easy, just use a smartphone or tablet to connect to LTE7461-M602’s WiFi network and follow its configuration instruction with the free “Zyxel Air” app. Comes with flexible wall and pole mounting options. Integrated Power over Ethernet (PoE) support makes powering the device simple!

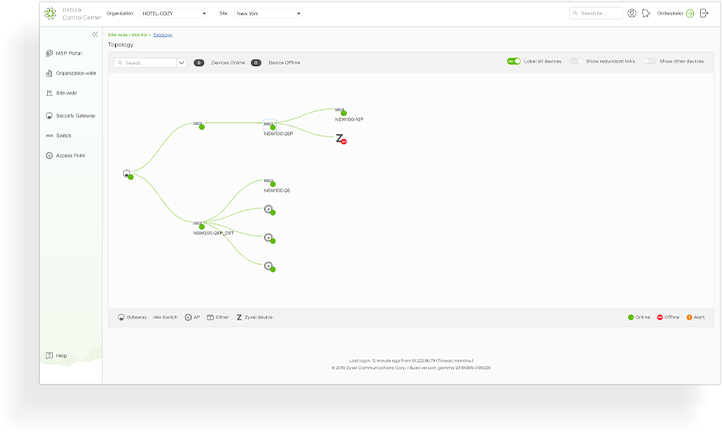

Easy Remote Management with Nebula App
Nebula Cloud Management enables system integrators to easily remote manage through operator's mobile broadband network without leasing a DSL landline to resolve common Network Address Translation (NAT) issues in cellular networks. Scan a QR code with Nebula Mobile App to register your device on Nebula, check the device status, and get an overview information. Nebula Mobile App is designed for your management and troubleshooting needs for your network.

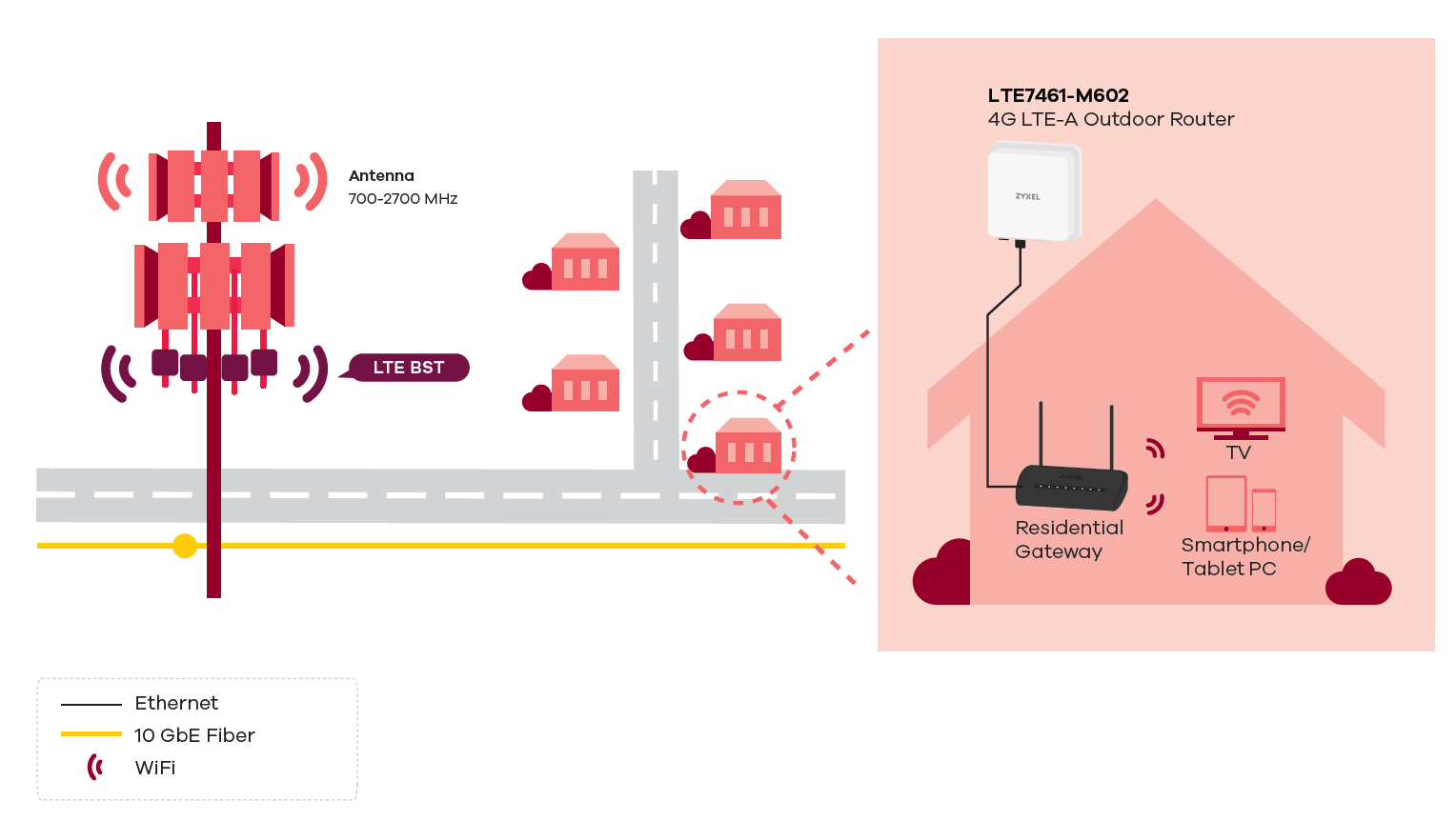

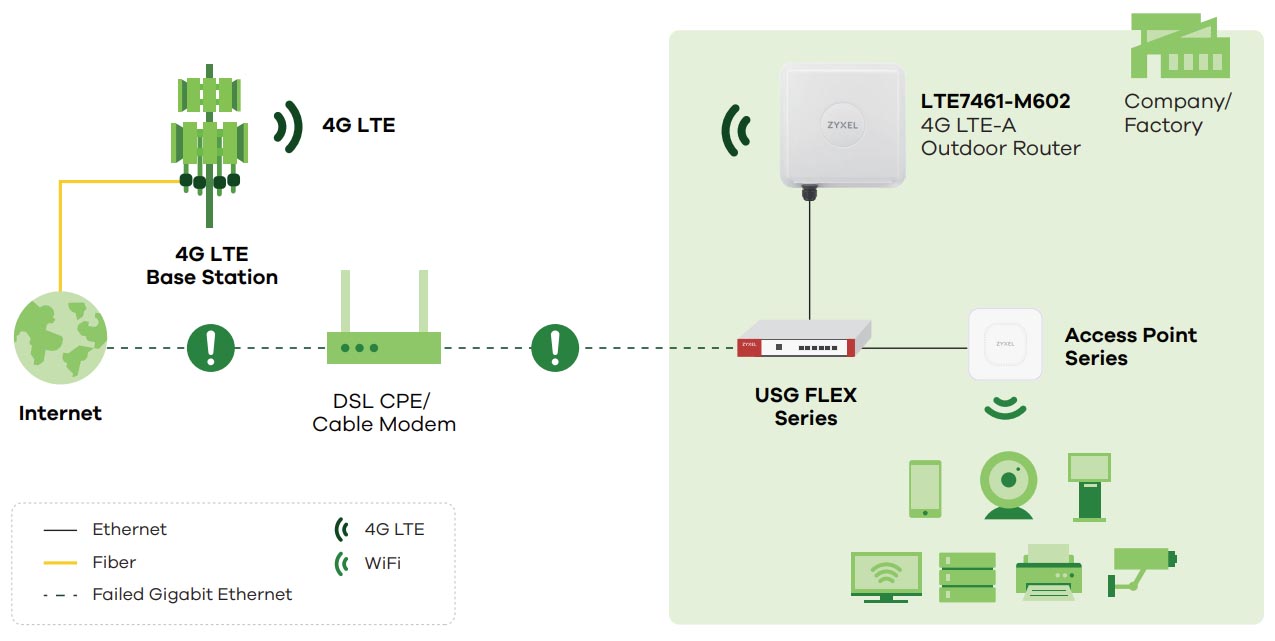

Application Diagram:
Specifications:
System Specifications
IP Networking
- Supports IPv4/IPv6 dual-stack (NDP IPv6)
- DHCP server
- ICMP supported
- Virtual Private Network (VPN) passthrough
- Supports NAT/NAPT
- Supports DMZ
- Supports port forwarding/triggering
- Supports ALG
Routing
- Supports bridge/router modes
- Supports dynamic DNS for first APN
- Supports remote management under bridge mode
IP Firewall
- Firewall can be enabled or disabled via GUI
- DoS attack detection
- Supports SPI
- Application-level Firewall
- Filters LAN MAC address
- Filters LAN IP address
- Filters URLs
Management
- Supports local/remote device management and firmware upgrade via TR-069 and Web GUI
- APN management
- PIN/PUK management
- Network selection
- Network preference
- Operating frequency band selection
- CLI/SSH (local and remote SSH access)
- Supports UPNP IGD
- Supports SSH with key access
- Supports bandwidth management
- Supports mobile app (iOS and Android)
- Supports remote throughput testing (TR-143)
- LTE Band Pilot System management compatible
Hardware Specifications
LTE Interface
- Standard-compliant: 3GPP UE Category 6
- Supports LTE bands: 2/4/5/7/12/13/25/26/29/66 (Certified by AT&T and Verizon)
- Supports WCDMA bands: 2/4/5
- Peak data rate: LTE-FDD: max 300 Mbps (DL) max 50 Mbps (UL)*
- 2 DL Carrier Aggregation combination: B2+B2/B5/B12/B13/B26/B29; B4+B4/B5/B12/B13/B26/B29; B7+B5/B7/B12/B13/B26/B29; B25+B5/B12/B13/B25/B26/B29; B66+B5/B12/B13/B26/B29/B66; (B29 is only for secondary component carrier)
- LTE antennas: 2 embedded directional antennas of up to 8 dBi/element (2x2 MIMO)
- Supports DL modulation QPSK, 16-QAM, 64-QAM
- Supports UL modulation QPSK and 16-QAM
- Max EIRP 30 dBm
Power Consumption
Physical Specifications

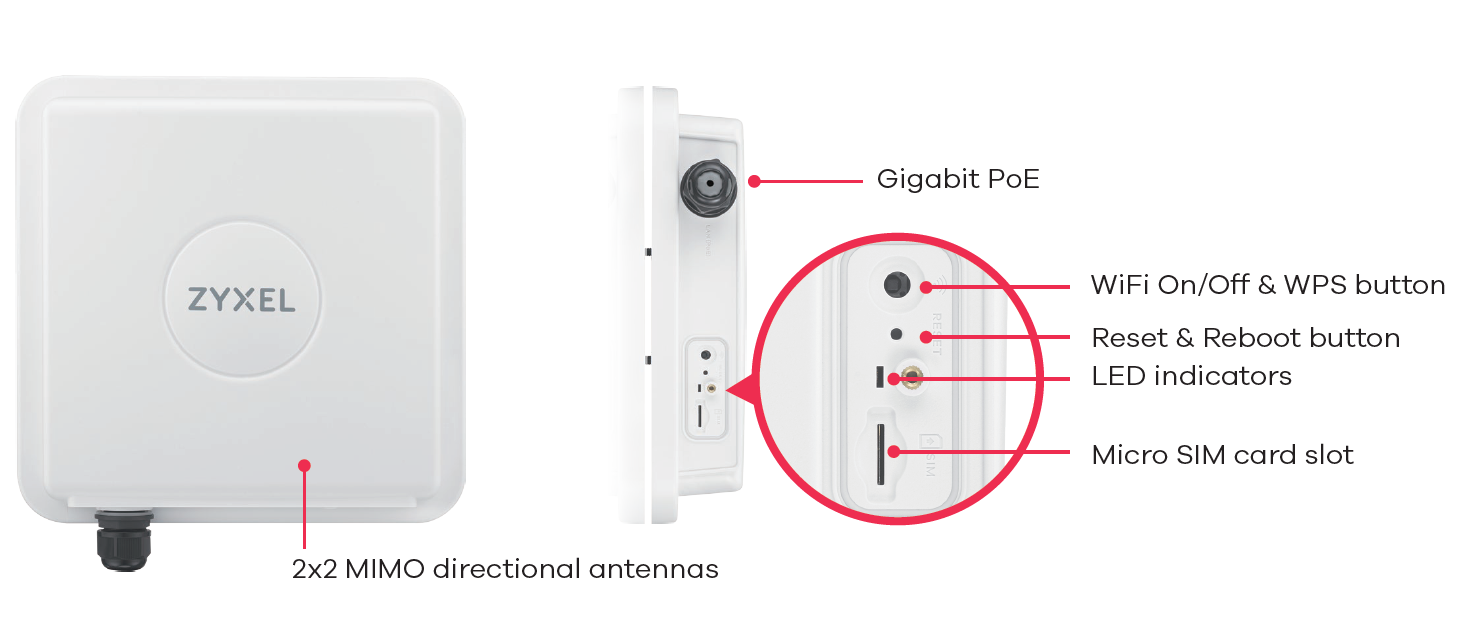

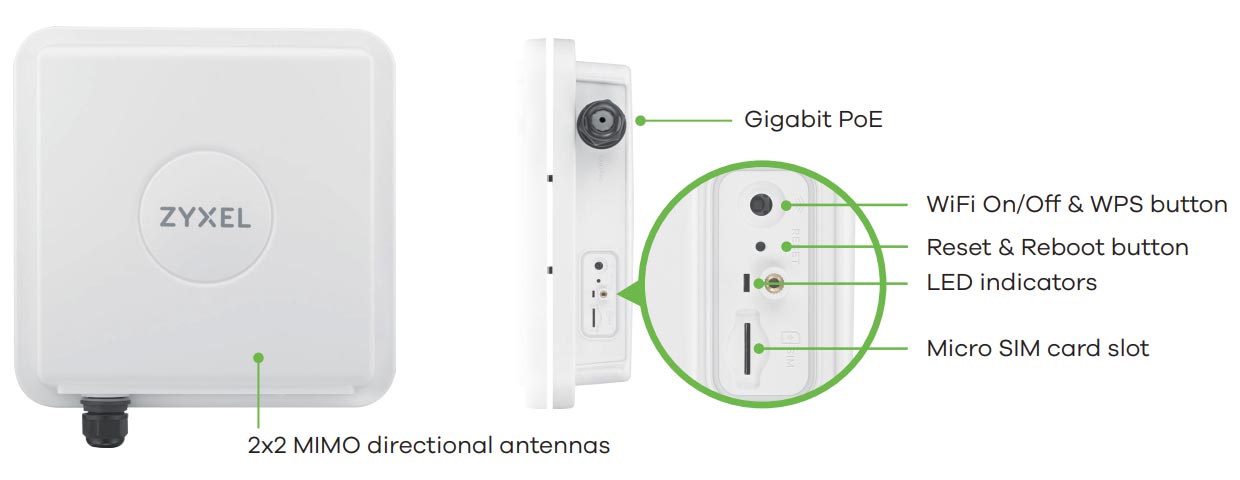

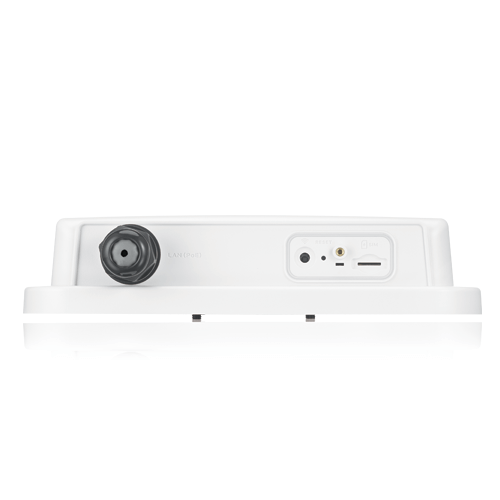

Hardware Interface
- One GbE RJ-45 PoE LAN port
- One tri-color LED indicator for
- Power status
- Internet status
- WiFi status
- One WiFi On/Off and WPS button
- One 3FF micro SIM card slot
- One Reset & Reboot default button
Power Interface
- Standard IEEE 802.3af/at PoE PD support compatible
WiFi Interface for Management
- 802.11 n/g/b, 2.4 GHz
- Hidden SSID
- MAC address filtering
- 2x2 embedded antennas
- For local management purpose only
Physical Specification
- Dimensions (WxDxH): 254 x 255 x 58 mm (9.99” x 10.03” x 2.28”)
- Weight: 1100 g (2.43 lb.)
- Package dimensions (WxDxH): 420 x 280 x 108 mm (16.54” x 11.02” x 4.25”)
- Package weight: 3050 g (6.72 lb.)
Environmental Specifications
Ingress Protection Rating
Lightning Protection
Operating Environment
- Temperature: -40°C to 60°C (40°F to 140°F)
- Humidity: 5% to 95% (non-condensing)
Storage Environment
- Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 5% to 95% (non-condensing)
Certification
Package Contents
- Gigabit PoE injector with LED indicator
- Ethernet cable
- Power cord
- Cable gland
- Quick start guide
- Wall/pole mounting kit
The maximum wireless data transfer rate is derived from 3GPP specifications close to UE Category 6. The actual data transfer rate will vary from network environment including distance, network traffic, building site materials /construction, interference from other wireless devices, and other adverse conditions.
Documentation:
Download the Zyxel LTE7461-M602 Datasheet (PDF).
