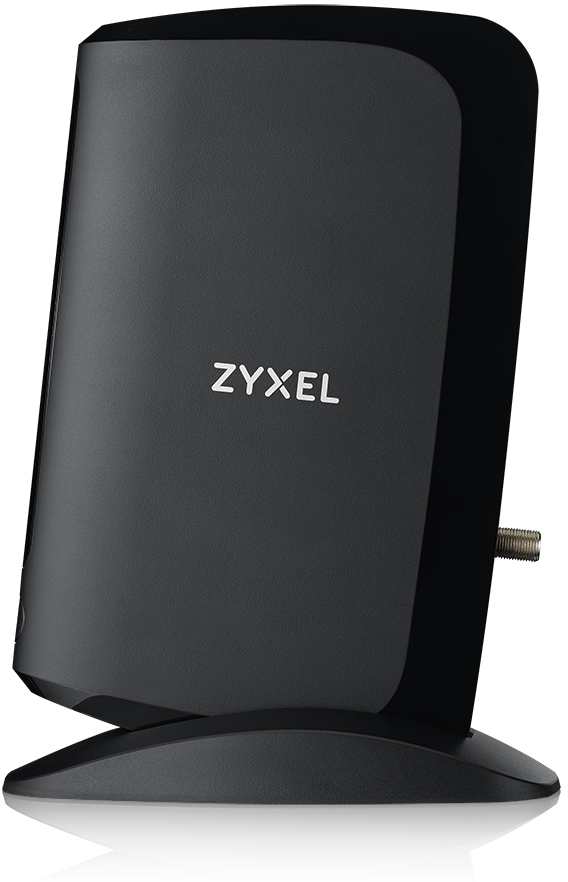

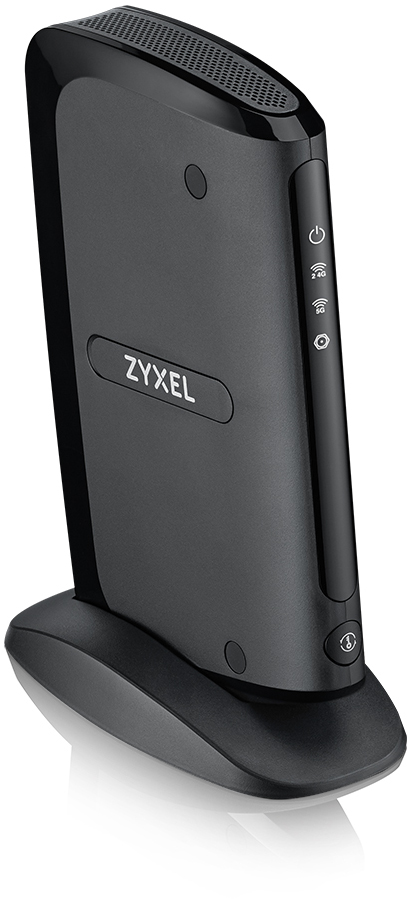

Zyxel WAP7205
MoCA Bonded 2.0 AC1300 WiFI Coaxial Ethernet Bridge

Overview:

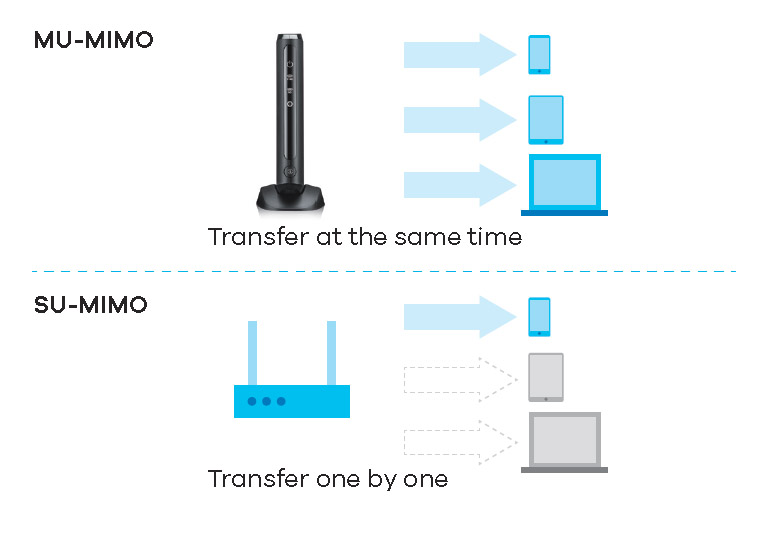

The Zyxel WAP7205 is a Hybrid MU-MIMO AC1300 MoCA Extender capable of concurrent data transfer rates of 400 Mbps* for 2.4 GHz and 867 Mbps* for 5 GHz for users to enjoy high-speed Internet via the existing reliable wires as well as to diminish dead zones effortlessly.

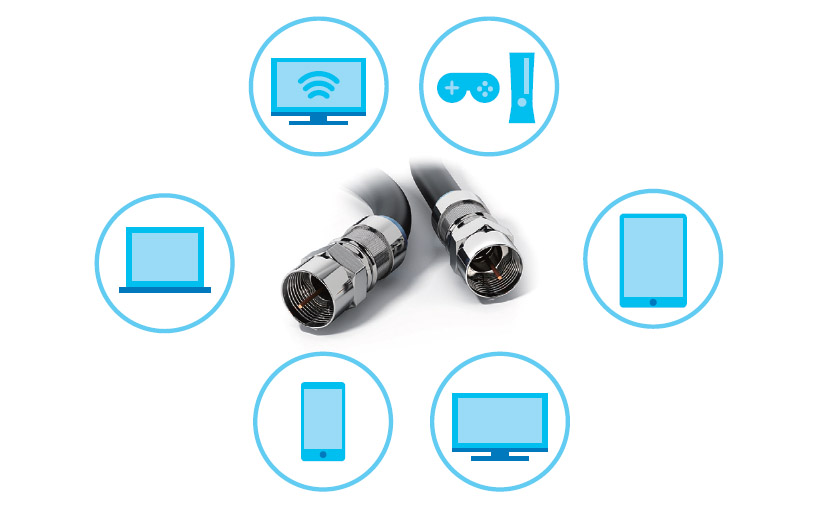

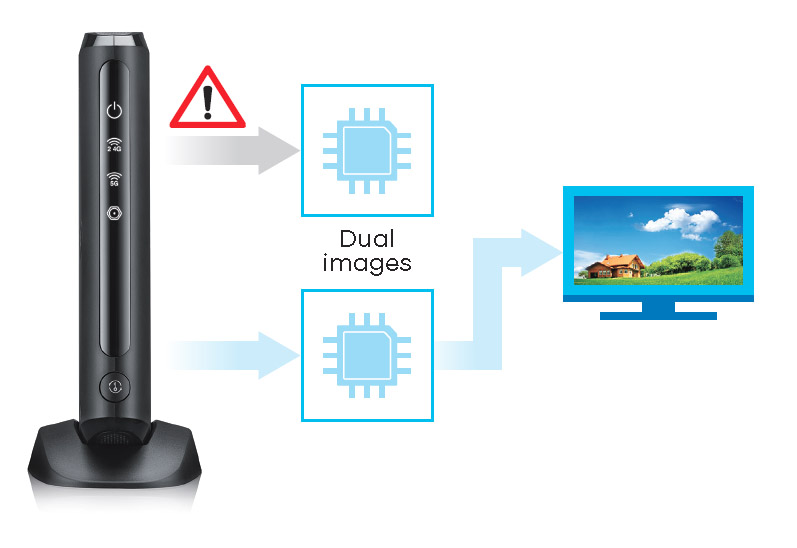

Benefits:

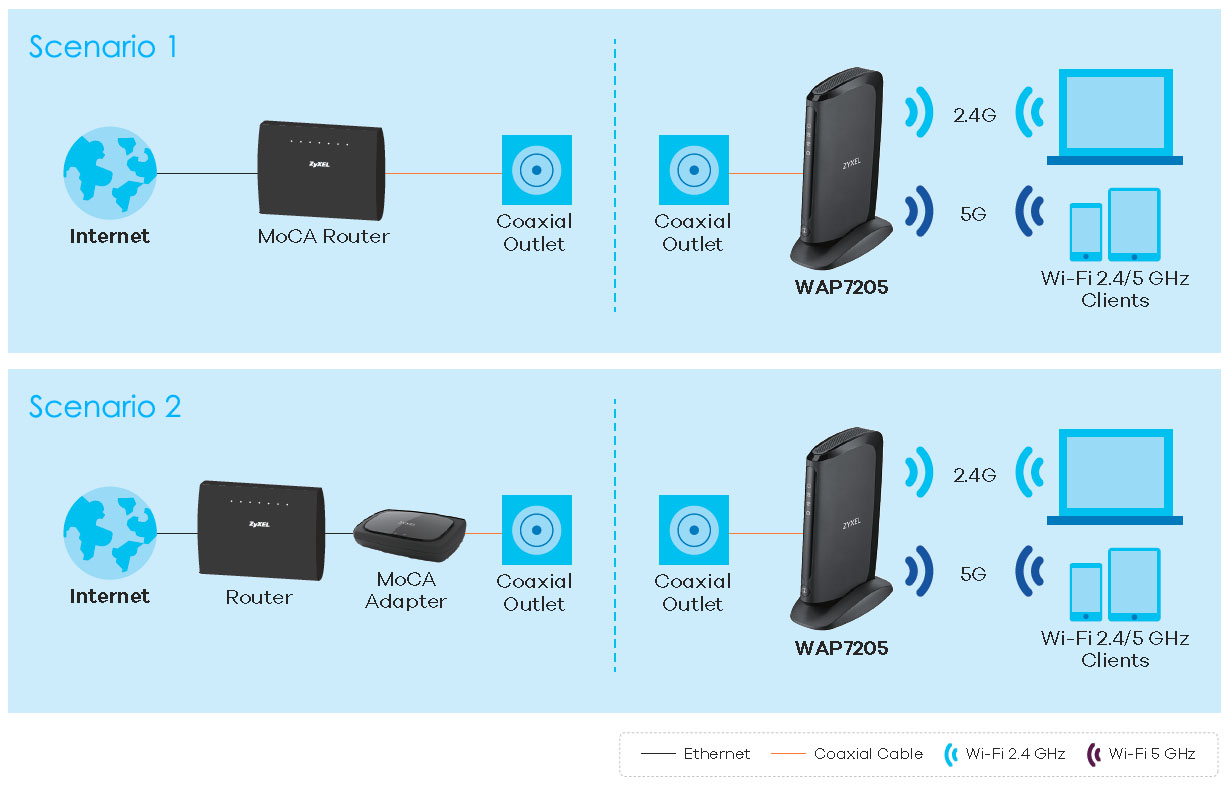

Application Diagram:

Specifications:

System Specifications

MoCA Standard

• Support MoCA 2.0 bonded/2.0/1.1/1.0 version
• Modulations: 8/16/32/64/128/256/512/ 1024 QAM, BPSK, QPSK
• MoCA extended D-band operation: 1350 - 1675 MHz (D-high)
• D-high frequency with compatibility with future DOSIS 3.1

Wireless Standards

• Wireless IEEE 802.11 b/g/n 2.4 GHz
• Wireless IEEE 802.11 a/n/ac 5 GHz

Performance

• 400 Mbps* at 2.4 GHz
• 867 Mbps* at 5 GHz

Wireless Security

• WPA2-PSK, WPA2

Wireless Features

• Wi-Fi Protected Setup (WPS)
• Wi-Fi Multimedia (WMM)
• Auto channel selection
• Wireless output power management
• Multiple SSIDs up to 4
• MAC address filtering

MoCA Features

• Network search
• MoCA network security

Management

• Web GUI (HTTP/HTTPS)

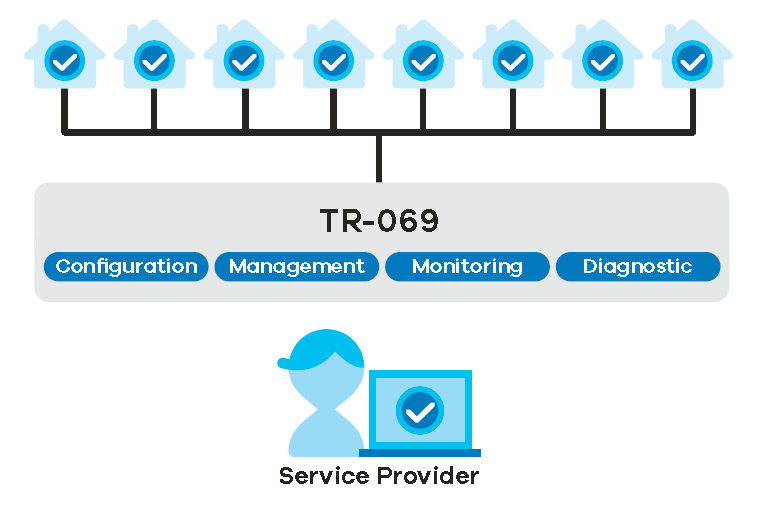

• TR-069
• SNMP V1/V2
• Remote Firmware upgrade through GUI/TR-069
• 2-tier access and administration
• Customized factory default
• System diagnostics
• Telnet/SSH

Hardware Specifications

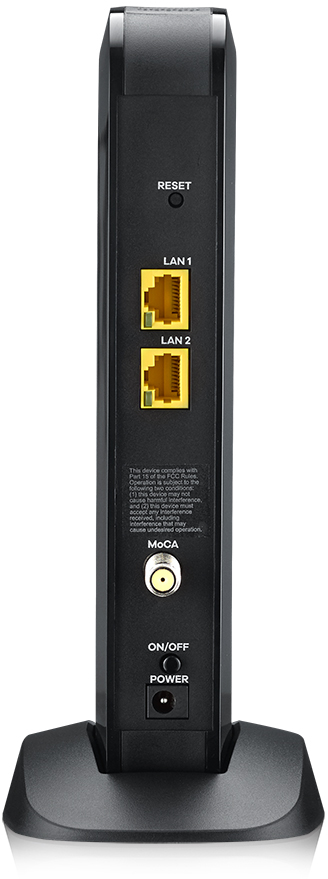

• Interfaces
• Two 10/100/1000 Ethernet RJ-45 ports with auto MDI/MDIX support
• MoCA F connector

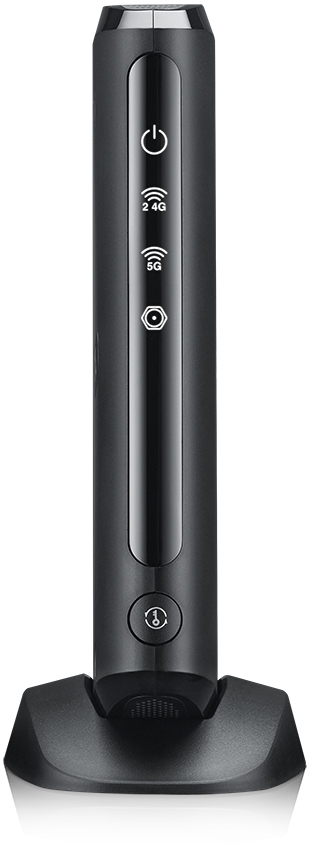

• LED Indicators
• Power
• WiFi 2.4 GHz/WPS
• WiFi 5 GHz/WPS
• MoCA
• LAN LED on Ethernet ports
• Buttons
• Power on/off
• WPS
• Reset
• Power Consumption
• 12V DC, 1.5A
• 18 Watt max

Physical Specifications

• Item dimensions (WxDxH): 37 x 134 x 218 mm (1.46" x 5.28" x 8.58")
• Item weight: 420 g (0.92 lb.)
• Packing dimensions (WxDxH): 321 x 187 x 101 mm (12.63" x 7.36" x 3.97")
• Packing weight: 560 g (1.23 lb.)

Environmental Specifications

Operating Environment

• Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 10% to 90% (Non-condensing)

Storage Environment

• Temperature: -30°C to 70°C (-22°F to 158°F)
• Humidity: 10% to 95% (Non-condensing)

Certification

• IC
• FCC

Package Contents

• Wireless extender
• Power adapter
• Ethernet cable
• Quick start guide

* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Documentation:

Download the Zyxel WAP7205 Datasheet (PDF).
