Zyxel NBG418NV2
NBG418Nv2 - Wireless N300 Fast Ethernet Router w/Fixed Antenna

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Overview:

Simple Wireless Home Network Sharing and Connectivity

Delivering wireless connectivity at speeds of up to 300 Mbps* with the 802.11n technology, the Zyxel NBG-418N v2 Wireless N300 Home Router is a wide-coverage wireless solution ideal for homes. The NBG-418N v2 provides stable, reliable wireless connectivity for Web browsing, file exchange, media streaming and online gaming.

  • Compliant with 802.11n with data transfer rates of up to 300 Mbps*
  • Two omni 5 dBi antennas boost wireless signals for wider coverage and more stable data transmission
  • WPS for quick, easy wireless security setup
  • Bandwidth management control prioritizes home network traffics
  • Supports for IPv6
  • Online firmware upgrade service for convenient feature enhancements
  • Eco-friendly router help saving energy
  • Stylish design
*The maximum wireless data transfer rate of up to 300 Mbps for 2.4 GHz which is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Benefits:


Better Wireless Experience

Compliant with 802.11n with data transfer rates of up to 300 Mbps*

With wireless speeds of up to 300 Mbps* to the 802.11n technology, the Zyxel NBG-418N v2 features bandwidth management that enables you to prioritize network traffics, making it ideal for streaming, online gaming and Web browsing throughout your home.

Easy Wireless Extension

Two omni 5 dBi antennas for stable data transmission and wider coverage

With two omni 5 dBi antennas, the Zyxel NBG-418N v2 provides a wider wireless range for you to enjoy wireless services throughout the home network and even in your backyard. You’ll enjoy stable, reliable wireless connections for Web browsing, file exchange and multimedia streaming everywhere at home.

Wi-Fi Protected Setup

Wi-Fi Protected Setup (WPS) for quick, easy wireless security setup

The Zyxel NBG-418N v2 features WPS that allows users to quickly establish network security simply by pressing the WPS button on the router.



Support for IPv6

The accelerated growth of Internet causes the limited IPv4 addresses to deplete shortly. As a result, many sites are now moving to IPv6 addresses; and the Zyxel's NBG-418N v2 is the perfect choice for Web browsing today and in the future for its IPv6-readiness.



Online firmware upgrade service for feature enhancements

With just a click, you can upgrade the Zyxel NBG-418N v2's firmware when updates or enhancements become available.



Eco-friendly router saves energy

The Zyxel NBG-418N v2 features wireless scheduling and it can be configured to enable/disable wireless services according to your network usage needs. In addition, you can use the power on/off button on the rear panel to toggle wireless connectivity in a snap.

Wireless scheduling

Wireless scheduling

Save unnecessary power consumption and reduce wireless radiation when wireless connection is not in use.

Wireless output management

Wireless output management

Easy to adjust the output power to reduce interference with neighboring access points within high wireless density areas.



*The maximum wireless data transfer rate of up to 300 Mbps for 2.4 GHz which is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

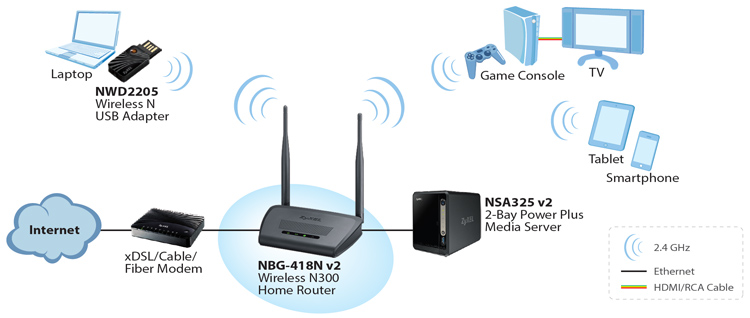

Application Diagram:

Application Diagram

Specifications:

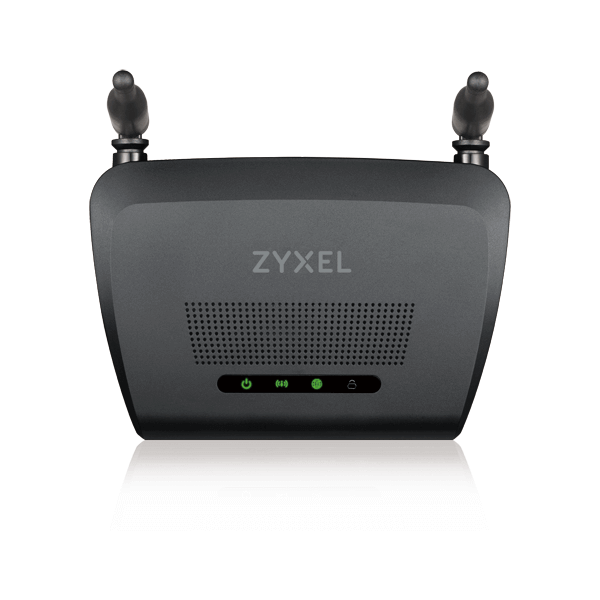

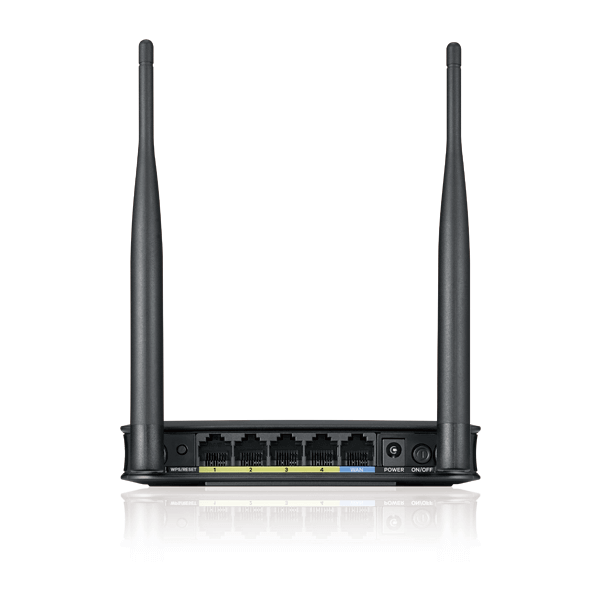

Top View Rear View

Model: NBG-418N v2
System Specifications
Wireless Standard 802.11 b/g/n
Wireless Transfer Rate
  • Transmit: 300 Mbps*
  • Receive: 300 Mbps*
Wireless Security 64/128 bit WEP, WPA-PSK/WPA2-PSK
Wireless Features
  • Access point mode
  • Universal repeater mode
  • Wi-Fi Protected Setup (WPS)
  • Wi-Fi Multimedia (WMM)
  • Wireless scheduling
  • Wireless output power management
  • Auto channel selection
  • MAC address filtering
Routing
  • Network Address Translation (NAT)
  • Connection type: Static IP, DHCP, PPPoE, PPTP
  • DHCP server/client
  • Dynamic DNS
  • Bandwidth management
  • Auto-IP change
  • IPv6
  • UPnP
VPN Pass-through
  • IPSec
  • PPTP
  • L2TP
Firewall Denial of Service (DoS) prevention
System Management Online firmware upgrade
Hardware Specifications
WAN One 10/100 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN Four 10/100 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
Ports Two USB 2.0 ports
LED indicators
  • Power
  • WLAN
  • WAN
  • WPS
Antennas Two 5 dBi external antennas
Button
  • Power on/off button
  • WPS/Reset button
Power 5 V DC, 1 A
Power consumption 3.5 Watt Max.
Physical Specification
Item dimensions (WxDxH)(mm/in.) 142 x 102 x 23 mm (5.59" x 4.01" x 0.91")
Item weight (kg/lb) 148 g (0.33 lb.)
Packing dimensions (WxDxH)(mm/in.) 270 x 74 x 164 mm (8.1" x 2.22" x 4.92")
Packing weight (kg/lb) 426 g (0.94 lb.)
Package Contents
  • Wireless router
  • Power adapter
  • Ethernet cable
  • Quick start guide
  • Warranty card
Environmental Specification
Operating Temperature  0°C to 40°C (32°F to 104°F)
Operating Humidity 10% to 90% (Non-condensing)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Storage Humidity 10% to 95% (Non-condensing)
Certification
Safety CE LVD, BSMI
EMC CE, FCC, IC, BSMI
*The maximum wireless data transfer rate of up to 300 Mbps for 2.4 GHz which is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Documentation:

Download the Zyxel NBG-418N v2 Datasheet (PDF).
