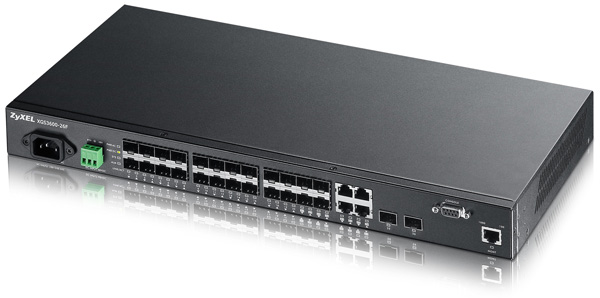

20-port GbE Fiber L2 Switch with Four GbE Combo Ports and Two 10G Fiber Ports
Sorry, this product is no longer available, please contact us for a replacement.
Telco-class Layer 2 Gigabit Carrier Ethernet Switch

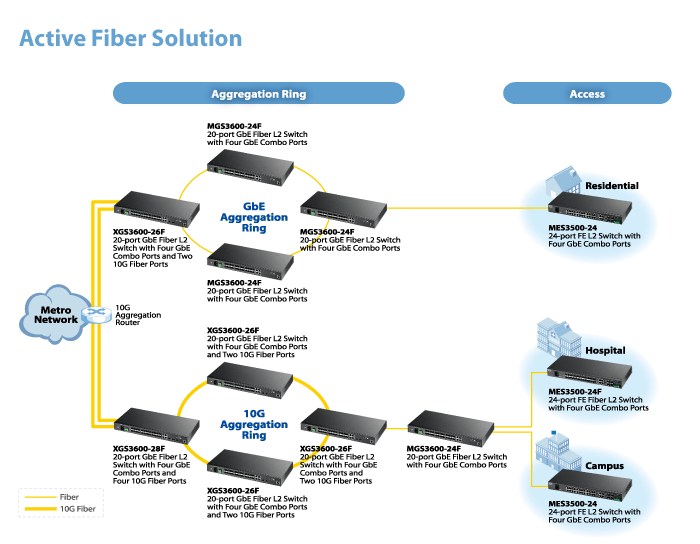

The ZyXEL XGS3600/MGS3600 Series are Telco-class Layer 2 Carrier Ethernet switches ideal for Ethernet service aggregation and extension. The Series meet all IEEE 802.3/u/x/z/ab/ae standards and are an excellent solution that provides an ideal combination of affordability with capabilities for Carrier Access networking which include: IEEE 802.3ah MAC Layer OAM; IEEE 802.1ag Ethernet CFM, ITU-T Y.1731 Ethernet OAM Performance Monitoring; ITU-T G.8031 Ethernet Linear Protection and ITU-T G.8032 Ethernet Ring Protection Switching.
- 32 K MAC addresses table; Telco-class Layer 2 Gigabit Carrier Ethernet Switch 4 MB Packet Buffer Size
- ITU-T G.8031 Ethernet Linear Protection and ITU-T G.8032 Ethernet Ring Protection Switching
- ITU-T Y.1731/IEEE 802.3ah MAC Layer OAM and IEEE 802.1ag Ethernet CFM
- "Front Access" design; Temperature hardened; AC/DC dual power input
- Intelligent fan control for power saving
- IPv6 management and s-flow
Advanced QoS for significant services
Consistent service quality and reliable connecting ability in a converged network is the key for Carrier to connect and satisfy customers; therefore the ability to control traffic flow and set traffic policy becomes more critical than ever. The ZyXEL XGS3600/MGS3600 series L2 GbE Switches offer wire-speed flow control that classifies and prioritizes the incoming packets according to the predefine QoS policies that meet requirements of service providers.
In terms of classification, the Differentiated Services Code Point (DSCP) field and the 802.1p Class of Service (CoS) field are identified to assess the priority of incoming packets. Classification and reclassification can be based on criteria as specific as rules based on IP, MAC addresses, VLAN ID or TCP/UDP port number. For bandwidth management, the XGS3600/MGS3600 series provide 8 priority queues per port for different types of traffics, allowing service providers to set policy-based rate limitations that take full advantage of constrained network resources and guarantee the best performance.
Enhanced security for protection among customers
Avoiding subscribers affecting each other on a shared network or shared device is a major concern for service providers. The ZyXEL XGS3600/MGS3600 series offers a complete set of security features to protect user data while administrating the traffics. Port security provides the ability to deny unauthorized users from accessing the network. Moreover, the 802.1X feature cooperating with RADIUS is useful to prevent unauthorized access based on username and password (or other credentials) and acts as powerful access control for converged networks with mixed wired and wireless access.
The XGS3600/MGS3600 series provide a multilayer (L2/L3/L4) ACL suite of sophisticated policybased control mechanisms that enables service providers to deploy easily based on actual network environment needs via a Web GUI or command line interface to prevent abnormal or illegal access. The policies can be defined to deny packets based on source and destination MAC addresses, IP addresses or TCP/UDP ports.
Resilient and redundant design
A quick recovery and round-the-clock network is vital for service providers to establish a robust network. The XGS3600/MGS3600 series provides comprehensive features to make sure network is well operated. The IEEE 802.3ad Link Aggregation feature reduces network downtime by providing redundant paths and bandwidth aggregation to critical connections, while IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) allow immediate recovery from failed connections by sending packets via the backup link.
|Product name||20-port GbE Fiber L2 Switch with Four GbE Combo Ports and Four 10G Fiber Ports||20-port GbE Fiber L2 Switch with Four GbE Combo Ports and Two 10G Fiber Ports||20-port GbE Fiber L2 Switch with Four GbE Combo Ports|
|Open SFP (GbE)||20||20||20|
|Combo GbE ports||4||4||4|
|Open SFP+ (10G)||4||2||-|
|Switching capacity (Gbps)||128||88||48|
|Switching forwarding rate (Mpps)||95.32||65.47||35.71|
|Packet buffer (MB)||4||4||4|
|MAC address||32 K||32 K||32 K|
|Input Voltage of AC||100 V to 240 V||100 V to 240 V||100 V to 240 V|
|Input Voltage of DC||48 V||48 V||48 V|
|Maximum Power Consumption (Watt)||AC=69/DC=59||AC=55/DC=50||AC=41/DC=37|
|Item||Dimensions (WxDxH) (mm/in.)||442 x 211.2 x 44 / 17.40 x 8.32 x 1.73|
|Weight (kg/lb.)||3.1 / 6.84||3.1 / 6.84||3.1 / 6.84|
|Packing||Dimensions (WxDxH) (mm/in.)||505 x 304 x 92 / 19.88 x 11.97 x 3.62|
|Weight (kg/lb.)||3.88 / 8.55||3.88 / 8.55||3.88 / 8.55|
|Operating||Temperature||0°C to 65°C/32°F to 149°F|
|Humidity||10% to 95% (non-condensing)|
|Storage||Temperature||-40°C to 70°C/-40°F to 158°F|
MAC and Port Capability
Traffic Management and QoS
Redundancy for Fault Backup
User Security and Authentication
|Network Administration Security
Carrier Ethernet OAM
Intelligent ACL (L2/L3/L4 Access List Control)
|SFP-SX-S||LC connector||GbE SFP SX Multi-Mode 550 m (1804 ft) commercial type transceiver|
|SFP-LX-5S||LC connector||GbE SFP LX wavelength=1310, 5 km (5468 yd) commercial type transceiver|
|SFP-LX-15S||LC connector||GbE SFP LX wavelength=1310, 15 ~ 20 km (16404 ~ 21872 yd) commercial type transceiver|
|SFP-LHX-40S||LC connector||GbE SFP LHX wavelength=1310, 40 km (43744 yd) commercial type transceiver|
|SFP-ZX-80S||LC connector||GbE SFP ZX wavelength=1550, 80 km (87488 yd) commercial type transceiver|
|Gigabit (with DDMI)|
|SFP-SX-DS||LC connector||GbE SFP SX Multi-Mode 550 m (1804 ft) commercial type transceiver, DDMI version|
|SFP-LX-5DS||LC connector||GbE SFP LX 5 km (5468 yd) commercial type transceiver, DDMI version|
|SFP-LX-15DS||LC connector||GbE SFP LX 15 ~ 20 km (16404 ~ 21872 yd) commercial type transceiver, DDMI version|
|SFP-BXA-20DS||LC connector||GbE SFP; BX 20 km (21872 yd) Bidirectional Type-A 1310 ~ 1550Tx, DDMI version|
|SFP-BXB-20DS||LC connector||GbE SFP; BX 20 km (21872 yd) Bidirectional Type-B 1550 ~ 1310Tx, DDMI version|
|SFP-BXC-20DS||LC connector||GbE SFP; BX 20 km (21872 yd) Bidirectional Type-C 1310 ~ 1490Tx, DDMI version|
|SFP-BXD-20DS||LC connector||GbE SFP; BX 20 km (21872 yd) Bidirectional Type-D 1490 ~ 1310Tx, DDMI version|
|SFP-LHX-40DS||LC connector||GbE SFP LHX wavelength=1310, 40 km (43744 yd) commercial type transceiver, DDMI version|
|SFP-ZX-80DS||LC connector||GbE SFP ZX wavelength=1550, 80 km (87488 yd) commercial type transceiver, DDMI version|
Download the ZyXEL XGS3600/MGS3600 Series Datasheet (PDF).
