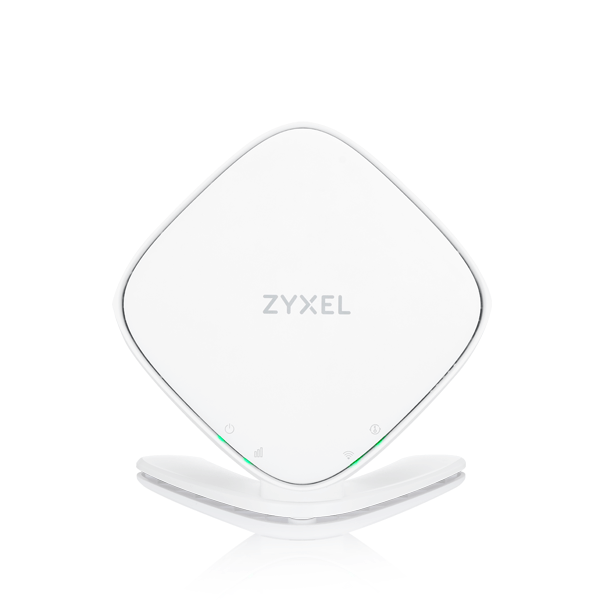

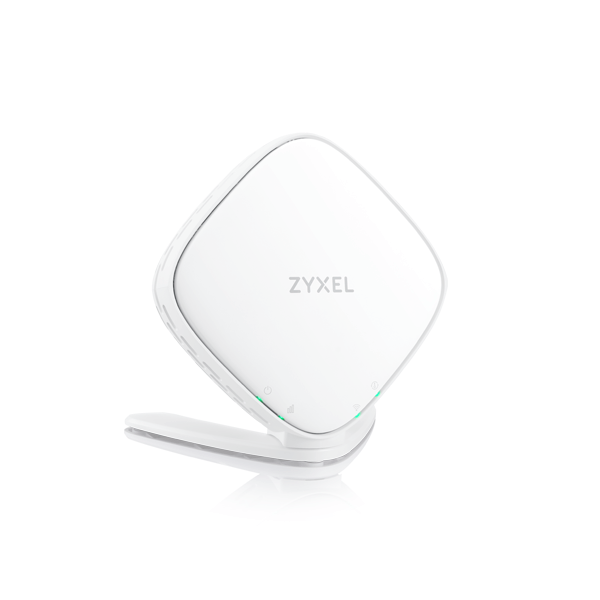

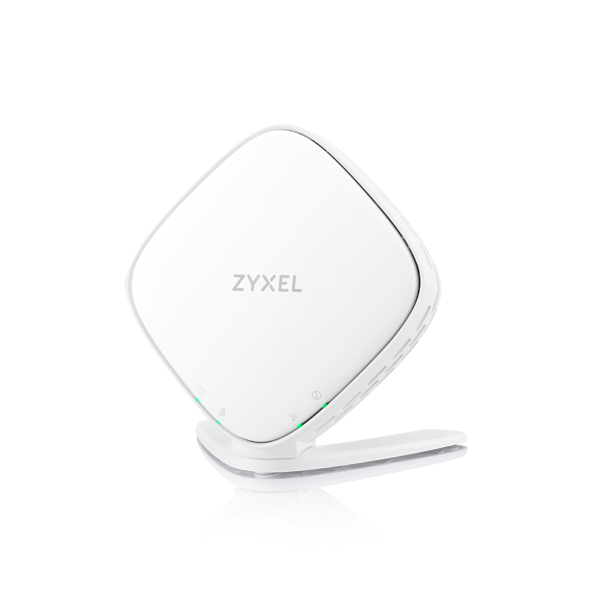

Zyxel Dual-Band Wireless AX Gigabit Access Point/Extender
WX3310-B0

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

The Zyxel WX3310-B0 Dual-Band Wireless AX Gigabit Access Point/Extender enables carrier-grade performance. As a key component of Zyxel MPro Mesh™ solution, the WX3310-B0 delivers smooth Ultra HD and IPTV streaming and seamless roaming for whole-home WiFi coverage.

5400 Mbps dual-band concurrent wireless access

Video-grade QoS optimizes video streaming

Integrated beamforming technology

Zyxel MPro Mesh™ solution (compliant with EasyMesh standards)

Support TR-181 i2 remote management

Features:

WiFi 6 technology for superior lag-free performance

Supporting the latest WiFi6 (11AX) standard, the Zyxel WX3310-B0 offers speeds of up to 4804 Mbps* with 4x4 802.11ax and 546 Mbps* with 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), high-power amplifier and beamforming technologies empower the WX3310-B0 to deliver premium speed for multi-streaming data access and optimal WiFi experience without dead zones.

Premium MPro Mesh™ for whole-home coverage

Featuring EasyMesh fully compliant Zyxel MPro Mesh™ solution, the Zyxel WX3310-B0 enhances your subscribers’ experience by providing self-adapting, easy-to-manage whole-home WiFi coverage, while reducing your service OPEX.

Remote management through TR-181 issue-2

Compliant with TR-181 issue-2 standard, the Zyxel WX3310-B0 significantly simplifies deployment complexity and lowers operating and maintenance costs with its remote management capability.

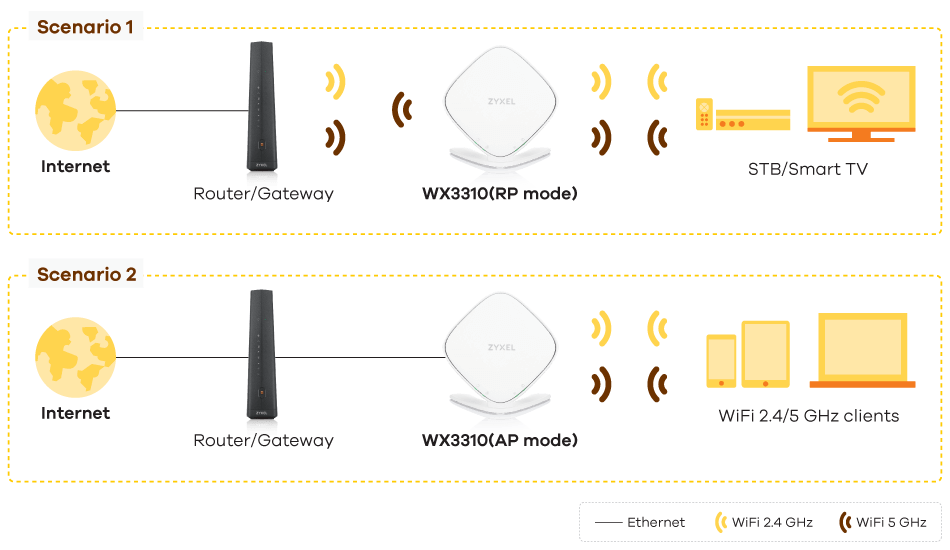

Application Diagram:

*The maximum wireless data transfer rate is derived from IEEE Standard 802.11. The actual data transfer rate will vary from network environment including distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

WX3310-B0 Specifications:

System specifications

Wireless standards

802.11 b/g/n/ac/ax 2.4 GHz, data rate 546 Mbps
802.11 a/n/ac/ax 5 GHz, data rate 4804 Mbps

Wireless

Wireless Protected Setup (WPS)
WMM
WPA2/WPA2-PSK with AES security type
Multi SSID: up to 8
MU-MIMO support

VLAN/QoS

802.1Q VLAN tagging/un-tagging
Support flexible traffic classification

Management

Web(HTTP/HTTPS)/Telnet/SSH
Firmware upgrade via web/TR-069 RPC method
Text based configuration
Configuration backup/update/restore default via web
TR-069(TR-181 issue-2)/TR-111
Rom-D support

Hardware specifications

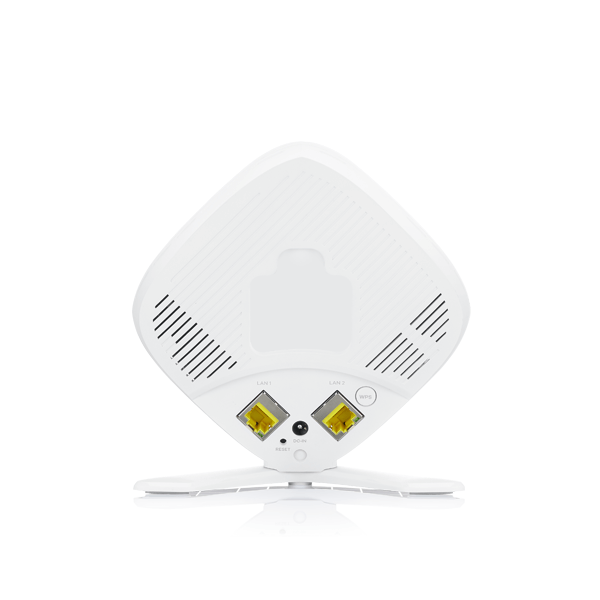

Ethernet interface

Two 10/100/1000 Mbps RJ-45 ports

Wireless

5 GHz: four internal antennas
2.4 GHz: two internal antennas

Button

Reset
WPS

LED indicator

Power
Link quality
WiFi
WPS

Power consumption

12 V DC/1.5 A

Physical specifications

Item dimensions (WxDxH): 150 x 39.8x 158 mm (5.9” x 1.3” x 5.18”)
Item weight: 308 g (0.68 lb.)
Packing dimensions (WxDxH): 189 x 170 x 92 mm (6.2” x 5.58” x 3.02”)
Packing weight: 458 g (1.01 lb.)

Environment specifications

Operating environment

Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)

Storage environment

Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% to 95% (Non-condensing)

Certification

RF: FCC, IC
EMC: FCC, IC

Package contents

Wireless extender
Power adapter
Ethernet cable
Quick start guide

Documentation:

Download the Zyxel WX3310-B0 Datasheet (PDF).
