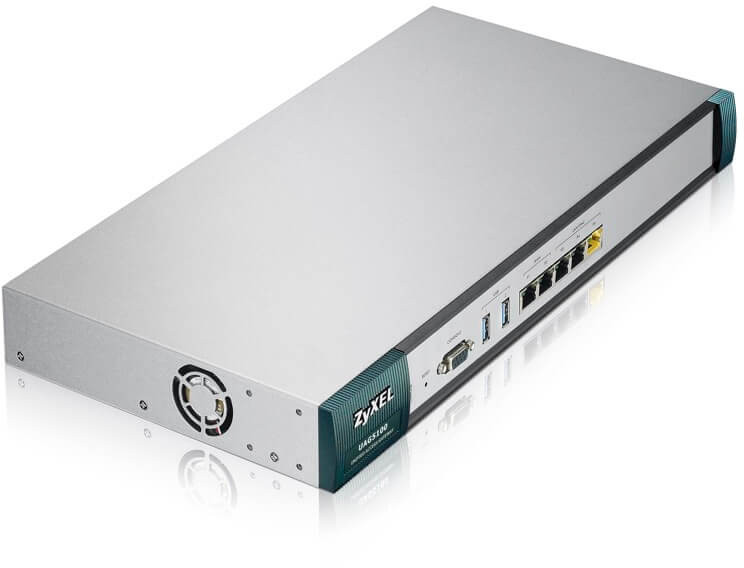

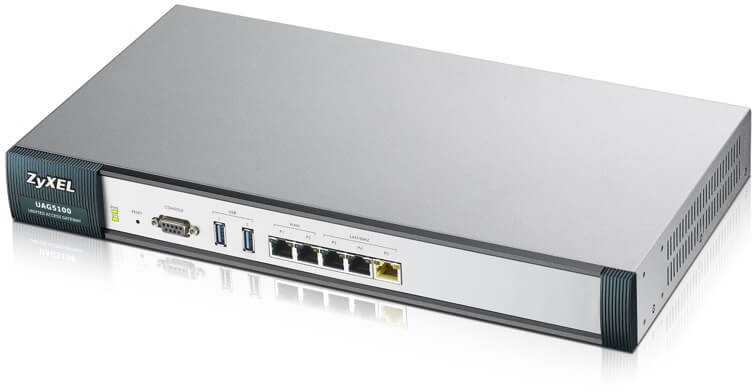

Zyxel UAG5100
Unified Access Gateway

Benefits:

Deploy with confidence

The Zyxel UAG5100 has the capacity to provide public Internet access to hundreds of users in medium-sized venues like hotels, libraries and convention centers. It supports 500 concurrent logins by default, and up to 800 via license upgrade. With dual-WAN support and per account bandwidth management, the UAG5100 maximizes Internet uptime and optimizes access quality to keep customers and visitors satisfied.

Generate revenue

The Zyxel UAG5100 is designed with advanced billing, user authentication, and access control features that help organizations like hotels manage guest accounts, block unauthorized access, and generate revenue with Internet services. It facilitates monetization of networking investments by offering Internet access as a paid service, or a free service with limitations and premium when a purchase is made.

Reduce CAPEX and OPEX

The Zyxel UAG5100 delivers Internet services with reduced capital and operational expenditures. Without additional hardware investments, the UAG5100 can scale up to 800 concurrent logins, and manage up to 32 APs with the integrated WLAN controller. The WLAN controller increases administrative efficiency with a centralized interface for AP management. The UAG5100 also offers ten (10) IPSec VPN tunnels that make it easy for MSPs to manage the gateway remotely.

Comply with regulations

No longer do organizations that provide public Internet access need to worry about fines nes that come with not being able to comply with data retention laws, like the EU Data Retention Directive (2006/24/EC). The Zyxel UAG5100 has data retention functions that automatically retain Internet usage records for government auditing when required.

Feature Introduction:

Capacity and Performance

The UAG5100 is designed to provide controlled network access to hundreds of guests in medium-sized venues like hotels or public libraries. It supports 500 concurrent logins by default and up to 800 concurrent logins with license upgrade.

Account Management

The UAG5100 features a captive portal and a built-in account generator that can manage 300 static accounts and up to 4,000 dynamic accounts. External RADIUS servers and external portal page redirection is also supported by the UAG5100.

Billing System

The UAG5100 supports up to ten (10) pre-paid billing plans. Billing plans can be customized with varying bandwidth speeds, service duration, and level of payment. Credit card billing is also available via PayPal.

Printer and SMS Ticketing

The UAG5100 supports SMS ticketing via ViaNett and up to ten (10) SP350E printers. The SP350E enables one-click billing and account generation, and supports group ticket printout of up to 50 tickets at a time.

Dual-WAN

The UAG5100 provides non-stop Internet uptime with dual-WAN support. Dual-WAN works with two Ethernet WAN connections for active-active load balancing or active-passive failover.

Bandwidth Management

The UAG5100 helps hotels ensure customer satisfaction with quality Internet services. It features per account bandwidth management to enforce equal bandwidth sharing and avoid bandwidth abuse.

WLAN Controller

The integrated WLAN controller supports CAPWAP, and enables centralized authentication and access management of multiple APs in the network. The UAG5100 can manage 16 APs by default, and up to 32 APs with license upgrade.

PoE Powered Device

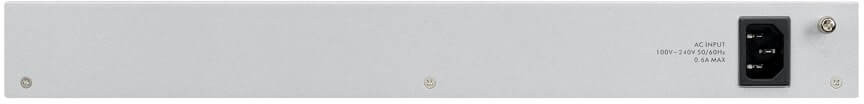

The UAG5100 features a special Powered Device (PD) design that enables it to be powered by an IEEE 802.3at PoE switch. Users can do without a power adapter by powering the UAG5100 via the P5 LAN/DMZ port (yellow).

Data Retention

Deployed with a syslog server, the UAG5100 can automatically record user account information, MAC addresses, source and destination IPs, data volume and protocol type to comply with data retention laws like the EU Data Retention Directive (2006/24/EC).

Remote Management

The UAG5100 provides ten (10) IPSec VPN tunnels to make it easier and more efficient for MSPs (managed service providers) to remotely manage and service the UAG5100 installed at the customer premises.

Application Diagram:

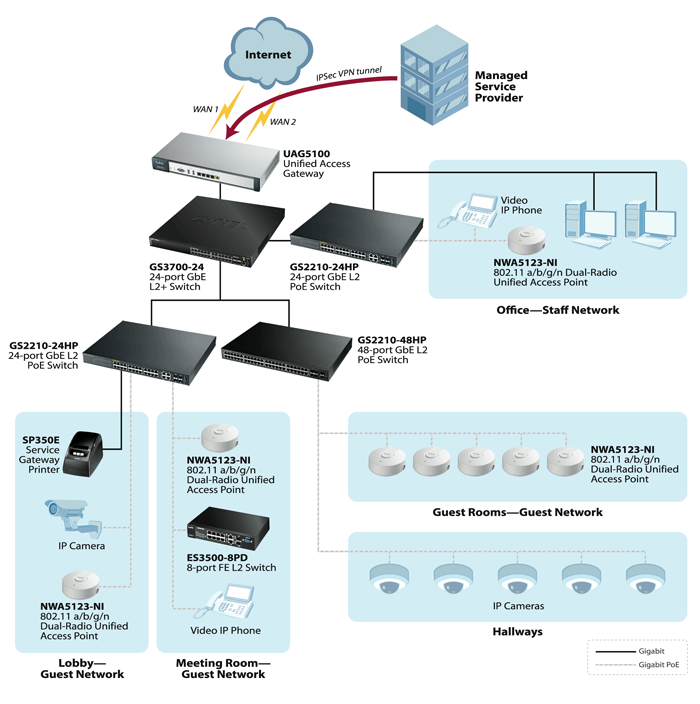

Hotel Guest Access

• Users can connect two Ethernet WAN links to the UAG5100 to get higher uplink bandwidth with load balancing or WAN backup with failover
• The integrated WLAN controller enables users to centrally manage up to 32 APs with the UAG5100
• The SP350E printer can be installed at the reception desk to enable staff members to generate guest accounts with one click
• Managed service providers can remotely manage and service the UAG5100 with an IPSec VPN tunnel

Specifications:

UAG5100 Specifications
Hardware Specifications

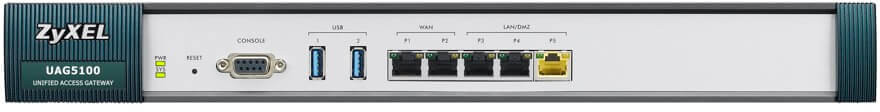

10/100/1000 Mbps RJ-45 ports		3 x LAN, 2 x WAN
USB ports		2
Ticket printer support		Yes (up to 10 printers)
System Capacity & Performance*1
Routing throughput (Mbps)*2		250
Concurrent logins (default/max.)		500/800
Max. concurrent sessions*3		80,000
DHCP pool size		4,096
Max. concurrent IPSec VPN tunnels		10
WLAN Management
Built-in WLAN controller		Yes
Managed AP number (default/max.)		16/32
Power Requirements
Power input		802.3at PoE Plus input; 100 - 240 V AC, 50/60 Hz, 0.6 A max.
Max. power consumption (watt)		25
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.)	382 x 205 x 44 / 15.04 x 8.07 x 1.73
	Weight (kg/lb.)	2.36 / 5.20
Packing	Dimensions (WxDxH)(mm/in.)	444 x 295 x 152 / 17.48 x 11.61 x 5.98
	Weight (kg/lb.)	3.7 / 8.16
Environmental Specifications
Operating	Temperature	0°C to 40°C (32°F to 104°F)
	Humidity	10% to 90% (non-condensing)
Storage	Temperature	-30°C to 70°C (-22°F to 158°F)
	Humidity	10% to 90% (non-condensing)
MTBF (hr)		71,032
Certifications
EMC		FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI
Safety		LVD (EN60950-1), BSMI

Note:
*1: Actual performance may vary depending on network conditions and activated applications.
*2: Routing throughput measured using the industry standard IXIA IxLoad testing tool (1,460-byte TCP packets).
*3: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.

Features:

Networking Dual-WAN load balancing, failover and fallback Universal Plug and Play (UPnP) IP Plug and Play (iPnP) NAT/PAT Static routing and policy routing DHCP client/server/relay HTTP proxy support SMTP redirection VPN 1-to-1 mapping VPN pass-through WAN client: static, DHCP, PPPoE, PPTP Tagged VLAN (802.1Q) DDNS Security Stateful packet inspection firewall 10-channel IPSec VPN support (site-to-site) L2 isolation User-aware security policy Session limit IP pass-through (white list) AAA & Billing Web-based authentication User agreement login External RADIUS support Secondary RADIUS server support Built-in billing system Time-to-finish accounting mode Accumulation accounting mode 10 customizable billing profiles Built-in account generator 300 static accounts 4,000 dynamic accounts Multiple logins with pre-configured accounts Bandwidth management (per account) Credit card billing via PayPal Thermal Printer supper (up to 10) SMS ticketing support with ViaNett

Marketing Advertisement link Walled garden Login page redirection Portal page Customizable login page Customizable information window Customizable user agreement page System Management Administrator access: WAN and LAN Web Management (HTTP/HTTPS) Secure administrator IP address SNMP v2c (MIB-II) Configuration backup and restoration Role-based administration (Admin, guest operator) Command line interface (console/web console/SSH) Monitoring and Reporting Email log Syslog: account, IP, MAC, traffic & protocol (data retention) Session list Account list Billing report DHCP client list WLAN Management Zyxel AP Controller (APC) 1.0 compliant Client RSSI threshold to prevent sticky clients IEEE 802.1x authentication Wireless Layer 2 isolation Captive portal Web authentication Customizable captive portal page Dynamic guest accounts RADIUS authentication Wi-Fi Multimedia (WMM) wireless QoS CAPWAP discovery protocol

Accessories
Model
	SP350E Service Gateway Printer Buttons: 3 Paper roll width: 58 (+0/-1) mm Interface: 10/100 Mbps RJ-45 port Power input: 12 V DC, 5 A max. Item dimensions (WxDxH): 176 x 111 x 114 mm (6.93” x 4.37” x 4.49”) Item weight: 0.8 kg (1.76 lb.)

Documentation:

Download the Zyxel UAG5100 Series Datasheet (PDF).
