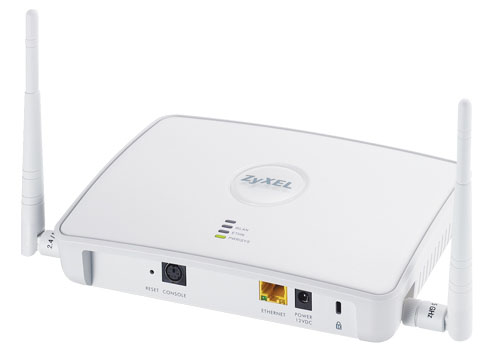

Zyxel NWA3160-N 802.11a/b/g/n Business Access Point
The N-Generation Access Point Tailor-made for Growing SMB Needs
Sorry, this product is no longer available, replaced by the WAC6502D-E.
Overview:
Multipurpose Access Point Tailor-made for Growing SMB Needs
Mobility and BYOD (Bring Your Own Device) in the workplace are trends that businesses today need to address to stay competitive. Yet with fewer resources, small- and medium-sized businesses need to plan their wireless networks carefully to get the most out of their investments. Growing SMBs need a solution that is flexible enough to satisfy the wireless needs of today, but also prepare them for future expansion.
Featuring a special 3-in-1 design (standalone, managed and controller modes), the Zyxel NWA3000-N Series Unified Pro Access Points provide ultra-high versatility and investment protection. They can function as a standalone AP when the company is small, and become a controller AP that manages up to 24 other APs when the company grows. The complete NWA3000-N range supports PoE, auto-discovery and auto-provisioning to make deployment effortless. They also provide high-speed, dual-band Wi-Fi for maximum wireless quality and performance.
- Multipurpose 3-in-1 design with controller AP mode, managed AP mode and standalone AP mode
- Manages up to 24 APs in controller AP mode
- Complies with IEEE 802.11 a/b/g/n standards with data rates up to 300 Mbps
- Complies with IEEE 802.11 a/b/g/n standards with data rates up to 300 Mbps
- Enterprise grade Wi-Fi security with WPA/WPA2-Enterprise
- Features built-in RADIUS server
- Built with Low Smoke Zero Halogen (LSOH) materials for UL 2043 compliance
Benefits:
Low-cost WLAN expansion for growing businesses
The Zyxel NWA3000-N Unified Pro Series is a highly versatile WLAN solution that offers optimal investment protection for growing businesses. NWA3000-N Series Unified Pro APs feature a 3-in-1 design that allows them to function as either a standalone AP, managed AP, or controller AP. Small businesses can initially use the NWA3000-N Series in standalone AP mode; and as the company grows and more APs are added to the network, they can be set to controller AP mode to offer centralized management of up to 24 other APs. This solution can be further expanded with a Zyxel NXC5200 Wireless LAN Controller, which can manage up to 240 APs with granular access control.
Double the bandwidth, better performance
Mobility and the trend of BYOD have ushered in the need for more Wi-Fi bandwidth and higher Wi-Fi capacity in the workplace. Companies today need a faster, more reliable wireless network to satisfy the access needs of a growing amount of mobile Internet devices. Designed in compliance with IEEE 802.11 a/b/g/n standards, the Zyxel NWA3000-N Series can provide dual-band Wi-Fi with data rates up to 300 Mbps to solve the network overloading and signal interference problems of crowded Wi-Fi environments. The NWA3160-N dual-band model allows users to set it to work in either the 2.4 or 5 GHz band for added deployment flexibility, while the NWA3560-N and NWA3550-N dual-radio models provide concurrent 2.4 and 5 GHz wireless connectivity. These solutions allow IT administrators to direct some of the wireless traffic to the 5 GHz band to balance network loading and provide better Wi-Fi quality for a larger amount of users.
Effortless deployment with PoE, auto-discovery and auto-provisioning
Zyxel NWA3000-N Series Unified Pro APs provide a variety of features to make configuration and installation quick and effortless. With Power over Ethernet (PoE) support, all models in the NWA3000-N Series can be powered by PoE switches via Ethernet cable, which makes installation more flexible and eliminates the need to install electrical outlets near every access point. Once installed and powered up, NWA3000-N Series APs use the auto-discovery function to look for the controller and join the management group automatically. The auto-provisioning function enables secure, automatic provisioning to be established between the controller and the managed APs effortlessly.
Conveniently designed for SMB deployments
Zyxel NWA3000-N Series Unified Pro APs provide enterprise-grade security for SMBs with WPA/WPA2-Enterprise authentication. NWA3000-N Series Unified Pro APs are also conveniently designed with embedded RADIUS servers that help SMBs save the expenses and maintenance effort on using standalone RADIUS servers. Additionally, all indoor models of the NWA3000-N Series adopt LSOH material and comply with the UL 2043 standard. These plenum-rated APs can be conveniently installed in plenum spaces, and would produce the least amount of toxic or corrosive smoke should a fire occur.
Application Diagram:
An NWA3000-N Series Unified Pro AP in controller mode managing up to 24 NWA3000-N Series APs in managed mode.
NWA3000-N Series Unified Pro APs in a large campus deployment managed by the Zyxel NXC5200 WLAN Controller.
Specifications:
| Feature/Model: | NWA3160-N | NWA3560-N | NWA3550-N | |
|---|---|---|---|---|
 |
 |
 |
||
| Product Name | 802.11 a/b/g/n Unified Pro Access Point | 802.11 a/b/g/n Dual-Radio Unified Pro Access Point | 802.11 a/b/g/n Dual-Radio Outdoor Unified Pro Access Point | |
| Main Design | ||||
| Wireless frequency | 2.4 GHz or 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | |
| Radio | 1 | 2 | 2 | |
| Antenna | 2 external dipole | 4 external dipole | 4 N-type connectors* | |
| Supported data rates | 802.11 a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps 802.11n: up to 300 Mbps in MCS15 (40 MHz; GI = 400 ns) |
|||
| RF Specifications | ||||
| Frequency band | 2.4 GHz (11 g/n) | USA: 2.412 to 2.462 GHz | ||
| ETSI: 2.412 to 2.472 GHz | ||||
| 5 GHz (11 a/n) | USA: 5.150 to 5.250 GHz; 5.725 to 5.850 GHz | |||
| ETSI: 5.15 to 5.35 GHz; 5.470 to 5.725 GHz | ||||
| Typical Transmit Output Power (Conducted) | ||||
| FCC | 11 b/g | 24 dBm | 24 dBm | 24 dBm |
| 11 g/n | 21 dBm | 21 dBm | 21 dBm | |
| 11a | 21 dBm | 21 dBm | 21 dBm | |
| 11 a/n | 21 dBm | 21 dBm | 21 dBm | |
| EU | 11 b/g | 17 dBm | 17 dBm | 17 dBm |
| 11 g/n | 17 dBm | 17 dBm | 17 dBm | |
| 11a | 21 dBm | 21 dBm | 21 dBm | |
| 11 a/n | 21 dBm | 21 dBm | 21 dBm | |
| LAN | ||||
| Number of 10/100/1000 Mbps LAN ports | 1 | 1 | 1 | |
| PoE | Yes | Yes | Yes | |
| PoE power draw | 11 W | 14 W | 28 W | |
| WLAN Features | ||||
| Maximum throughput | Up to 120 Mbps | Up to 140 Mbps | Up to 140 Mbps | |
| WMM (Wi-Fi certified) | Yes | Yes | Yes | |
| WEP | Yes | Yes | Yes | |
| WPA/WPA2-PSK | Yes | Yes | Yes | |
| WPA2 (Wi-Fi certified) | Yes | Yes | Yes | |
| WPA/WPA2-Enterprise | Yes | Yes | Yes | |
| EAP-TLS, TTLS, PEAP, SIM | Yes | Yes | Yes | |
| Network | ||||
| VLANs | Yes | Yes | Yes | |
| DHCP client | Yes | Yes | Yes | |
| Security | ||||
| IEEE 802.1X | Yes | Yes | Yes | |
| MAC filtering | Yes | Yes | Yes | |
| RADIUS authentication | Yes | Yes | Yes | |
| Embedded RADIUS server | Yes | Yes | Yes | |
| EAP-type | EAP-TLS, EAP-TTLS, PEAP, SIM, FAST, AKA | |||
| Rogue AP detection | Yes | Yes | Yes | |
| Rogue AP containment | Yes | Yes | Yes | |
| WLAN Management | ||||
| Controller mode | Yes | Yes | Yes | |
| Standalone AP mode | Yes | Yes | Yes | |
| Managed AP mode | Yes | Yes | Yes | |
| CLI with SSH | Yes | Yes | Yes | |
| Web UI with SSL | Yes | Yes | Yes | |
| SNMP | Yes | Yes | Yes | |
| Others | ||||
| Plenum rating | Yes | Yes | - | |
| Kensington lock support | Yes | Yes | - | |
| Standard Compliance | ||||
| Ethernet | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az | |||
| PoE | IEEE 802.3af, IEEE 802.3at | Propriatery | ||
| Radio modulation | IEEE 802.11a: BPSK, QPSK, 16-QAM, 64-QAM IEEE 802.11b: DBPSK, DQPSK, CCK IEEE 802.11g: BPSK, QPSK, 16-QAM, 64-QAM IEEE 802.11n: BPSK, QPSK, 16-QAM, 64-QAM |
|||
| Certification | ||||
| Radio | FCC Part 15C 15.247, FCC Part 15E, ETSI EN 300 328 V1.7.1 ETSI EN 301 893 V1.2.3: 08-2003, DGT LP0002 |
|||
| EMC | FCC Part 15B (Class B) EN 301 489-17 V1.2.1: 08-2002 (Class B) EN 301 489-1 V1.5.1: 11-2004 (Class B) |
|||
| Safety | EN 60950-1 (Class B) EN 60601-1-2: 2002 (Medical Electrical Equipment)(Class B) |
|||
| Power Requirement | ||||
| Power supply | 12 V DC, 1.5 A | PoE only | ||
| Physical Specifications | ||||
| Item | Dimensions (WxDxH)(mm/in.) |
198 x 138 x 45/7.80 x 5.43 x 1.77 | 198 x 138 x 45/7.80 x 5.43 x 1.77 | 257 x 257 x 51/10.12 x 10.12 x 2.01 |
| Weight (g/lb.) | 439/0.97 | 462/1.02 | 1,360/3.01 | |
| Packing | Dimensions (WxDxH)(mm/in.) |
295 x 192 x 93/11.61 x 7.56 x 3.66 | 295 x 192 x 93/11.61 x 7.56 x 3.66 | 382 x 415 x 154/15.04 x 16.34 x 6.06 |
| Weight (g/lb.) | 1,164/2.57 | 1,227/2.71 | 3,600/7.96 | |
| Environmental Specifications | ||||
| Operating environment | Temperature | 0°C to 40°C/32°F to 104°F | -40°C to 60°C/-40°F to 140°F | |
| Humidity | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | ||
| Storage environment | Temperature | -30°C to 70°C/-22°F to 158°F | -40°C to 70°C/-40°F to 158°F | |
| Humidity | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | ||
| MTBF (hr) | 189,393 | 173,386 | 155,600 | |
Documentation:
Download the Zyxel NWA3160-N Datasheet (PDF).
