Zyxel NBG4615 v2 | ZyxelGuard.com

Overview:

Advanced Wireless Router for Upgrading Home Networks

Zyxel’s NBG4615 v2 Wireless N300 Gigabit NetUSB Router dramatically accelerates home networks for everyone to fully enjoy the entertainment potential of Internet.

802.11n compliant, wireless speed of up to 300 Mbps*
Hardware-accelerated NAT enables better Internet performance on multiple devices
NetUSB™ ports share printers and storages wirelessly
QoS enhances user experience on network gaming and multimedia streaming
Guest WLAN for separating access privileges
User-friendly interface for easy configuration
WPS button for quick and easy wireless security setup
Easy wireless access control with wireless on/off button
Eco-friendly wireless scheduling and power on/off switch to save energy

Benefits:

High-performance home networks

The NBG4615 v2 delivers better routing performance via its superior hardware-accelerated Network Address Translation (NAT). This allows multiple PCs and laptops throughout the entire house to enjoy better video streaming, data transfer and gaming with whole-home coverage. Just connect Gigabit-capable devices such as network storage appliances and PCs to the NBG4615 v2’s Gigabit ports, or link wireless devices such as laptops or smart phones to it for the best experience possible.

NetUSB™ shares USB devices wirelessly

With two NetUSB™ ports, the NBG4615 v2 allows users to share printers or USB mass storage devices over the home network as if the devices were connected directly over the home network to the PC.

Easy mode and expert mode for quick navigation and setup

The NBG4615 v2 features a user-friendly interface with an “Easy Mode” that provides function navigation, basic setup tasks and a comprehensive network map. For advanced setup, the “Expert Mode” provides full setup options for more detailed configurations. The network map on the user interface allows you to see all the networked devices such as PCs and network storage devices.

*The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Green:

	Wireless output management NBG4615 v2 makes it easy for users to adjust the output power to reduce interference that affects your neighbors.
	Wireless scheduling Save unnecessary power consumption and reduce wireless radiation when wireless connection is not in use.

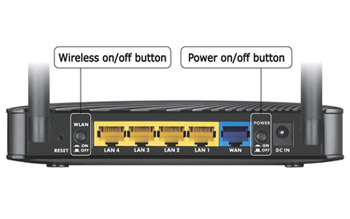

	Wireless on/off switch Just push the wireless on/off button of NBG4615 v2, you can easily save energy when the device is not in use.
	Power on/off switch You can easily control wireless access and save energy with the power on/off button of the NBG4615 v2 to toggle the wireless access in just seconds.

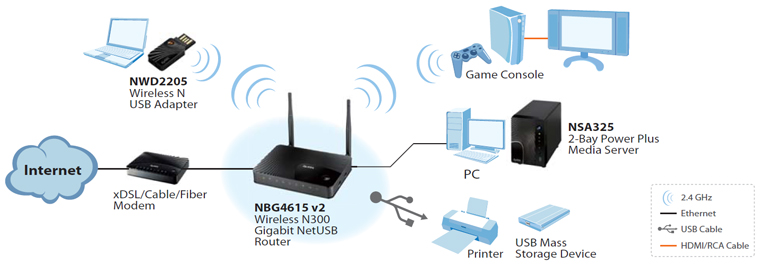

Application Diagram:

Specifications:

NBG4615 v2 Specifications
System Specifications
Wirless Standard		802.11 b/g/n
Wireless Transfer Rate		Transmit: 300 Mbps* Receive: 300 Mbps*
WLAN Features		AP mode Wireless Internet Service Provider (WISP) mode Universal Repeater (UR) mode WISP with UR mode Wi-Fi Protected Setup (WPS) Wi-Fi Multimedia (WMM) Wireless scheduler Wireless output power management Intra - Basic Service Set (BSS) traffic block Auto channel selection MAC address filtering Guest WLAN
Routing		Network Address Translation (NAT)(NAT session: 32000) Port forwarding DHCP server on LAN DHCP/PPPoE/PPTP client on WAN Protocol-based Quality of Service (QoS) Dynamic DNS IGMP v1/v2 Auto-IP change
VPN Pass-through		PPTP L2TP IPSec
Firewall		Denial-of-service (DoS) attack prevention
System Management		NetUSB™ support Online firmware upgrade
Others		UPnP NTP client
Hardware Specifications
Ports		WAN: One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support LAN: Four 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support Two USB 2.0 ports
LED indicator		Power LAN (1 - 4) WAN WLAN WPS USB
Antenna gain		Two 2 dBi detachable antennas
Button/Switch		Wireless On/Off button WPS button Reset button Power On/Off button
Power		12 V DC, 1.5 A
Power consumption		16.2 watt max.
Physical Specifications
Item	Dimensions (WxDxH)	159 x 111 x 23 mm (6.26” x 4.37” x 0.91”)
Item	Weight (kg/lb.)	246 g (0.54 lb.)
Packing	Dimensions (WxDxH)	272 x 60 x 194 mm (10.71” x 2.36” x 7.64”)
Packing	Weight (kg/lb.)	682 g (1.51 lb.)
Environmental Specifications
Operating	Temperature	0°C to 40°C (32°F to 104°F)
Operating	Humidity	10% to 90% (non-condensing)
Storage	Temperature	-30ºC to 70ºC (-22ºF to 158ºF)
Storage	Humidity	10% to 95% (non-condensing)
Certifications
Safety		CE LVD
EMC		CE, FCC
Package Contents
Package Contents		Wireless router Two detachable antennas Power adapter Ethernet cable Quick start guide Warranty card Support CD

*The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Documentation:

Download the Zyxel NBG4615 v2 Datasheet (PDF).
