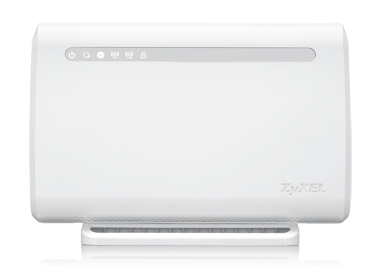

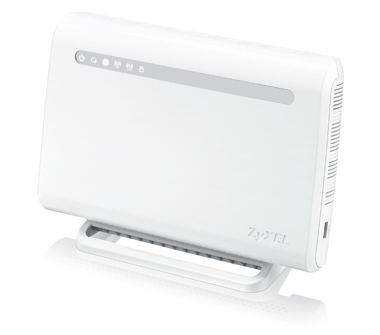

Zyxel NBG-6815
AC2200 MU-MIMO Dual-Band Wireless Gigabit Router

Overview:

Your First MU-MIMO Home Router

The Zyxel NBG6815 is your first Multi User MIMO (MU-MIMO) home router that fits in your home interior design with its chic look, and it upgrades your home network with MU-MIMO technology at the same time. It also supports Gigabit-class wired connection, wireless speeds of up to 2200 Mbps and two USB ports. The NBG6815 is perfect for your home entertainment setup: you can share photos, music and videos smoothly on your home network, and you can inspect or manage home network easily with Zyxel ONE Connect APP and Usage Monitor.

• “eaZy123” mobile-friendly setup wizard
• Gigabit-class wireless performance with MU-MIMO, AC2200
• 6 internal antennas with outstanding performance comparable with external antennas
• Zyxel ONE Connect discovers home connectivity and activities
• Usage Monitor monitors your broadband bandwidth
• Bandwidth allocated to where needed with StreamBoost
• 2 USB ports for a printer and a file sharing device at the same time
• Wi-Fi on/off switch avoids wireless interference when not in use
• Turn LED on or off with a switch when needed

Benefits:

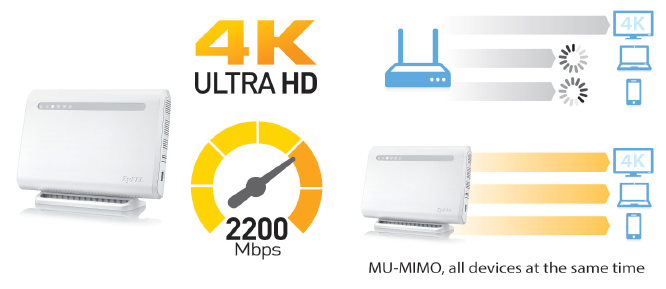

MU-MIMO provides performance up to twice of the Wi-Fi than SU-MIMO

The latest MU-MIMO 802.11ac technology is perfect for busy environments: it doubles Wi-Fi performance of Single User MIMO (SU-MIMO) in venues where concurrent wireless access activities are intensive.

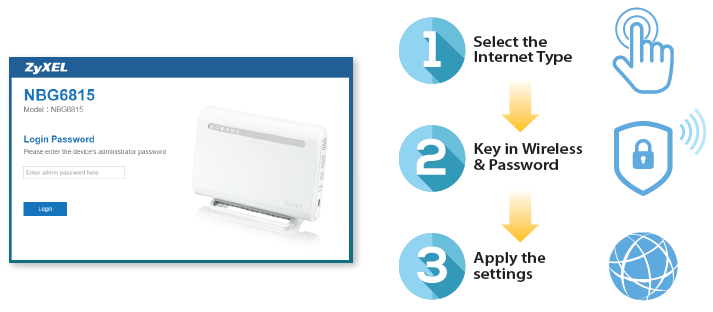

eaZy123 provides a quick, easy guided setup

The mobile-friendly setup wizard guides you through the home network setup process in 3 simple steps.

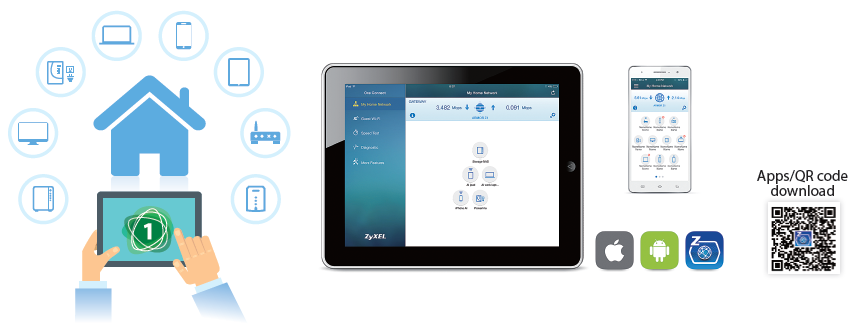

Zyxel ONE Connect mobile APP for easy network management

With the Zyxel ONE Connect, you can easily configure network settings from your router to connected network devices, and manage them easily with Zyxel ONE Connect APP installed.

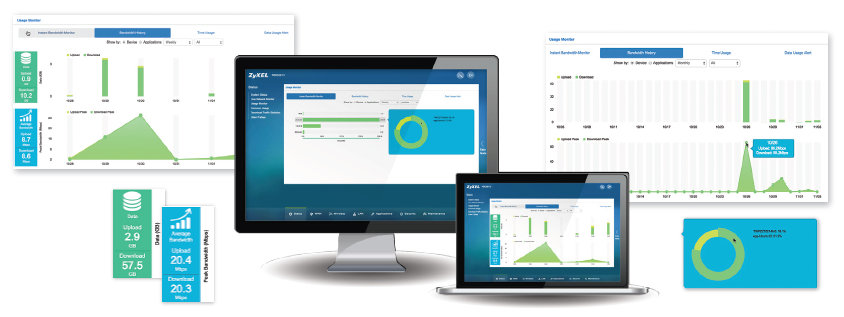

Monitor usage of your home network easily

The Usage Monitor allows you to view the home network bandwidth consumed by applications or clients. You can set a warning threshold for Internet plan utilization to receive a system message once the limit is reached.

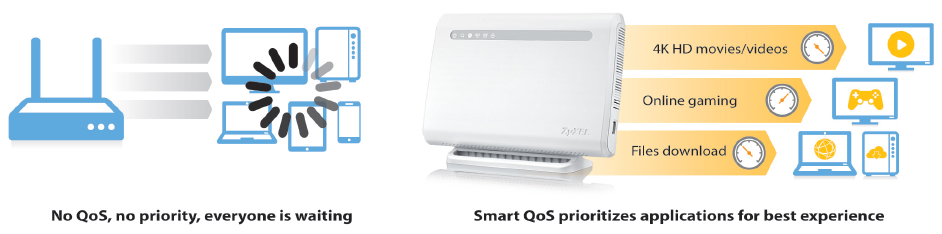

StreamBoost provides smooth video playback and lag-free online gaming experience

The Zyxel NBG6815 allocates the right amount of bandwidth to each networked devices automatically with StreamBoost technology. Play an intense online multiplayer game, watch high-definition streamed movies, browse your social networks, download a large file or do even more – all at the same time without experiencing any performance drop.

Specifications:

Model:	NBG-6815
System Specifications
Wireless Standard	802.11 b/g/n 2.4 GHz 802.11 a/n/ac 5 GHz
Wireless Transfer Rate	Transmit: 450 Mbps* for 2.4 GHz 1733 Mbps* for 5 GHz Receive: 450 Mbps* for 2.4 GHz 1733 Mbps* for 5 GHz
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Wireless Features	Guest Wi-Fi Wi-Fi Protected Setup (WPS) Wi-Fi Multimedia (WMM) Auto channel selection Wireless scheduling Wireless output power management MAC address filtering
Routing	Network Address Translation (NAT) WAN type: Static IP, DHCP, PPPoE DHCP server/client IGMP v1/v2 Dynamic DNS Auto-IP change IPv6
VPN Pass-through	IPSec/PPTP/L2TP
Firewall	Stateful Packet Inspection (SPI) Deny of Service (DoS) Prevention
Application Control	Usage monitor Smart QoS (StreamBoost) Parental control Zyxel ONE Connect
USB Support	Mass storage support by SMB/CIFS/FTP Print server
Media Server	DLNA
System Management	Online firmware upgrade Remote management Wake on LAN UPnP
Operation Mode	Router mode Access point mode
Hardware Specifications
CPU	700 MHz processor
Memory	256 Mbytes
WAN	One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN	Four 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
USB	Two USB 2.0 ports
LED indicator	Power/SYS WAN Internet WLAN_2.4G WLAN_5G WPS
Antenna	Internal antennas
Buttons	Power on/off Reset/Restore WPS Wi-Fi on/off LED on/of
Power	12 V DC, 3 A
Power consumption	30 W
Physical Specification
Item dimensions (WxDxH)(mm/in.)	260.4 x 182 x 81.2 mm (10.25" x 7.17" x 3.2")
Item weight (kg/lb)	578 g (1.28 lb.)
Packing dimensions (WxDxH)(mm/in.)	321 x 202 x 106 mm (12.64" x 7.95" x 4.18")
Packing weight (kg/lb)	1388 g (3.06 lb.)
Package Contents	Wireless router Power adapter Ethernet cable Quick start guide Warranty card
Environmental Specification
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 90% (Non-condensing)
Storage Temperature	-30°C to 70°C (-22°F to 158°F)
Storage Humidity	10% to 95% (Non-condensing)
Certification
Safety	CE-LVD
EMC	CE, FCC

* The maximum wireless data transfer rates of up to 450 Mbps at 2.4 GHz and 1733 Mbps at 5 GHz in simultaneous transmission are derived from the IEEE Standard 802.11 specifications. Actual data transfer rates may vary from network conditions including: distance, network traffics, building site material/construction, interference from other wireless devices and other adverse factors.

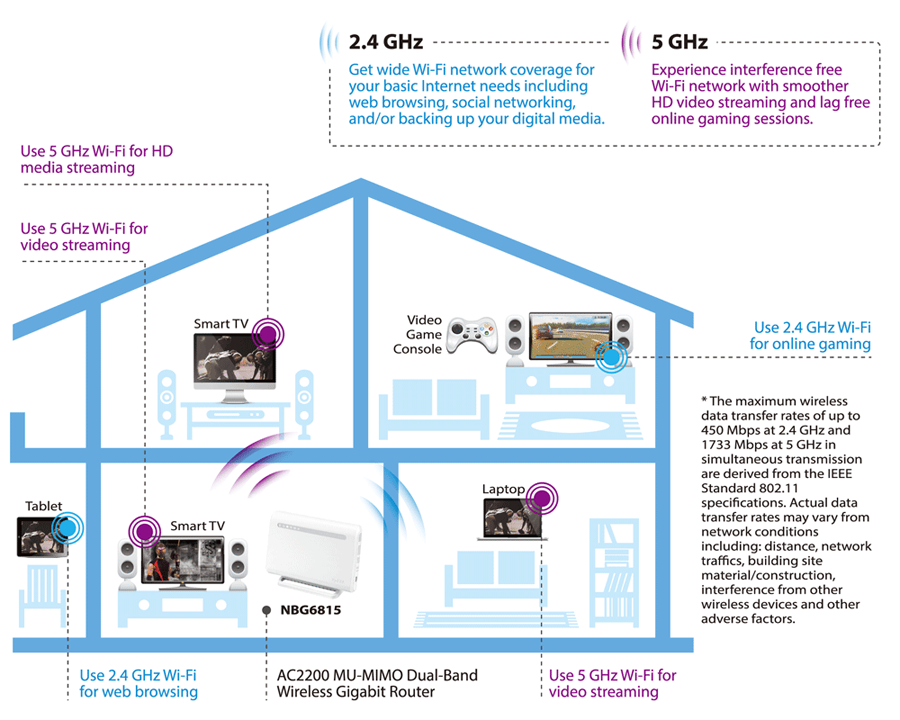

Diagram:

Documentation:

Download the Zyxel NBG-6815 Datasheet (PDF).
