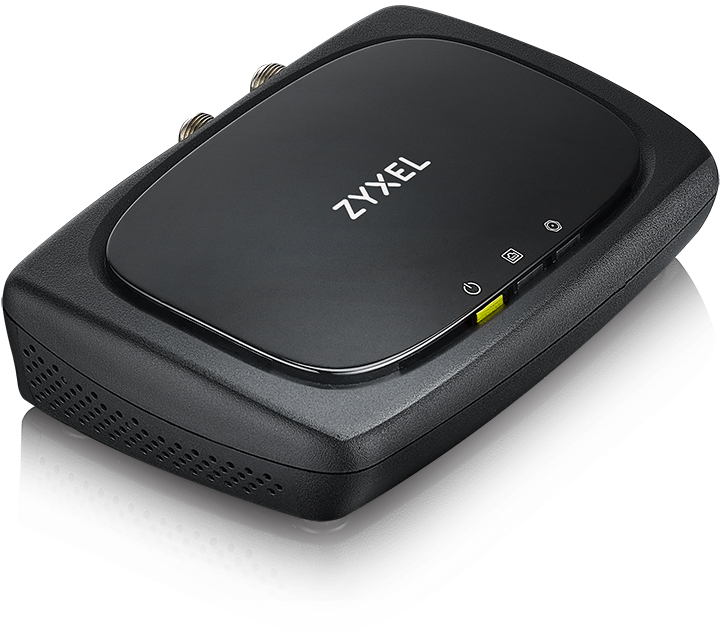

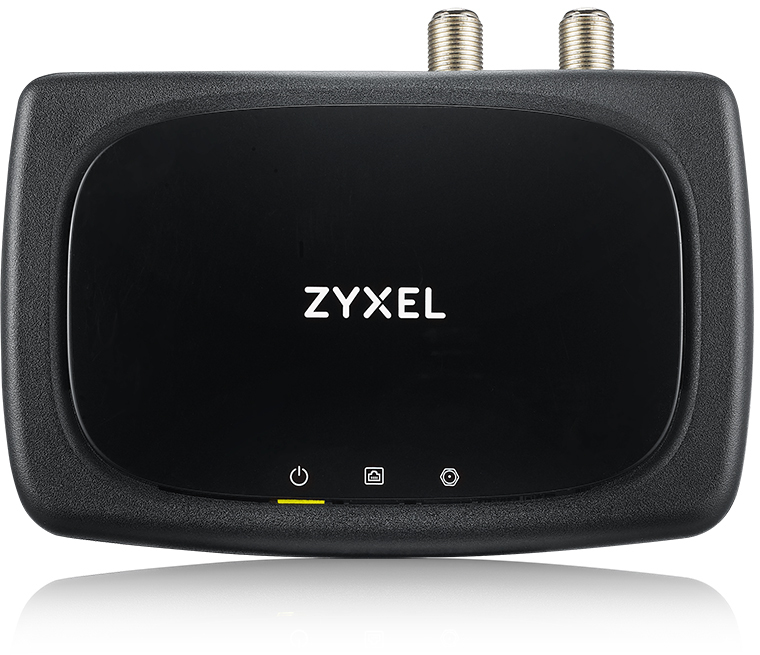

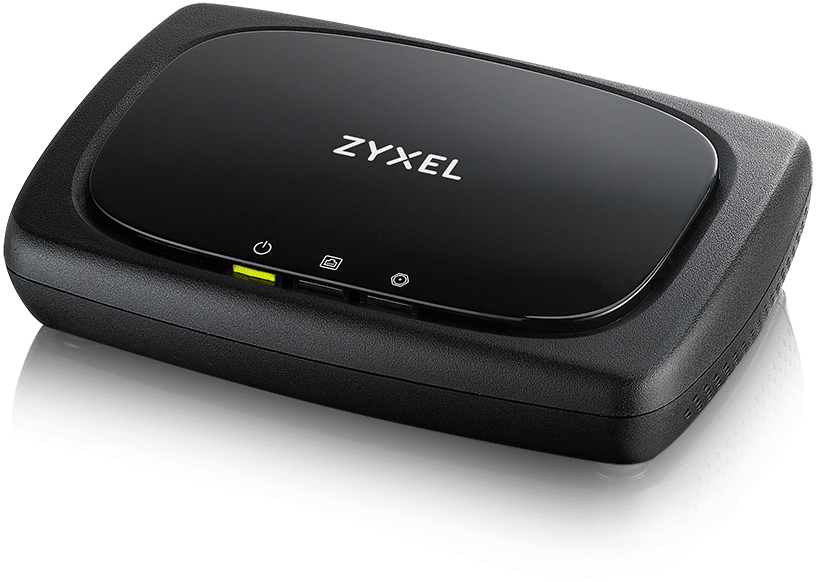

Zyxel HLA4205
MoCA Bonded 2.0 Coaxial Ethernet Bridge

Overview:

The Zyxel HLA4205 MoCA 2.0 Ethernet Adapter is a coax home network adapter that turns the home coax cable into a 1.4 Gbps network backbone for every family member to experience high-speed network connectivity.

• MoCA 2.0 Bonded supports for wired networks of up to 1.4 Gbps*
• Blazing-fast Gigabit for multiple UHD application
• Easy installation and use

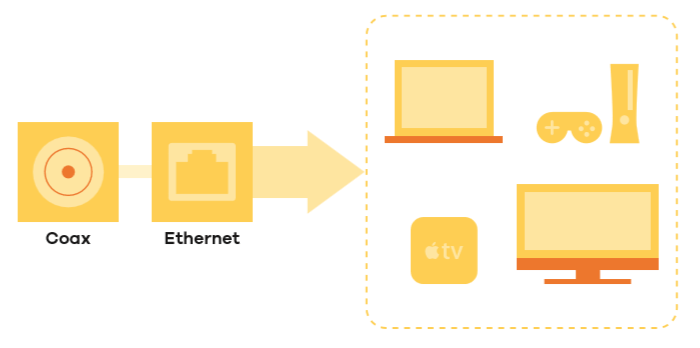

Benefits:

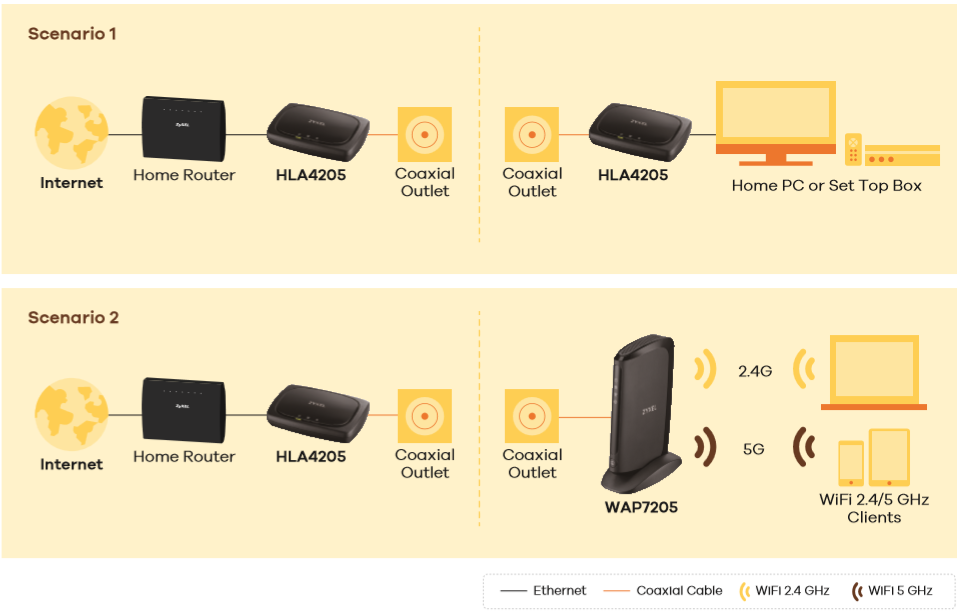

Application Diagram:

Specifications:

System Specifications

Network Standard

• MoCA 2.0 Bonded
• Backward interoperable with

MoCA 2.0/1.1/1.0

• MoCA nodes: up to 16 devices
• IEEE 802.3 complaint 10/100/1000 Mbps
• IEEE802.3 az Energy Efficient Ethernet

Hardware Specifications

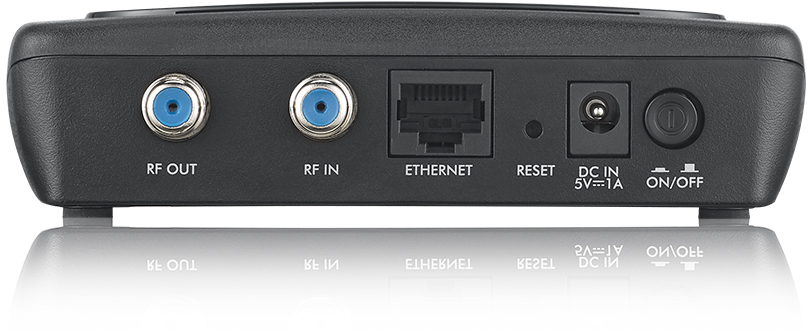

• LAN: One Gigabit Ethernet RJ-45 port with auto MDI/MDIX support
• Coaxial port: Two F-type coaxial connectors
• LED indicators:
• Power
• Ethernet
• MoCA
• Power consumption:
• 5V DC, 1A
• 5 watt max

Physical Specifications

• Item dimensions (WxDxH): 121 x 79 x 28 mm (4.76" x 3.11" x 1.1")
• Item weight: 126g (0.27 lb.)
• Packing dimension (WxDxH): 146 x 120 x 83 mm (5.74" x 4.72" x 3.26")
• Packing weight: 313g (0.69 lb.)

Environmental Specifications

Operating Environment

• Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 10% to 90% (Non-condensing)

Storage Environment

• Temperature: -30°C to 70°C (-22°F to 158°F)
• Humidity: 10% to 95% (Non-condensing)

Certification

• FCC, ICES

Package Contents

• HLA4205
• Power adapter
• Ethernet cable
• Quick start guide

* The maximum data transfer rates of up to 1400 Mbps over coaxial in simultaneous transmission is derived from the MoCA 2.0 bonded specifications. Actual data transfer rates may vary from network conditions including cable length, network traffics, diplexer attenuation and interference from other coax devices or other adverse factors.

Documentation:

Download the Zyxel HLA4205 Datasheet (PDF).
