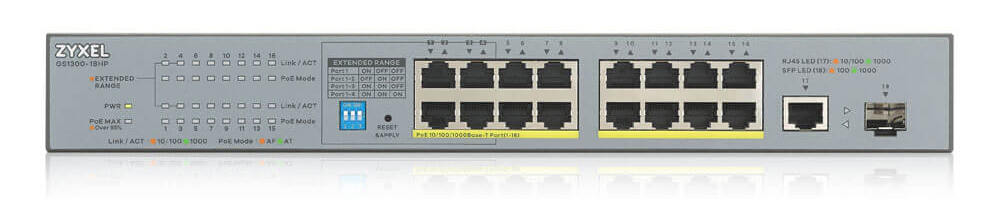

Zyxel GS1300-18HP
16-port GbE Unmanaged PoE Switch with GbE Uplink
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
16-port GbE Unmanaged PoE Switch with GbE Uplink
Zyxel introduces the GS1300 Series switches specialized in surveillance deployments. With a brand-new titanium grey exterior purpose-built for surveillance, the Series includes 3 models with a range of large power budgets from 130 W to 250 W. The GS1300 Series comes with specialized hardware features such as an extended range mode for long rangeapplications along with PoE LEDs for real-time status inspection.
- Large power budget for surveillance installations
- Extended range for distant deployments
- Check power status intuitively through PoE status LED
- Easy installation with internal power supply
- Robust network operations with surge and ESD protection on each port
Benefits:
Easy for long-distance deployment
Equipped with a DIP switch on the front panel, it’s easy to transform Zyxel GS1300 Series from a standard 802.3at/af PoE switch to an extended-range unit that supports data and power delivery of up to 250 m on one single cable. Under the extended mode, the link speed runs on standard-based 10 Mbps and 802.3at/af PoE that provides 15-watt power delivery to IP cameras or powered devices in distant locations.
Oversee switch status intuitively
The LED indicators are helpful for inspecting the real-time status. The PoE MAX indicator alerts when the switch runs out of power budget, and you can also check that which port is on extended range mode instantly.
Tough protection on every port
Reliability and stability of the Switch are critical to surveillance networks. All PoE ports on the GS1300 Series feature up to 8 KV ESD (electrostatic discharge) and up to 4 KV surge protection to prevent network instability due to static electricity or power (lightning) surges.
Specifications:
GS1300-10HP | GS1300-18HP | GS1300-26HP | |
---|---|---|---|
Product name | 8-port GbE Unmanaged PoE Switch with GbE Uplink | 16-port GbE Unmanaged PoE Switch with GbE Uplink | 24-port GbE Unmanaged PoE Switch with GbE Uplink |
Switch class | Unmanaged | Unmanaged | Unmanaged |
Port Density | |||
Total port count | 10 | 18 | 26 |
100/1000 Mbps | 9 | 17 | 24 |
Gigabit SFP | 1 | 1 | 2 |
Configurable extended range ports | 2 | 4 | 4 |
PoE | |||
PoE ports | 8 | 16 | 24 |
Total PoE budget (watt) | 130 | 170 | 250 |
PoE 802.3at | Yes | Yes | Yes |
Performance | |||
Switching capacity (Gbps) | 20 | 36 | 50 |
Forwarding rate (Mpps) | 14.8 | 26.7 | 38.7 |
Packet buffer (byte) | 525 K | 525 K | 525 K |
MAC address table | 8 K | 8 K | 8 K |
Power | |||
Input | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz |
Max. power consumption (watt) | 155.8 | 205.7 | 301.9 |
Physical Specifications | |||
Dimensions (WxDxH)(mm/in.) | 267 x 162 x 44 / 10.51 x 6.38 x 1.73 |
330 x 230 x 44 / 12.99 x 9.06 x 1.73 |
441 x 270 x 44 / 17.36 x 10.63 x 1.73 |
Weight (kg/lb.) | 1.65/3.64 | 2.31/5.09 | 3.57/7.87 |
Included accessories |
|
|
|
Environmental Specifications | |||
Operating | Temperature: -20°C to 50°C/-4°F to 122°F Humidity: 5% to 95% (non-condensing) |
Temperature: -20°C to 50°C/-4°F to 122°F Humidity: 5% to 95% (non-condensing) |
Temperature: -20°C to 50°C/-4°F to 122°F Humidity: 5% to 95% (non-condensing) |
Storage | Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 5% to 95% (non-condensing) |
Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 5% to 95% (non-condensing) |
Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 5% to 95% (non-condensing) |
MTBF (hr) | 394,567 | 378,972 | 347,760 |
Heat dissipation (BTU/hr) | 531.278 | 701.437 | 1,029.479 |
Acoustic noise @ 25°C (dBA) | 44 | 48 | 48 |
Features | |||
Standard Compliance |
|
||
Certifications |
|
||
Installation Features |
|
||
Limited life-time warranty | Warranty terms, service availability, and service response times may vary from country or region to country or region. |
Documentation:
Download the Zyxel GS1300 Series Datasheet (PDF).
