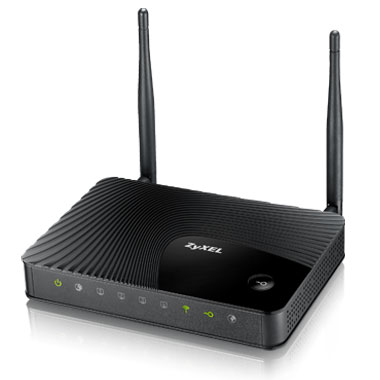

Zyxel EMG2306-R10A
Wireless N300 4-port Gigabit Ethernet Gateway for Improved Triple-play Services

Zyxel EMG2306-R10A

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

The Zyxel EMG2306-R10A Wireless N300 4-port Gigabit Ethernet Gateway provides four Gigabit Ethernet ports meeting the IEEE 802.11 b/g/n wireless standard, and it features TR-069 remote management for telcos, service providers and cable operators as a home network solution interoperating an FTTx or cable infrastructure.

  • 802.11n compliance with data transfer rates of up to 300 Mbps* for whole-home coverage
  • Gigabit Ethernet port for extreme performance
  • 802.1q, port-based VLAN and DHCP Options support Triple-play services
  • Remote management through TR-069
  • Two-level administration management
  • Multiple SSIDs for various service deployments

Benefits:

Whole-home coverage with advanced performance

The Zyxel EMG2306-R10A Wireless N300 4-port Gigabit Ethernet Gateway integrates a Gigabit WAN port and four Gigabit Ethernet ports to interoperate with FTTx or cable modems, and its 802.11n compliance offers a better platform for FTTx and cable infrastructure deployments. With EMG2306-R10A deployed, telcos, service providers and cable operators can provide home connectivity without spending the cost to rewire the entire home for delivering Triple-play services simultaneously at speeds of up to 300 Mbps* in multi-room home environments. Besides, the EMG2306-R10A is an IPv6-enabled device that works with both the new IPv6 standards as well as the current IPv4 standard.

802.1q and port-based VLAN and DHCP support Triple-play services

Equipped with VLAN and DHCP, the Zyxel EMG2306-R10A enables service providers to deploy multimedia services based on their Triple-play offerings for better network efficiency and productivity that meet residential user needs.

Remote management through TR-069

By adopting the TR-069 standard, Zyxel EMG2306-R10A enables telcos, service providers and cable operators to remotely manage and configure the devices without user intervention. Moreover, it offers a “plug-and-play” experience to reduce deployment complexity, operating costs and maintenance expenses for service providers. Taking advantage of the SNMP support, telcos, service providers and cable operators can easily monitor the status of the EMG2306-R10A. The syslog feature also allows service providers to collect log messages from devices and analyze on the central log server.

Easy management for two-level configuration

The Zyxel EMG2306-R10A provides two-level administration management so service providers can use two different privilege levels to maintain the integrity of their critical device configuration. Service providers can manage and configure the devices with full privilege and parameters while end-users are only granted partial administration rights to use basic and user-friendly configuration such as wireless scheduling and SSID settings.

Multiple SSIDs for various service deployments

The Zyxel EMG2306-R10A’s multiple SSIDs with VLAN function support allows service providers to assign different policies and functions to each SSID for specific applications. This allows users to access different networks through a single access point to increase the flexibility and efficiency of the network infrastructure.

* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Specifications:


EMG2306-R10A Specifications:
System Specifications
Wireless Standard 802.11 b/g/n
Wireless Transfer Rate
  • Transmit: 300 Mbps*
  • Receive: 300 Mbps*
Wireless Features
  • Wi-Fi Protected Setup (WPS)
  • Wi-Fi Multimedia (WMM)
  • Auto channel selection
  • Wireless scheduler
  • Wireless output power management
  • Wireless Distribution System (WDS)
  • Multiple SSID up to 4
  • Intra-BSS traffic block
  • MAC address filtering
Routing
  • Network Address Translation (NAT)(session up to 32000)
  • Network Address Port Translation (NAPT)
  • WAN connection type: DHCP, PPPoE and PPTP
  • DHCP option 60/121
  • DHCP server on LAN
  • IGMP v1/v2
  • IGMP proxy/snooping
  • Dynamic DNS
  • IPv4/IPv6
  • Port forwarding
VPN Pass-through IPSec/PPTP/L2TP
System Management
  • UPnP
  • Web GUI (HTTP/HTTPS)
  • TR-069/TR-098
  • SNMP v1/v2c & MIB II
  • Firmware upgrade through GUI/TFTP/TR-069
  • 2-tier level access and administration
  • Customized factory default
  • Network Time Protocol (NTP)
Wireless Security WEP, WPA-PSK, WPA2-PSK, WPA, WPA2
VLAN
  • 802.1q tag/Tag based VLAN
  • VLAN to ETH port mapping
  • Bridged/routed VLAN support
Hardware Specifications
WAN One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN Four 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
LED indicators
  • Power
  • WAN
  • LAN (1 to 4)
  • WLAN
  • WPS
  • Internet
antennas Two 2 dBi detachable antennas
Buttons WPS, Reset
Switch Power on/off, Wireless on/off
Power 12 V DC, 1 A
Power consumption 7 watt max
Physical Specifications
Item dimensions (WxDxH)(mm/in.) 159 x 111 x 23 mm (6.26” x 4.37” x 0.91”)
Item weight (kg/lb.) 246 g (0.54 lb.)
Packing dimensions (WxDxH)(mm/in.) 272 x 194 x 60 mm (10.71” x 7.64” x 2.36”)
Packing weight (kg/lb.) 681 g (1.51 lb.)
Environmental Specifications
Operating temperature 0°C to 40°C (32°F to 104°F)
Operating humidity 10% to 90% (Non-condensing)
Storage temperature -30°C to 70°C (-22°F to 158°F)
Storage humidity 10% to 95% (Non-condensing)
Certification
Safety CE-LVD
EMC CE, FCC, IC
Package Contents
Package Contents
  • Wireless router
  • Power adapter
  • Ethernet cable
  • Quick start guide
  • Warranty card
  • Support CD

* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

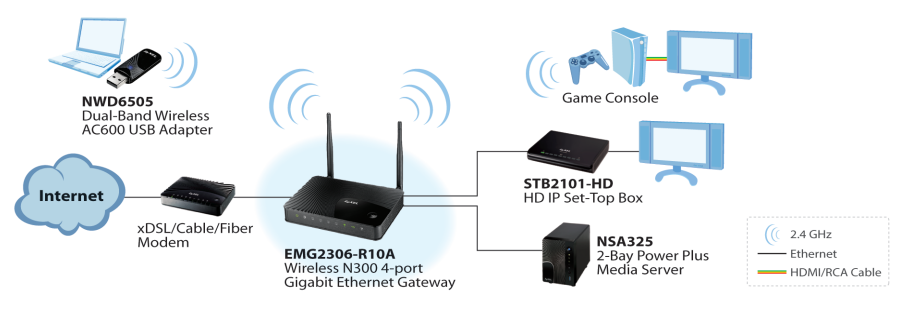

Application Diagram:

Application Diagram

Documentation:

Download the Zyxel EMG2306-R10A Datasheet (PDF).
