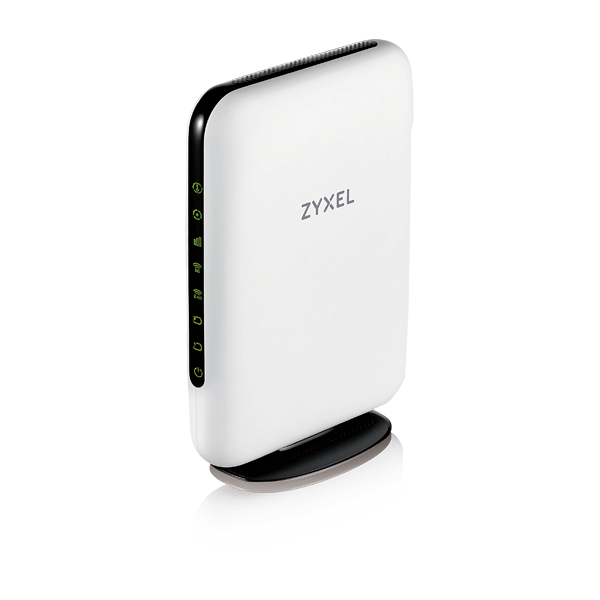

Zyxel WAP6804
Dual-Band AC2100 Gigabit Wireless Bridge
List Price:
Our Price: $139.99
More pricing below, click here!
Overview:
The Zyxel WAP6804 Dual-Band AC2100 Gigabit Wireless Bridge is a carrier–grade extender that boosts your home network coverage with extreme WiFi speeds of up to 2100 Mbps. With intelligently designed internal antenna placed on the top, it blankets your home with wireless coverage and eliminates dead spots effectively. As a key component of Multy Pro Managed WiFi Solution, the WAP6804 can deliver Ultra HD and IPTV streaming smoothly and provide seamless roaming everywhere in the house.
High speed makes a complete wireless solution
With speeds as high as 4x4 802.11 AC up to 1733 Mbps* and 2x2 802.11N up to 300 Mbps*, the Zyxel WAP6804, a Dual-Band AC2100 Gigabit Wireless Bridge, is a concurrent extender that brings you the optimal WiFi experience. The high-power amplifier and beamforming technology empower WAP6804 with high speed for multi-streaming service and data access in homes, and it maintains the connection quality of traditional wires with shortened installation time and more flexibility for deploying IPTV or broadband services at the same time.
Easily extend and manage WiFi with Multy Pro
The Zyxel Multy Pro Solution streamlines wireless networking with auto-configuration, WiFi range extension, band steering, and seamless client roaming, along with other advances. Additionally, subscribers can utilize the Multy Pro app to quick-check WiFi network status, change passwords, and easily set up QR-coded guest access. The Zyxel Multy Pro Solution not only provides whole-home mesh WiFi coverage for complete subscriber satisfaction, the solution allows service providers to take advantage of TR-069 and TR-181 remote management. This helps to reduce support calls and costs with premium services, keeping customers happy while reducing churn rate.
Features:
Easily extend and manage WiFi with Multy Pro
The Zyxel Multy Pro Solution streamlines wireless networking with auto-configuration, WiFi range extension, band steering, and seamless client roaming, along with other advances. Additionally, subscribers can utilize the Multy Pro app to quick-check WiFi network status, change passwords, and easily set up QR-coded guest access. The Zyxel Multy Pro Solution not only provides whole-home mesh WiFi coverage for complete subscriber satisfaction, the solution allows service providers to take advantage of TR-069 and TR-181 remote management. This helps to reduce support calls and costs with premium services, keeping customers happy while reducing churn rate.
Three modes for different applications via hardware switch
The Zyxel WAP6804 works with any standard routers and features a hardware switch for selecting the operating mode among AP, Repeater, and Client. There’s no need for extra wire deployments, just a simple push–button setup and the device is ready to work.
Keep your WiFi handy with Multy Pro App
Subscribers can utilize the Multy Pro app to quick-check WiFi network status, change passwords, and easily set up QR-coded guest access. The Zyxel Multy Pro AC2100 Dual-Band WiFi Extender System not only provides whole-home mesh WiFi coverage for complete subscriber satisfaction, the app helps users to take control of their home WiFi, simple and handy.
SSID
Syncs all WiFi settings with one SSID/password
Guest WiFi
Barcode for temporary Internet access for guests
Network Connection Map
A quick overview of connected devices
WiFi in the palm of your hand
Add, block, configure, and schedule internet access on any client devices
Remote management through TR-069/TR-098/TR-181
The TR-069/TR-098/TR-181 standard helps service providers to manage the devices remotely without any user interventions. It also helps reducing complexity of deployments, operating costs and maintenance expenses at the same time.

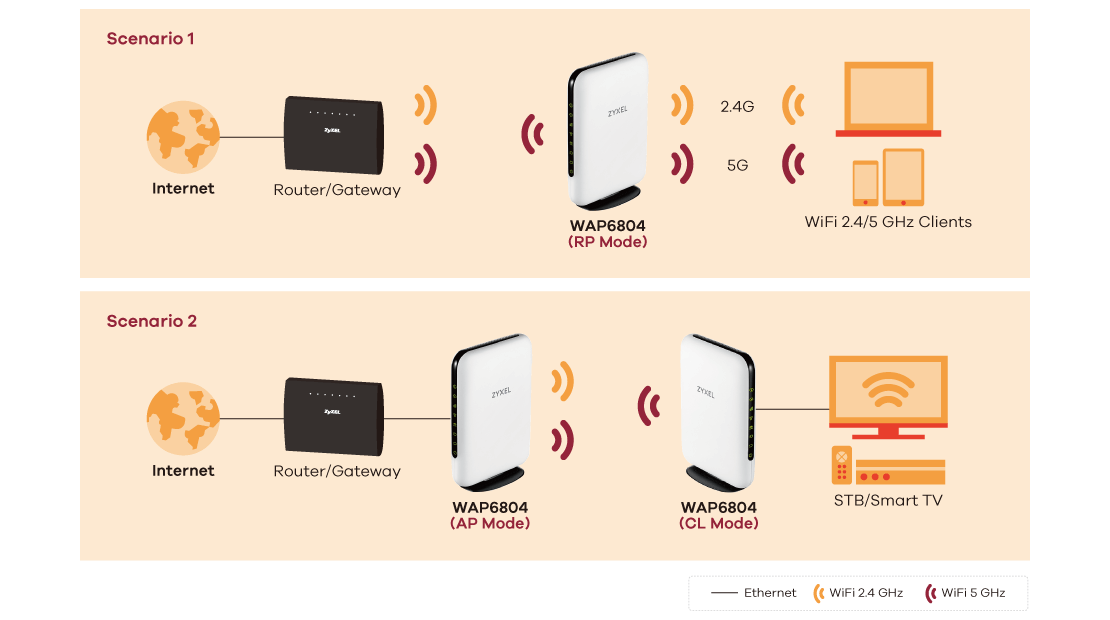

Application Diagram

Specifications:
Wireless Standard
- IEEE 802.11 a/n/ac 5 GHz
- IEEE 802.11 b/g/n 2.4 GHz
Wireless Speed
- Transmit/Receive:
- 1733 Mbps* for 5 GHz
- 300 Mbps* for 2.4 GHz
Wireless Security
- WPA-PSK/WPA2-PSK
Wireless Features
- Auto channel selection
- Beamforming
- Video-grade QoS
- WiFi Protected Setup (WPS)
- WiFi Multimedia (WMM)
- MAC address filtering
- Multiple SSIDs (up to 8 SSIDs: four 2.4G SSIDs/four 5G SSIDs)
System Management
- HTTP/GUI, Telnet/CLI
- TR-069/098/181 remote management
- Remote firmware upgrade
- Dual-image system recovery
- DHCP client and IGMP snooping
Operation Mode
- AP/Client/Repeater
LAN
- Two 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
Antenna
- 5G: Four internal antennas
- 2.4G: Two internal antennas
LED Indicator
- WPS/Mode/Link quality/5G/2.4G/LAN2/LAN1/Power
Buttons
- Power on/off
- Reset/Restore
- AP/Client/Repeater mode switch
- WPS
- Item dimensions (WxDxH): 138 x 27 x 193 mm (5.43" x 1.06" x 7.59")
- Item weight: 290.6g (0.64 lb.)
- Packing dimensions (WxDxH): 320 x 71 x 173 mm (12.64" x 2.80" x 6.80")
- Packing weight: 356.2g (0.78 lb.)
Operating Environment
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 90% (Non-condensing)
Storage Environment
- Temperature: -30°C to 70°C (-22°F to 158°F)
- Humidity: 10% to 95% (Non-condensing)
- FCC Part 15B/FCC Part 15E (including DFS)
- IC
- CE
- Wireless bridge
- Power adapter
- Ethernet cable
- Quick start guide
Documentation:
Download the Zyxel WAP6804 Data Sheet (PDF).
