Zyxel VMG4380-B10A
Wireless N VDSL2 Bonding Combo WAN Gigabit Gateway

Overview:

The Zyxel VMG4380-B10A/VMG4325-B10A Series Wireless N VDSL2 Bonding Combo WAN Gigabit Gateway supports dual-mode functionalities that enable service providers to support the Asynchronous Transfer Mode (ATM) or Packet Transfer Mode (PTM) on the same device. The Series offers bi-directional, high-speed VDSL2 and VDSL connection with speeds of up to 100/45 Mbps in PTM mode and 24/1 Mbps ADSL2+, ADSL2 or ADSL connection in the ATM mode. This powerful feature enables service providers to support connections not only on the IP network but also on legacy ATM networks without changing the CPE.

• Dual-mode VDSL2/ADSL2+ functionalities
• 802.11n technology for extreme performance and coverage
• HPNA 3.1 with high-speed and robust home connectivity over coax (VMG4380-B10A)
• TR-069 remote management

Benefits:

Dual-mode VDSL2/ADSL2+ functionalities

The Zyxel VMG4380-B10A/VMG4325-B10A Series Wireless N VDSL2 Bonding Combo WAN Gigabit Gateway supports dual-mode functionalities that enable service providers to support the Asynchronous Transfer Mode (ATM) or Packet Transfer Mode (PTM) on the same device. The Series offers bi-directional, high-speed VDSL2 and VDSL connection with speeds of up to 100/45 Mbps in PTM mode and 24/1 Mbps ADSL2+, ADSL2 or ADSL connection in the ATM mode. This powerful feature enables service providers to support connections not only on the IP network but also on legacy ATM networks without changing the CPE.

802.11n technology for extreme performance and coverage

The Zyxel VMG4380-B10A/VMG4325-B10A Series features 802.11n technology that provides the ultimate solution for the best speed and coverage possible. With data rates of up to 300 Mbps, the Series provides stable, reliable wireless connections for high-speed data and multimedia delivery. It eliminates dead zones and extends coverage by using the new IEEE 802.11n technology and is backward compatible with any IEEE 802.11 b/g Wi-Fi certified device.

HPNA 3.1 with high-speed and robust home connectivity over coax (VMG4380-B10A)

The Zyxel VMG4380-B10A supports HPNA 3.1, the first of the new-generation home networking standards developed for new “entertainment” applications such as the Internet Protocol Television (IPTV) that require consistent high performance over the entire house.

TR-069 remote management

With TR-069 standard management specifications, the service providers are able to manage and configure the client devices remotely without manual intervention of end-users. This unique feature not only offers a true “plug-and-play” experience, but also reduces the complexity of deployment and therefore saves operation and maintenance costs for service providers.

Specifications:

VMG4380-B10A Specifications:
System Specifications
VDSL Compliance	ITU-T G.993.1 VDSL1/ITU-G.993.2 VDSL2 ITU-T G.994.1/ITU-G.997.1 Support VDSL profiles, 8a, 8b, 8c, 8d, 12a, 12b and 17a (100/45 Mbps) Support VDSL band plan, Annex A, 997, 998 Packet Transfer Mode (PTM) 17a bonding INP value up to 16 Seamless Rate Adaption (SRA) G.INP support G.VECTOR support
ADSL Compliance	G.992.1 (G.dmt) and G.992.2 (G.lite) Annex A compliant G.992.3 (ADSL2) and G.992.5 (ADSL2+) Annex A compliant Reach-Extended ADSL (RE ADSL) Seamless Rate Adaption (SRA) Support VC-based and LLC-based multiplexing Support up to 16 PVCs
WLAN	IEEE 802.11n compliance, backward compatible with 11 b/g Auto channel selection Multi SSID: Up to 4 WPA/WPA-PSK, WPA2/WPA2-PSK with TKIP & AES security type IEEE 802.1X (EAP-MD5, TLS and TTLS) Hidden SSID support Separate QoS configuration for each SSID Wireless scheduling
Router	IEEE 802.1D transparent bridge & basic spanning tree PPPoE (RFC 2516), PPPoA (RFC 2364) DHCP client/server/relay, DHCP option 60 DNS Proxy, Dynamic DNS RIP I/RIP II supported UPnP Adjustable MTU size (max 1518 byte) QoS classification route Queueing and Scheduling Support bridge/router configuration simultaneously via different PVCs/VLANs Support Tag Processing (802.1p/802.1q, DSCP) Interface Grouping
NAT	Full cone NAT At least 4000 NAT sessions supported Virtual server (port forwarding) NAT ALGs PPPoE pass through PPTP/IPSec/L2TP pass through
Security/Firewall	DoS prevention Stateful Packet Inspection Access Control List (ACL) between LAN/WAN Protocol packet filter Content filter: URL keyword blocking, scheduled filtering policy based on time of day
HPNA	ITU.T G9954 HomePNA 3.1 Over coaxial
USB	File sharing Supported File system: FAT16, FAT32

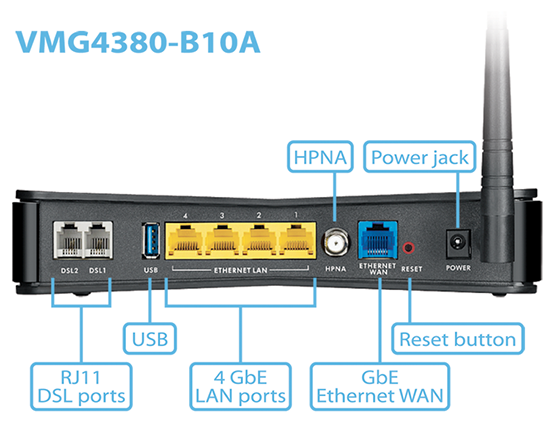

Hardware Specifications
WAN interface	Two RJ-11 connectors for VDSL2/ADSL2+ over POTS One RJ-45 port for Gigabit Ethernet
LAN interface	Four 10/100/1000M Auto MDI/MDIX RJ-45 ports
Wireless LAN	One detachable external antenna and one internal antenna
USB	One type A, 2.0 host USB
WLAN/WPS button	WPS and WLAN ON/OFF hardware button (coexisting)
Reset	Reset button
Coaxial F-connector	One coaxial F-connector for HPNA 3.1 (VMG4380-B10A)
Power switch	Power on/off switch (VMG4325-B10A)
Status LEDs indicator	POWER, ETHERNET (1 - 4), ETHERNET WAN, USB, DSL, INTERNET, HPNA (VMG4380-B10A), WLAN/WPS
Power input	12 V DC, 1.5 A
Physical Specifications
Item dimensions (WxDxH)(mm/in.)	210 x 154 x 40 mm (8.27" x 6.06" x 1.57")
Item weight (kg/lb.)	495 g (1.09 lb.)
Packing dimensions (WxDxH)(mm/in.)	270 x 255 x 65 mm (10.63" x 10.04" x 2.56")
Packing weight (kg/lb.)	1,090 g (2.41 lb.)
Environmental Specifications
Temperature	0°C to 40°C (32°F to 104°F)
Humidity	20% to 95% (Non-condensing)
Certification
CE	EN60950-1, IEC60950-1
FCC	FCC part 15 class B

Documentation:

Download the Zyxel VMG4380-B10A/VMG4325-B10A Series Datasheet (PDF).
