ZyXEL NWA1123-ACV2
802.11ac Dual-Radio Ceiling Mount PoE Access Point

ZyXEL NWA1121-NI

ZyXEL Wireless
ZyXEL Wireless
ZyXEL NWA1123-ACV2
- 802.11ac Dual-Radio Ceiling Mount PoE Access Point
#NWA1123-ACV2
List Price: $139.99
Our Price: $100.00

Click here to jump to more pricing!


Overview:

Superior Coverage from Multifunction Ceiling Mount Access Point

Zyxel delivers speed and convenience with its refreshed NWA1123-ACv2 802.11ac 2x2 PoE access point (AP), offering streamlined controller-less deployment for a trouble-free wireless LAN experience. Building on the solid reputation of its predecessor, this ultra-fast AP brings together remarkable performance and coverage enhancements, along with a userfriendly interface and robust design components. The smoke detector-style exterior makes this AP ideal for indoor ceiling-mount installation, providing smooth Wi-Fi service without detracting from interior design aesthetics. The NWA1123-ACv2 also supports repeater operating mode, making it a flexible solution for small businesses, hotels, and school environments.

  • Compact ceiling-mount design with optimized RF performance
  • Enterprise class 2x2 802.11ac AP supports combined data rates of up to 1200 Mbps
  • Better coverage with optimized antenna and RF design
  • Flexible operating modes (stand-alone, root-AP/ repeater mode)
  • Reliable software and robust hardware design
  • Set up and forget offers better-than-ever WLAN experience

Benefits:

Best interior performance in a smoke detector design

Users no longer have to choose between performance and environmental cohesion when deploying business wireless APs. The smoke detector-style form factor of the Zyxel NWA1123-ACv2 with embedded antenna module and optimized radiation pattern is suitable for ceiling installation. This design element not only helps it outperform comparable APs, but also allows it to blend seamlessly into interior spaces and prevent equipment theft. The Zyxel NWA1123-ACv2 is constructed from non-toxic casing materials, making it safe to install in plenum areas, as it won’t release hazardous vapor emissions in the event of a fire. This is life-critical issue, particularly when deploying in public venues such as offices, hotels, and schools.

Zyxel One Network experience

Aiming for relieving our customers from repetitive operations of deploying and managing a network, Zyxel One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. Zyxel One Network presents an easy-to-use tool, Zyxel One Network Utility (ZON Utility), to realize speed network setup. Zyxel Smart Connect*1 allows Zyxel networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. Zyxel One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway

Best-ever user experience

The biggest achievement with the NWA1123-ACv2 is optimized antenna and RF design that create a thoroughly enhanced Wi-Fi experience via a combination of improved software and hardware. Additional improvements to the NWA1123-ACv2 include dynamic channel selection (DCS) and load balancing. DCS avoids interference from co-channel and channel overlapping at initialization, while load balancing allows administrators to easily limit the number of clients associated with each AP. These advanced functions ensure that users can enjoy a stable wireless networking experience over the ideal Wi-Fi channel on the optimal AP.ga

Blending multi-operation flexibility with practical business features

Along with support for stand-alone operating mode, the Zyxel NWA1123-ACv2 PoE access point also provides repeater/root-AP mode compatibility with Zyxel’s Unified Pro Series and Unified Series APs.*2 By taking advantage of these features, users can extend wireless connectivity to challenging locations without the bother of troublesome cabling. The NWA1123-ACv2 offers the ideal solution for small businesses through an array of useful features designed for business deployments, including multiple SSID and solid Wi-Fi security provided by WPA2 Enterprise and Layer-2 isolation. All of these practical enhancements coupled with high-performance RF design make the Zyxel NWA1123-ACv2 the best solution for creating flexible Wi-Fi networks for smaller-scale enterprises.

Set up and forget streamlines controller-less deployment

The refreshed NWA1123-ACv2 introduces streamlined controller-less deployment with Zyxel Access Point Configurator (ZAC)*3. Just install the AP wherever desired out of the box and the device will automatically acquire its IP address. ZAC will take over the multiple-AP configuration and help to complete firmware upgrades and profile backups when needed in three easy steps, significantly reducing time and effort. Once the configuration has been completed, the NWA1123-ACv2 is able to operate autonomously without additional maintenance via computer or special management tool. The administrator can easily monitor status using any available SNMP tool, making management simple enough for even networking novices to handle.

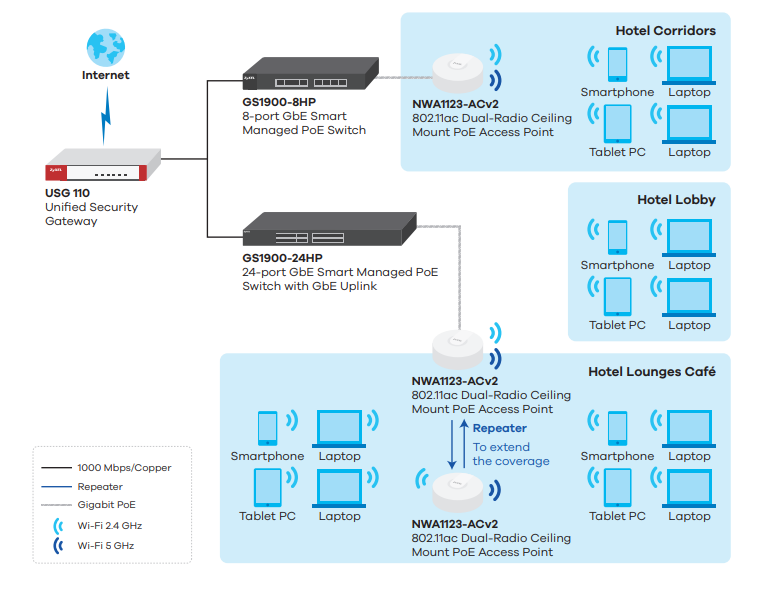

Application Diagram:

Application Diagram
  • NWA1123-NI and NWA1123-ACV2 with dual-radio offer 2.4 GHz or 5 GHz for different environments
  • NWA1123-NI, NWA1121-NI as a root AP and repeater extend the coverage with less effort for cabling

Specifications:

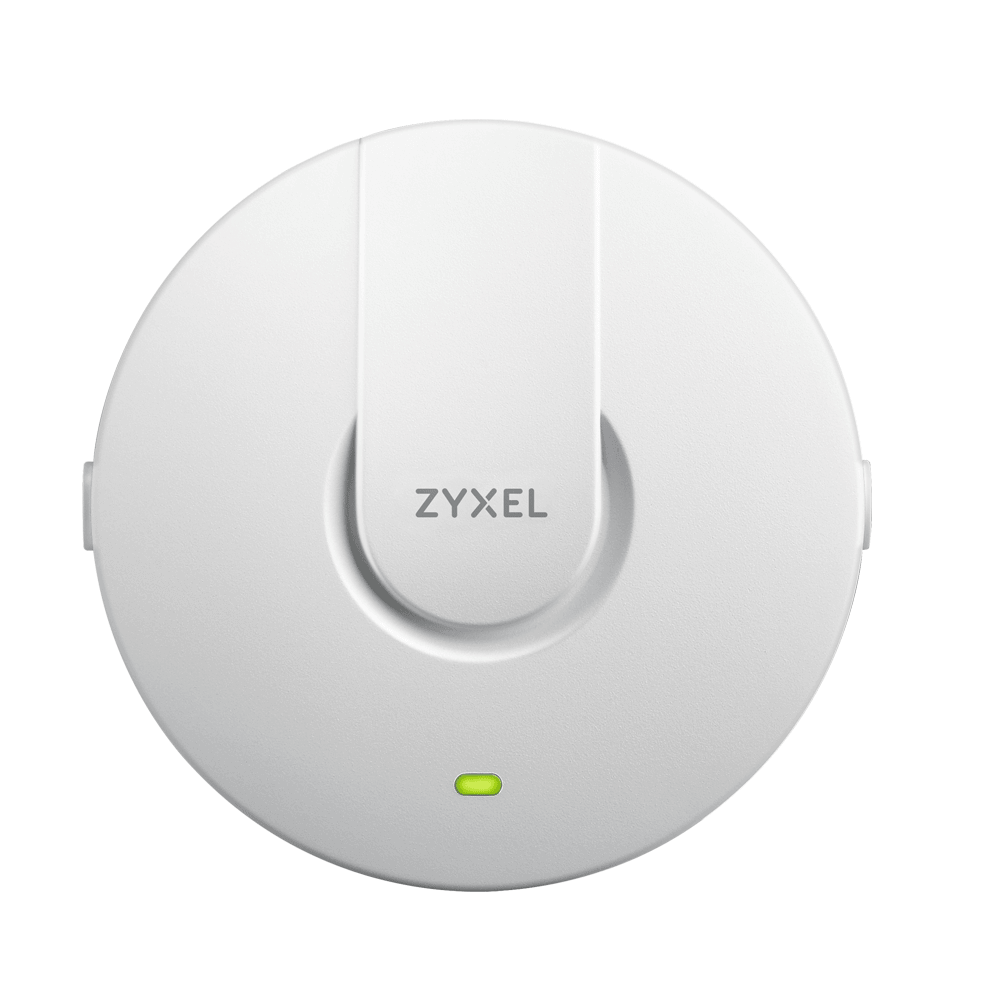

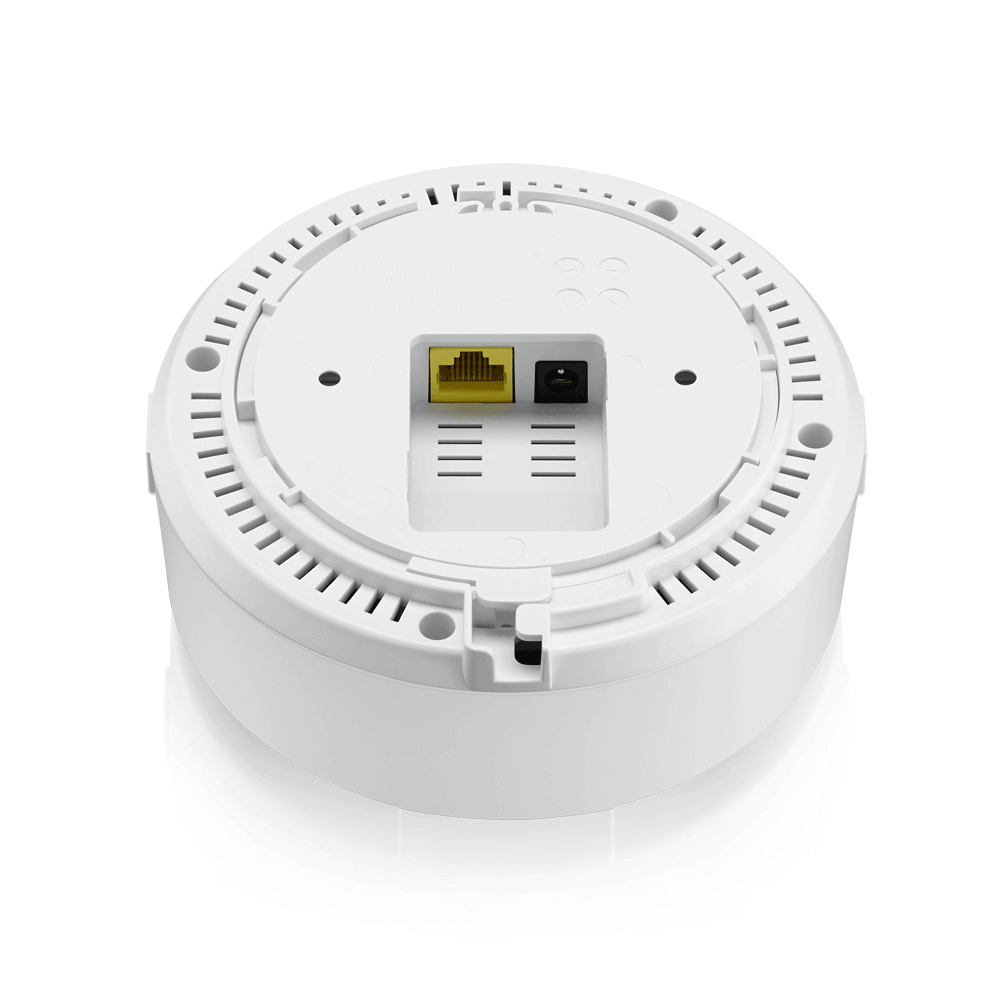

Top View Rear Panel View

Model NWA1121-NI NWA1123-NI NWA1123-ACV2
  802.11 b/g/n Ceiling Mount PoE Access Point 802.11 a/b/g/n Dual-Radio Ceiling Mount PoE Access Point 802.11ac Dual-Radio Ceiling Mount PoE Access Point
Product name NWA1121-NI NWA1123-NI NWA1123-ACV2
Main Design
Wireless frequency 2.4 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz
Radio 1 2 2
RF Specifications
Frequency band 2.4 GHz
  • 2.4 GHz (IEEE 802.11 b/g/n)
  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
  • 2.4 GHz (IEEE 802.11 b/g/n)
  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
  • 2.4 GHz (IEEE 802.11 b/g/n)
  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
5 GHz -
  • 5 GHz (IEEE 802.11 a/n)
  • USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
  • Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
  • 5 GHz (IEEE 802.11 a/n/ac)
  • USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
  • Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
802.11 premium features
  • 2x2 Multiple-Input Multiple-Output (MIMO) with two spatial streams
  • Maximal Ratio Combining (MRC)
  • 20- and 40-MHz channels
  • PHY data rates up to 300 Mbps
  • Packet aggregation: A-MPDU (Tx/ Rx), A-MSDU (Tx/Rx)
  • Cyclic Delay Diversity (CSD) support
  • Maximum Likehood Demodulation (MLD) support
  • Low Density Parity Check (LDPC) support
  • 2x2 Multiple-Input Multiple-Output (MIMO) with two spatial streams
  • Maximal Ratio Combining (MRC)
  • 20- and 40-MHz channels
  • PHY data rates up to 600 Mbps (combined rates)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • Cyclic Delay Diversity (CSD) support
  • Maximum Likehood Demodulation (MLD) support
  • Low Density Parity Check (LDPC) support
  • 2x2 Multiple-Input Multiple-Output (MIMO) with two spatial streams
  • Maximal Ratio Combining (MRC)
  • 20-, 40- and 80-MHz channels
  • PHY data rates total up to 300 Mbps (11n) + 866 Mbps (11ac)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • Cyclic Delay diversity (CSD) support
  • Maximum Likehood Demodulation (MLD) support
  • Low Density Parity Check (LDPC) support
Maximum transmit power* US (FCC) 2.4 GHz 24 dBm, 2 antennas 23 dBm, 2 antennas 23 dBm, 2 antennas
US (FCC) 5 GHz - 26 dBm, 2 antennas 26 dBm, 2 antennas
EU (ETSI) 2.4 GHz 17 dBm, 2 antennas 17 dBm, 2 antennas 17 dBm, 2 antennas
EU (ETSI) 5 GHz - 26 dBm, 2 antennas 26 dBm, 2 antennas
Number of antenna 2T2R MIMO 2T2R MIMO 2T2R MIMO
Antenna gain 2.4 GHz 4.5 dBi 2 dBi 3 dBi
5 GHz - 3 dBi 5 dBi
Support data rate
  • 802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
  • 802.11n: up to 300 Mbps in MCS15 (40 MHz; GI = 400 ns)
  • 802.11 a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
  • 802.11n: up to 300 Mbps in MCS15 (40 MHz; GI = 400 ns)
  • 802.11ac: up to 866 Mbps in MCS9 (80 MHz; 2 spatial streams; GI = 400 ns)
Receive sensitivity 2.4 GHz
  • 802.11b/g, min. up to -91 dBm
  • 802.11n/20 MHz, min. up to -86 dBm
  • 802.11n/40 MHz, min. up to -84 dBm
2.4 GHz
  • 802.11b/g, min. up to -93 dBm
  • 802.11gn/20 MHz, min. up to -90 dBm
  • 802.11gn/40 MHz, min. up to -86 dBm

5 GHz

  • 802.11a, min. up to -91 dBm
  • 802.11an/20 MHz, up to -89 dBm
  • 802.11an/40 MHz, up to -86 dBm
2.4 GHz
  • 802.11a, min. up to -94 dBm
  • 802.11b/g, min. up to -97 dBm
  • 802.11gn/20 MHz, min. -93 dBm
  • 802.11gn/40 MHz, min. up to -90 dBm

5 GHz

  • 802.11a, min. up to -94 dBm
  • 802.11gn/20 MHz, min. -93 dBm
  • 802.11gn/40 MHz, min. -90 dBm
  • 802.11ac/n/20 MHz, min. -92 dBm
  • 802.11ac/n/40 MHz, min. -91 dBm
  • 802.11 ac/n/80 MHz, min. -90 dBm
LAN
Number of 10/100/1000M LAN 1 1 1
PoE Yes Yes Yes
PoE Power Draw 4 W 7 W 7 W
WLAN Features
WEP Yes Yes Yes
WPA/WPA2-PSK Yes Yes Yes
WPA/WPA2-Enterprise Yes Yes Yes
EAP type EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM
WMM (Wi-Fi Certified) Yes Yes Yes
IEEE 802.1X Yes Yes Yes
MAC filtering  Yes Yes Yes
RADIUS authentication Yes Yes Yes
Network
IPv6 support Yes Yes Yes
VLANs Yes Yes Yes
DHCP client Yes Yes Yes
Management
Standalone AP mode Yes Yes Yes
CLI Yes Yes Yes
SNMP Yes Yes Yes
Others
Plenum rating Yes Yes Yes
Power supply Input: AC 100 - 240 V -50/60 Hz 0.3 A; Output: DC +12 V 1 A
MTBF (hrs) 627,152 781,396 656,972
Standard Compliance
Ethernet

IEEE 802.3
IEEE 802.3u
IEEE 802.3az
IEEE 802.3af

IEEE 802.3
IEEE 802.3u
IEEE 802.3az
IEEE 802.3af

IEEE 802.3
IEEE 802.3u
IEEE 802.11ac
IEEE 802.3az
IEEE 802.3af
WLAN
  • 802.11b: DBPSK, DQPSK, CCK
  • 802.11g: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11a: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11b: DBPSK, DQPSK, CCK
  • 802.11g: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11b: DBPSK, DQPSK, CCK
  • 802.11g: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11a: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
Certifications
Radio FCC Part 15C 15.247, ETSI EN 300 328, EN60601-1-2 DGT LP0002 FCC Part 15C 15.247, FCC Part 15E ETSI EN 300 328, EN 301 893 EN60601-1-2, DGT LP0002 FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002, EN 60601-1-2
EMC FCC Part 15/107, EN301 489-17, EN301-489-1, EN55022, EN55024, BSMI CNS 13438 FCC Part 15/107, EN 301 489-17, EN 301 489-1, EN55022, EN55024, BSMI CNS13438 FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438
Safety EN 60950-1, IEC 60950-1, BSMI CNS14336-1 EN 60950-1, IEC 60950-1, BSMI CNS14336-1 EN 60950-1, IEC 60950-1 BSMI CNS14336-1
Physical Specifications
Item Dimensions(WxDxH)(mm/in.) 130 x 130 x 54.5/5.12 x 5.12 x 2.17 130 x 130 x 54.5/5.12 x 5.12 x 2.17 130 x 130 x 54.5/5.12 x 5.12 x 2.17
Weight (g/lb.) 230/0.51 250/0.55 260/0.57
Packing Dimensions(WxDxH)(mm/in.) 282 x 207 x 71/11.10 x 8.15 x 2.80 282 x 207 x 71/11.10 x 8.15 x 2.80 282 x 207 x 71/11.10 x 8.15 x 2.80
Weight (g/lb.) 610/1.34 630/1.39 640/1.41
Environmental Specifications
Operating environment Temperature 0°C to 50°C/32°F to 122°F
Humidity 10% to 90% (non-condensing)
Storage environment Temperature -30°C to 70°C/-22°F to 158°F
Humidity 10% to 90%

Documentation:

Download the ZyXEL NWA1123-ACv2 Datasheet (PDF).
