Overview:

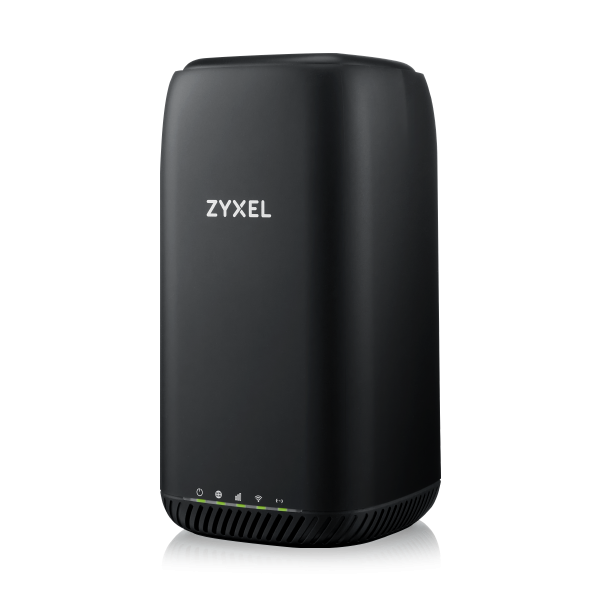

Zyxel LTE5388-S905 4G LTE-A Indoor Router supports Cat. 16 and 3.5 GHz CBRS band by sharing their spectrums across legacy and new users. This provides your subscribers with a high–speed internet service and enables fast customer service without the reconstruction of wires.
- Supports LTE band 48 (CBRS)
- 3GPP Release 12 Cat. 16/up to 580/30 Mbps* (DL/UL)
- Built-in 4x4 MIMO, high-performance antennas
- Multiple APNs for traffic classification and mapping
- Bridge and router modes
- Remote management via TR-069 (TR-181 and TR-143 speed test) HTTP/web GUI and FTP
- Zyxel Air app (iOS and Android)
Benefits:
Lightning-fast internet connectivity
Zyxel LTE5388-S905 employs 3GPP UE downlink Category 16, with high-level practice LTE-A technology and data rates of up to 580/30 Mbps* (DL/UL). The built-in 4x4 MIMO high-performance antennas increase your service capacity and expand the internet coverage for your subscribers.
Easy installation with a space-saving design
The simple and intuitive device design of Zyxel LTE5388-S905 provides your subscribers with trouble-free installation and configuration experience, while allowing you to maintain an excellent service quality with a lower OPEX.

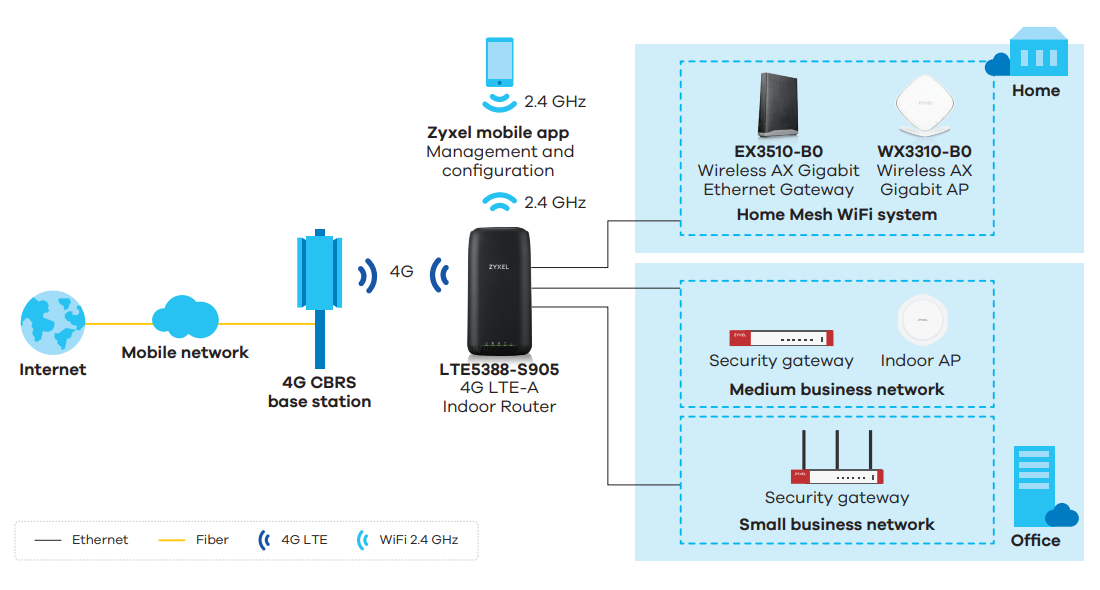

Boosts efficiency of the existing infrastructure with dual-mode flexibility
The Zyxel LTE5388-S905 supports the bridge/router function, allowing you to start a new deployment or upgrade services by connecting to the subscriber’s existing broadband router with a lower CAPEX. The compatible Zyxel mobile app saves the cost of purchasing additional configuration apps for your subscribers and reduces service calls during the installation process.
Remote management for lower OPEX
With TR-069, TR-181 and TR-143 support, the Zyxel LTE5388-S905 effectively secures OPEX by reducing the frequency of on-site support and by providing simplified diagnostic, configuration and troubleshooting processes.
Easy installation with Zyxel Air
The LTE5388-S905 comes with an IEEE 802.3af/at Power over Ethernet (PoE) and a subscriber app – Zyxel Air. The intuitive user interface of Zyxel Air provides the necessary assistance from device setup to routine management. You can minimize service calls during the installation process while enhancing a satisfying user experience.
Specifications:
System Specifications
IP Networking
- Supports IPv4/IPv6 dual stack
- DHCP server
- VPN pass-through
- Supports NAT/NAPT
- Supports DMZ
- Supports ICMP
- Supports port forwarding/triggering
- Supports ALG
Routing
- Supports bridge/router modes
- Supports dynamic DNS for first APN
- Supports remote management under bridge mode
IP Firewall
- Firewall can be enabled or disabled via GUI
- Dos attach detection
- Supports SPI
- Application-level firewall
- Filters LAN MAC address
- Filters LAN IP address
- Filters URLs
Management
- Supports local/remote device management and firmware upgrade via TR-069 and web GUI
- Supports remote throughput testing (TR-143)
- APN management
- Supports STUN (TR-111) for remote management network selection
- PIN/PUK management
- CLI/SSH (local and remote SSH access)
- Supports UPNP IGD
- Supports SSH with key access
- Supports mobile apps (iOS and Android)
- Supports remote management via Band Pilot
Hardware Specifications
LTE Interface
- Standard-compliant: 3GPP UE Category 16
- Supports LTE band 48 (CBRS) (LTE TDD 3550-3700 MHz)
- Supports DL TM1/2/3/4/6/7/8/9
- LTE antennas: 4 embedded omni-directional antennas of up to 5 dBi per element (4x4 MIMO)
- Supports DL 2CC, 4x4 MIMO, 8 spatial streams
- Supports DL up to 4 Carrier Aggregations, UL up to 2 Carrier Aggregations
- Supports DL modulations QPSK, 16-QAM, 64-QAM and 256-QAM
- Supports UL modulations QPSK, 16-QAM and 64-QAM
- Supports DL speeds of up to 580 Mbps by TDD config. 2*
- Supports UL speeds of up to 30.2 Mbps by TDD config. 2*
- Max EIRP:
WiFi interface for management
- 802.11 n/g/b, 2.4 GHz
- Hidden SSID
- 2 embedded antennas
- For local management purpose only

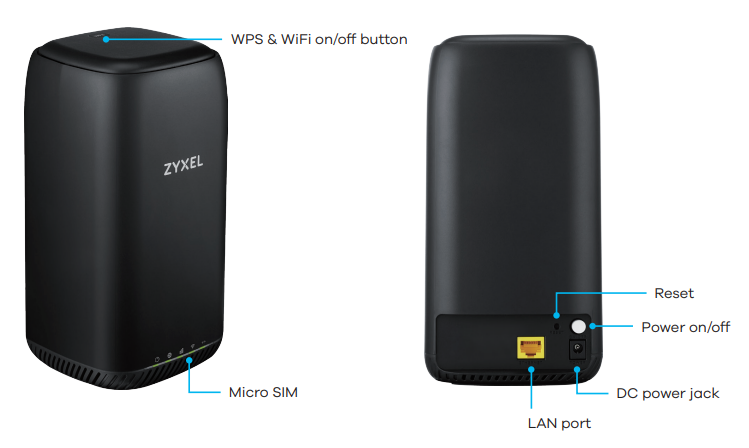

Hardware Interface
- One GbE RJ-45 LAN port
- LED:
- Power (green)
- Internet status (green)
- LTE signal strength (green/red/orange)
- WiFi & WPS status (green)
- LAN port status (green)
- One WPS button
- One 3FF micro SIM card socket
- One reset to default button
- One power on/off button
- One DC power jack
Power Consumption
Physical Specifications
- Item dimensions (WxDxH): 100 x 100 x 205 mm (3.94” x 3.94” x 8.07”)
- Item weight: 599 g (1.32 lb.)
- Packing dimensions (WxDxH): 245 x 167 x 120 mm (9.65” x 6.58” x 4.72”)
- Packing weight: 1275 g (2.81 lb.)
Environmental Specifications
Operating Environment
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 90% RH (non-condensing)
Storage Environment
- Temperature: -30°C to 70°C (-22°F to 158°F)
- Humidity: 5% to 95% (non-condensing)
Certification
Package Contents
- Power adapter (12 V/2 A US plug)
- Ethernet cable
- Quick Start Guide
*Please note that all specifications are subject to change without prior notice.
Documentation:
Download the Zyxel LTE5388-S905 Datasheet (PDF).
