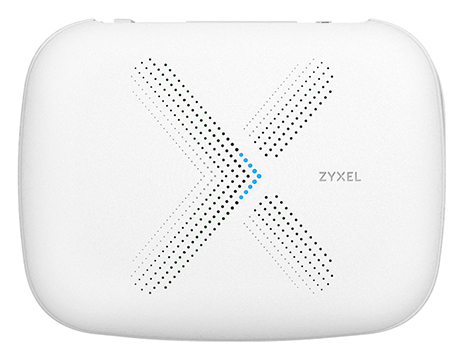

ZyXEL Multy X - Model WSQ50
AC3000 Tri-Band WiFi System

ZyXEL Multy X - Model WSQ50

ZyXEL Products
ZyXEL Wireless
ZyXEL Multy X Single AC3000 Home WiFi Mesh System, up to 2500 square feet
#WSQ50SINGLE
List Price: $299.99
Our Price: $206.00
ZyXEL Multy X Kit AC3000 Home WiFi Mesh System, up to 2500 square feet
#WSQ50KIT
List Price: $399.99
Our Price: $343.00
ZyXEL Multy X Kit AC3000 Home WiFi Mesh System, up to 5000 square feet
#WSQ50TWIN
List Price: $399.99
Our Price: $343.00

Click here to jump to more pricing!

Multy XOverview:

More complete coverage—to all size homes

Suffering from poor wireless connectivity at home with your old router? Multy eliminates the frustration by providing a powerful wireless network with wider coverage and stronger signal strength. Whether your home is large or small, Multy provides more wireless coverage—for better connections.

Modern design. Maximum cooling.

Multy’s all-white design reflects simplicity and purity—the perfect complement to any home décor. Multy’s advanced design featuring integrated ventilation lets heat escape continuously—enabling optimal performance without throttling.

  • Tri-Band WiFi system bring strong WiFi signals to every corner of your house
  • Exceptional WiFi coverage throughout your home
  • Experience hassle-free installation via Multy X app
  • Unified WiFi name & password
  • Automatically connects to the fastest path
  • Support Amazon Alexa Voice Control

Benefits:

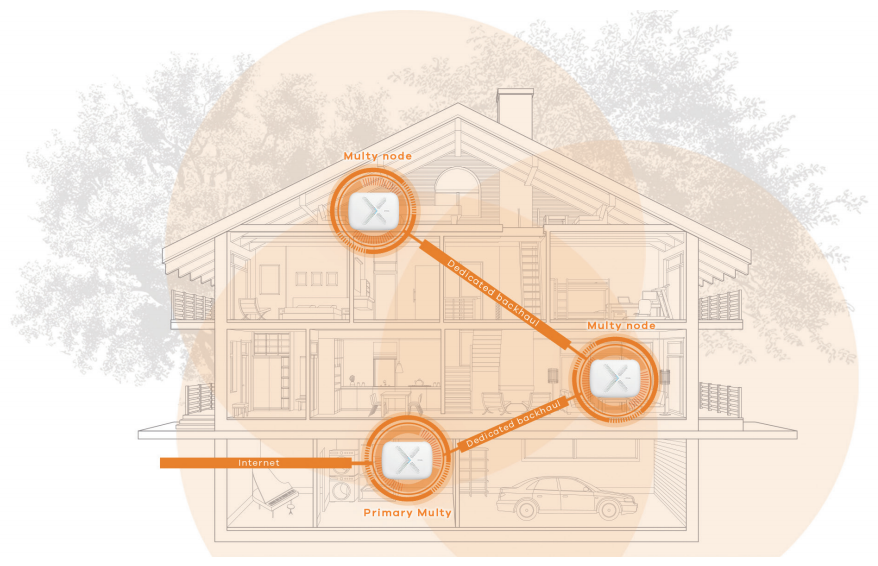

Extend your WiFi coverage further with Daisy-Chaining

Get true corner-to-corner wireless coverage with our new daisy-chaining capability on our Multy system. Daisy-chaining allowing Multy nodes to connect to other Multy nodes to increase the Multy system’s range. This enhancement is excellent for users’ homes that have long stretch of spaces that requires WiFi coverage.

Extend your WiFi coverage further with Daisy-Chaining

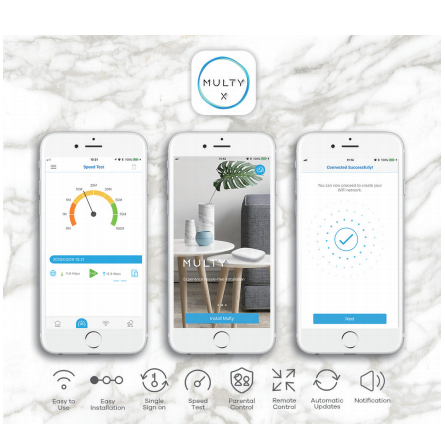

Experience a new hassle-free installation

Multy X app provides visual setup guide and ensuring that you get connected without the complication of knowing technical network information and opening a browser. Enhanced parental controls to fine tune your kids online experience. Additional speed test options enabling you to check your Internet performance.

Experience a new hassle-free installation

Automatically connects to the fastest path

No matter where you are in the home, the Zyxel Multy X connects to the closest Multy X unit for faster wireless connection while gaining stronger signal connection for better reliability.

Automatically connects to the fastest path

Get the full Internet speed you deserve

Powered with a Tri-Band wireless system, Multy can deliver maximum wireless speed through its dedicated 5 GHz backhaul between Multy nodes. This creates a single, powerful wireless network that not only delivers better coverage, but also fast wireless connection.

Get the full Internet speed you deserve

Exceptional WiFi coverage in all corners of your home

Traditional wireless range extenders may give you extra coverage—but often sacrifice up to half of your wireless performance. The Multy WiFi system can cover up to 7,500 square feet (696 m), enabling expansive wireless coverage without compromising performance.

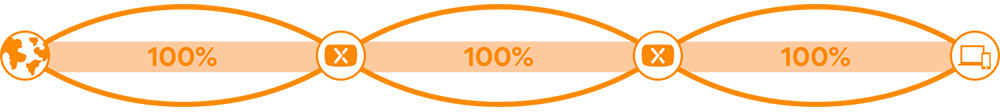

Multy X

Provides 100%, full-strength WiFi—without degradation

Multy X

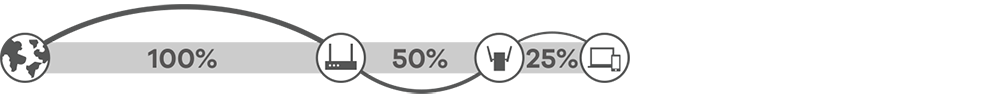

Traditional WiFi Extenders

Often shows speed degradation the farther you extend

Traditional WiFi Extenders

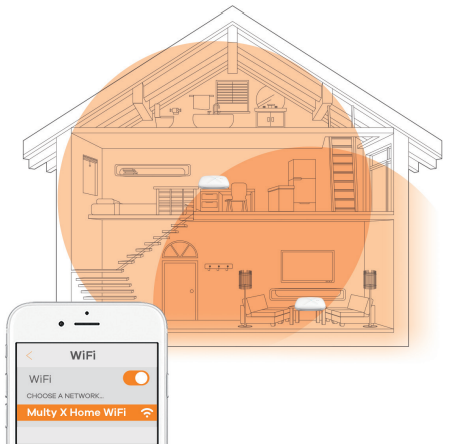

Unified WiFi name and password

Multy creates a single wireless network name and password, allowing you to roam, work and play freely throughout your home. Leaving one room? No problem. No need to input the name and password for another extender—Multy lets you roam, and stay connected with ease.

Unified WiFi name and password

Support Amazon Alexa Voice Control

The Zyxel Multy X is an Amazon Alexa-enabled device. Alexa enables you to interact with Multy X using voice. Let user connect to Alexa to manage home network easier. Make your voice-control experience better.

Support Amazon Alexa Voice Control


Specifications:

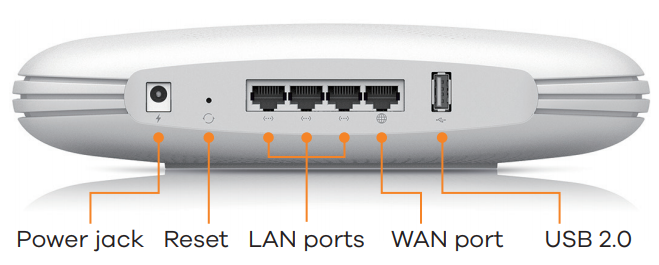

Rear Panel

Multy X (Model WSQ50) Specifications
System Specifications
Speed Rating (per unit) AC3000 (1733+866+400 Mbps)
Number of Bands Tri-band
Coverage Up to 5000 sq. ft./464 m2*
Wireless Standard
  • IEEE 802.11 b/g/n 2.4 GHz — 256QAM support
  • IEEE 802.11 a/n/ac Wave 2, 5 GHz — 256QAM support
Wireless Speed
  • Transmit & Receive:
    • 1733 Mbps** for 5 GHz (dedicated backhaul)
    • 866 Mbps** for 5 GHz
    • 400 Mbps** for 2.4 GHz
App
App
  • Easy to setup
    • Support myZyxelCloud SSO (Single-Sign-On) system
    • Quick Bluetooth setup
    • Support wireless site survey to identify optimum installation locations for slave node
    • Support combining/separating 2.4G and 5G WiFi network from each other in WiFi system
  • Support Internet access control (Parental Control)
    • Organize multiple devices into group
    • Block or allow specific group based on time schedule
    • Flexible override Internet access for specific device group
  • Support guest WiFi setting
    • Share WiFi name and password via QR code for your guests
    • Monitor of active concurrent guest devices connected
  • Diagnose network via speed test
    • Internet throughput
    • Master AP to Internet
    • Slave AP to Internet
    • Slave AP to Master AP
    • Mobile to Internet
  • Push notification
    • New device connected
    • New firmware available
    • Speed test result
  • Remote management
  • Automatic updates for new features
  • Support iOS 9 or later and Android 5.0 or later
  • Support language: EN/ZH/DE/ES/FR/IT/PT
Hardware Specifications
Memory 4 GB eMMC and 512 MB RAM
WAN One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/ MDIX support
LAN Three 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/ MDIX support
Antenna 9 internal antennas
USB One USB 2.0 port
Bluetooth BLE 4.1
LED indicator Status indication/ auto dimming
Button Reset
Power 12 VDC, 3 A
Power consumption 25 Watt Max
Physical Specification
Item dimensions (WxDxH)(mm/in.) 236 x 178 x 51.5 mm (9.3" x 7.0" x 2.0")
Item weight (kg/lb) 740 g (1.63 lb.)
Packing dimensions (WxDxH)(mm/in.) 339 x 215 x 71 mm (13.4" x 8.5" x 2.8")
Packing weight (kg/lb) 1670 g (3.68 lb.)
Package Contents
  • Multy X
  • Power adapter
  • Ethernet cable
  • Quick start guide
Support
  • Voice control with Amazon Alexa
  • Forum: homeforum.zyxel.com
  • Live-chat in forum
  • App feedback included
Environmental Specification
Operating Temperature  0°C to 40°C (32°F to 104°F)
Operating Humidity 10% to 90% (Non-condensing)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Storage Humidity 10% to 95% (Non-condensing)
Certification
Safety CE-LVD, BSMI
EMC CE, FCC, BSMI, NCC

* Cover up to 7500 sq. ft./696 m2 with Multy X triple-pack.
** The maximum wireless data transfer rates of up to 400 Mbps at 2.4 GHz and 866/1733 Mbps at 5 GHz in simultaneous transmission are derived from the IEEE Standard 802.11 specifications. Actual data transfer rates may vary from network conditions including: distance, network traffics, building site material/construction, interference from other wireless devices and other adverse factors.

Documentation:

Download the ZyXEL Multy X (Model WSQ50) Datasheet (PDF).
