Zyxel WAC6552D-S
OUTDOOR High Powered Dual Band Dual Radio

Zyxel Products
Zyxel Wireless
WAC6552D-S - OUTDOOR High Powered Dual Band Dual Radio 2.4/5Ghz 2x2 802.11AC AP W/Smart Antenna 90x30 Degree Directional Antenna Coverage
#WAC6552D-S
List Price: $549.99
Our Price: $399.99

Click here to jump to more pricing!

Overview:

Almost nothing can make users to put down mobile gadgets even in awesome festivals or parties as people are so busy recording and sharing their life with their phones. If there’s something that can really stop them, it must be bad WiFi access. Bad WiFi experiences can easily turn into negative reviews on the Internet.

Designed for crowded public outdoor venues, the Zyxel WAC6550 Series access points provide Gigabit wireless connectivity to hundreds of users. With Zyxel’s commitment to RF First, the WAC6550 Series is able to improve both performance and user satisfaction in public environments.

Optimized wireless experience for mobile clients

The WAC6552D-S features Zyxel’s field-proven smart antenna that dynamically changes signal pattern and mitigate interference to extend coverage and provide greater reliability to mobile clients.

Ideal for harsh outdoor environments

The WAC6550 Series offers up to IP67 industry-grade weather proofing and the capability to work in extremely high- or low-temperature conditions.

Built for superior performance

As Zyxel’s commit to RF First, the WAC6552D-S is built with smart antenna and low-noise elements to delivering superior wireless performance. In addition, the built-in surge protector of WAC6552D-S provides an extra layer of protection for your investments against surges caused by lightning.

Unified access point - Fits all businesses

To meet various deployment and environment requirements, the WAC6550 Series can be managed in two ways: you can build a simple network with free ZON Utility. And for complex network, you can manage with physical wireless controllers that offer more advanced features.

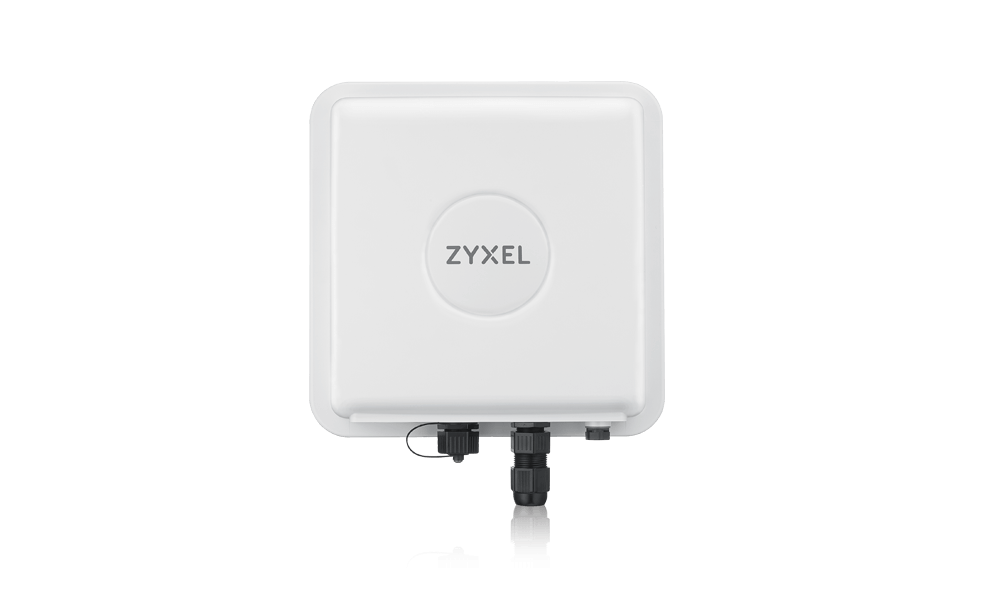

Standalone, for when you start

Standalone, for when you start

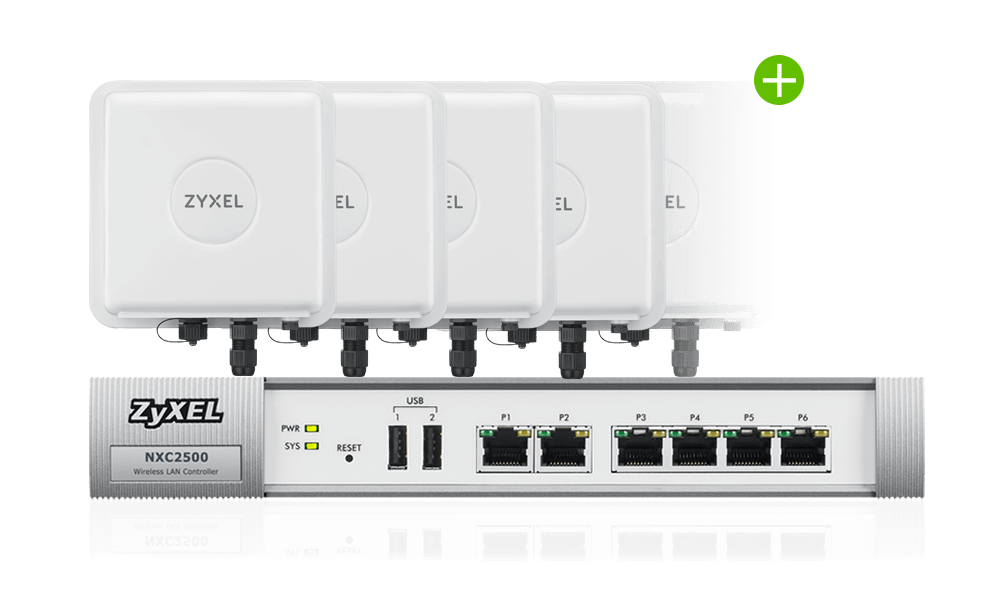

Controller-managed, for when you grow

Controller-managed, for when you grow

Benefits:

Optimized wireless experience for mobile clients

Users won’t always stay on the same spot, but mobile gadgets may stick with the same AP even they could have better choices. To provide superior user experience, the Zyxel WAC6550 Series supports Band Select that steers mobile devices to the best AP and channel in real time.

  • The WAC6552D-S features Zyxel’s field-proven smart antenna that dynamically changes signal pattern and mitigate interference to extend coverage and provide higher reliability to mobile clients
  • The WAC6553D-E is a dual-radio outdoor access point with 3x3 MIMO technology, for which Zyxel offers a series of compatible external antenna to suit different environments.

Ideal for harsh outdoor environments

Extending wireless connection to outdoor spots in harsh weather is another challenge. The WAC6550 Series offers up to IP67 industry-grade weather proofing and the capability to work in extremely high- or low-temperature conditions. Moreover, the built-in surge protector of WAC6552D-S provides an extra layer of protection for your investments against surges caused by lightning.

Effortless deployments and lower initial investment

Deployment of outdoor access points is a complex task that involves cabling, installation and maintenance. The WAC6552D-S simplifies the process with its embedded sectorial antenna and pole-mounting kit that save your effort to install and adjust signal patterns. This makes WAC6552D-S an ideal solution to extend reliable wireless connectivity to outdoor venues at an affordable price.

Flexible Management

To meet various deployment and environment requirements, the WAC6550 Series can be managed in two ways: you can build a simple network with ZON, a free utility that configures, manages and troubleshoots across switches, wireless access points and gateways. As your organization scales up, you can manage network with physical wireless controllers, such as the NXC Series, that offer more advanced features.

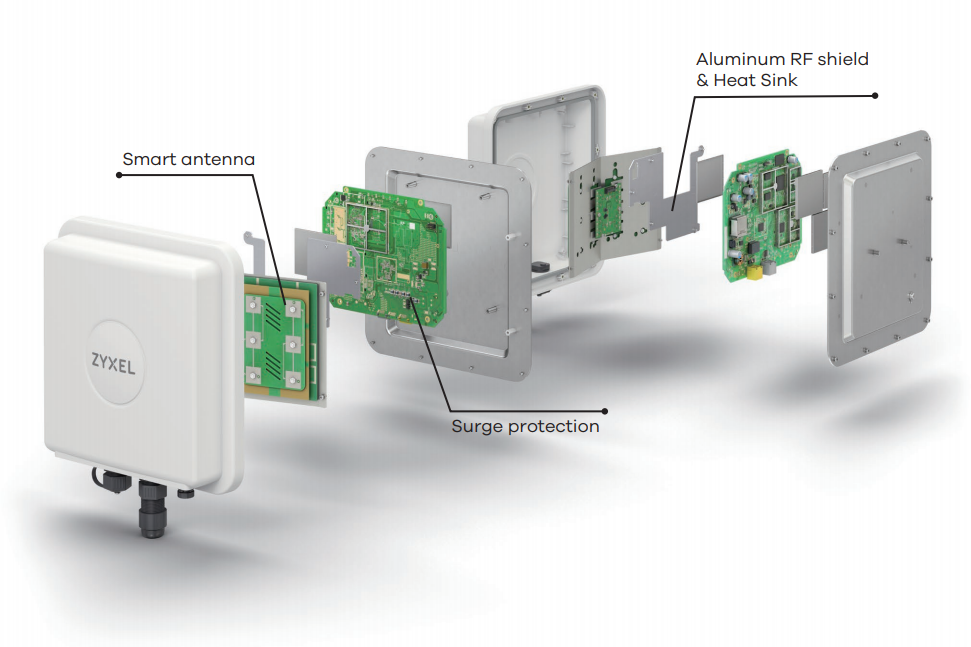

RF First Design:

RF First Design

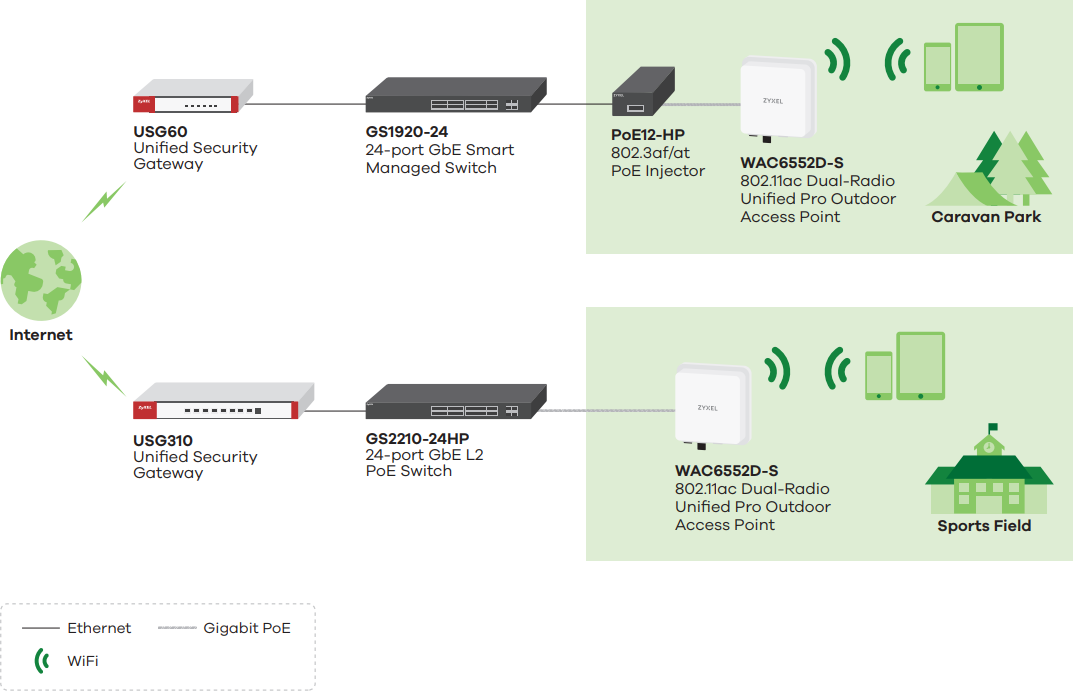

Application Diagram:

Application Diagram

Specifications:

Models WAC6552D-S
802.11ac Dual-Radio Unified Pro Outdoor Access Point
WAC6553D-E
802.11ac Dual Radio External Antenna 3x3 Outdoor Access Point
Wireless
Standard IEEE802.11 ac/n/g/b/a IEEE802.11 ac/n/g/b/a
MIMO Yes Yes
Wireless speed 2.4GHz: 300Mbps
5GHz: 866Mbps
2.4GHz: 450Mbps
5GHz: 1300Mbps
Frequency band 2.4 GHz (IEEE 802.11 b/g/n)
  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac)
  • USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
  • Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
2.4 GHz (IEEE 802.11 b/g/n)
  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac)
  • USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
  • Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- and 80-MHz 20-, 40- and 80-MHz
Conducted typical transmit output power 28/28dBm 29/29dBm
RF Design
Antenna type 2x2 MIMO Smart antenna 6 N-type connectors*2
Antenna gain 2.4GHz: 5 dBi
5GHz: 10 dBi
-
Minimum Receive sensitivity Min. Rx sensitivity up to -101 dBm Min. Rx sensitivity up to -102 dBm
WLAN feature
Band Steering Yes Yes
WDS Yes Yes
Mesh AP (By License) Yes Yes
Mesh AP for multiple SSID with VLAN Yes Yes
Fast roaming Pre-authentication, PMK caching and 802.11r/k/v Pre-authentication, PMK caching and 802.11r/k/v
Security
Encryption WEP/ WPA/WPA2-PSK WEP/ WPA/WPA2-PSK
Authentication WPA/WPA2-Enterprise/ EAP/ IEEE 802.1X/ RADIUS authentication WPA/WPA2-Enterprise/ EAP/ IEEE 802.1X/ RADIUS authentication
Access management L2-isolation/ MAC filtering/ Rogue AP detection L2-isolation/ MAC filtering/ Rogue AP detection
networking
IPv6 Yes Yes
VLANs Yes Yes
WMM Yes Yes
U-APSD Yes Yes
DiffServ marking Yes Yes
Management
Operating mode Standalone/ controller-managed Standalone/ controller-managed
ZON Utility
  • Discovery of Zyxel switches, APs and gateways
  • Centralized and batch configurations
    • IP configuration
    • IP renew
    • Device reboot
    • Device locating
    • Web GUI access
    • Firmware upgrade
    • Password configuration
    • One-click quick association with Zyxel AP Configurator (ZAC)
ZAC
  • Batch AP configuration
  • Batch AP firmware upgrade
  • Batch AP profile backup
Zyxel Wireless Optimizer
  • Wi-Fi AP planning
  • Wi-Fi coverage detection
  • Wireless health management
Web UI/ CLI Yes Yes
SNMP Yes Yes
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
255 x 256 x 66/ 10.04 x 10.08 x 2.60
Weight (kg/lb.)
1590/3.51
Dimensions (WxDxH)(mm/in.)
255 x 256 x 62/ 10.04 x 10.08 x 2.44
Weight (kg/lb.)
1708/3.77
Packing Dimensions (WxDxH)(mm/in.)
455 x 341 x 131/ 17.91 x 13.43 x 5.16
Weight (kg/lb.)
3500/7.72
Dimensions (WxDxH)(mm/in.)
393 x 158 x 430/ 15.47 x 6.22 x 16.93
Weight (kg/lb.)
3904/8.63
Included accessories Pole mounting kits
  • Pole/wall mounting kits
  • PoE injector (optional)
  • Power cord (optional)
MTBF(hr) 775,977 562,413
Ethernet port 1 x 10/100/1000M LAN 1 x 10/100/1000M LAN)
Power PoE (802.3at): power draw 15.12 W PoE (802.3at): power draw 25 W
Environmental Specifications
Weather protection IP67 IP66 (Embedded heater for harsh weather)
Operating Temperature
-20°C to 60°C/ -4°F to 140°F
Humidity
10% to 90% (non-condensing)
Temperature
-40°C to 60°C/ -40°F to 140°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/ -40°F to 158°F
Humidity
10% to 90% (non-condensing)
Temperature
-40°C to 70°C/ -40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002 FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438 FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety EN 60950-1, IEC 60950-1, BSMI CNS14336-1 EN 60950-1, IEC 60950-1, BSMI CNS14336-1

Documentation:

Download the Zyxel WAC6500 Series Datasheet (PDF).
