ZyXEL Transceiver Modules
Reliable Transceiver Modules for Different Connectivity Demands

ZyXEL Transceiver Modules

ZyXEL Products
ZyXEL Gigabit SFP Transceivers
SFP-SX-D - LC 850nm 550m (Multi-Mode) Gigabit Transciever DDMI Support
#SFPSXD
List Price: $54.99
Our Price: $40.00
ZyXEL SFP-LX-10-D LC 1310NM 10KM Single-Mode Transceiver
#SFPLX10D
List Price: $69.99
Our Price: $50.00
SFP-BX1490-10-D - LC 1490nm(TX) 1310nm(RX) 10km (Single-Mode) Gigabit Transciever DDMI Support - Single Strand
#SFPBX1490D
List Price: $269.99
Our Price: $200.00
SFP-BX1310-10-D - LC 1310nm(TX) 1490nm(RX) 10km (Single-Mode) Gigabit Transciever DDMI Support - Single Strand
#SFPBX1310D
List Price: $269.99
Our Price: $200.00
ZyXEL SFP-100FX-2 100FX Multi-Mode SFP Transceiver
#SFP100FX
List Price: $69.99
Our Price: $52.00
SFP-100LX-20 - 100LX (Single-Mode) SFP Transceiver
#SFP100LX
List Price: $109.99
Our Price: $80.00
ZyXEL SFP-100TX 100BASE TX SFP Transceiver
#SFP100TX
List Price: $154.99
Our Price: $115.00
ZyXEL SFP-1000T RJ-45 Copper SFP Transceiver
#SFP1000T
List Price: $109.99
Our Price: $81.00
ZyXEL 10 Gigabit SFP+ Transceivers
ZyXEL SFP10G-SR 10G SFP+ SR Multi-Mode Transceiver
#SFP10GSR
List Price: $175.00
Our Price: $125.00
ZyXEL SFP10G-LR 10G SFP+ LR Single-Mode Transceiver
#SFP10GLR
List Price: $275.00
Our Price: $200.00
DAC10G-3M - Direct Attach Cable 10G SFP+ (3 Meter Length)
#DAC10G-3M
List Price: $134.99
Our Price: $100.00
ZyXEL XFP-SR 10GbE Fiber Transceiver Module
#XFP10GSR
List Price: $369.99
Our Price: $302.00

Overview:

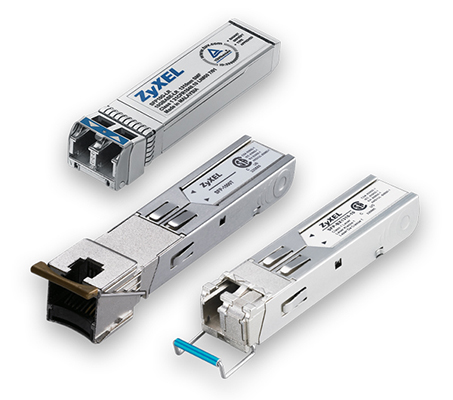

The Zyxel Transceiver Series is a complete range of industry standard, hot-pluggable transceiver modules consists of Fast, Gigabit and 10 Gigabit variations.

  • Hot-Pluggable with maximum flexibility
  • Low power dissipation
  • Industry standard compliance
  • 802.3z SFP Multi-Source Agreement (MSA) compliance
  • Compact size, high port density

Benefits:

Standard-based design assures compatibility

The Zyxel transceiver family follows industry standards to assure compatibility with switches from other manufacturers without barrier set by proprietary technologies.

Comprehensive portfolio for different connectivity demands

With Zyxel’s comprehensive Fast, Gigabit and 10 Gigabit transceiver product range, also Direct Attached Cable 1M /3M, users can just plug the proper model onto the network to extend the physical coverage.

Hot-swappable design facilitates network maintenance

Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.

Bi-directional transceivers maximizes usage of existing fiber plant

Traditional fiber optic networking requires two strands of fiber to accomplish communications, in which one strand is reserved for sending signals, while the other is for receiving. On the other hand, bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber by using two separate optical wavelengths: one receives and the other transmits signals. Transmission capacity can be expanded immediately without additional cost laying new fiber.

Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability

The enhanced digital interface enables a real time link to be established between the switch and the SFP transceiver. This enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals.
In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.
This feature ensures that the business can be proactive in preventative maintenance of the network and ensure business continuity.

DDMI Monitors:

  • Temperature
  • Supply voltage
  • Transmitted bias current
  • Transmitted power
  • Received power

All features listed above include alarm and warning thresholds.

Specifications:


10GbE Transceiver Modules
  10 Gigabit XFP 10 Gigabit SFP+
  XFP-SR FTLX1412D3BCL (XFP-LR) SFP10G-SR SFP10G-LR
Connector LC LC Duplex LC Duplex LC
Wavelength 850 nm 1310 nm 850 nm 1310 nm
Max Transmission Distance 0.3 km/328 yd 10 km/10936 yd 0.3 km/328 yd 10 km/10936 yd
Optical Fiber Type Multi Mode Single Mode Multi Mode Single Mode
Receiver Characteristics
Optical receiver sensibility -11.1 dBm -12.6 dBm -11.1 dBm -12.6 dBm
Maximum input power +0.5 dBm +0.5 dBm 0.5 dBm 0.5 dBm
Operational Ranges
Supply voltage 3.1 - 3.45 V 3.1 - 3.5 V 3.14 - 3.46 V 3.14 - 3.46 V
Max current 400 mA 600 mA 250 mA 285 mA
Physical Specifications
Dimensions (WxDxH)(mm/in.) 22.15 x 77.95 x 13.30/0.87 x 3.07 x 0.52 14.8 x 56.5 x 11.85/0.58 x 2.22 x 0.47
Weight (g/lb.) 40/0.09 42/0.09 20/0.04 20/0.04
Environmental Specifications
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
MTBF (hr) 4,390,000 2,143,000 5,160,000 3,390,000
With DDMI Features Yes Yes Yes Yes
Certification
Safety Certification
  • Class 1 Laser
  • 21 CFR 1040.10 and 1040.11 compliant
  • CSA (10 Gigabit XFP, Gigabit SFP and Fast Ethernet SFP Series)
  • TUV
  • CE (10 Gigabit SFP+ Series, DAC10G Series)
  • FDA (10 Gigabit SFP+ Series)

GbE Transceiver Modules (Gigabit SFP )
  SFP-1000T SFP-SX-D SFP-LX-10-D SFP-BX 1310-10-D1 SFP-BX 1490-10-D1 SFP-LHX 1310-40-D SFP-ZX-80-D
Connector RJ-45 LC LC LC LC LC LC
Wavelength - 850 nm 1310 nm 1310 nm (TX)
1490 nm (RX)
1490 nm (TX)
1310 nm (RX)
1310 nm 1550 nm
Max Transmission Distance 0.1 km/109 yd 0.55 km/601 yd 10 km/10936 yd 10 km/10936 yd 10 km/10936 yd 40 km/43744 yd 80 km/87488 yd
Optical Fiber Type Multi Mode Multi Mode Single Mode Single Mode Single Mode Single Mode Single Mode
Receiver Characteristics
Optical receiver sensibility - -17 dBm -20 dBm -20 dBm -20 dBm -23 dBm -24 dBm
Maximum input power - -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm
Operational Ranges
Supply voltage 3.1 - 3.45 V 3.1 - 3.5 V 3.1 - 3.5 V 3.1 - 3.5 V 3.1 - 3.5 V 3.1 - 3.5 V 3.1 - 3.5 V
Max current 300 mA 250 mA 300 mA - 300 mA 300 mA 300 mA
Physical Specifications
Dimensions (WxDxH)(mm/in.) 13.40 x 56.00 x 12.40 / 0.53 x 2.20 x 0.49
Weight (g/lb.) 24/0.05 24/0.05 16/0.04 17/0.04 17/0.04 17/0.04 18/0.04
Environmental Specifications
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
MTBF (hr) 277,657 83,030 83,030 137,682 137,682 83,030 83,030
With DDMI Features - Yes Yes Yes Yes Yes Yes
Certification
Safety Certification
  • Class 1 Laser
  • 21 CFR 1040.10 and 1040.11 compliant
  • CSA (10 Gigabit XFP, Gigabit SFP and Fast Ethernet SFP Series)
  • TUV
  • CE (10 Gigabit SFP+ Series, DAC10G Series)
  • FDA (10 Gigabit SFP+ Series)

Direct Attached Cable 10G Series (DAC10G )
  DAC10G-1M DAC10G-3M
Connector SFP+ to SFP+ SFP+ to SFP+
Max Transmission Distance 1 m/3.28 ft 3 m/9.84 ft
Operational Ranges
Supply voltage 3.13 - 3.47 V 3.13 - 3.47 V
Max current 480 mA 480 mA
Physical Specifications
Dimensions (WxDxH)(mm/in.) 14 x 58 x 11/0.55 x 2.30 x 0.43
Weight (g/lb.) 85/0.19 164/0.36
Environmental Specifications
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Certification
Safety Certification
  • Class 1 Laser
  • 21 CFR 1040.10 and 1040.11 compliant
  • CSA (10 Gigabit XFP, Gigabit SFP and Fast Ethernet SFP Series)
  • TUV
  • CE (10 Gigabit SFP+ Series, DAC10G Series)
  • FDA (10 Gigabit SFP+ Series)
*1: SFP-BX1310-10-D and SFP-BX1490-10-D are must used in pairs.

Switch Compatibility List:


  4600 Series 4500 Series 3900 Series GS3700 Series XGS3700 Series XS3700-24 3500 Series GS2210 Series
DAC10G DAC10G-1M Yes - Yes - Yes Yes - -
DAC10G-3M Yes - Yes - Yes Yes - -
10 Gigabit XFP XFP-SR - Yes - - - - - -
FTLX1412D3BCL (XFP-LR) - Yes - - - - - -
10 Gigabit SFP+ SFP10G-SR Yes - Yes - Yes Yes - -
SFP10G-LR Yes - Yes - Yes Yes - -
Gigabit SFP SFP-1000T Yes Yes - Yes Yes Yes Yes Yes
SFP-SX-D Yes Yes - Yes Yes Yes Yes Yes
SFP-LX-10-D Yes Yes - Yes Yes Yes Yes Yes
SFP-BX1310-10-D Yes Yes - Yes Yes Yes Yes Yes
SFP-BX1490-10-D Yes Yes - Yes Yes Yes Yes Yes
SFP-LHX1310-40-D Yes Yes - Yes Yes Yes Yes Yes
SFP-ZX-80-D Yes Yes - Yes Yes Yes Yes Yes

  XGS2210 Series GS1920 Series XS1920-12 GS1910 Series XGS1910 Series GS1900 Series ES1100- 24G GS1100-24
DAC10G DAC10G-1M Yes - Yes - Yes - - -
DAC10G-3M Yes - Yes - Yes - - -
10 Gigabit XFP XFP-SR - - - - - - - -
FTLX1412D3BCL (XFP-LR) - - - - - - - -
10 Gigabit SFP+ SFP10G-SR Yes - Yes - Yes - - -
SFP10G-LR Yes - Yes - Yes - - -
Gigabit SFP SFP-1000T Yes Yes Yes Yes Yes Yes Yes Yes
SFP-SX-D Yes Yes Yes Yes Yes Yes Yes Yes
SFP-LX-10-D Yes Yes Yes Yes Yes Yes Yes Yes
SFP-BX1310-10-D Yes Yes Yes Yes Yes Yes Yes Yes
SFP-BX1490-10-D Yes Yes Yes Yes Yes Yes Yes Yes
SFP-LHX1310-40-D Yes Yes Yes Yes Yes Yes Yes Yes
SFP-ZX-80-D Yes Yes Yes Yes Yes Yes Yes Yes

Documentation:

Download the ZyXEL Transceiver Modules Datasheet (PDF).
