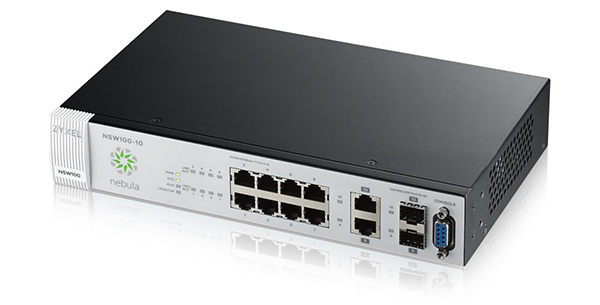

ZyXEL NSW100-10
8-port GbE L2 Nebula Cloud Managed Switch

ZyXEL NSW100-10

ZyXEL Products
ZyXEL Switches
ZyXEL NSW100-10P 8-port GbE L2 Nebula Cloud Managed Switch with 1 Year Bundled Service
- 8 x GbE RJ-45 ports, 2 x GbE combo (RJ-45/SFP) ports
#NSW100-10
List Price: $200.00
Our Price: $140.00

Click here to jump to more pricing!

NebulaOverview:

8/24-port GbE L2 Nebula Cloud Managed PoE Switch

The Zyxel Nebula NSW100 Series Cloud Managed Switches provide Layer-2 Gigabit access switching with 8/24-port PoE and non-PoE models. The PoE models support 802.3at PoE Plus standards to provide a 180/375-watt highpower budget. Every Nebula switch is designed to be managed completely from the Nebula Control Center. The cloud-based management interface provides site-wide configuration and monitoring of all ports, which allows multiple switches to be configured at the same time with a single click over the Web.

The Nebula switches bring many benefits of the cloud management systems, such as simplified configuration, easy management, site-wide visibility and real-time control for speedy branch network deployments into networks. Advanced settings such as user friendly ACL, VLAN-based QoS and PoE scheduling significantly improve the efficiency of network management.

  • Essential L2 features with user-friendly ACL and VLAN configuration
  • Optimized for quality voice and video traffic with high 375 (28P)/180 (10P)-watt power budget PoE technology
  • Support Port Mirroring for network traffic monitoring
  • Support DHCP Server Guard and IGMP snooping
  • RADIUS, static MAC forwarding and 802.1X authentication

Benefits:

Zero-touch deployments

The Zyxel Nebula Cloud Managed Switches support plug-and-play installation through remote provision with simple steps. Every Nebula Switch automatically downloads the current network configuration to the device and enables auto-provisioning without the need for on-site network professionals.

Efficient network provisioning

Rather than traditional management operations that require network administrators to configure each device separately with repetitive command lines, all Nebula Switches connected to the Nebula Control Center can be centrally managed with a single management interface. For better network management efficiency, switch settings made in the Nebula Control Center can automatically propagate to all connected Nebula switches.

Increased network uptime

User misspecifications are commonly seen in setting up ACL, reconfiguring VLAN/IP or other similar operations, and these may cause interruption to cloud connection. The Zyxel Nebula Cloud Managed Switches provide stable network environments by incorporating a mechanism that detects and prevents configuration that could potentially cause network disconnection between the switch and Nebula Control Center.

Better user experience

Quality-of-service (QoS) functionality is essential for applications that require guaranteed quality for stable connections. The Zyxel Nebula PoE switches offer a smarter way for optimizing quality of service, which enables administrators to specify VLAN configuration with different priorities directly. This means that administrators can assign a priority to a specific VLAN through Nebula Control Center, and this priority can be applied to all tagged traffics for a specific VLAN. Traffics of the higher priority VLAN will receive preferential treatment and are serviced before VLANs with lower priorities. The same mechanism applies to voice VLAN configuration as well.

Holistic management

Zyxel Nebula Switches can automatically discover wired and wireless devices that connected to a network, and then draw the network topology to enable network administrators to easily troubleshoot issues remotely without the need for manual mapping and overlay monitoring software.

Ultra Durable Hardware Design

Unlike normal switch hardware design with Electrolytic capacitors (E-cap), the Zyxel Nebula Cloud Managed Switches adopt solid capacitors to get rid of drying out, bursting and leaking problems. Solid capacitors ensure Nebula switches with longer lifetime, high stability and robust operation.

Applications Diagram:

Nebula Cloud Management Architecture

Nebula Cloud Management Architecture

Specifications:

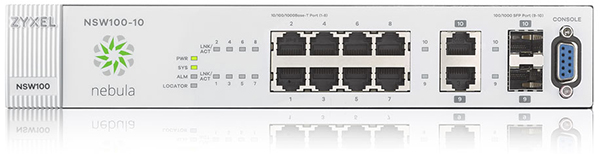

Front View

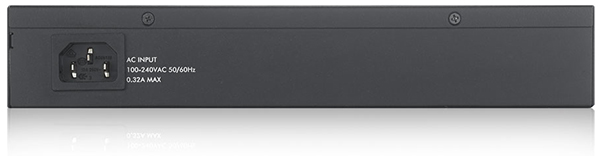

Rear View

Model NSW100-10 NSW100-10P NSW100-28 NSW100-28P
Product Name 8-port GbE Nebula Cloud Managed Switch 8-port GbE Nebula Cloud Managed PoE Switch 24-port GbE Nebula Cloud Managed Switch 24-port GbE Nebula Cloud Managed PoE Switch
  NSW100-10 NSW100-10P NSW100-28 NSW100-28P
Switch class Layer 2 Layer 2 Layer 2 Layer 2
Port Density
Total port count 10 10 28 28
100/1000 Mbps 8 - 24 24
100/1000 Mbps PoE - 8 - 24
Gigabit combo (SFP/RJ-45) 2 2 4 4
Performance
Switching capacity (Gbps) 20 20 56 56
Forwarding rate (Mbps) 14.88 14.88 41.67 41.67
Packet buffer (byte) 448 K 1536 K 1536 K 1536 K
MAC address table 16 K 16 K 16 K 16 K
Power
Power input 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz
Maximum power consumption (watt) 12.3 230 27.2 454
Total PoE power budget (watt) - 180 - 375
Physical Specifications
Item Dimensions (WxDxH)(mm/in.) 250 x 150 x 44/
9.84 x 5.91 x 1.73
330 x 230.5 x 44.5/
12.99 x 9.07x 1.75
441 x 131 x 44/
17.36 x 5.16 x 1.73
440 x 330 x 44.5/
17.32 x 12.99 x 1.75
Item Weight (kg/lb.) 1.34/2.95 2.66/5.86 2.172/4.79 4.79/10.56
Packing Dimensions (WxDxH)(mm/in.) 366 x 214 x 79/
14.41 x 8.43 x 3.11
389 x 337 x 79/
15.31 x 13.27 x 3.11
561 x 220 x 82/
22.09 x 8.66 x 3.23
583 x 451 x 98/
22.95 x 17.76 x 3.86
Packing Weight (kg/lb.) 2.27/5 3.65/8.05 3.263/7.19 5.747/12.67
Included accessories • Power cord
• Wall mount kit
• Rack mounting kit
• Power cord
• Rack mounting kit
• Power cord
• Rack mounting kit
• Power cord
• Rack mounting kit
Environmental Specifications
Operating temperature 0°C to 50°C / 32°F to 122°F
Operating humidity 10% to 90% (non-condensing)
Storage temperature -40°C to 70°C / -40°F to 158°F
Storage humidity 10% to 95% (non-condensing)
MTBF (hr) 1,382,030 1,155,719 616,247 949,326
Heat dissipation (BTU/hr) 41.943 784.30 92.752 1,625.55
Acoustic noise (dBA) 0 53.2 0 59.6
Certifications
EMC FCC Part 15 (Class A), CE EMC (Class A), BSMI EMC FCC Part 15 (Class A), CE EMC (Class A), BSMI EMC FCC Part 15 (Class A), CE EMC (Class A), BSMI EMC FCC Part 15 (Class A), CE EMC (Class A), BSMI EMC
Safety LVD, BSMI LVD, BSMI LVD, BSMI LVD, BSMI
RoHS Level A Level A Level A Level A

Features:


Standard Compliance

  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Ethernet
  • IEEE 802.3ab 1000BASE-T Ethernet
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE plus
  • IEEE 802.3az EEE
  • IEEE 802.3ad LACP aggregation
  • IEEE 802.1AB LLDP
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1Q VLAN tagging
  • IEEE 802.1p Class of Service (CoS) prioritization
  • IEEE 802.1X port authentication
  • ZDP (Zyxel Discovery Protocol)

Resilience and Availability

  • IEEE 802.3ad LACP
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • Loop Guard
  • BPDU Guard
  • Root Guard
  • Dual configuration files
  • Dual images

Traffic Control

  • 802.1Q static VLANs/dynamic VLANs: 1 K/4 K
  • Port-based VLAN
  • Voice VLAN

Security

  • 802.1X
  • Port security
  • Layer 3 IP filtering
  • Layer 4 TCP/UDP socket filtering
  • Multiple RADIUS servers
  • Login authentication by RADIUS
  • Authorization on RADIUS
  • SSL
  • SSH
  • DHCP server guard
  • Guest VLAN
  • ACL packet filtering (IPv4)

Quality of Service (QoS)

  • No. of hardware queues per port: 8 (User configurable: 6)
  • Storm Control: Broadcast, multicast, unknown unicast (DLF)
  • 802.1p Class of Service (WRR)

Layer 2 Multicast

  • L2 multicast
  • IGMP snooping (v1, v2, v3)

Manageability

  • SNMP v1, v2c
  • ICMP echo/echo reply
  • IEEE 802.1AB LLDP

Device Management

  • Web interface
  • Configuration saving and retrieving
  • DHCP client
  • Daylight saving
  • Cloud-managed
  • NTP
  • Port mirroring
  • Scheduled PoE

Documentation:

Download the ZyXEL NSW100 Series Data Sheet (PDF).
