ZyXEL NBG6616
Simultaneous Dual-Band Wireless AC1200 Media Router

ZyXEL NBG6616

ZyXEL Products
ZyXEL Wireless

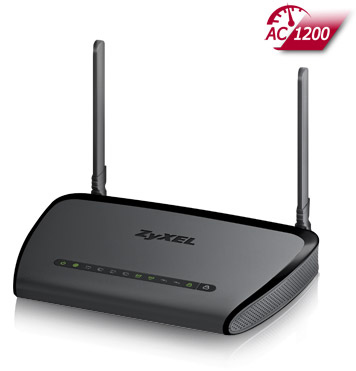

ZyXEL NBG6616 Simultaneous Dual-Band Wireless AC1200 Media Router
#NBG6616
List Price: $119.99
Our Price: $94.00

Click here to jump to more pricing!


Overview:

Ultra-Fast Gigabit Router for Effortless HD Media Streaming

The ZyXEL NBG6616 Simultaneous Dual-Band Wireless AC1200 Media Router uses the latest AC technology to deliver concurrent transfer rates of up to 300 Mbps* for 2.4 GHz and 867 Mbps* for 5 GHz. The dual-band network allows home users to enjoy an enhanced streaming and file-sharing experience with wider coverage and faster transfer speeds.

  • Dual-Band technology supporting concurrent data transfer rates of up to 300 Mbps* for 2.4 GHz and 867 Mbps* for 5 GHz which is up to 3 times faster than 802.11n
  • Powerful built-in amplifiers with external antennas designed for maximum Wi-Fi coverage
  • Easy management of your network with parental control and domain blocking through the network map
  • ZyXEL zConfig app facilitates easy configuration and management
  • Advanced QoS with special prioritization ensures smooth multimedia streaming
  • DLNA support for easy sharing of your files around the house
  • Simple mass storage sharing via USB ports
  • WPS button for quick, easy wireless security setup
  • Free online firmware upgrade service for convenient feature enhancements

Benefits:

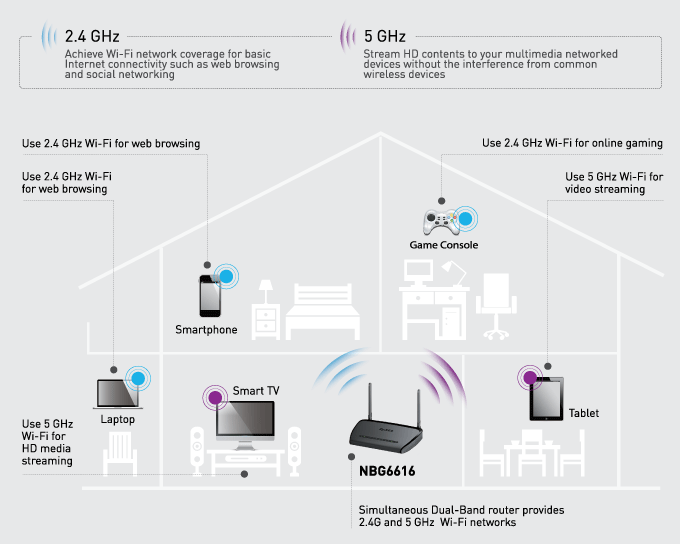

Dual-band Wireless

Dual-band Wireless AC1200 Media Router with speeds up to 300+867 Mbps

Today’s high-speed mobile media devices demand more from wireless network hardware. The ZyXEL NBG6616 supports high-performance wireless networking of up to 1200 Mbps* when connecting to mobile devices supporting both 802.11n and 802.11ac for media streaming. The NBG6616 delivers high-quality full-HD video to multiple users over the less-crowded 5 GHz band for smooth playback with low latency.

parental control

Easy management with parental control and domain blocking

Easily set up and manage your home network devices with the ZyXEL NBG6616. You can control the bandwidth, restrict individual devices’s Web access and parents can schedule the times at which Internet browsing is permitted on individual devices.

dvanced Quality of Service (QoS)

Advanced Quality of Service (QoS) ensures smooth multimedia streaming

Nobody likes having their media experience interrupted by choppy streaming. The ZyXEL NBG6616 QoS feature avoids this by prioritizing bandwidth usage to optimize multi-stream HD video, gaming, IP voice services and Web browsing. It improves the flow of critical network traffic—particularly useful with devices like VoIP phones or when used on high-volume networks.



ZyXEL zConfig app facilitates easy configuration and management

The mobile computing revolution means we expect more convenience from our devices. The zConfig app delivers just that by allowing you to manage a router's settings directly from your mobile device without having to log in from a browser window on your PC. An elegant, easy-to-use interface gives users easy access to all main features of the app.



Easy security setup

With the NBG6616's Wi-Fi Protected Setup (WPS), protecting your wireless network is as simple and fast as one button click. An Easy Mode allows for basic setup and system configuration, quickly establishing an encrypted connection with client devices.

Detect cable length

Detect cable length

The NBG6616 can detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the Ethernet cable length is, the less power it consumes.

Wireless output management

Wireless output management

Easy to adjust the output power to reduce interference with neighboring access points within high wireless density areas.

Inactive Link Detection

Inactive Link Detection

Smartly adjusts power consumption by detecting the link status and the length of connected Ethernet cables. When the NBG6616 detects no active data transmission, the device automatically enters the power-saving mode to avoid energy waste.

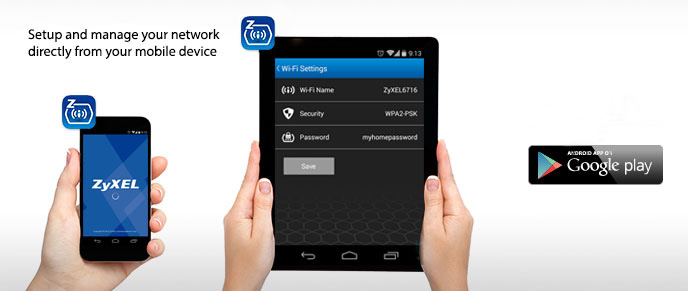

zConfig – Easy Configuration and Management

ZyXEL's zConfig enable you to configure your network at a personal level. Change your wireless name and password. Share your Wi-Fi access with guests. View connected devices and block unwanted Wi-Fi devices from intruding your network. Set a Internet access schedule with the parental control feature.

zConfig – Easy Configuration and Management
* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions. This product compliant 802.11ac with wireless speeds of up to 1200Mbps.

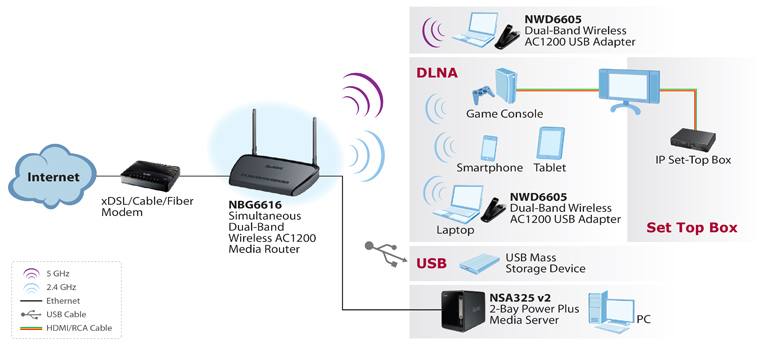

Application Diagram:

Application Diagram
Application Diagram

Specifications:

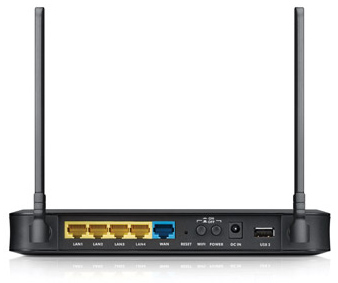

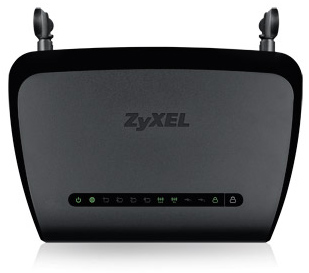

Top View Rear View

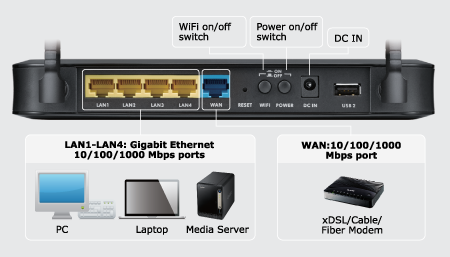

Rear Diagram
Model: NBG6616
System Specifications
Wireless Standard
  • 802.11 b/g/n 2.4 GHz
  • 802.11 a/n/ac 5 GHz
Wireless Transfer Rate
  • Transmit:
    • 300 Mbps* for 2.4 GHz
    • 867 Mbps* for 5 GHz
  • Receive:
    • 300 Mbps* for 2.4 GHz
    • 867 Mbps* for 5 GHz
Wireless Features
  • Wi-Fi Protected Setup (WPS)
  • Wi-Fi Multimedia (WMM)
  • Wireless scheduling
  • Wireless output power management
Routing
  • Network Address Translation (NAT)
  • WAN connection type: static IP, DHCP, PPPoE
  • Port forwarding, port triggering, DMZ
  • DHCP server/client
  • IGMP v1/v2
  • Dynamic DNS
  • Protocol-based QoS
  • Auto-IP change
  • IPv6
VPN Pass-through IPSec/PPTP/L2TP
Firewall Deny of Service (DoS) prevention
System Management
  • HTTP, Telnet
  • Diagnostic logs
  • Online firmware upgrade
Wireless Security
  • 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
  • MAC address filtering
Hardware Specifications
WAN One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN Four 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
Ports Two USB 2.0 ports
LED indicators
  • Power
  • WAN
  • LAN (1 - 4)
  • WLAN (2.4 GHz)
  • WLAN (5 GHz)
  • WPS
  • USB (1 - 2)
Antennas Two fixed external antennas
Button
  • Wireless on/off button
  • Power on/off button
  • WPS button
  • Reset button
Power 12 V DC, 2 A
Power consumption 24 Watt
Physical Specification
Item dimensions (WxDxH)(mm/in.)  218 x 145 x 32 mm (8.58" x 5.71" x 1.26")
Item weight (kg/lb) 375 g (0.83 lb.)
Packing dimensions (WxDxH)(mm/in.) 275 x 196 x 100 mm (10.82" x 7.71" x 3.94")
Packing weight (kg/lb) 750 g (1.66 lb.)
Package Contents
  • Wireless router
  • Power adapter
  • Ethernet cable
  • Quick start guide
  • Support CD
  • Warranty card
Environmental Specification
Operating Temperature  0°C to 40°C (32°F to 104°F)
Operating Humidity 10% to 90% (Non-condensing)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Storage Humidity 10% to 95% (Non-condensing)
Certification
Safety CE-LVD
EMC CE, FCC, BSMI
* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions. This product compliant 802.11ac with wireless speeds of up to 1200Mbps.

Documentation:

Download the ZyXEL NBG6616 Datasheet (PDF).
