ZyXEL IES-6000 Series
12.5U 17-slot Temperature-Harden Chassis MSAN


ZyXEL IES-6000 Series

ZyXEL Products
ZyXEL MSANs / DSLAMs
ZyXEL IES-6000M 12.5U 17-slot Chassis MSAN
#IES6000M
List Price: $2,999.99
Our Price: $2,403.00

Click here to jump to more pricing!

Overview:

As the flagship of Zyxel’s MSAN product portfolio, the IES-6000 Series is equipped with non-blocking Gigabit backplane, failover-enabled Management Switch Cards (MSC), dual input power modules and various high-port density multi-purpose line cards. With comprehensive IP-centric firmware features, the IES-6000 Series is a high-capacity system that facilitates telcos/ISPs to deliver high-quality residential or business user services experience at competitive APEX/OPEX as well as satisfying its current and future infrastructural requirements of reliability, flexibility and scalability.

  • Multi-service interfaces including ADSL2/2+, SHDSL, VDSL2, VoIP (SIP & H.248), fiber-based GE
  • 10G Ethernet uplinks to provide non-blocking network interfaces
  • Comprehensive QoS to Enhance Triple Play users’ experience
  • Field proven IGMP v1, v2, v3 snooping and proxy for IPTV deployment
  • Flexible ACL, VLAN-aware DHCP and Anti-IP/MAC address spoofing to prevent malicious attack
  • DHCP option 82 and PPPoE IA features support versatile IP address assignment

Benefits:

Easy & reused logistics

The Zyxel Chassis MSAN has various chassis with different height and slot quantity. All management card share the same attributes of their predecessors and are IPv6 hardware ready. The variety of line cards is including 72-port ADSL2+ line card that provides subscribers with asymmetric transmission bandwidth up to 25 Mbps/2.4 Mbps; 48-port SHDSL line cards with symmetric transmission bandwidth of 5.69 Mbps per port; 24-port and 48-port VDSL2 line cards that offer up profile 30a (100/100Mbps) high-speed connectivity per port over copper wires; 20-port fiber-based Gigabit Ethernet line card that supports 100/1000 Mbps transmissionspeed per port. The new 48-port ADSL2+/VoIP combo card with built-in ETSI/ANSI POT splitter can be managed by the new MSC1024GC ManagementSwitch Signaling Card. MSC1024GC and MSC1224GC are able to support IPaggregation for all the combo cards in the same chassis.

Advanced Triple Play and mass deployment functionality

The Zyxel Chassis MSAN inherits all the Layer 2 and Layer 3 QoS, security and multicast functionalities, while the following new features are added to satisfy the requirements for massive field deployments: (1) IP bridge functionality that alleviates the Layer 2 access network deployment restrictions resulted from MAC address table limitation and security attack issues; (2) ARP Proxy which minimizes the ARP broadcast requests to all subscribers; (3) TACACS+ mechanism to support remote authentication with TACACS+ servers; (4) VLAN-aware DHCP snooping which adds VLAN information into DHCP snooping tables; (5) DHCP option 82 sub-option 2 for providing remote client ID information to DHCP servers for flexible IP address assignment.

Environment-friendly two-way airflow for cold-hot aisle telecommunication rooms

The IES6100M fan module supports two-way — back-to-front and front-to-back — airflow, so users can switch the direction according to different telecommunication room layouts. As cold-hot aisle telecommunication rooms enjoy better air cycle and cooling efficiency, they save electric bills by better utilization of the air-conditioning systems.

Robust physical safety design

The IES6100M and IES-6000M/5112M support 1+1 MSC redundancy with a failover switching time less than 1 second. In addition, voltage, temperature and fan speed sensors are fitted into the system. When an abnormal condition is detected, the LED displays and/or the corresponding alarms will alert administrators of the situation. In case the system temperature rises over the preset threshold, thermal cutoff protection will kick in to shut down the system automatically.

Sophisticated OAM&P features

The Zyxel Chassis MSAN provides various management methods: local console port, Web-based configuration, Telnet and SNMP v1/v2c/v3-based EMS (NetAtlas EMS). The management functions include Alarm and Status Surveillance, Configuration Management, Performance Management and Fault Management. The Zyxel Chassis MSAN allows multiple administrative accounts with access privileges. NetAtlas EMS also provides view-based MIB management that partial MIB objects can be defined and accessed for customization and security reasons. In addition, XML-based northbound interface is equipped to interoperate with external OSS systems.

Specifications:


IES-6000 Series Specifications:
System Specifications
DSL Compliant
  • ADSL: G.992.1 Annex A, G.992.3 Annex A, G.992.5 Annex A
  • G.992.1 Annex B, G.992.3 Annex B, G.992.5 Annex B
    • Support G.992.3 and G.992.5 Spectral Mask
    • Support Annex M and Annex L in G.992.3 and G.992.5
    • Support EOC and Overhead Channel Access
    • Support the latency path function
    • Support loop diagnostic function specified
    • Support the power management capability
    • Support the capability of the Seamless Rate Adaptation (SRA) on-line configuration
    • Single and dual end loop test
    • G.998.1 port bonding
  • SHDSL: G.991.2, G.991.2.bis, G.998.1
  • VDSL2: G.993.2, G.994.1, G.997.1.
ATM Traffic Management
  • Support 8 PVC per DSL port
  • Support UBR, CBR, rt-VBR, nrt-VBR QoS mechanisms
  • Support ATM Forum TM 4.0 peak cell rate traffic parameter
  • Support downstream traffic shaping function per ATM PVC
  • Support ATM F5 OAM cells for end-to-end loop back test (ITU-T Rec. I.610)
Performance
  • Eight queues with packet priority scheduling (SPQ, WRR)
  • Support 1024 IGMP multicast groups
  • The maximum channel zapping processing time is 250 ms
  • DSCP to 802.1p mapping
Security
  • Per port and per VLAN isolation
  • IEEE 802.1X (authentication)
  • Rule-based packet filtering (L2 ~ L4 ACL)
  • MAC count limiting
  • ARP broadcast filtering
  • DHCP broadcast filtering
  • VLAN aware DHCP snooping
  • NetBIOS filtering
  • IGMP filtering
  • Anti IP/MAC address spoofing
  • Support TACACS+ remote authentication
  • PPTP, LT2P, IP SEC and GRE pass through
  • IPoE and PPPoE per VC session
VLAN
  • 4094 IEEE 802.1Q compliant VLAN tagging
  • VLAN stacking ( Q-in-Q )
  • VLAN Bridge Function (multiple PVCs to one VLAN) (N:1)
  • PVC and VLAN one to one mapping (1:1)
  • VLAN Trunking (Single PVC join Multiple VLAN) (1:N)
  • Support GVRP function
Traffic Management
  • Bandwidth control and Broadcast/Multicast/Unknown Unicast control on Gigabit Ethernet ports
  • RSTP : IEEE 802.1d, IEEE 802.1w, IEEE 802.1s
  • IP Bridge
  • IEEE 802.3ad (Link Aggregation Control Protocol)
  • IP multicast forwarding
  • IGMP v1, v2 snooping/proxy
  • IGMP multicasting channel limiting
  • VLAN aware DHCP snooping
  • DHCP Relay Option 82 with Sub-option 1 & 2
  • TR-101 compliant PPPoE intermediate Agent
  • Multicast bandwidth control
  • L2~L4 ACL
  • IGMP group count / filtering profile
VoIP Features
  • Codes: G.711, G.726, G.729a/b, G.723.1
  • Network signaling protocols: ITU-T H.248 v2, SIP v2 (RFC3261)
  • RTP (RFC 1889)
  • RTCP (RFC 1890)
  • FAX/Modem pass through (T.38) via RTP
  • Tone detection and generation (bi-directional)RFC2833 RTP Payload for DTMF
  • Echo cancellation and auto gain control (G.165, G.168)
  • Voice Activity Detection (VAD)
  • Comfort Noise Generation (CNG)
  • Caller ID generation and detection
  • Supplementary services
    • Local dial available
    • Emergency call local route
    • Do not disturb
    • Selective/Anonymous call rejection
    • Call waiting
    • Call transfer (blind and attended transfer)
    • Call return and call back on busy
    • Off hook warning tone
Network Management
  • Local management through a craft terminal
  • Web-based Management Interface
  • View-based Network Management
  • Support XML-based North Bound Interface (through ZyXEL NetAtlas EMS)
  • In-band and out-of-band IP interface for management (SSH, SFTP)
  • SNMP management (through ZyXEL NetAtlas EMS)
  • SNMPv1/v2c/V3 agent/traps
  • Standard MIBs
    • RFC 1213 MIB II
    • ADSL Line MIB (RFC2662)/ Extension Line MIB(RFC 3440)
    • SHDSL Line MIB (RFC 3276)
    • VDSL line MIB (RF3728)
    • Bridge MIB/Extension MIB
    • RMON MIB (RFC 1757)
  • Vendor specific MIBs, e.g.
    • Chassis Management MIB (Fan Speed, Voltage, Temperature)
    • Static route for MGMT IP
Hardware Specifications

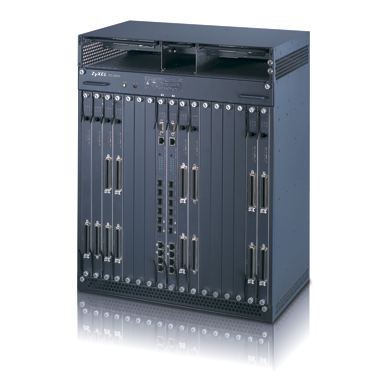

IES-6000M
  • 17-slot rack mountable enclosure, 19" or 23" chassis
  • Maximum 16 slots for DSL line cards (slot 1~7, 8 or 9, 10~17)
  • 2 slots for management and switch cards (Slot 8 & 9)
  • 2 DC power input module and filter
  • One FAN and dust filter module
  • One Alarm Module
Management Switch Cards - MSC1224GB/ MSC1024GB
  • Failover-enabled network termination card
  • Embedded 48G, non-blocking full duplex switching fabric
  • MSC1224GB supports two 10G (SFP+) and four 1G uplink/subtending interfaces:
    • 2 optical fiber port (SFP+ modules)
    • 4 1000 Mbps interface modules (combo design, SFP and copper)
  • MSC1024GB supports four 1G Ethernet uplink/subtending interfaces:
    • 4 1000 Mbps interface modules (combo design, SFP and copper)
  • One RS232 (DB-9) serial or mini-RJ11 console port
  • One 10/100M out-of-band Mgmt interface
  • 16 Gigabit Ethernet (SerDes) backplane interface
  • 16K MAC addresses
  • 1024 L2 multicast groups (1K scalability)
  • 4K VLANs
  • IPv6 capable
E1 IMA Card - IMA1408G-81
  • Hot swappable 8-port E1 IMA card, 8 groups per card
  • Support G.703, G.704
  • Full-duplex bandwidth up to 16M
  • One mini-RJ11 console port
  • Support RFC1483/1577/2364/2684
  • Support ATM Forum Rec UNI 3.0, UNI 3.1, UNI 4.0
  • Support ITU-TI.361, I.371, G.804
VDSL Line Card - VLC1424G-56
  • Hot swappable 24-port VDSL2 line card
  • Support G.993.2, G.994.1, G.997.1
  • Maximum transmission rate up to 100 Mbps/100 Mbps
  • One mini-RJ11 console port
  • Two gigabit backplane
  • Support VDSL2 profiles 8a, 8b, 8c, 8d, 12a,12b, 17a and 30a
  • Support frequency allocation bandplan 998 and 997
  • Support customer PSD, RFI notch, singlelatency in PTM mode and INP
  • Support trellis coding
  • Support IEEE 802.1ag Connectivity Fault Management (CFM)
  • IPv6 capable
VDSL Line Cards - VLC1348G-51/ VLC1348G-53
  • Hot swappable 48-port VDSL2 line card over POTS and over ISDN
  • Support G.993.2, G.994.1, G.997.1
  • Maximum transmission rate up to 100 Mbps/ 50 Mbps
  • One mini-RJ11 console port
  • Two gigabit backplane
  • Support VDSL2 profiles 8a, 8b, 8c, 8d, 12a,12b and 17a
  • Support frequency allocation bandplan 998 and 997
  • Support U0 band, customer PSD, RFI notch, single latency in PTM mode and INP
  • Support UPBO and DPBO, Reed Solomon and trellis coding
  • Support ADSL fall back with ADSL/ADSL2/ADSL2+ CPE in Annex A, J, M, L modes
  • Support IEEE 802.1ag Connectivity Fault Management (CFM)

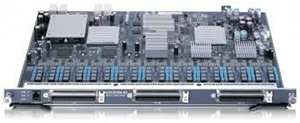

ADSL Line Cards - ALC1372G-51
  • Hot swappable 72-port ADSL2/ ADSL2+ Annex A line card
  • Maximum transmission rate up to 25 Mbps/ 2.4 Mbps for ADSL2+
  • One mini-RJ11 console port
  • One gigabit backplane
  • Support G.992.3 and G.992.5 spectral mask
  • Support EOC and overhead channel access defined in G.992.3 and Rec.G.997.1
  • Support the latency path function specified in G.992.3 and G.992.5
  • Support Annex L and Annex M specified in G.992.3 and G.992.5
  • Support loop diagnostic function specified in G.992.3 and G.992.5
  • Support the power management capability specified in G.992.3 and G.992.5
  • Support the capability of the Seamless Rate Adaptation (SRA) on-line configuration specified in G.992.3 and G.992.5
  • Support ADSL2+ 2-port bonding (G.998.1)
  • IPv6 capable
ADSL Combo Line Card - ALC1348G-51C
  • Hot swappable 48-port ADSL2+/VoIP Combo Card with built-in ETSI/ANSI POT Splitter
  • Maximum transmission rate up to 25 Mbps/2.4 Mbps for ADSL2+
  • One mini-RJ11 console port
  • One gigabit backplane
  • Support G.992.3 and G.992.5 spectral mask
  • Support EOC and overhead channel access defined in G.992.3 and Rec.G.997.1
  • Support the latency path function specified in G.992.3 and G.992.5
  • Support Annex L and Annex M specified in G.992.3 and G.992.5
  • Support loop diagnostic function specified in G.992.3 and G.992.5
  • Support the power management capability specified in G.992.3 and G.992.5
  • Support the capability of the Seamless Rate Adaptation (SRA) on-line configuration specified in G.992.3 and G.992.5
  • Support ADSL2+ 2-port bonding (G.998.1)
  • Support H.248 version 2 or SIP singling protocol
  • Compatible CPE including POTS phone, Fax, analog modem and pay phone
  • Support G.711 a/μ, G.726, G.729 a/b G.723.1
  • 20K Busy Hour Call Attempts (BHCA)
  • Configurable jitter buffer
  • Support the generation of dial tone, second dial tone, ringing tone (ring-back tone), busy tone, off-hook warning tone
  • Support call waiting, call hold, call transfer, return and call back on busy
  • Emergency call local route
  • Local dial available
  • MLT (Metallic Loop Testing for subscriber lines) and GR-909 loop diagnostic
  • Ringer Max output power: 40 W
  • IPv6 capable
SHDSL Line Card - SLC1248G-22
  • Hot swappable 48-port SHDSL line card
  • Support ETSI TS 101 524 V 1.2.1, ITU-T G.991.2, ITU-T G.991.2.bis
  • ATM-based multi-pair bonding (G.998.1) up to 8 ports
  • Symmetric transmission rate of 5.69 Mbps/port
  • One mini-RJ11 console port
  • One gigabit backplane
  • EFM mode compliant to IEEE 802.3, G.998.2
  • PPP over Ethernet (RFC2516)
  • OAMPDU Loopback Control
  • VLAN base QOS (802.1P/Q)
  • Support 2-wire/4-wire/6-wire and 8-wire mode SHDSL CPE auto detect in either ATM mode and EFM mode
VoIP Line Card - VOP1372G-61/ VOP1248G-61
  • Hot swappable 72-port VoIP line card
  • Support H.248 version 2 or SIP singling protocol
  • Compatible CPE including POTS phone, Fax, analog modem and pay phone
  • Support G.711 a/μ, G.726, G.729 a/b G.723.1
  • 20K Busy Hour Call Attempts (BHCA)
  • Configurable jitter buffer
  • Support the generation of dial tone, second dial tone, ringing tone (ring-back tone), busy tone, off-hook warning tone
  • Support call waiting, call hold, call transfer, return and call back on busy
  • Emergency call local route
  • Local dial available
  • MLT (Metallic Loop Testing for subscriber lines) and GR-909 loop diagnostic
  • Ringer Max output power: 24 Watt
  • IPv6 capable
Physical Specifications
IES-6000M
  • Item dimensions (W x D x H): 440 x 285x 544 mm (17.32” x 11.22” x 21.41”)
  • Item weight: 15 kg (33.15 lb)
  • Packing dimensions (W x D x H): 705 x 450 x 619 mm (27.75” x 17.71” x 24.36”)
  • Packing weight: 25.2 kg (55.69 lb)
Management Switch Card - MSC1224GB
  • Item dimensions (W x D x H): 390.6 x 240 x 13.8 mm (15.39” x 9.45” x 0.55”)
  • Item weight: 0.9 kg (1.99 lb)
  • Packing dimensions (W x D x H): 462 x 342 x 123 mm (18.18” x 13.46” x 4.84”)
  • Packing weight: 1.76 kg (3.89 lb)
Management Switch Card - MSC1024GB
  • Item dimensions (W x D x H): 390.6 x 240 x 13.8 mm (15.39” x 9.45” x 0.55”)
  • Item weight: 0.87 kg (1.92 lb)
  • Packing dimensions (W x D x H): 462 x 342 x 123 mm (18.18” x 13.46” x 4.84”)
  • Packing weight: 1.7 kg (3.76 lb)
Management Switch Signaling Card - MSC1024GC
  • Item dimensions (WxDxH):390.6 x 240 x 13.8 mm (15.39" x 9.45" x 0.55")
  • Item weight: 1.1 kg (2.46 lb.)
  • Packing dimensions (WxDxH):462 x 342 x 100 mm (18.18" x 13.46" x 3.94")
  • Packing weight: 1.97 kg (4.34 lb.)
E1 IMA Card - IMA1408G-81
  • Item dimensions (W x D x H): 390.6 x 240 x 13.8 mm (15.39” x 9.45” x 0.55”)
  • Item weight: 0.8 kg (1.77 lb)
  • Packing dimensions (W x D x H): 462 x 342 x 123 mm (18.18” x 13.46” x 4.84”)
  • Packing weight: 1.8 kg (3.96 lb)
Gigabit Ethernet Line Card - GLC1320G-55
  • Item dimensions (W x D x H): 390.6 x 240 x 13.8 mm (15.39” x 9.45” x 0.55”)
  • Item weight: 0.5 kg (1.1 lb)
  • Packing dimensions (W x D x H): 462 x 342 x 123 mm (18.18” x 13.46” x 4.84”)
  • Packing weight: 2.48 kg (5.48 lb)
VDSL Line Card - VLC1424G-56
  • Item dimensions (WxDxH):390.6 x 240 x 13.8 mm (15.39" x 9.45" x 0.55")
  • Item weight: 1 kg (2.2 lb.)
  • Packing dimensions (WxDxH):462 x 342 x 123 mm (18.18" x 13.46" x 4.84")
  • Packing weight: 2.54 kg (5.61 lb.)
VDSL Line Cards - VLC1348G-51/ VLC1348G-53
  • Item dimensions (WxDxH):390.6 x 240 x 13.8 mm (15.39" x 9.45" x 0.55")
  • Item weight: 1.3 kg (2.87 lb.)
  • Packing dimensions (WxDxH):462 x 342 x 123 mm (18.18" x 13.46" x 4.84")
  • Packing weight: 2.62 kg (5.79 lb.)
ADSL Line Card - ALC1372G-51
  • Item dimensions (W x D x H): 390.6 x 240 x 13.8 mm (15.39” x 9.45” x 0.55”)
  • Item weight: 1.1 kg (2.43 lb)
  • Packing dimensions (W x D x H): 462 x 342 x 123 mm (18.18” x 13.46” x 4.84”)
  • Packing weight: 2.2 kg (4.86 lb)
ADSL Combo Line Card - ALC1348G-51C
  • Item dimensions (WxDxH):390.6 x 240 x 13.8 mm (15.39" x 9.45" x 0.55")
  • Item weight: 1.5 kg (3.51 lb.)
  • Packing dimensions (WxDxH):462 x 342 x 100 mm (18.18" x 13.46" x 3.94")
  • Packing weight: 2.4 kg (5.37 lb.)
SHDSL Line Card - SLC1248G-22
  • Item dimensions (W x D x H): 390.6 x 240 x 13.8 mm (15.39” x 9.45” x 0.55”)
  • Item weight: 0.5 kg (1.1 lb)
  • Packing dimensions (W x D x H): 462 x 342 x 123 mm (18.18” x 13.46” x 4.84”)
  • Packing weight: 2.1 kg (4.64 lb.)
VoIP Line Card - VOP1248G-61
  • Item dimensions (WxDxH):390.6 x 240 x 13.8 mm (15.39" x 9.45" x 0.55")
  • Item weight: 1.4 kg (3.09 lb.)
  • Packing dimensions (WxDxH):462 x 342 x 123 mm (18.18" x 13.46" x 4.84")
  • Packing weight: 2.2 kg (4.861 lb.)
Environmental Specifications
Operating temperature  -40°C to 50°C (-40°F to 122°F)
Operating humidity 10% to 95% (Non-condensing)
Storage temperature -40°C to 50°C (-40°F to 122°F)
Storage humidity 10% to 95% (Non-condensing)
Power Supply -48V DC
Full load power consumption
  • IES-6000M: 70 W
  • MSC1224GB: 45 W
  • MSC1024GB: 40 W
  • MSC1024GC: 36 W
  • IMA1408G-81: 32 W
  • GLC1320G-55: 40 W
  • VLC1424G-56: 66 W
  • VLC1348G-51/VLC1348G-53: 93 W
  • ALC1372G-51: 85 W
  • ALC1348G-51C: 166 W
  • SLC1348G-22: 45 W
  • VOP1372G-61: 144 W
Certification
Safety
  • CE
  • UL 60950, CSA 60950
  • FCC part 15 Class A
  • ITU-T K.20
EMC
  • ETSI 300 019
  • EN55022 class A
  • EN55024 class A
  • ETSI 300 386 Class A

Line Cards:


MSC1224GB

Management Switch Signaling Card

MSC1224GB

MSC1024GB

Management Switch Signaling Card

MSC1024GB

MSC1024GC

Management Switch Signaling Card

MSC1024GC

IMA1408G-81

8-port E1 IMA Uplink Line Card

IMA1408G-81

GLC1320G-55

20-port Gigabit Ethernet Line Card

GLC1320G-55

ALC1372G-51

72-port Annex A ADSL2+ Line Card

ALC1372G-51

VLC1424G-56

24-port 30a Annex A VDSL2 Line Card

VLC1424G-56

VLC1348G-51

48-port 17a Annex A VDSL2 Line Card

VLC1348G-51

VLC1348G-53

48-port 17a Annex B VDSL2 Line Card

VLC1348G-53

SLC1348G-22

48-port SHDSL Line Card

SLC1348G-22

VOP1372G-61

72-port VoIP Line Card

VOP1372G-61

VOP1248G-61

48-port VoIP Line Card

VOP1248G-61


Application Diagram:

Application Diagram

Pricing Notes:

ZyXEL Products
ZyXEL MSANs / DSLAMs
ZyXEL IES-6000M 12.5U 17-slot Chassis MSAN
#IES6000M
List Price: $2,999.99
Our Price: $2,403.00
ZyXEL Line Cards
ZyXEL MSC1024G Management Switch Card
#MSC1024G
List Price: $1,999.99
Our Price: $1,602.00
ZyXEL MSC1024GB Management Switch Card with 4 GbE uplink ports
#MSC1024GB
List Price: $1,779.99
Our Price: $1,423.00
ZyXEL MSC1224G 10G Management Switch Card with two 10G and 4 GbE uplink ports
#MSC1224G
List Price: $3,399.99
Our Price: $2,705.00
ZyXEL VLC1348G-51 48-port DMT-based VDSL2 line card (Annex A, 17a profile)
#VLC1348G-51
List Price: $4,299.99
Our Price: $3,431.00
ZyXEL VOP1248G-61 48-port VoIP Line Card
#VOP1248G-61
List Price: $7,499.99
Our Price: $6,022.00
