ZyXEL IES-1000 Series
1U 2-slot Remote MSAN and Line Cards


ZyXEL IES-1000

ZyXEL Products
ZyXEL MSANs / DSLAMs
ZyXEL IES-1000 1U 2-slot Remote MSAN Chassis
#IES1000
List Price: $199.99
Our Price: $161.00

Click here to jump to more pricing!

Overview:

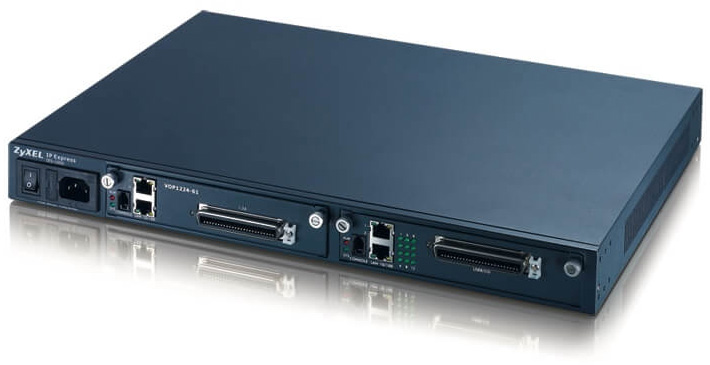

The IES-1000 has two slots for various combinations of DSL and VoIP line modules to provide ADSL2+, G.SHDSL and VoIP services to residential and business customers. IES-1000 is a pizza box IP-based multi-service access node (MSAN). It has two slots for various combinations of DSL and VoIP line modules to provide ADSL2+, G.SHDSL and VoIP services to residential and business customers. It terminates the ATM traffic of DSL connections and POTS voice signals to make them IP packets and route them through IP networks. With the highly compact design (1U heigh), AC and DC power input as well as simple installation, IES-1000 can be deployed at Telco and SMB environment to meet all kinds of market demands.

Benefits:

Lease Line G.SHDSL Service for Enterprise

With G.SHDSL technology, the IES-1000 is applicable for lease line replacement. Using the TC-PAM modulation technique, IES-1000 is compatible with other existing transmission technologies, allowing service providers to deploy at locations where broadband services already exist.

M-Pair Bonding G.SHDSL.bis Solution

IES-1000 supports the new-generation G.SHDSL.bis line module to provide transmission rate up to 4096kbps symmetrically in a single pair. It also comes with two 100Mbps Ethernet interfaces toward Ethernet aggregation network. One IES-1000 can accommodate two SAM1216-22 modules to support 32 SHDSL connections. In addition, the SAM1216-22 supports ITU G.991.2 m-pair bonding in a physical layer manner. The m-pair bonding can be 2 or 4 pairs and the aggregated payload rate is around 16Mbps

VoIP line module to provide media gateway feature

In addition to FAX and modem services, VoIP line module provides a parallel and distributed media gateway architecture to empower VoIP services by taking advantage of POTS voice signals,. With the architecture, the line module serves up to 24 POTS ports. As part of the benefit, there is no throughput bottleneck or single-point failure issue in this architecture, The media gateway provides G.711, G.723, G.726, G.729a/b and T.38 codecs while RFC3261 SIP network signaling protocols is supported

Extensive Management Capabilities

The entire IES-1000 system can be administrated remotely with the Windows-based NetAtlas Access EMS (Element Management System) based on the SNMP-manageable SNMPc platform. NetAtlas Access EMS provides powerful advanced remote management capabilities that help service providers minimize daily operational costs. Its loop-back design helps isolating network problems while the new firmware and IP Express configuration allow changes to be done remotely, eliminating the need for "truck rolls" in order to provision services to new customers or to reconfigure services for existing customers

Specifications:


System Specifications

  • Delivery of Ethernet in the first mile using legacy LAN technologies
  • End-to-end provisioning by offering DSL circuit configuration through NetAtlas Access EMS
  • Support expandable configuration with plug-and-play line cards
  • SNMP v1, v2 manageable
  • Web management
  • FTP/TFTP for firmware upload
  • Console port configuration (RS-232)
  • Telnet configuration and monitoring
  • Spanning tree algorithm (802.1D) for loop free connection
  • Configurable MTU value
  • PPPoE intermediate agent compliant with TR-101
  • G.998.1 ATM bonding
  • 802.1Q VLAN aware bridging
    • IGMP snooping supports multicast traffic
    • QoS support with 802.1p
    • DHCP relay agent option 82 per VLAN
    • Port isolation/per VLAN isolution
    • 256 static VLAN entries (full-range VLAN ID 1~4094)
    • 4 K MAC address entries
  • Packet prioritizing per 802.1p (QoS)
    • Static configuration – default priority setting
    • 4 priority queues per PVC (up to 4 PVCs)
  • Multicast
    • IPv4 multicast forwarding (through L2 MAC)
    • Static multicast membership configuration
    • IGMP v1, v2 snooping & IGMP proxy mode support
    • Shared VLAN multicast
    • 256 multicast groups and each group can contain 18 members
    • IGMP filtering profile
    • IGMP count limiting
    • MVLAN
    • DSL port multicast bandwidth control
  • Management support
    • CLI-based management from console/Ethernet port
    • SNMPV1,v2 and telnet through Inband Ethernet interface and NetAtlas Access, PC-based EMS management support
    • Web-based management through Inband Ethernet interface
    • Secured Host: configure remote host IP addresses for management
    • UNIX syslog
    • F/W upgrade, configuration backup & restore via FTP and Web
    • Text-based configuration file support
  • Port configuration
  • Alarm/Status Surveillance
  • Performance monitoring
  • Security and Memory Backup
  • Self diagnostics
  • Remote reset
  • EMS Management support
  • MIB
  • SNMP MIB II (RFC1213)
  • SNMP v1
  • SNMP v2
  • RFC1493 Bridge MIB
  • RFC1643 Ethernet MIB
  • RFC1757 Four group of RMON
  • RFC2674
  • RFC2662 ADSL line MIB
  • RFC4319 (formerly RFC3276) SHDSL Line MIB

Hardware Specifications

  • IES-1000M
    • 19"1U rack mountable, 2 card slots chassis
    • Dimension : 440 mm (W) x 320 mm (D) x 46 mm (H)
    • 2 line cards to accommodate different types of DSL services as well as VoIP services
    • Fully hot-swappable design
    • Support 8 to 32 ports in MDU/central office environment
    • Temperature monitoring and alarm
    • Auto-shutdown for over temperature
    • Surge protection to prevent lightning damage
  • SAM1216-22 line module
    • One Telco 50 connectors for 16-port G.SHDSL.bis
    • One mini RJ11 console port for local management
    • Two 10/100Base-TX for uplink
    • In-band Ethernet management
    • Status LEDs- System Status, Ethernet Link Status, Ethernet Active Status, G.SHDSL.bis ports status, Alarm
    • Line coding: TC-PAM
    • Transmit power: up to 16.8 dBm
    • Density: 16 ports per chip
    • SHDSL payload format: ATM
    • Rate Adaptation Mode: fixed, line probing
    • Up to 4096kbps in single pair, m-pairs (2/4 pairs mode) bonding support up to  16.384Mbps
    • Annex A and annex B PSD mask
    • SHDSL line profile
    • SHDSL alarm profile
    • Power backoff
    • Standard Compliant
      • ETSI SDSL (ETSI TS 101 524 V 1.2.1)
      • ITU G.shdsl (ITU-T G.991.2 (2001)
      • ITU G.shdls.bis (ITU-T G.991.2 (2004)

Physical Specifications

  • IES-1000M
    • Dimension: 440 (W) x 320 (D) x 46 (H)mm
    • Weight : 3.7Kg
  • SAM1216-22
    • Dimension: 170 (W) x 320 (D) x 35 (H)mm
    • Weight : 0.9Kg

Environmental Specification

  • Power supply (AC/DC)
    • AC Power: 100~240V AC, 50 ~ 60Hz
    • DC Power:  -36 ~ -72 V DC
  • Power consumption
    • AAM1212-51: 25W
    • SAM1216-22: 25W
    • VOP1224-61 : 30W
  • Operating Temperature:0°C~ 50°C
  • Storage temperature:-40°C~ 70°C
  • Operating Humidity:10% ~ 90% (non-condensing)
  • Storage Humidity:10% ~ 95% (non-condensing)

Certification

  • Safety
    • UL 60950-1
    • CSA 60950-1
    • EN60950-1
    • IEC 60950-1
  • EMC
    • FCC Part 15B Class A
    • EN55022 Class A
    • EN55024 Class A
    • ETSI 300386
  • Reliability
    • ETSI 300019
    • Telecom
    • ITU-T K20

Pricing Notes:

ZyXEL Products
ZyXEL MSANs / DSLAMs
ZyXEL IES-1000 1U 2-slot Remote MSAN Chassis
#IES1000
List Price: $199.99
Our Price: $161.00
ZyXEL Line Cards
ZyXEL AAM1212-51 12-port ADSL2+ Module for IES-1000 Series
#AAM1212-51
List Price: $715.99
Our Price: $576.00
ZyXEL VOP1224-61 24-port VoIP Line Card for IES-1000 Series
#VOP1224-61
List Price: $2,699.99
Our Price: $2,144.00
