ZyXEL HLA3105
HomePNA 3.1 Coax Ethernet Bridge

ZyXEL HLA3105

ZyXEL Products
ZyXEL Powerline

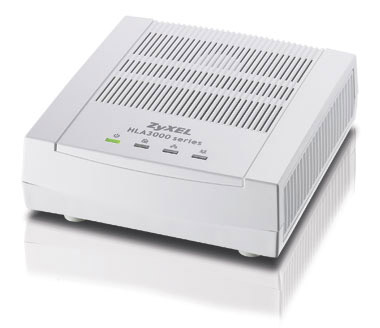

ZyXEL HLA3105 HomePNA 3.1 Coax Ethernet Bridge
#HLA3105
List Price: $99.99
Our Price: $82.00

Click here to jump to more pricing!

Overview:

HomePNAHassel-free IPTV Streaming over Coaxial Networks

With a plug-and-play design, the HLA3105 HomePNA 3.1 Coax Ethernet Bridge provides an easy way for telcos to deliver IPTV services through the existing coaxial wiring. Just plug a pair of HLA3105 into the coaxial outlets in two rooms; one connects the HLA3105 to your DSL modem through a Ethernet cable, and the other to an Ethernet-equipped device as a set-top box; thus the IPTV services can be delivered to every room at home without laying new wires.

  • Plug-and-play bridge adapter converts Ethernet to/from coaxial wirings
  • HPNA 3.1 (ITU G.9954) compliant with data transfer rates of up to 320Mbps*
  • Two F-types coaxial connecters with internal filters to provide a cost-saving solution for reducing signal interference to the legacy TV
  • One Fast Ethernet port for FTTx, DSL modem and Ethernet terminals as Set-top Box

* The actual data rate may vary depending on the coaxial wire noise level and quality of coaxial installation.

Benefits:

Turn coaxial outlets into a IPTV network

With a plug-and-play design, the HLA3105 HomePNA 3.1 Coax Ethernet Bridge provides an easy way for telcos to deliver IPTV services through the existing coaxial wiring. Just plug a pair of HLA3105 into the coaxial outlets in two rooms; one connects the HLA3105 to your DSL modem through a Ethernet cable, and the other to an Ethernet-equipped device as a set-top box; thus the IPTV services can be delivered to every room at home without laying new wires.

HPNA 3.1 compliant for quality HD media streaming

Complying with the HPNA3.1 (ITU G.9954) standard, the HLA3105 is capable of delivering IPTV services over the existing coaxial cables at effective throughputs of up to 200 Mbps* with QoS and Dynamic Bandwidth Allocation (DBA™).

Embedded filter reduces installation cost and signal interference to the legacy TV

Equipped with internal filters, the HLA3105 saves installation cost of external filters since it delivers CATV signals to the TV and converts remote HomePNA signals to the Ethernet-equipped devices such as set-top boxes at the same time.

* The actual data rate may vary depending on the coaxial wire noise level and quality of coaxial installation.

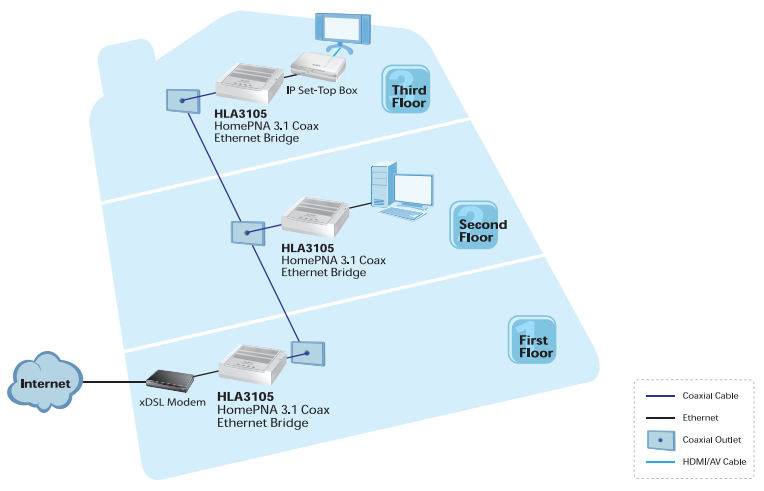

Application Diagram:

Application Diagram

Specifications:

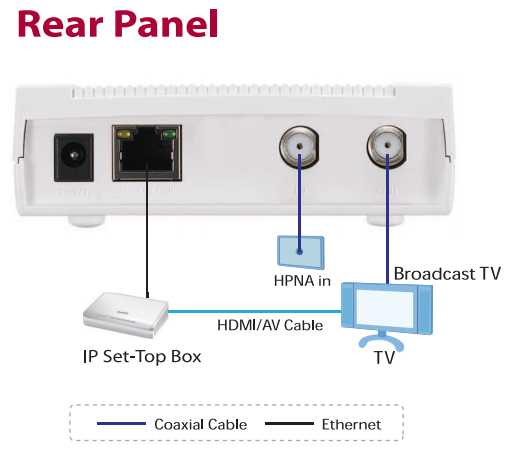

Rear Panel

HLA3105 Specifications
System Specifications
Network Standard
  • HomePNA 3.1
  • ITU-T G.9954
  • IEEE 802.3 Ethernet
  • IEEE 802.3u Fast Ethernet
  • IEEE 802.3x flow control
Range Up to 1,000 meters (3280 feet) over coaxial cable
Nodes Allow up to 60 HomePNA adaptors to connect to the coaxial home network
Quality of Service (QoS) Support the guaranteed (parameterized) and prioritized QoS
Security AES 128-bit based encryption
Feature ToS, VLAN Tag pass through
Frequency band 12-44 MHz
Hardware Specifications
Interface
  • One auto-MDIX 10/100M RJ-45 Ethernet port
  • Two F-Type coaxial connectors
LED indicator
  • 4 LEDs
    • Power
    • Signal quality
    • Coaxial link/activity
    • Ethernet link
Power DC 5V, 1A
Power consumption 3 Watt
Physical Specifications
Item dimensions (WxDxH) 112 x 106 x 28.5 mm (4.41 x 4.17 x 1.1 )
Item weight 167g (0.37lb)
Packing dimensions (WxDxH) 273 x 230 x 68 mm (10.75 x 9.05 x 2.68)
Packing weight 420g (0.93lb)
Environmental Specifications
Operating Environment
  • Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Humidity: 20% ~ 85% (Non-condensing)
Storage Environment
  • Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
  • Humidity: 20% ~ 95% (Non-condensing)
Certifications
Safety CSA
EMC CE, FCC
Others HomePNA 3.1
Package Contents
Package Contents
  • Coax Ethernet Bridge
  • Power adapter
  • Ethernet cable
  • User's guide
  • Warranty card

* The theoretical maximum channel data transfer rate is derived from HomePlug AV2 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, quality of electrical installation and other adverse conditions.

Documentation:

Download the ZyXEL PLA5456 Datasheet (PDF).
