Smart Managed Switch Embracing Greater Bandwidth and Future-proof Technologies

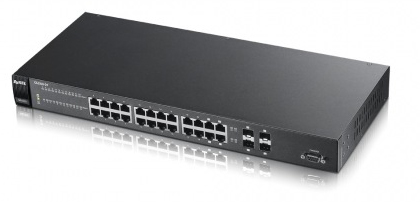

The ZyXEL XGS1910/GS1910 Series 24/48-port GbE Smart Managed Switch is smart switches with optional 10GbE uplink for maximum throughput to fulfill increasing network demands for Small and Medium Businesses (SMB). The Series consists of six models—XGS1910-24, XGS1910-48, GS1910-24, GS1910-24HP, GS1910-48 and GS1910-48HP—that provide 24/48 10/100/1000BASE-T PoE Plus or non-PoE copper ports. The XGS1910 models provide 2/4 10GbE connectivity for uplinks.
The XGS1910/GS1910 Series is ideal for securing 10/100, Gigabit and 10GbE connectivity; it also offers IEEE 802.3az, access security, advanced prioritization, traffic-monitoring capabilities and a fanless design. Meanwhile, the Series supports smooth IPv6 migration for future expansions. As a result, the XGS1910/GS1910 Series is suitable for fulfilling SMB network needs with cost-effective, valuable frameworks.
- Advanced Smart GbE L2 ACL switching features
- 48/88/104/176 Gbps non-blocking switch fabric (XGS1910-24: 88, XGS1910-48: 176, GS1910-48/48HP: 104, GS1910-24/24HP: 48)
- 2/4 10GbE uplink SFP+ ports (XGS1910-24/XGS1910-48)
- IEEE 802.3at Power over Ethernet Plus (PoE+, GS1910-24HP/GS1910-48HP)
- Supports IPv6
- Fanless design (GS1910-24)
Smart Layer 2 features enrich access networks
The ZyXEL XGS1910/GS1910 Series consists of full-featured GbE Ethernet switches providing comprehensive Layer 2 switching capabilities such as Access Control List (ACL) rules and 802.1AB LLDP and LLDP-MED, etc. The Series delivers the essential network features for businesses with easy-to-use management at a right price. That is, the XGS1910/GS1910 Series is the best Edge switch range for small- and medium-size businesses to build high-performance network efficiently.
GbE bandwidth for desktops
When videos of higher resolution and data flow constantly evolve, network user demands might not be satisfied and business operations hampered by insufficient bandwidth. The ZyXEL XGS1910/GS1910 Series provides GbE bandwidth to desktops to ensure sufficient bandwidth for all business communications, data delivery and daily operations. Taking advantages of GbE, businesses can create premium worry-free IT environment and expand operations with desirable efficiency and productivity
Energy management with IEEE 802.3az and IEEE 802.3at PoE Plus
As operating overheads such as electric bills increase constantly due to the rising green awareness, businesses have to avoid unnecessary energy waste. The built-in IEEE 802.3az Energy Efficient Ethernet (EEE) features of ZyXEL XGS1910/GS1910 Series can reduce energy consumption of Ethernet devices through defining low-power modes and adjusting the operating timeframe to help saving the related costs effectively.
Meanwhile, although IEEE 802.3af is insufficient for providing power to large-scale network deployments or high-power devices such as outdoor Wi-Fi APs, IP cams and IP phones, fortunately the ZyXEL GS1910 Series features IEEE 802.3at PoE Plus with up to 30 W power per port to flexibly extend network deployments. 802.3at PoE Plus makes the switch ideal for connecting numerous powered devices to form a flawless business network.
Optional 10GbE uplink for flexible data delivery
Ready for the future 10 Gigabit Ethernet, the ZyXEL XGS1910 Series collocates 2/4 10GbE connectivity for uplinks that allow SMBs to deliver higher bandwidth for congestion relief and smooth data delivery. Furthermore, 10GbE Gigabit uplinks to desktops also allow businesses to become highly efficient IT environments for secure, smooth daily online operations.
|Product Name||24-port GbE Smart Managed Switch with 10GbE Uplink||48-port GbE Smart Managed Switch with 10GbE Uplink||24-port GbE Smart Managed Switch||24-port GbE Smart Managed PoE+ Switch||48-port GbE Smart Managed Switch||48-port GbE Smart Managed PoE+ Switch|
|10/100/1000 BASE-T, fixed||20||44||20||-||48||-|
|10/100/1000 BASE-T, PoE, fixed||-||-||-||20||-||48|
|Open SFP (GbE)||-||-||-||-||4||4|
|Dual-personality GbE ports||4||4||4||4||-||-|
|Switching capacity (Gbps)||88||176||48||48||104||104|
|Switch forwarding rate (Mpps)||65.5||131||35.7||35.7||77.4||77.4|
|Packet buffer (byte)||4 M||4 M||512 K||512 K||4 M||4 M|
|MAC address||32 K||32 K||8 K||8 K||32 K||32 K|
|Input voltage of AC||AC Power input (100 V - 240 V)|
|50 - 57 V output for PoE|
|Max. power consumption (watt)||32||61||18||484||49||519|
|PoE power budget (watt)||-||-||-||370||-||370|
|430 x 180 x 44/16.93 x 7.09 x 1.73||430 x 250 x 44/16.93 x 9.84 x 1.73||430 x 180 x 44/16.93 x 7.09 x 1.73||430 x 350 x 44/17.32 x 13.78 x 1.73||430 x 250 x 44/16.93 x 9.84 x 1.73||440 x 350 x 44/17.32 x 13.78 x 1.73|
|545 x 303 x 95/21.46 x 11.93 x 3.74||540 x 362 x 87/21.26 x 14.25 x 3.43||545 x 303 x 95/21.46 x 11.93 x 3.74||568 x 452 x 100/22.36 x 17.80 x 3.94||540 x 362 x 87/21.26 x 14.25 x 3.43||568 x 452 x 100/22.36 x 17.80 x 3.94|
|Operating environment||Temperature||0°C to 50°C/32°F to 122°F|
|Humidity||10% to 95% (non-condensing)|
|Storage environment||Temperature||-40°C to 70°C/-40°F to 158°F|
|Heat dissipation (BTU/hr)||109.1||206.3||61.4||1650.4||167.1||1769.8|
Traffic Management and QoS
Class of Service (CoS)
Resilience and Availability
Layer 2 Multicast
Download the ZyXEL XGS1910/GS1910 Series Datasheet (PDF).
