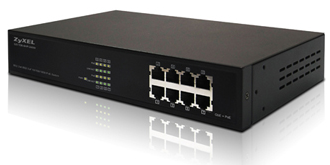

ZyXEL GS1100-8HP-240W
8-port 240W PoE+ Switch

GS1100-8HP-240W

ZyXEL Products
ZyXEL Products
GS1100-8HP-240W - 8-Port Gigabit 802.3at/802.3af PoE+ (8 Ports PoE+ 30W per Port) 240W Power Budget
#GS1100-8HP-240W
List Price: $319.99
Our Price: $229.99

Click here to jump to more pricing!

Overview:

The ZyXEL GS1100-8HP-240W is the best solution for instant connectivity in office environments. The GS1100-8HP-240W provides plug-and-play no configuration simplicity for high-bandwidth network applications.

The GS1100-8HP-240W offers 8 ports of Gigabit for Simple Home or Office Networking of Desktops, Servers and Printers.

The GS1100-8HP-240W also provides up to 30W of power to each port for the latest PoE+ devices, such as High Power Access Points, IP Cameras, and VoIP Phones. This powerful switch provides devices with a FULL power budget of 240 Watts.

With its Smart Plug and Play design, you can install the GS1100-8HP-240W easily with no configurations required.

Compliant with IEEE 802.3ab1000Base-T and IEEE 802.3af/802.3at standards, the GS1100-8HP-240W ensures compatability with each standard.

The compact, rigid desktop size of the GS1100-8HP-240W was specifically designed for small to medium workgroups where it can be installed where space is limited.

  • IEEE 802.3 at PoE Plus standard with 30W per port
  • Non-blocking, wire-speed transmission
  • Auto MDI/MDI-X support
  • Broadcast storm control

Specifications:

System Compliance

  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T (GS1100-8HP-240W)
  • IEEE-802.3af/IEEE802.3at PoE

Safety Agency Certification

  • FCC Part 15 Class A
  • CE EMC Class A
  • UL
  • RoHS Compliant
Model ES100-8HP-240W GS1100-8HP-240W
Product name 8- port FEUnmanaged PoE Switch 8- Port PoE+ Gigabit Switch
Standards IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX/100BaseFX
IEEE 802.3af/802.3at PoE
IIEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX/100BaseFX
IEEE802.3ab 1000BaseT
IEEE802.3af/ 802.3at PoE
Features Number of Ports:
8x 10/100BaseT and PoE Ports with RJ45
Auto-learning networking configurations
Built-in 4K MAC learning table, 1.25M bits buffer memory
Number of Ports:
8x Gigabit and PoE Ports with RJ45
Auto-learning networking configurations
Built-in 8K MAC learning table, 2M bits buffer memory
Jumbo Frames 9K
Data Transfer Rate Ethernet:
10Mbps/Half-Duplex
20Mbps/Full-Duplex
Fast Ethernet:
100Mbps/Half-Duplex
200Mbps/Full-Duplex
Filtering/Forwarding Rate:
100Mbps/148,800pps;
10Mbps/14,880pps
Supports packet length 1600 bytes
Ethernet:
10Mbps/Half-Duplex
20Mbps/Full-Duplex
Fast Ethernet:
100Mbps/Half-Duplex
200Mbps/Full-Duplex
Gigabit Ethernet:
1000Mbps/ Half-Duplex
2000Mbps/Full-Duplex
Filtering/Forwarding Rate:
1000Mbps/1,488,000pps
100Mbps/148,800pps
10Mbps/14,880pps
Supports packet length 1522 bytes/ Max 16Kbytes
Transmission Media 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m
100BaseTX Cat. 5 UTP/STP, up to 100 m
10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m
100BaseTX Cat. 5 UTP/STP, up to 100 m
1000Base T cat 5,6 UTP
LED Indicators Per Port:
(TX): Link/Act, PoE Per Unit: Power
Per Port:
(TX): Link/Act, PoE Per Unit: Power
Power Requirement AC input (90~260V/AC, 50~60Hz)
UL Safety 250Watt.
PoE Max Consumption 30W per port, 240Watt total max.
AC input (90~260V/AC, 50~60Hz)
UL Safety 250Watt.
PoE Max Consumption 30W per port, 240Watt total max.
Power Supply 250Watt 250Watt
Dimensions 263 x 160 x 44 mm (L x W x H) 263 x 160 x 44 mm (L x W x H)
Weight 1320 g 1320 g
Operating Temperature 0 to 55º C 0 to 55º C
Storage Temperature -20 to 90º C -20 to 90º C
Humidity 10 to 90% RH (non-condensing) 10 to 90% RH (non-condensing)
Certifications FCC Class, CE FCC Class, CE

Documentation:

Download the ZyXEL GS1100-8HP-240W Data Sheet (PDF).
